Geophysical Instrument and Detector Equipment for Resistivity Meter and Underground Water Detection, Water Detection Machine,

Product Overview

Description

Geophysical Instrument and Detector Equipment for Resistivity Meter and Underground Water Detection, Water Detection Machine, Geophysical Survey Equipment

Voltage range	-2500mV~+2500mV
Voltage resolution	0.01uV
Input Impendence	≥50MΩ
SP compensation range	±2500mV
Currency channel	6A,±4% ±1 bit
Currency resolution	0.02uA
Anti-jamming on 50HZ	better than 80dB
Max. transmitting power	6000W
Max. power supply	1000V
Max. Currency	6A
Power supply Waveform	pulse width 1-60 seconds, duty ratio1:1, Bipolar
Internal storage	2GB(extend to 32GB)
Power supply	14.8V 5200mAH lithium battery
Working environment	-20℃~+60℃,95%Rh
Storage temperature	-20℃~+60℃
Dimension	270mm×110mm×223mm



Feature of ADMT-6B gold mineral detector price:

1. Full intellectual property
2. High-tech product
3. Efficient, easy to operation
4. High accuracy, wide frequency range

5. High precision: Using the latest circuit design, single-chip microcomputer control, automatic noise control, digital filtering, greatly improve the measurement precision and stability
6. Easy operation: Humanized human-computer interface, built-in device directly read resistivity

7. Safe and reliable: Over voltage, over current, battery protection and battery display, power failure protection, etc
8. Membrane switch panel, ABS shell, nice appearance, durable



The Principle of ADMT-6B gold mineral detector price:

     The Multi-Function Digital DC IP(Induced Polarization) Detector uses the apparent resistivity method and induced polarization method to seek groundwater.Through artificial DC method to supply power to the earth, then receive data and calculate the apparent resistivity, the activation rate, the half failure, the deviation and Integrated IP to judge if the groundwater exist.It is the most basic instrument for water locating, which has mature technology, reliable capability.Until now, it brings huge profits to units and individuals and it is recognized as a low-cost and reliable-performance electrical prospecting water detector.

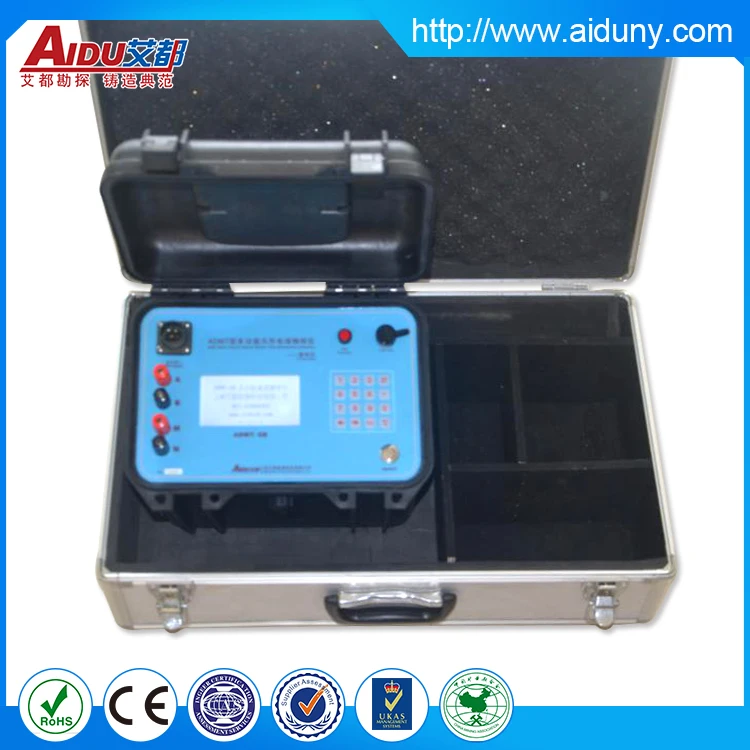

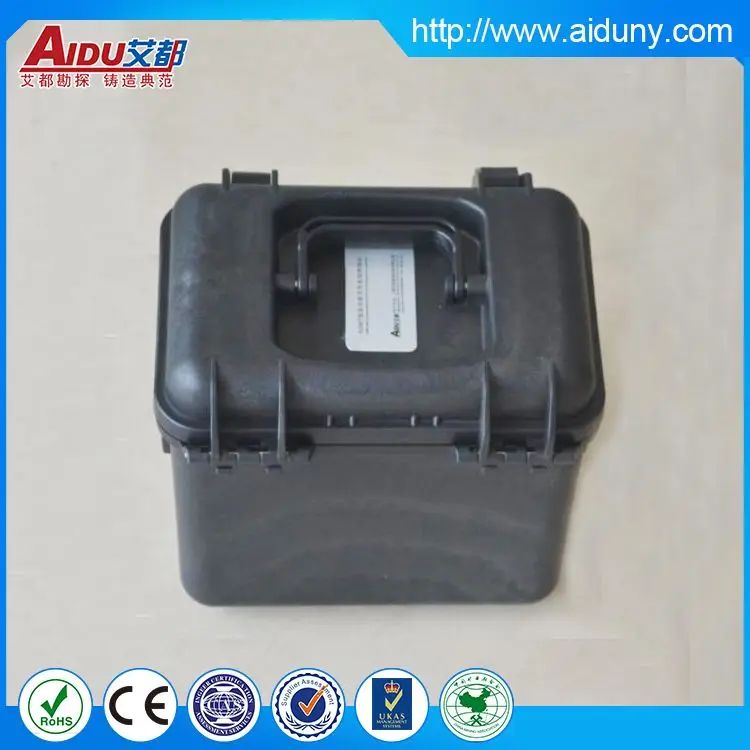

Pictures of ADMT-6B gold mineral detector price:







Application of ADMT-6B gold mineral detector price:
Metal detection,mineral exploration ;
Finding the flowing direction and depth. The detailed survey and census work of hydrogeololgy.
Environmental investigation, the design of electric power, engineering prospecting, geothermal exploration, mined-out areas, geological hazards investigation etc.
The detailed survey and census work of metal and non-metallic mineralEngineering geological prospect and disaster geological detect;
Coal goaf, archaeological mining, city exploration and non-metal pipe survey.

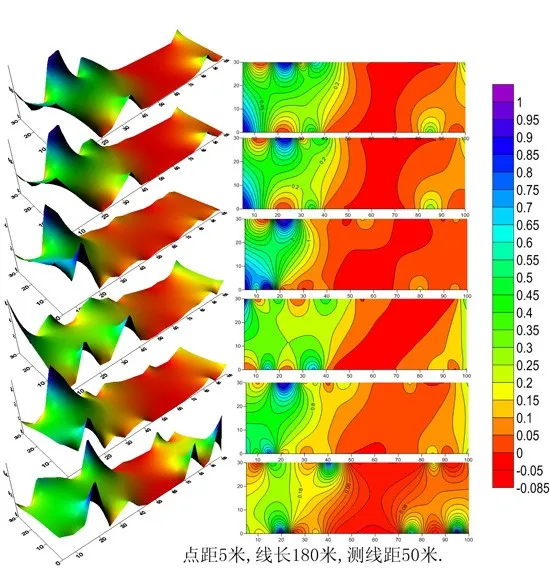

Successful Cases:
