MPP 824J 400V Capacitor 0.82uf 400V

Product Overview

Description

MPP 824J 400V Capacitor 0.82uf 400V





1. Features and Usage

1)This is constructed from metallized polypropylene film dielectric, non-inductive construction.

2)Epoxy resin coating, radial CP wire.

3)Very small dissipation factor at high-frequency, very small inner temperature rise.

4) Good stability of capacitance, excellent insulation resistance property.

5) excellent self-healing property.

6) suitable for DC, pulse, high-frequency large-current application widely used in display, sound equipment, audio-visual devices, telecommunication equipment, data transmission and process facility and various electronic equipment.

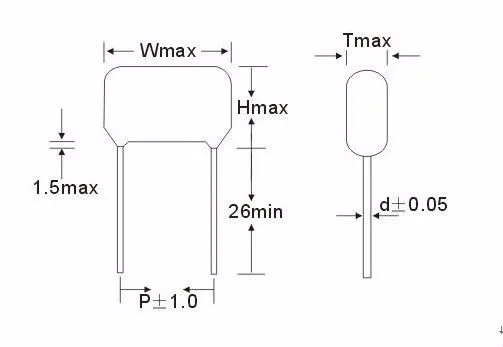

2. Outline Drawing



3. Specifications:



Reference standard	GB/T 10190-88 IEC384-16
Climate category	40/085/21
Rated voltage	100V 160V 250V 400V 630V DC
Capacitance range	0.01-4.7uf
Capacitance tolerance	J (±5%), K(±10%)
Voltage proof	1.6Ur(5s)
Insulation resistance	CR≤0.33UF, F≥30000MΩ CR≤0.33UF, F≥10000MΩ.uf (20°C,1 min)
Dissipation Factor	≤0.001 (20°C,1kHz)





 4.Details Dimensions:



                                                                                                                                                                           Unit:mm

RV	250VDC					400VDC					630VDC
CAP(uf)	W	H	T	P	D	W	H	T	P	D	W	H	T	P	D
0.82	17	14	9	15	0.8	17	14	9	15	0.8	23	16.5	9.5	20	0.8
	22	14	7	20	0.8	22	14	7	20	0.8	24	18.5	10	22	0.8







NOTE: General size listed in above from, special value on size is available by consulting on request. Please specify requirements of size when sampling and purchasing capacitors.
