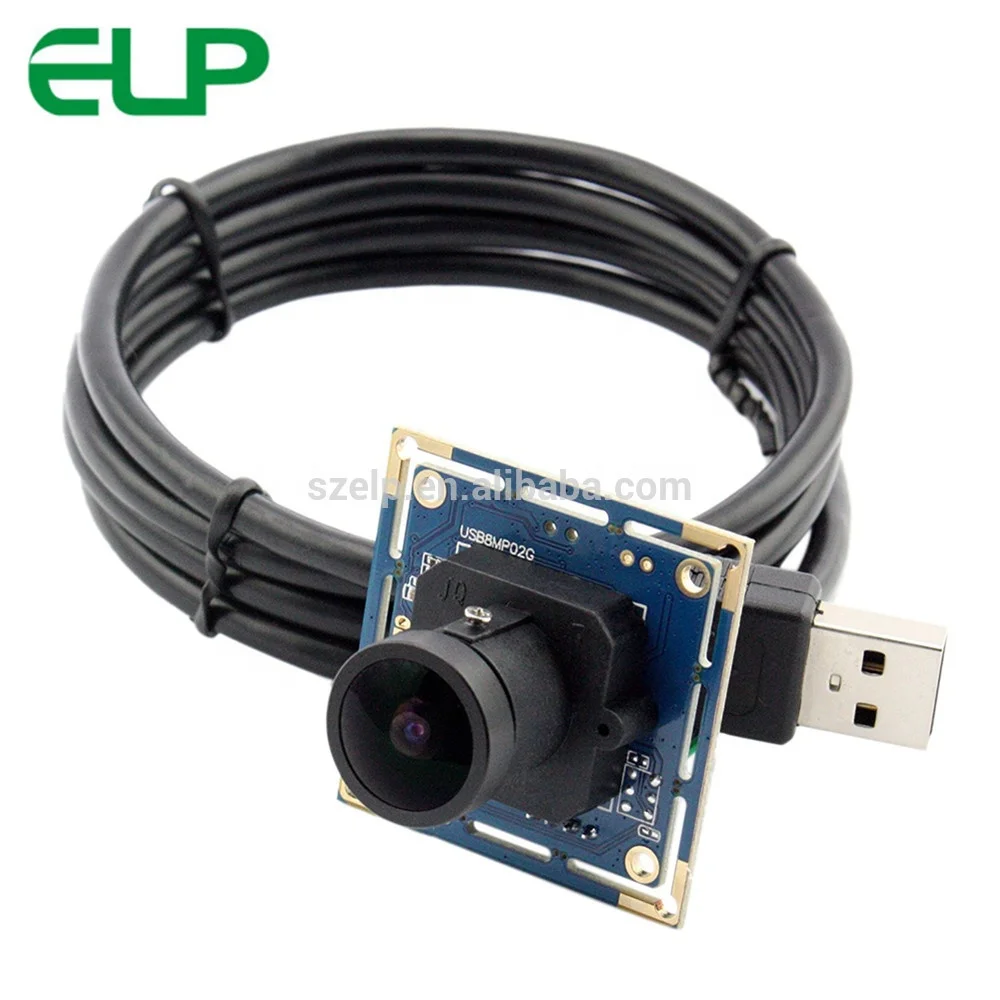

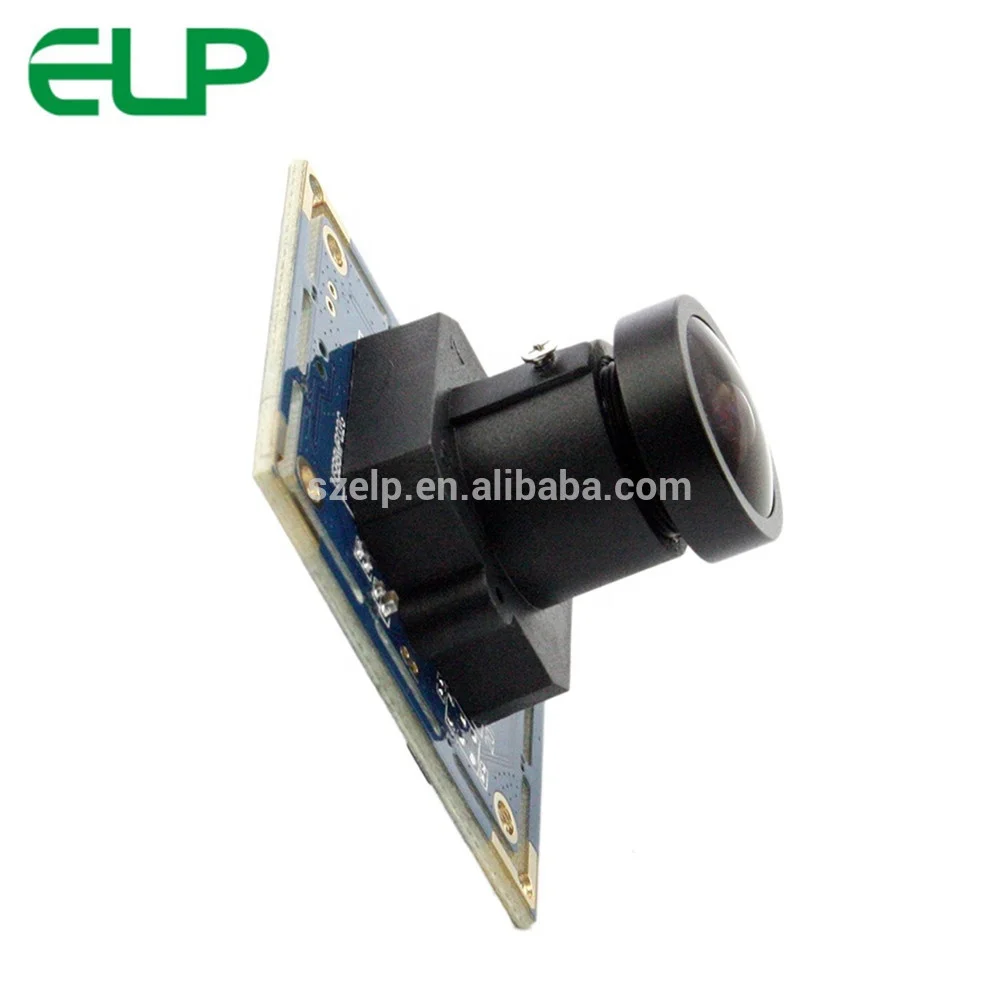

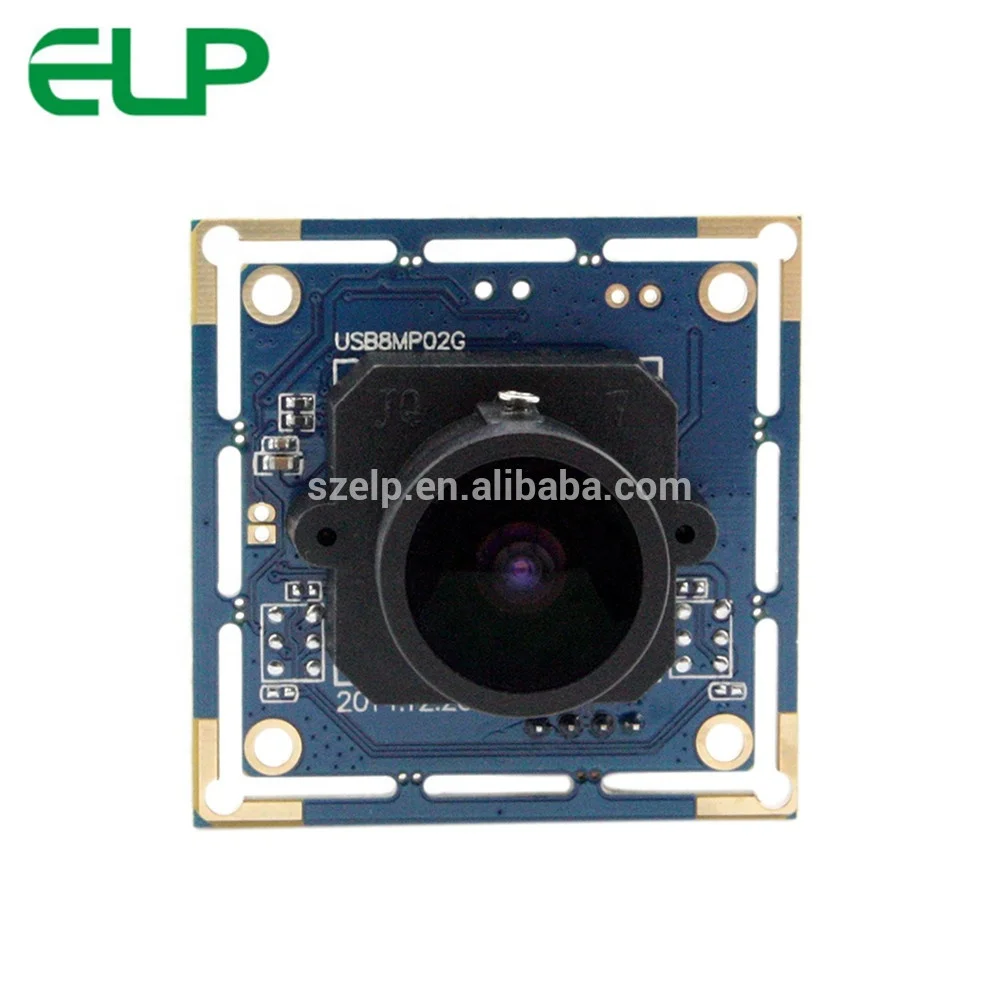

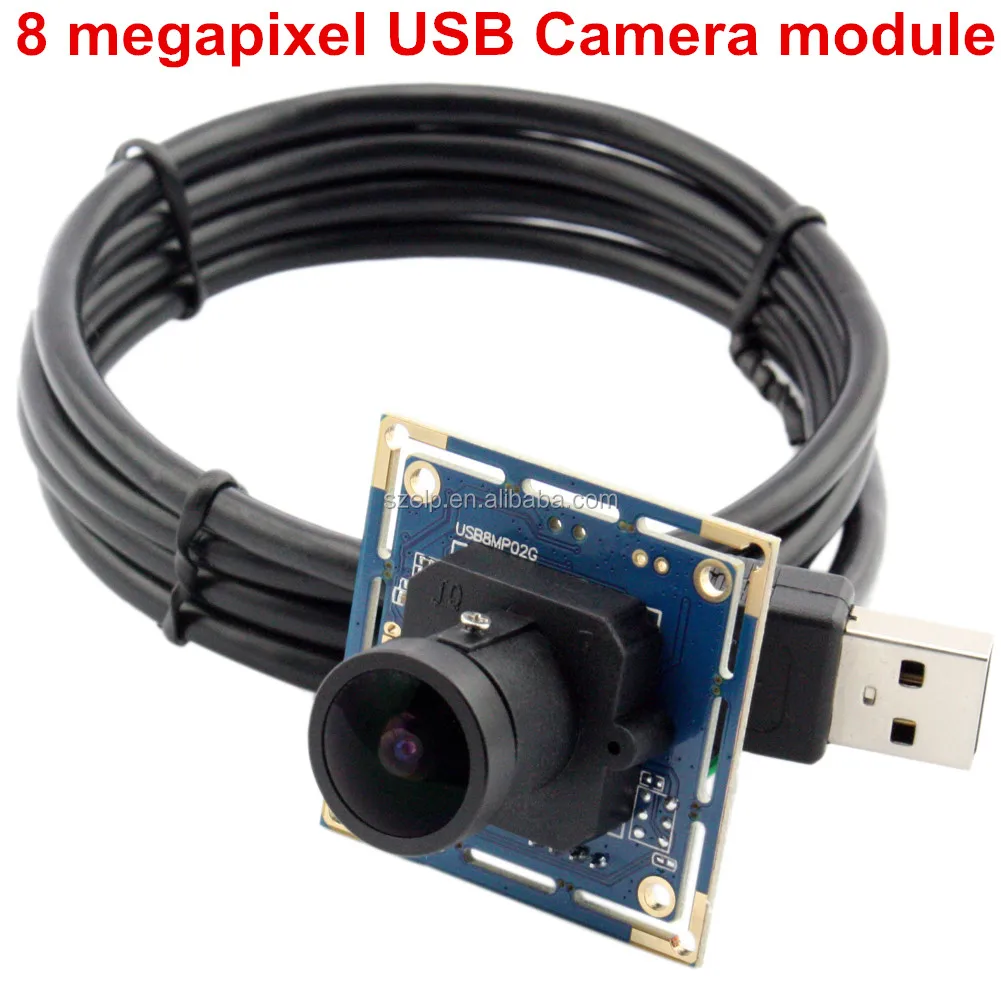

ELP Free Drive 170 degree Wide Angle 8 Megapixels USB2.0 Sony IMX179 HD Industrial Camera ELP USB8MP02G L170
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60597863473):
Product Overview
Description
ELP Free Drive Wide Angle 8Megapixels USB2.0 Sony IMX179 HD Industrial Camera With USB Interface
Features
*1/3.2” Sony IMX179 sensor for high quality image and low power consumption
*Max resolution 3264X2448
*High quality true color image 170 degree fisheye lens
*low light performance–ideal for any lighting condition
*USB interface Camera Module for Monochrome Stereo
*Android&Linux&windows system support
*YUY and MJPEG compression format optional
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*Super small outline and thin profile for embedded applications
*UVC for use in Win XP\\Win7\\Win8\\Android\\Linux\\Mac OS
Specifications
| Model | ELP-USB8MP02G-L170 |
| Sensor | SONY IMX179 |
| Lens Size | 1/3.2 inches |
| Pixel Size | 1.4um |
| image area | 6.18mm x 5.85mm |
| Max. Resolution | 3264(H) X 2448(V) 8Megapixel |
| Compression format | MJPEG / YUV2(YUYV) |
| Resolution & frame | 3264X2448 @ 15fps / 2592X1944@ 20fps 2048X1536 @ 20fps / 1600X1200@ 20fps 1280X960 @ 20fps / 1024X768@ 30fps 800X600 @ 30fps / 640X480@ 30fps |
| USB Protocol | USB2.0 HS/FS USB1.1/USB1.0 |
| S/N Ratio | 34dB |
| Dynamic Range | 72.5dB |
| Sensitivity | 3.7V/lux-sec@550nm |
| Mini illumination | 0. 5lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| OTG protocol | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |

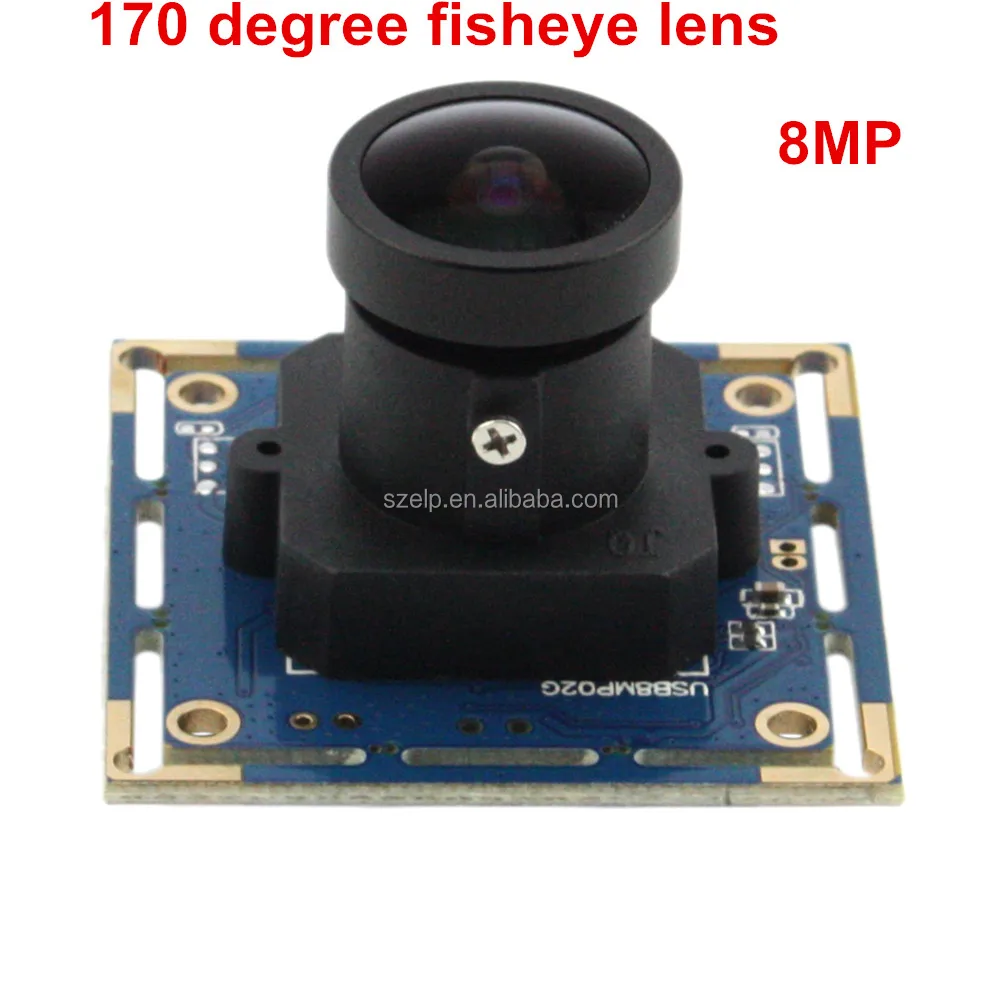

| Lens Parameter | 170 Degree Fisheye M12 lens |

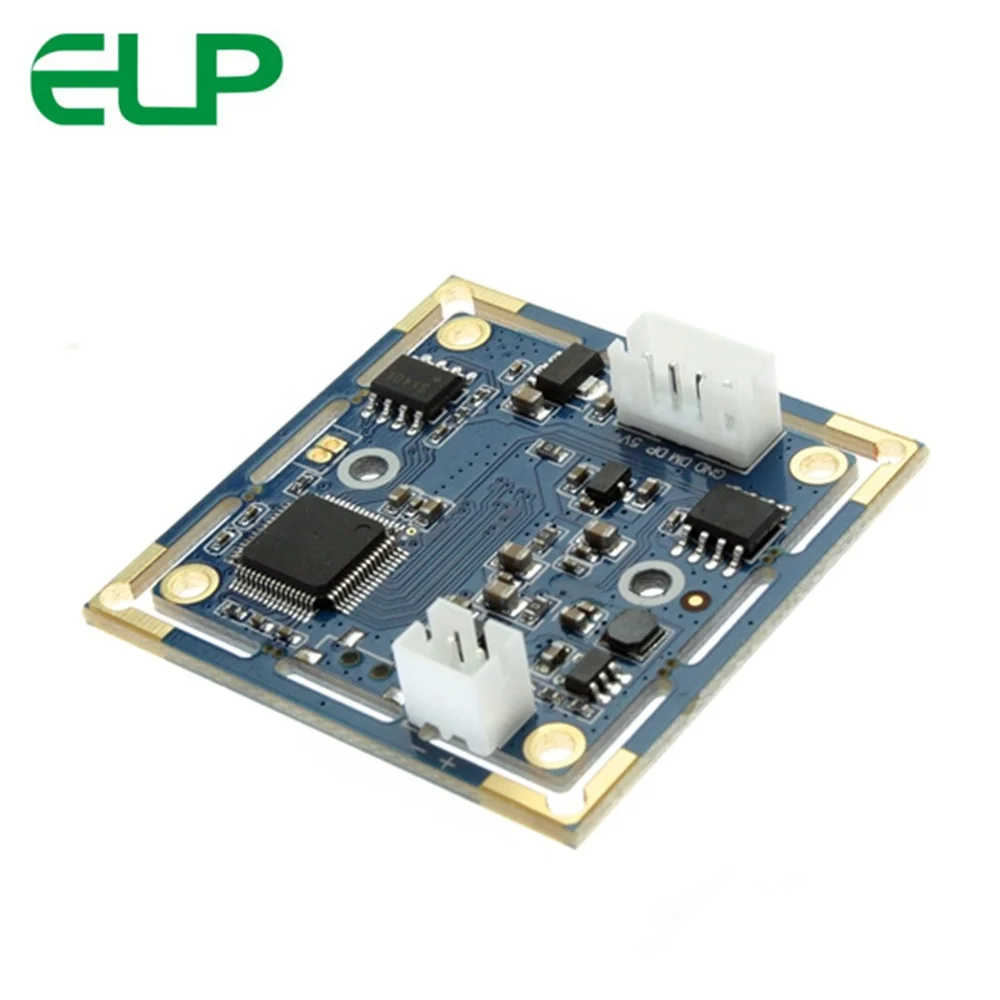

| LED board control interface | Support 2P-1.25mm socket |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Power supply | DC5V |
| Operating Voltage | 150mA~240mA |
| Working current | -10~70℃ |
| Working temperature | -20~85℃ |
| Board size /Weight | 38X38mm (compatible 32X32mm) |

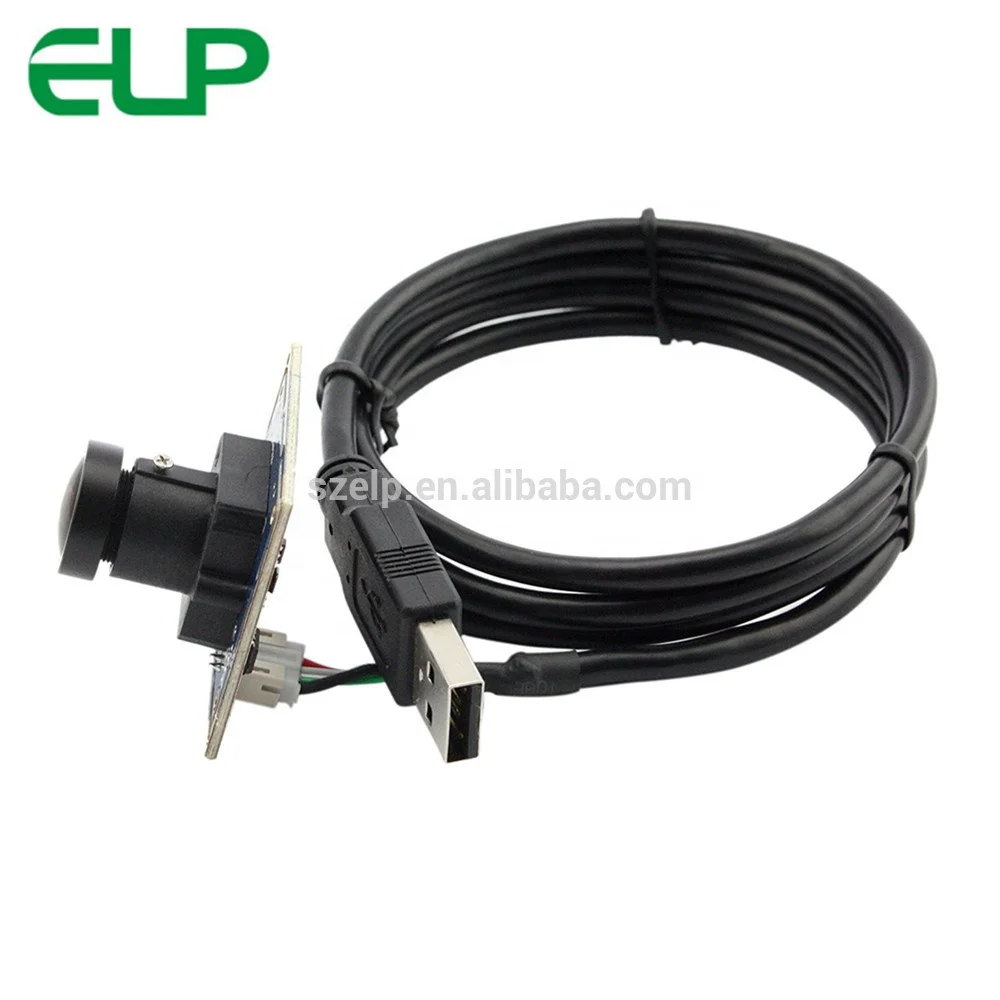

| Cable | Standard 1m (optional 2M,3M,5M) |
| Operating system request | WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Applications
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.

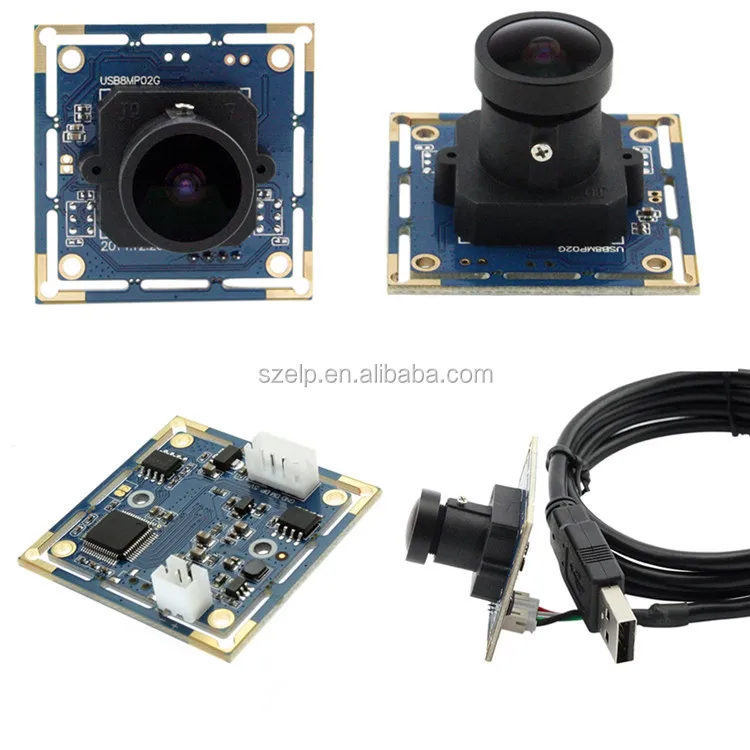

Product Display
Company Information
Related Products
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
