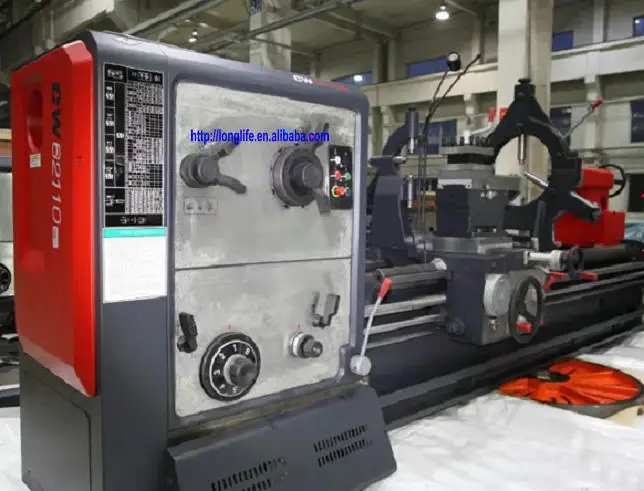

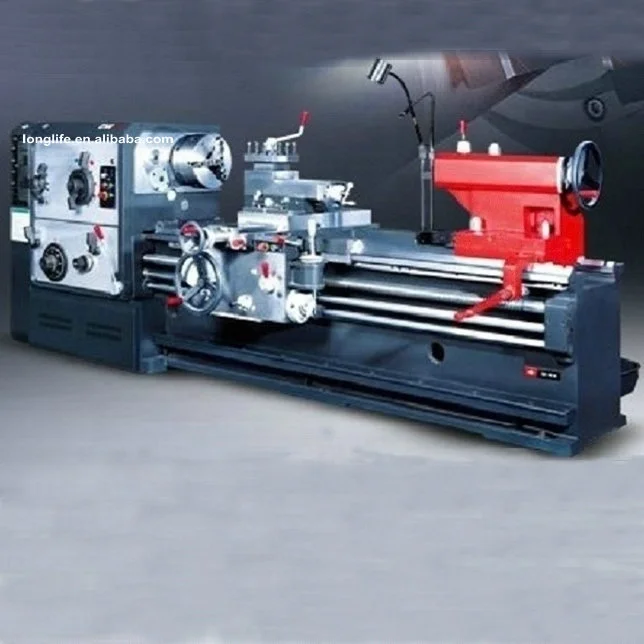

CW6263Ex3000 Universal horizontal lathe machine price
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (60597907176):
Product Overview
Description

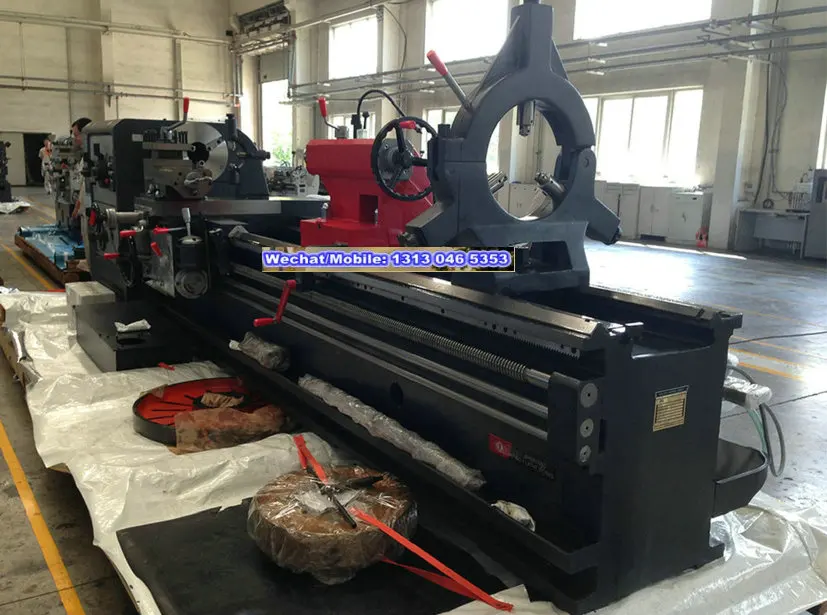

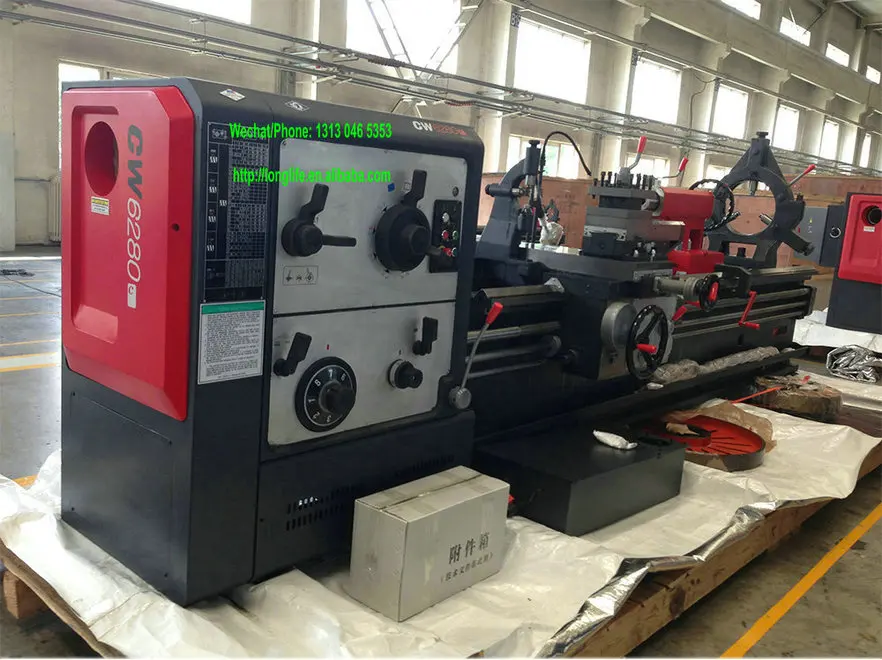

CW6280Cx3000 tornos universal/universal horizontal lathe
Main Usage
Standard spindle head: C11, spindle bore Φ100mm,
Optional spindle head: D11,spindle bore Φ130mm.
Machine with hydraulic clutch and electrical cabinet
Guide rail width: 550mm
Max load weight between 2-core clamper:1000kg, with steady rest: up to 2000kg
Order notice must be specified: condition of installed taper imitated shape device
guide rail hardness:HRC50,Depth1.5mm
Only provide the left-hand wheel.
Slide board boxes with vertical and horizontal rapid shift handle included
Tailstock sleeve with a dividing rule should be specially annotated
As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.
Main Technical Data
Specifications | Unit | Parameter |
Max. swing over bed | mm | dia.630 |
Swing over gap | mm | dia.800 |
Max. swing over carriage | mm | dia.350 |
Width of guide way | mm | 550 |
Width of gap | mm | 350 |
Width of guide way | mm | 3000 |
Spindle bore diameter | mm | 2600 |
Spindle bore diameter | mm | 100 (C11)/105 (D11) |
Spindle speed | rpm | (18 speeds) 7.5~1000 |
spindle nose |
| C11/D11 |
Longitudinal feed | mm/r | 0.05~12.15 |
Cross feed | mm/r | 0.025~6.075 |
Metric thread | mm | (52)0.5~240 |
Inch thread | TPI | (34) 28~1 |
Module thread | mm | (53) 0.5~120 |
Diametrical pitch thread | D.P | (24) 28~1 |
Max. travel of cross slide | mm | 460 |
Travel of top slide | mm | 200 |
Main motor power | kW | 11 |
Rapid traverse motor power | kW | 1.1 |
Coolant pump motor power | kW | 0.09 |
Machine dimensions (L x W x H) | mm | 5130 x1340 x1830 |
Net weight | kg | 5150 |
Specifications | Unit | Parameter |
Max. swing over bed | mm | dia.630 |
Swing over gap | mm | dia.800 |
Max. swing over carriage | mm | dia.350 |
Width of guide way | mm | 550 |
Width of gap | mm | 350 |
Width of guide way | mm | 3000 |
Spindle bore diameter | mm | 2600 |
Spindle bore diameter | mm | 100 (C11)/105 (D11) |
Spindle speed | rpm | (18 speeds) 7.5~1000 |
spindle nose |
| C11/D11 |
Longitudinal feed | mm/r | 0.05~12.15 |
Cross feed | mm/r | 0.025~6.075 |
Metric thread | mm | (52)0.5~240 |
Inch thread | TPI | (34) 28~1 |
Module thread | mm | (53) 0.5~120 |
Diametrical pitch thread | D.P | (24) 28~1 |
Max. travel of cross slide | mm | 460 |
Travel of top slide | mm | 200 |
Main motor power | kW | 11 |
Rapid traverse motor power | kW | 1.1 |
Coolant pump motor power | kW | 0.09 |
Machine dimensions (L x W x H) | mm | 5130 x1340 x1830 |
Net weight | kg | 5150 |
