Table Top High Speed Refrigerated Lab Centrifuge for Lab Factory
- Category: >>>
- Supplier: Hunan Xiangxin Instrument And Meter Co. Ltd.
Share on (60598065620):
Product Overview
Description
TGL-24M/22M/20M/18M/16M Medical Equipment Refrigerated Lab Centrifuge Machine
Product Overviews
Features
1. Medical Equipment Refrigerated Lab Centrifuge Machine adopt advanced CPU control system, which has realized accurately microprocessor control of rotate speed, time, temperature and RCF.
2. Medical Equipment Refrigerated Lab Centrifuge Machine both automatic electronic lock and mechanical lock, it can be easy to open door cover.
3. Medical Equipment Refrigerated Lab Centrifuge Machine with protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
4. Medical Equipment Refrigerated Lab Centrifuge Machine the alarm sound for error of an imbalance running or stopping working will be showed in the LCD or digital display panel.
Technical Parameters
| Model | TGL-24 | TGL-22 | TGL-20 | TGL-18 | TGL-16 |
| Max Speed | 24000r/min | 22000r/min | 20000r/min | 18000r/min | 16000r/min |
| Max RCF | 47800×g | 34700×g | 27800×g | 23200×g | 17800×g |
| Max Capacity | 4×100ml | ||||
| Speed Accuracy | ±20r/min | ||||
| Temp Accuracy | ±1°C | ||||
| Temp Range | -20°C ~ +40°C | ||||
| Timer Range | 0~99min | ||||
| Motor | Microprocessor control, Frequency conversion motor | ||||
| Noise | ≤60dB(A) | ||||
| Power Supply | AC220V&110V 50-60Hz 5A | ||||
| Dimension | 410x700x360mm(LxWxH) | ||||
| Weight | 85kg | ||||
Rotor
| Number | Max Speed(r/min) | Max RCF(×g) | Capacity(ml) |
| No.1 Anger Rotor | 24000 | 47800 | 12×1.5/2 |
| No.2 Anger Rotor | 16000 | 18200 | 8×5 |
| No.3 Anger Rotor | 12000 | 14800 | 12×10 |
| No.4 Anger Rotor | 13000 | 17940 | 6×50 |
| No.5 Anger Rotor | 13500 | 17760 | 24×1.5/2 |
| No.6 Anger Rotor | 10000 | 9800 | 4×100 |
| No.7 Anger Rotor | 13500 | 17000 | 36×1.5/2 |
| No.8 Anger Rotor | 8000 | 9800 | 8×50 |
| No.9 Swing Microplates Rotor | 3000 | 1400 | 2×2×48 |

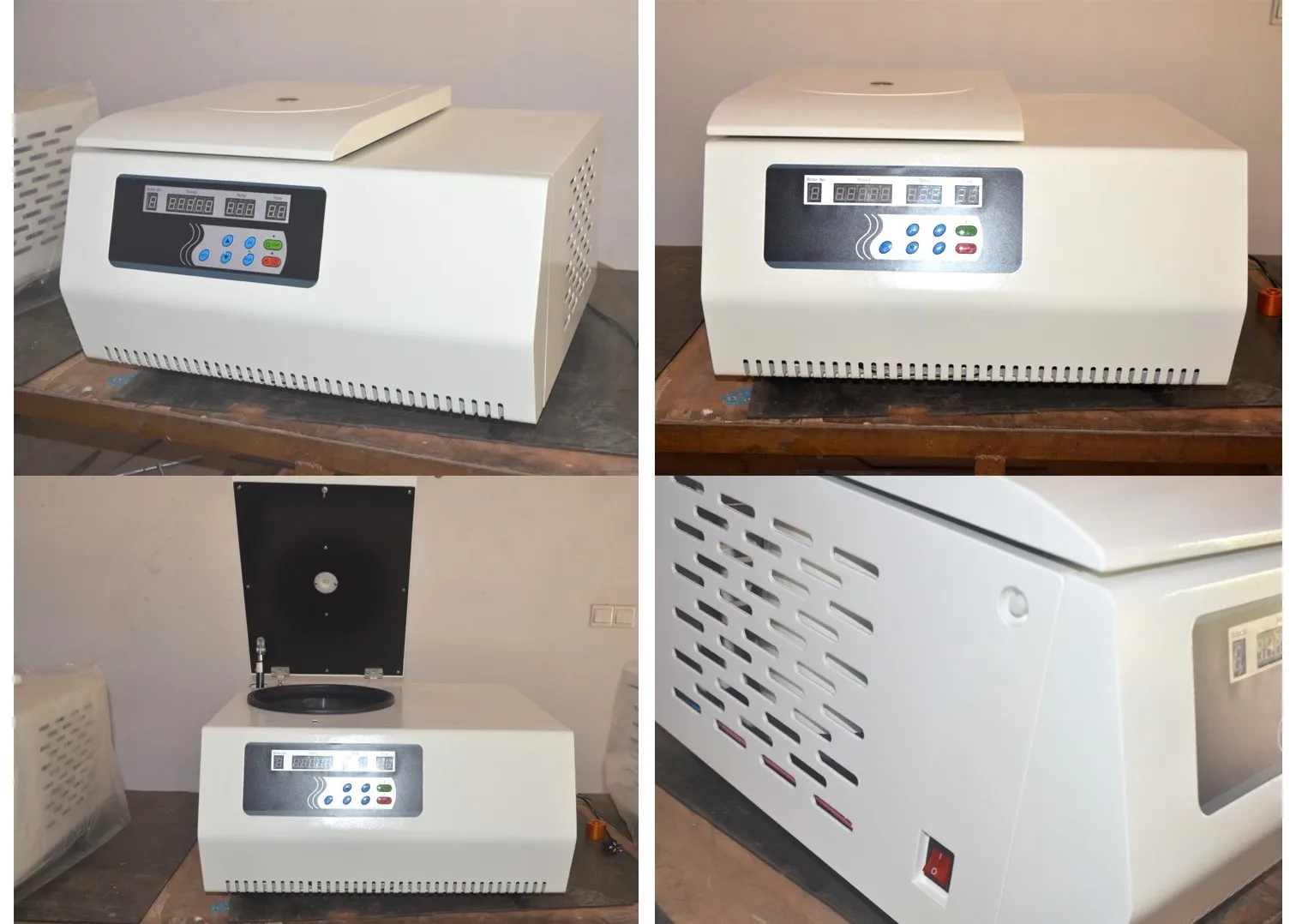

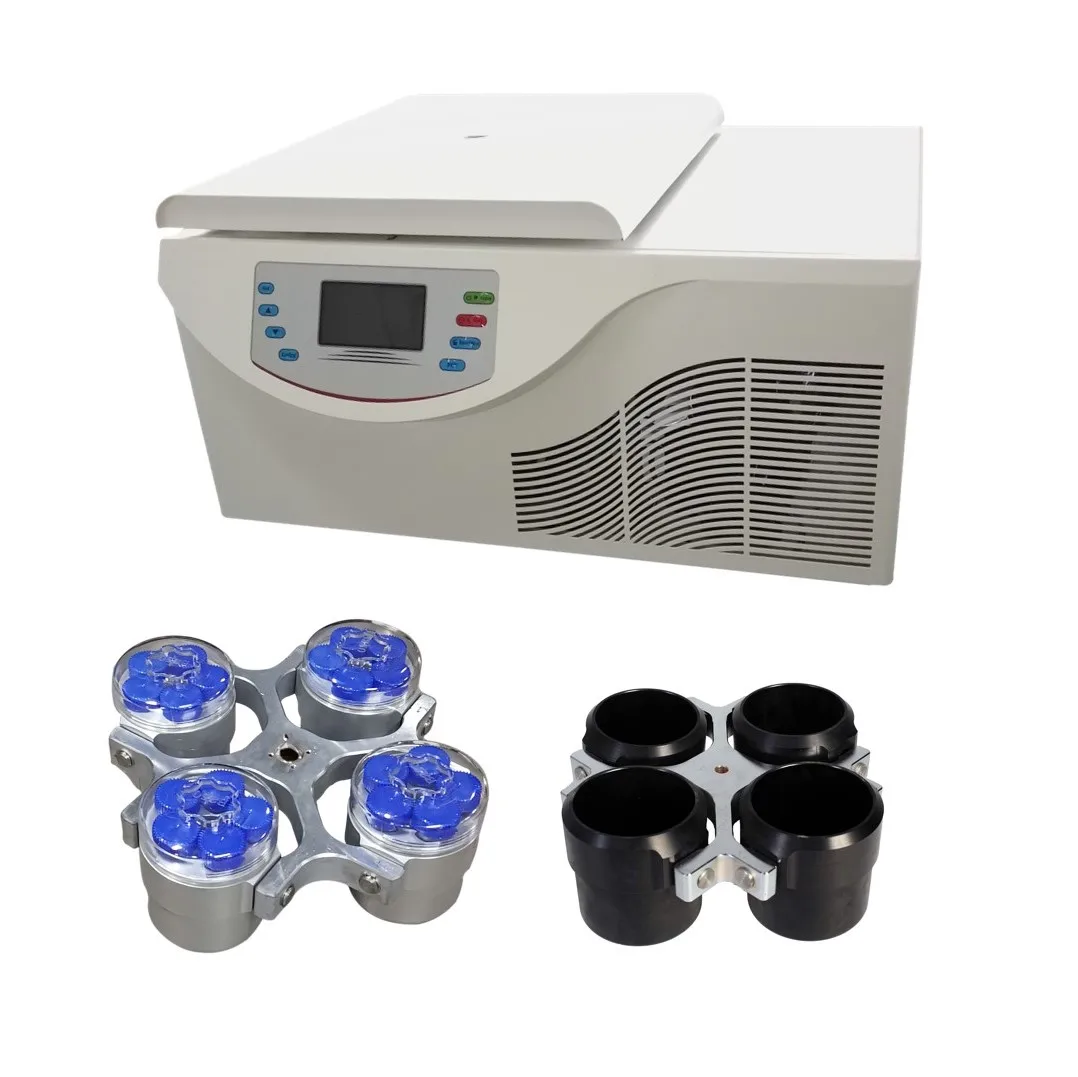

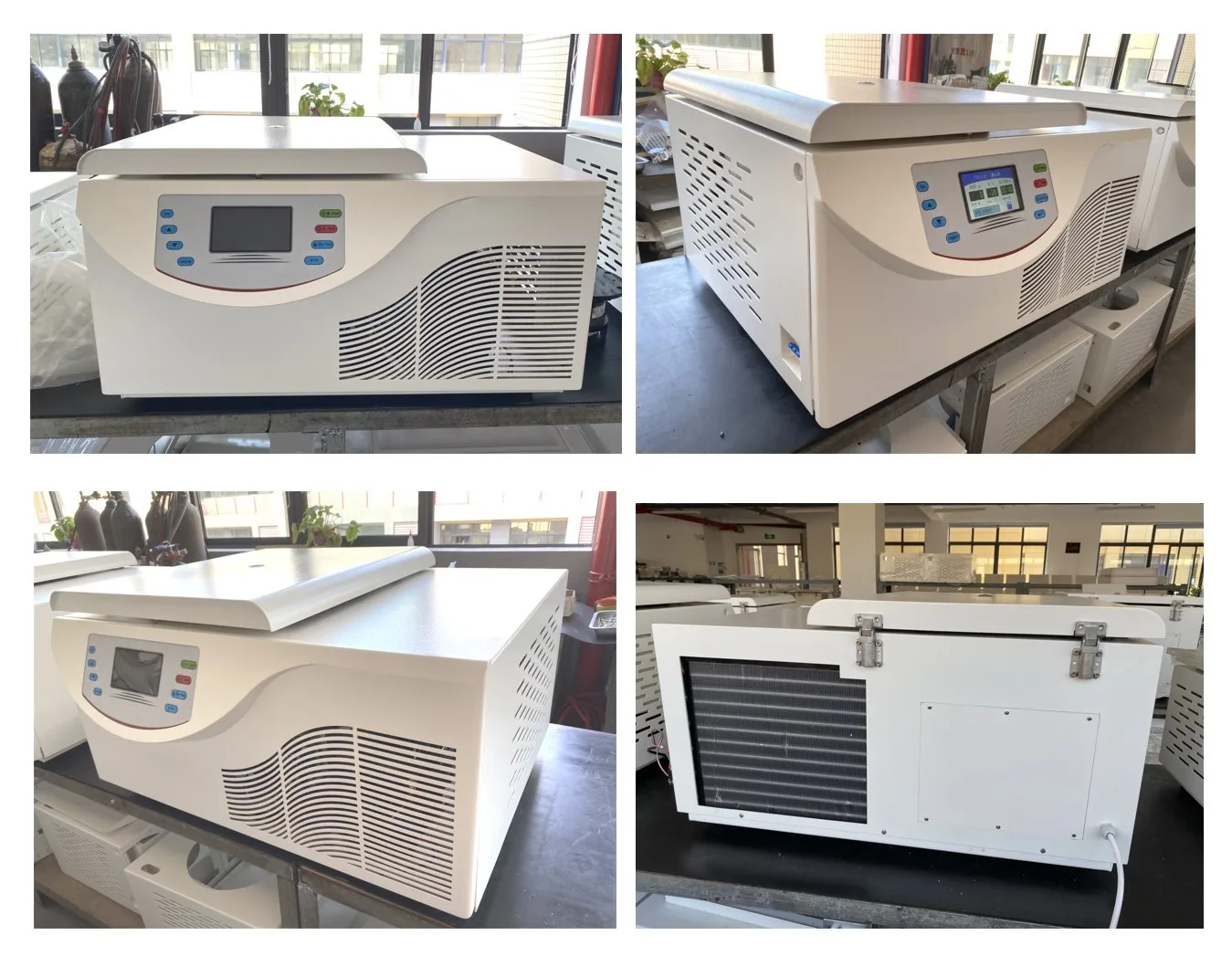

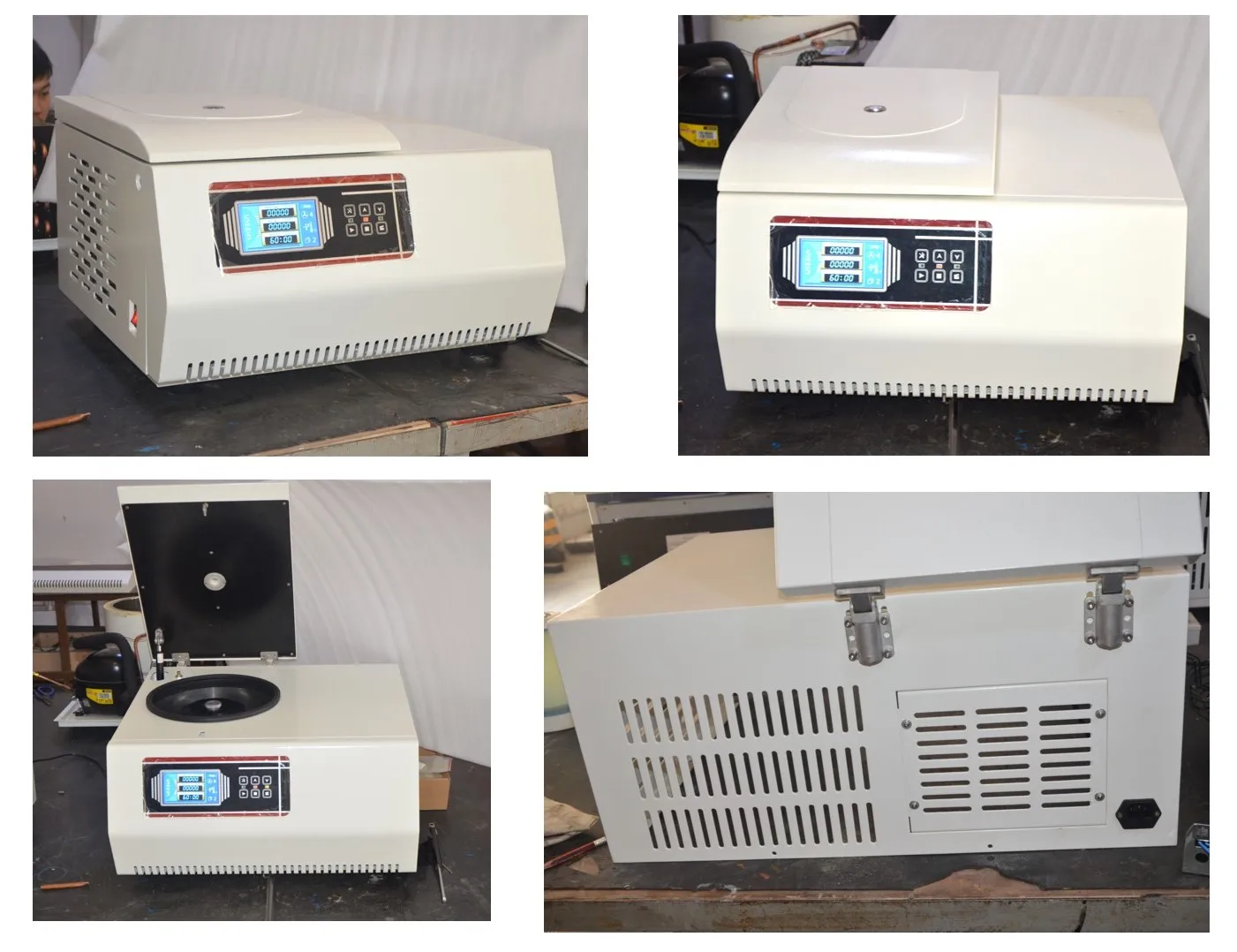

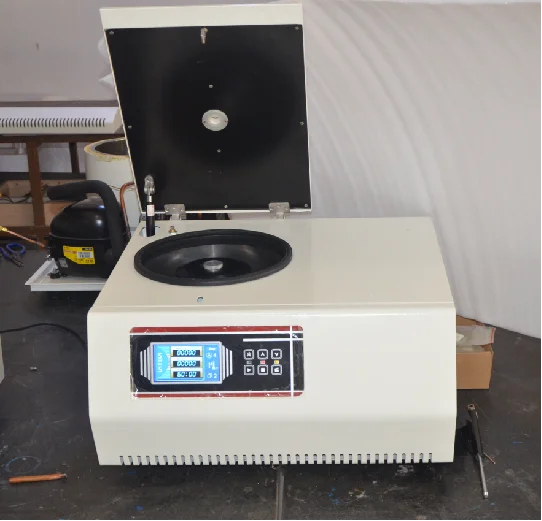

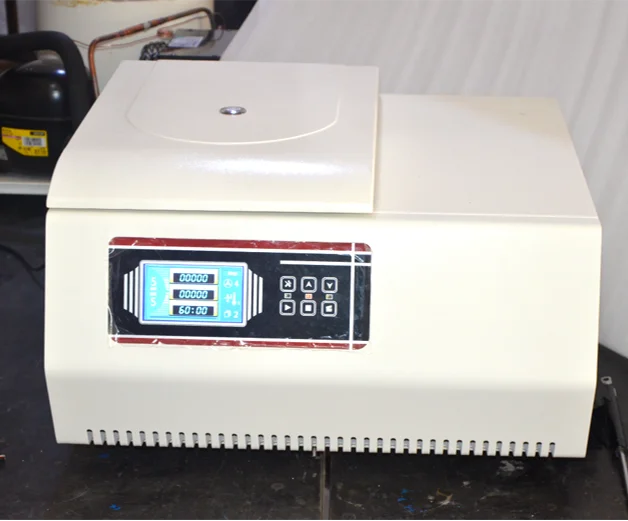

Product Images

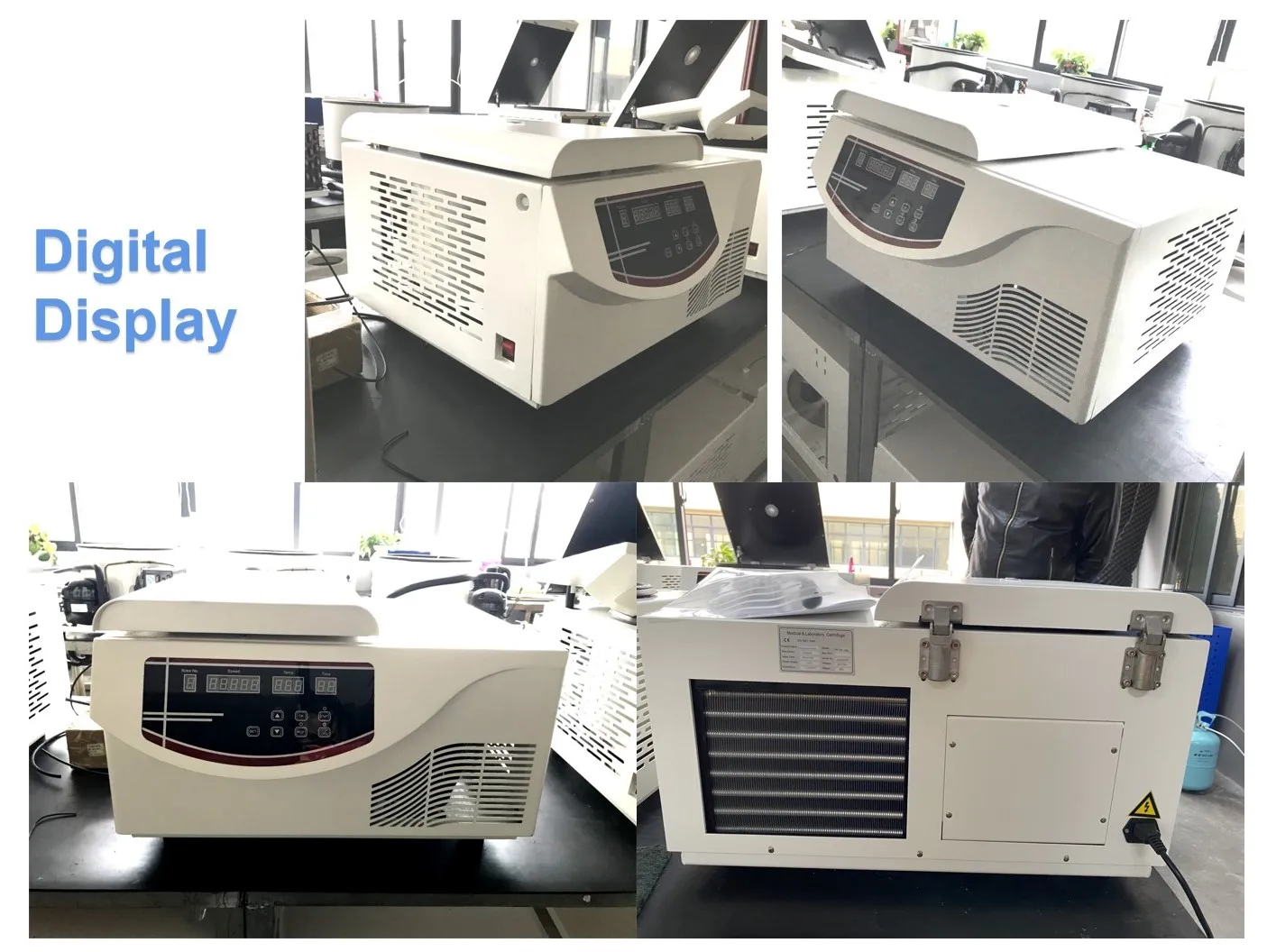

Product Display
Applications
Company Profile
Transport
FAQ
Q1. Are you manufacturer or trading company? Can y ou offer OEM/ODM service?
Yes, we are manufacturer of centrifuges, and we have our sales team. OEM and ODM are welcomed.
Q2. How long of your warranty period?
Our centrifuge warranty period is 18 moths, during warranty period we offer all parts free charge, and over period, we only charge the basic cost, and we do the after service for centrifuge lifetime.
Q3. if our centrifuge broken, what should we do?
Please contact us, we will reply you within 24 hours.
Q4. How about the delivery term?
By air or by shipment, according to the quantity ordered or customized. Usually deliver within 2-7 workdays after received your advanced payment.
Q5: What about the payment term?
We accept Money Gram, West Union, T/T, L/C, etc.
