Germany MAN Technology 6*4DUMP truck/Tipper TRUCK
- Category: >>>
- Supplier: Shanghai Cimc J.t Vehicle Co. Ltd. [Shanghai China]Shanghai
Share on (60598135447):
Product Overview
Description
Germany MAN Technology 6*4DUMP truck/Tipper TRUCK
ISUZU dump truck, started production in China since 2015, with stable quality in the world!
SPECIFICATION
| Model | QL3250ULCZ |
| Driving type | 6*4 left hand driving |
| Engine Make | ISUZU |
| Engine model | 6UZ1-TCG40 |
| Maximum output | 350 hp (257 Kw) at 2000 rpm |
| Maximum torque | 1422 Nm 1400 r/min |
| Displacement | 9.8 L |

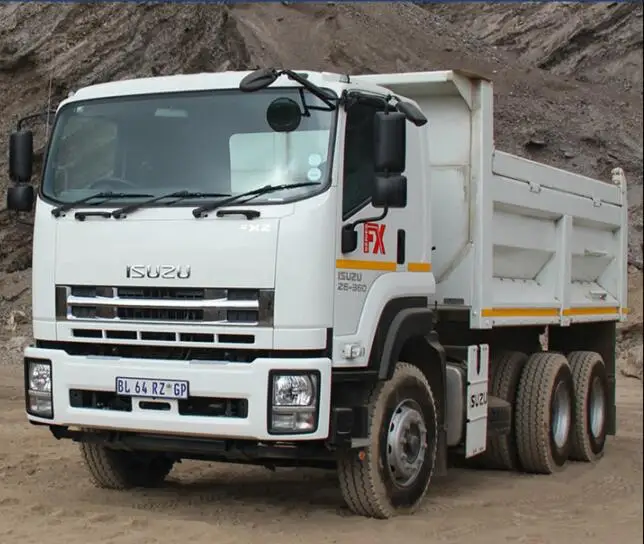

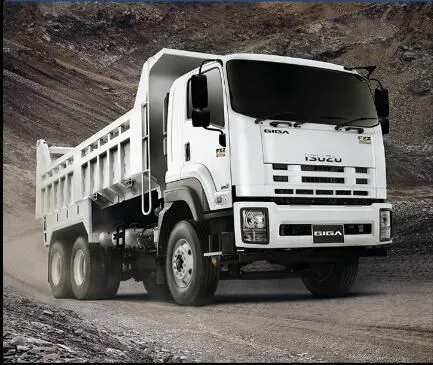

Photo of Dump truck
Engine Make: ISUZU
Diesel 4-stroke direct injection diesel engine, Electronic control
Engine model:
6UZ1-TCG40 , Euro IV emission standard
Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre
Transmission Fuller 9JS150TB, 9 forwards and 1 reverse, 1500N.m, 2600rpm
Ratio: 12.65 8.38 6.22 4.57 3.40 2.46 1.83 1.34 1 13.22 (R)
Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU RT210, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
21 Tons Capacity, Ratio Selective:4.1, 4.3
Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
Cargo box Volume: 15-25 M3 for option
Our company
CIMC VECHICLE was founded by 1980, having over 63, 000 staff across China, North America, Europe, Asia and Australia. CIMC the biggest truck and truck body manufacturer in China, CIMC is famous in the world!
CIMC China truck supermarket cooperates with all brands of trucks which all produced in China for the GVW>15, 000 kgs heavy trucks, CIMC produces the cargo body or special truck body for the trucks. The CIMC own truck brand is C&C, and cooperate other truck chassis brand which produced in China, FAW, DFAC-DONG FENG, SHACMAN, SINOTRUK, FOTON, JAC, CAMC, SAIC-Iveco, NORTH Benz(BEI BEN), HYUNDAI China, Nissan UD China, HINO China, ISUZU China...
ISO Certificate:
FAQ
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q: How about the quality guarantee and after -sale service?
A: For quality guarate, we give one year guarantee, and with 24hours response principle for better service.
We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Welcome to have a visit to our company and factory.
