X Y bridge type semi automatic glass cutting table

Product Overview

Description

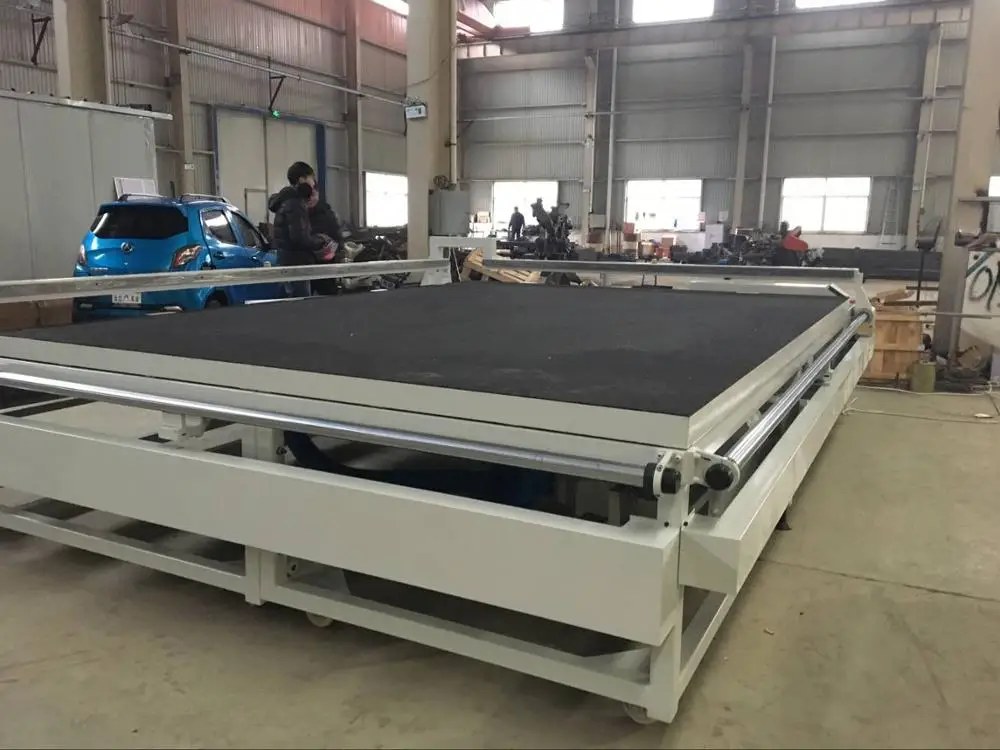

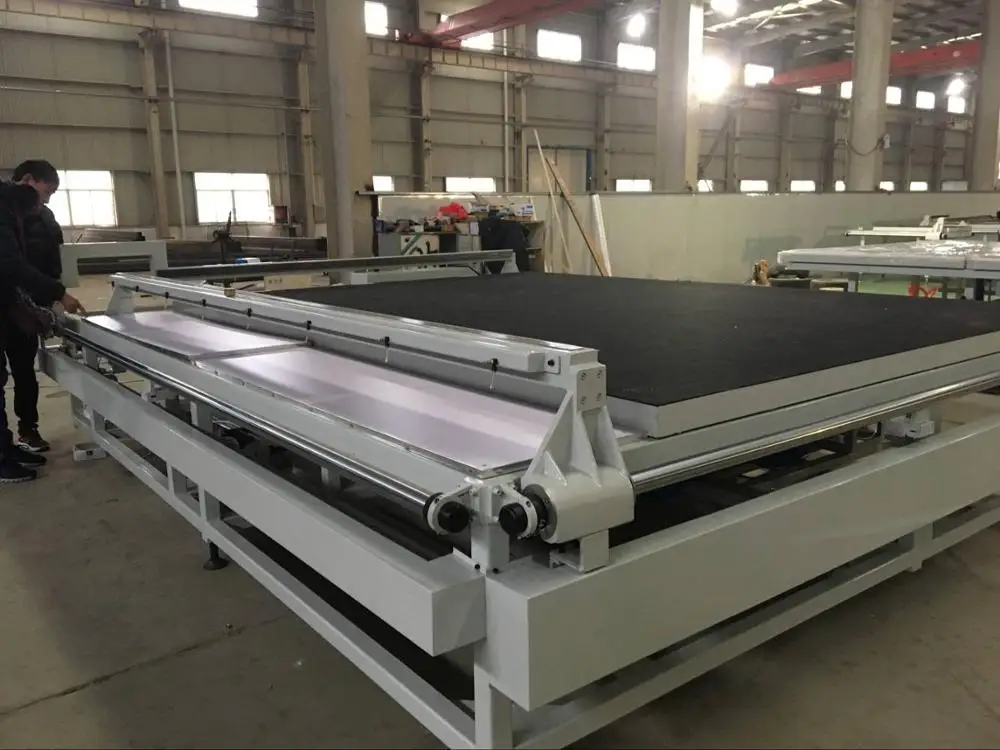

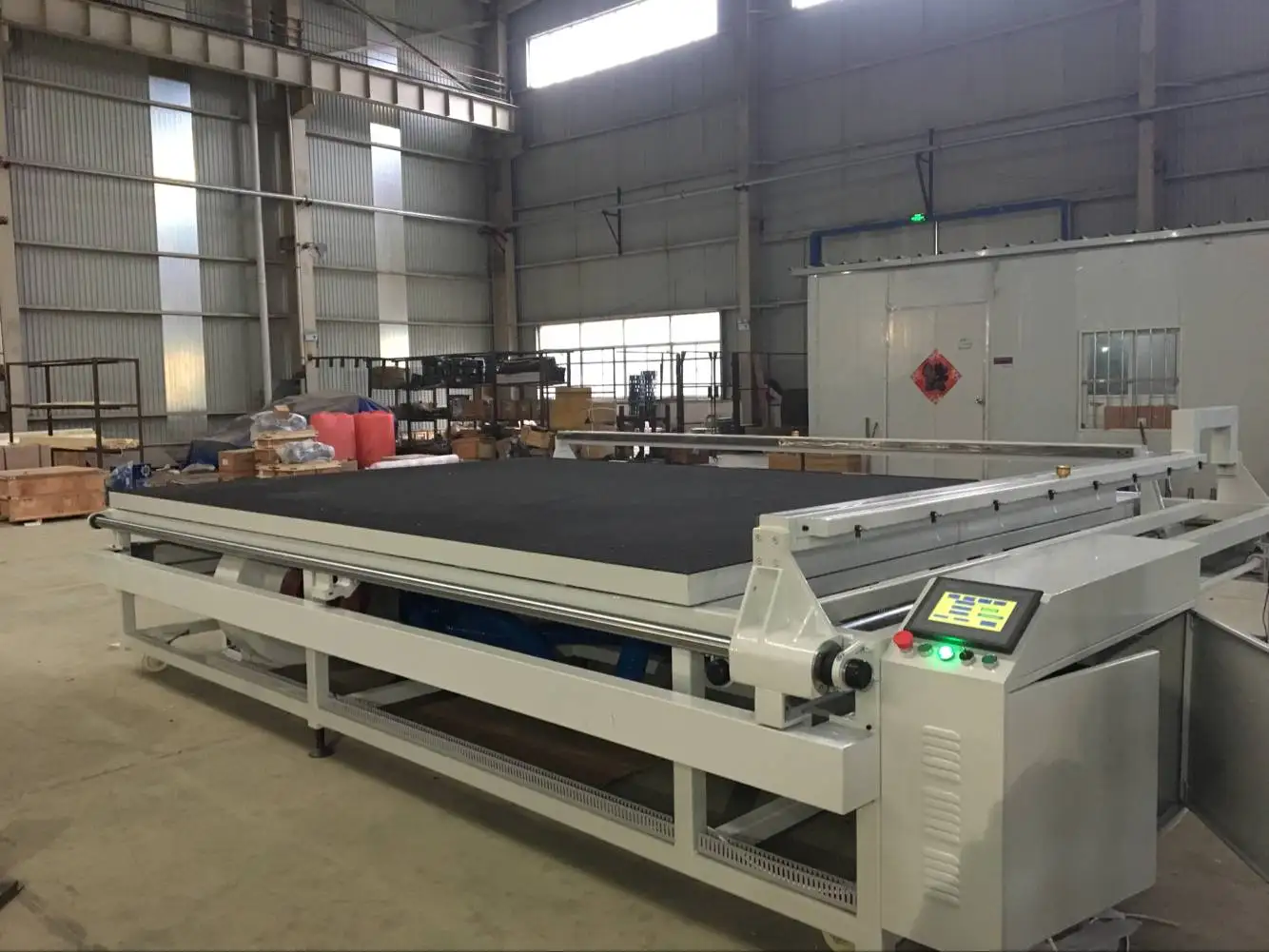

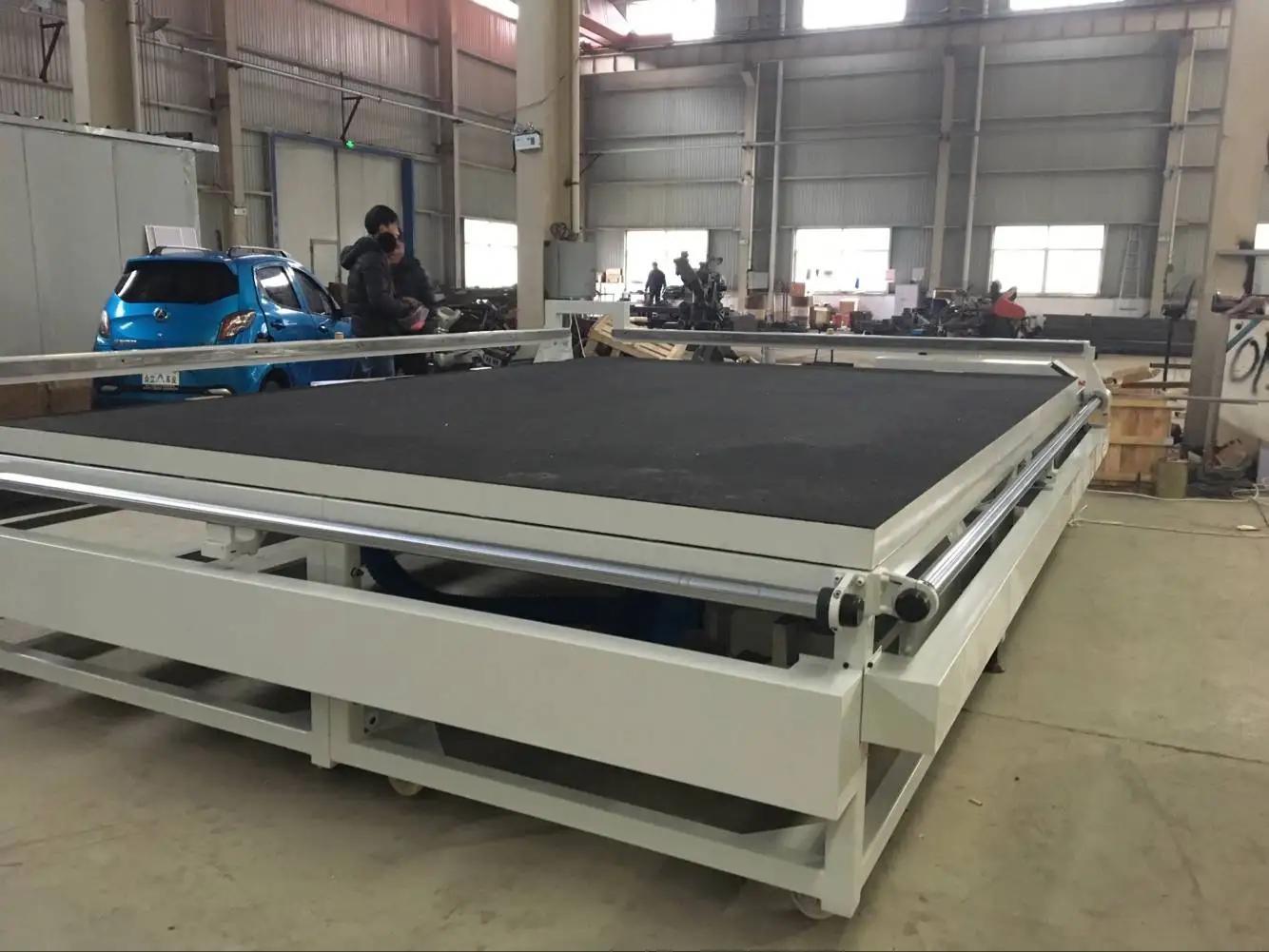

X-Y bridge type semi-automatic glass cutting table







* 2 cutting bridges

* 20 cutting heads

* Omron PLC control

* For mass production of small glasses

* Machine size can be customized

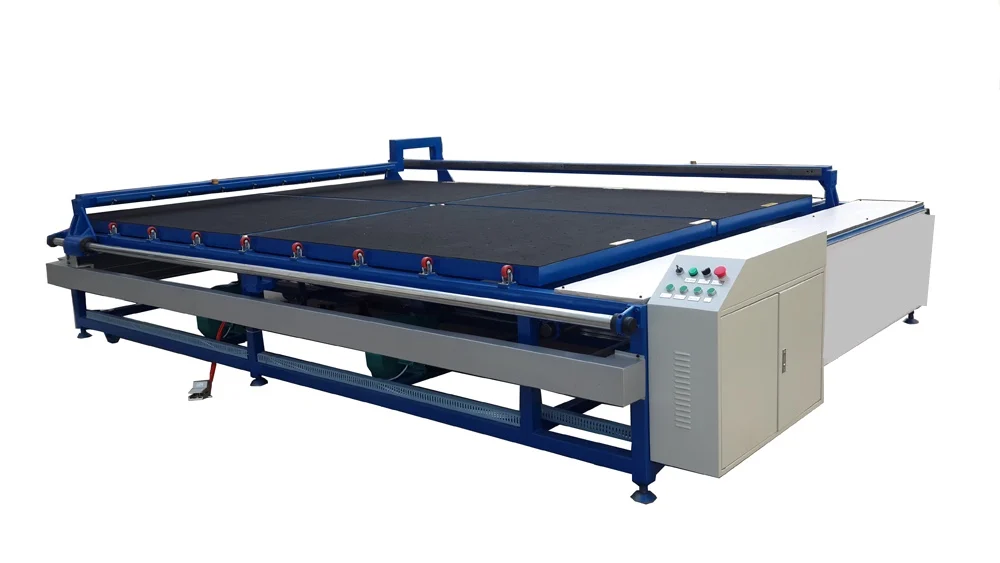

Glass cutting machine



• With 2 cutting bridge for X & Y direction;


• Each bridge has 10 cutting heads;


• PLC control


• Multi-cutters, high efficiency and high precision


• Self-lubricating system


• Air float table for easy move


• Removable cutting wheels


• Cutting boxes interval distance manual adjustment

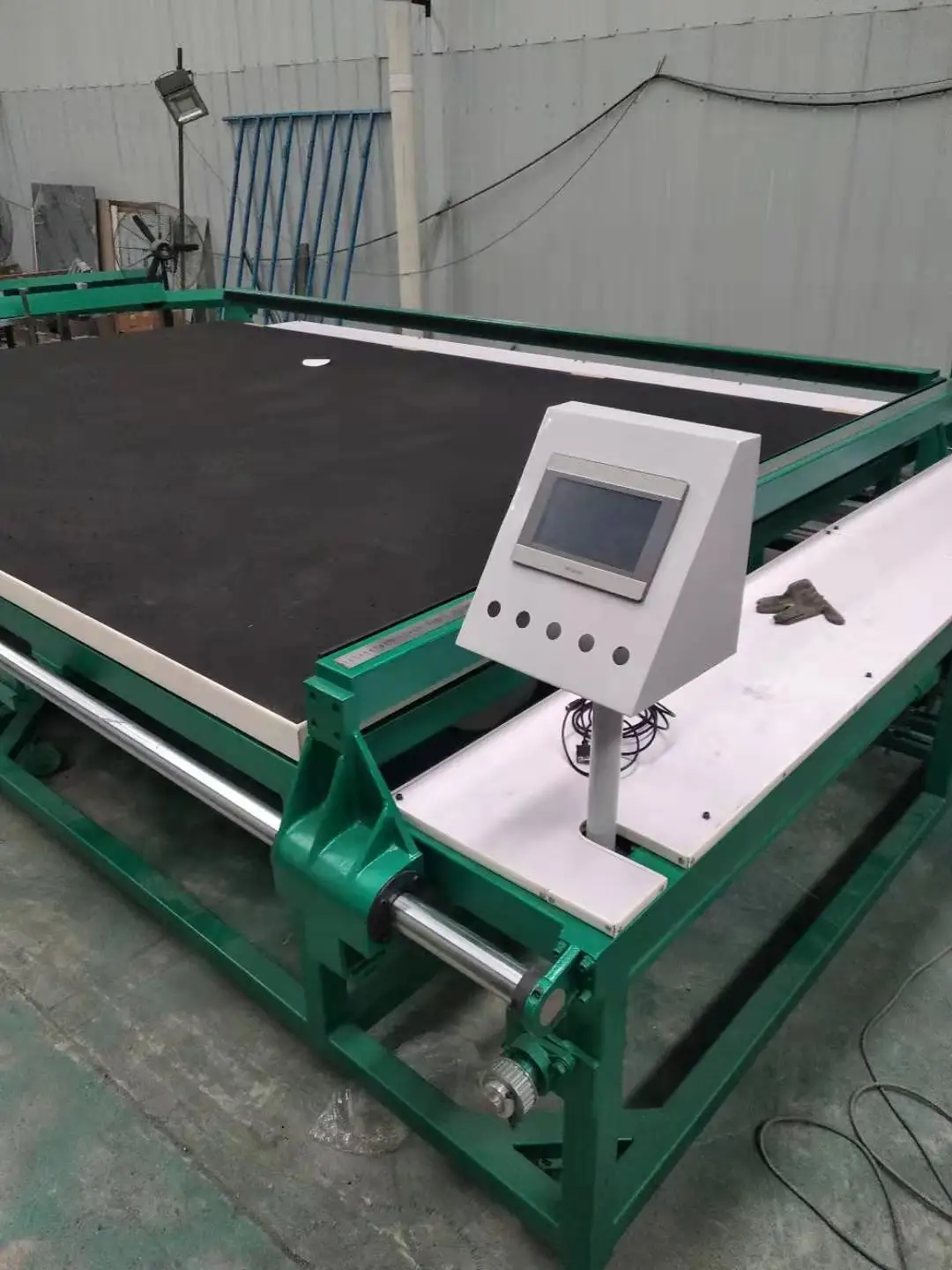

• Auto-run available on the control panel


• Both of the cutting arms return to origin after cutting work


• Controlled by frequency converter


• For straight line cutting job



Machine specification:



Model number	YD-C-XY-2620
Max cutting size (mm)	2500 x 1900
Min. glass size after cutting (mm)	25x25
Cutting bridges (pcs)	2
Cutting head (pcs)	20
Max cut speed (m/min)	12
Cutting precision (mm)	±0.2
Dimension (mm)	3285x2750x1450
Weight (Kg)	1650



Warranty and service:



• 1 year warranty for the machine


• Life time service available for parts and malfunctions


• 24 hour on line service


• Working video and installation video avaible


• Provide English operation manual



Payment term and shipping:



• By T/T, 30% deposit, balance paid before delivery


• Machine delivery after 30 days production.


• Machine loading in container or sending by  LCL cargo is permit


• Shipping agent will be offer if you required
