17 lb magnesium anode bag
- Category: >>>
- Supplier: Hunan High Broad New Material Co. Ltd.
Share on (60598226831):
Product Overview
Description
Magnesium anode detail information
Magnesium anodes create an easier and more attractive source of oxidation than the steel structures they are connected to. In this way they are consumed by corrosion instead of the structure — hence the name sacrificial anode. A magnesium anode is typically made up of an alloy composite of magnesium and other metals.
High Broad magnesium anode are shipped worldwide, mainly to North American and Asia countries for over 5000mts per year. which are used in pipeline, oil company project , harbor, marine boat, civil construction project
Magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protection of such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.
Model: Mg-Mn or AZ63

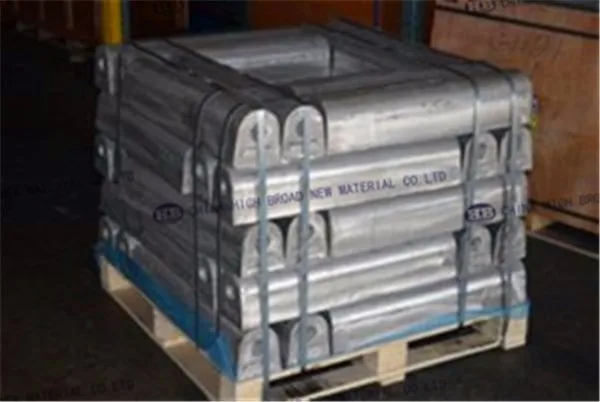

Shape: D shape C shape or S shape
Usages: magnesium anodes are used to protect pipe line,tanks condensers,water boxes,heat exchangers,ship hulls,boilers and marine structures from corrosion.
Chemical Composition
Shop sign | Alloy element | Impurity element ,less than | |||||||
Al | Zn | Mn | Mg | Fe | Cu | Ni | Si | Ca | |
AZ63 | 5.3-6.7 | 2.5-3.5 | 0.15-0.60 | Balance | 0.005 | 0.02 | 0.001 | 0.08 | — |
High Potential | ≤ 0.05 |
≤ 0.03 | 1.20-2.0 | Balance | 0.005 | 0.02 | 0.001 | 0.08 | 0.04 |
MGM1C | ≤0.01 | — | 0.50-1.3 | Balance | 0.01 | 0.01 | 0.001 | 0.05 | — |
MG | ≤0.02 | ≤0.03 | ≤0.01 | ≥99.9% | 0.005 | 0.004 | 0.001 | 0.01 | — |
Electrochemical Property
Shop sign | Open circuit potential |
Closed circuit potential
| Actual capacitance | Current efficiency |
—V,Cu/CuSO4 | —V,Cu/CuSO4 | —(A·h/kg) | % | |
MGAZ63B | 1.57-1.67 | 1.52-1.57 | ≥1210 | ≥55 |
High Potential | 1.57-1.67 | 1.47-1.57 | ≥1210 | ≥55 |
MGM1C | 1.77-1.82 | 1.64-1.69 | ≥1100 | ≥50 |
Dimensions
C Type
| Type | Diameter (mm) | Weight | High Potential L(mm) | AZ63 anode L(mm) |
C25 | 75 | 2.56 | 336 | 325 | |
C36 | 114 | 3.70 | 202 | 193 | |
C41 | 114 | 4.20 | 230 | 220 | |
C77 | 110 | 7.80 | 431 | 412 | |
C100 | 110 | 10.20 | 560 | 536 | |
C145 | 146 | 14.70 | 494 | 472 | |
C227 | 178 | 22.90 | 520 | 497 | |
C274 | 114 | 28.20 | 1528 | 1462 |

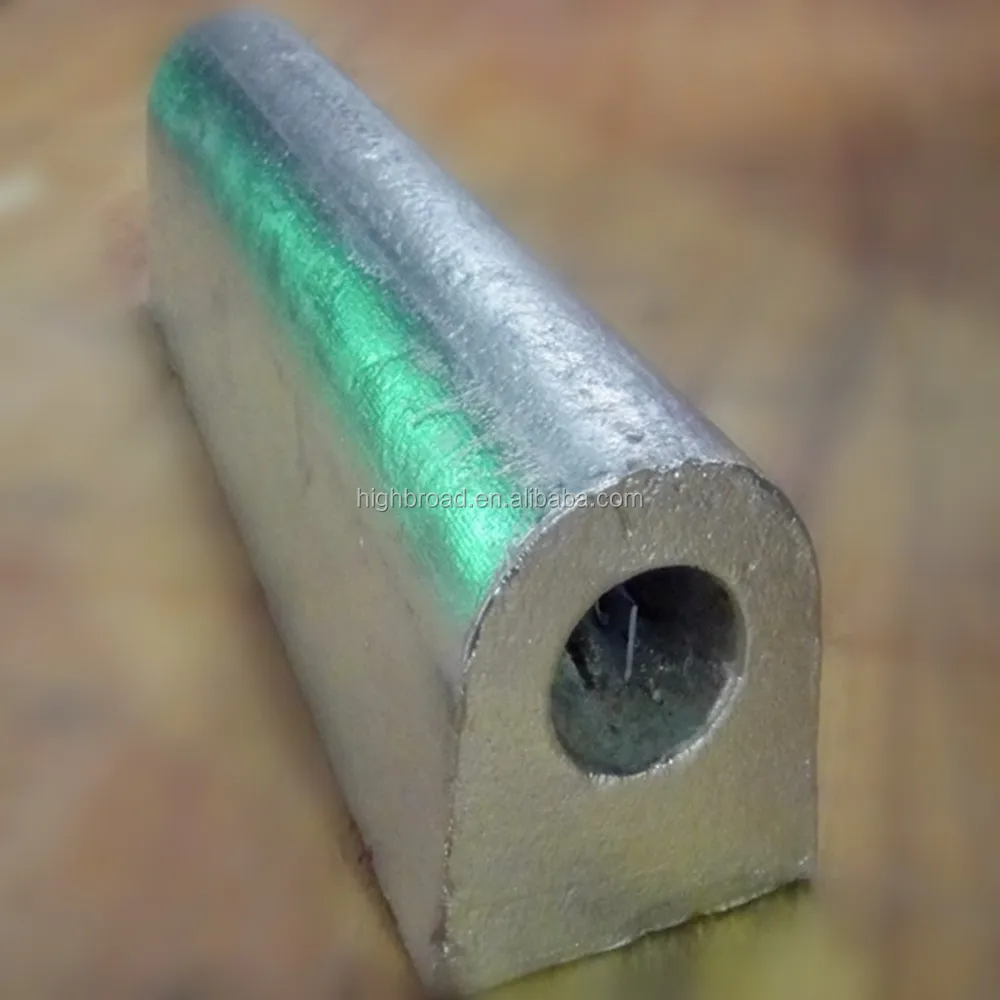

D Type
| Type | Weight(Kg) | Specification | ||
W(mm) | H(mm) | L(mm) | |||
9D2 | 4.082 | 69.90 | 76.20 | 549.30 | |
14D2 | 6.350 | 69.90 | 76.20 | 850.90 | |
20D2 | 9.072 | 69.90 | 76.20 | 1212.90 | |
9D3 | 4.082 | 88.90 | 95.30 | 352.40 | |
17D3 | 7.711 | 88.90 | 95.30 | 641.40 | |
32D5 | 14.515 | 139.70 | 146.10 | 504.80 | |
48D5 | 21.772 | 139.70 | 146.10 | 765.20 | |
1.5kg | 1.50 | 80.00 | 70.00 | 190.00 | |
2.5kg | 2.50 | 80.00 | 70.00 | 300.00 | |

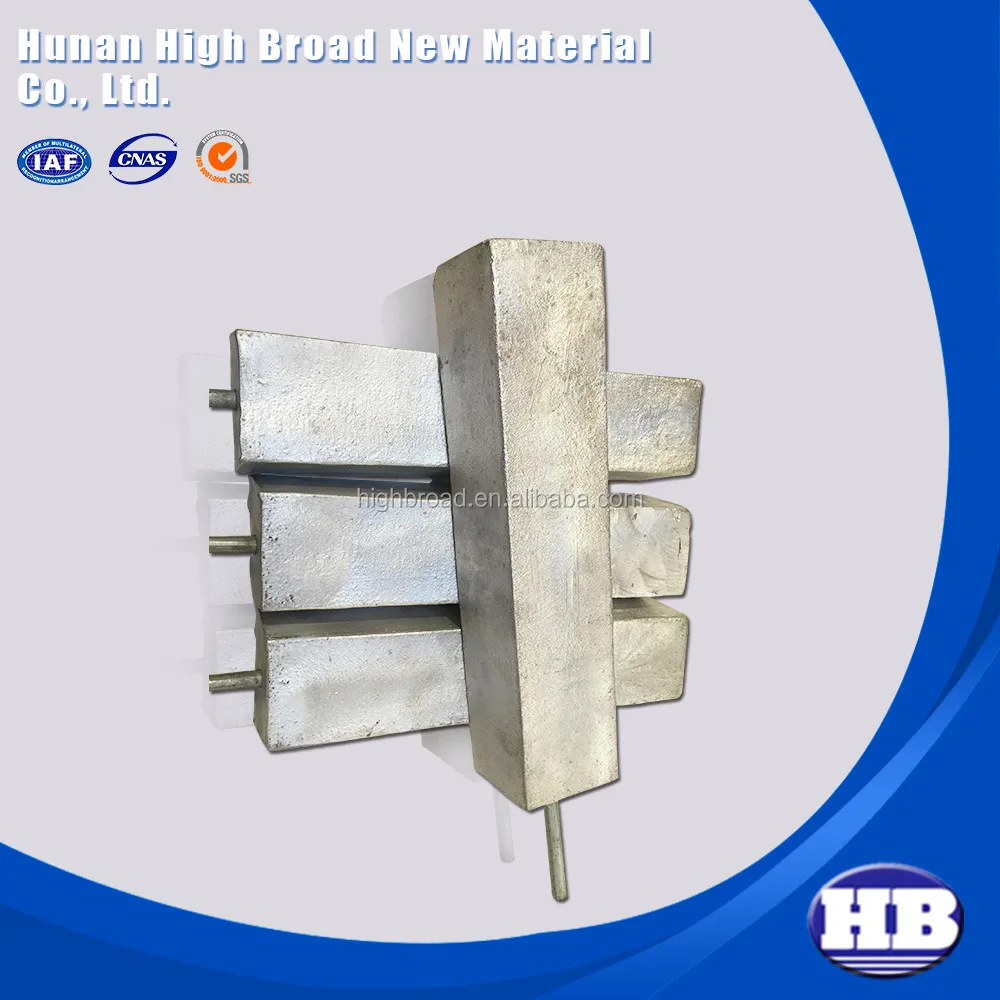

S Type | Type | Weight | Specification | ||
W(mm) | H(mm) | L(mm) | |||
3S3 | 1.4 | 76.20 | 76.20 | 114.30 | |
5S3 | 2.5 | 76.20 | 76.20 | 190.50 | |
9S2 | 4.1 | 50.80 | 50.80 | 685.80 | |
9S3 | 4.1 | 76.20 | 76.20 | 342.90 | |
17S2 | 7.7 | 50.80 | 50.80 | 1295.40 | |
17S3 | 7.7 | 76.20 | 76.20 | 647.70 | |
20S2 | 9.1 | 50.80 | 50.80 | 1524.00 | |
32S3 | 14.5 | 76.20 | 76.20 | 1143.00 | |
32S5 | 14.5 | 127.00 | 127.00 | 533.40 | |
40S3 | 18.1 | 76.20 | 76.00 | 1524.00 | |
48S5 | 21.8 | 127.00 | 127.00 | 787.40 | |
60S4 | 27.2 | 101.60 | 127.00 | 1524.00 | |
