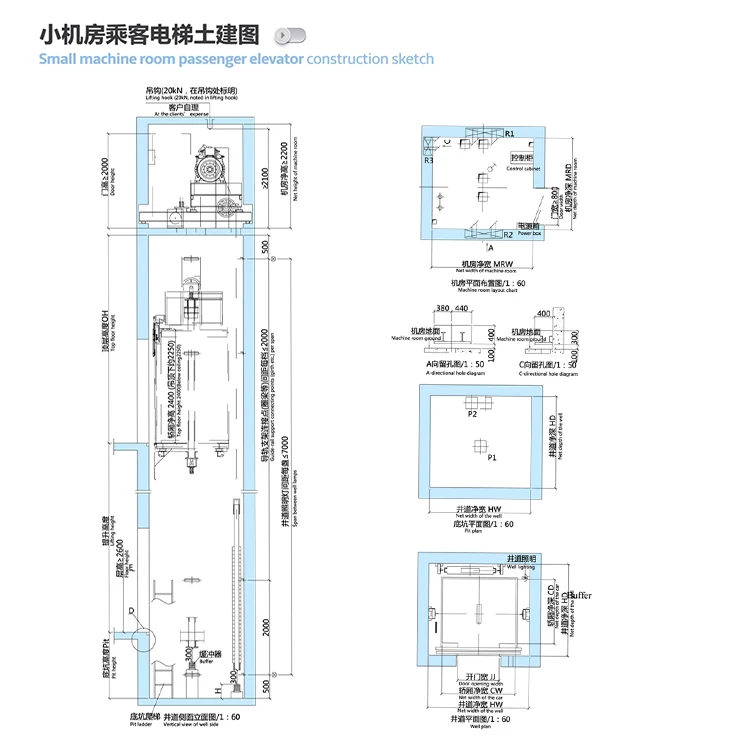

Small machine room passenger elevator construction sketch
Model
Load
KG
Passenger
NO.
Speed
m/s
(MM)
Car specification
CW * CD
(MM)
Door opening size
JJ*OPH
(MM)
Well Size
HW*HD
Machine room size
MRW*MRD
(MM)
Pit Depth
Pit
(MM)
Top floor height
OH
Power
TKJ450/1.0
450
6
1
1100*1100
700*2100
1700*1700
1700*1700
1400
4400
3.1
TKJ450/1.5
1.5
1500
4500
4.7
TKJ630/1.0
630
8
1
1400*1100
800*2100
2000*1700
2000*1700
1400
4400
4.2
TKJ630/1.5
1.5
1500
4500
6.4
TKJ630/1.75
1.75
1600
4600
7.4
TKJ800/1.0
800
10
1
1400*1350
900*2100
2000*2000
2000*2000
1400
4400
5.4
TKJ800/1.5
1.5
1500
4500
8.1
TKJ800/1.75
1.75
1600
4600
9.4
TKJ1000/1.0
1000
13
1
1600*1400
1000*2100
2200*2000
2200*2000
1400
4400
6.8
TKJ1000/1.5
1.5
1500
4500
10
TKJ1000/1.75
1.75
1600
4600
11.7
TKJ1150/1.0
1150
15
1
1900*1400
1100*2100
2500*2100
2500*2100
1400
4500
7.8
TKJ1150/1.5
1.5
1500
4600
11.7
TKJ1150/1.75
1.75
1600
4700
13.6
TKJ1250/1.0
1250
16
1
1900*1500
1100*2100
2500*2200
2500*2200
1400
4500
7.5
TKJ1250/1.5
1.5
1500
4600
12.7
TKJ1250/1.75
1.75
1600
4700
14.9
TKJ1350/1.0
1350
18
1
1900*1600
1100*2100
2500*2300
2500*2300
1400
4500
9.2
TKJ1350/1.5
1.5
1500
4600
13.8
TKJ1350/1.75
1.75
1600
4700
16.1
TKJ1600/1.0
1600
21
1
2000*1750
1200*2100
2600*2450
2600*2450
1400
4500
11
TKJ1600/1.5
1.5
1500
4600
16.6
TKJ1600/1.75
1.75
1600
4700
19.4
(Remark: We can customized for you, just need offer parameter to us.)
