Outer Hexagonal Bearing One Way Needle Bearing Manufacturer 1WC0608
- Category: Other Bearings >>>
- Supplier: Changzhou Suma Precision Machinery Co. Ltd.
Share on (60598540331):
Product Overview
Description

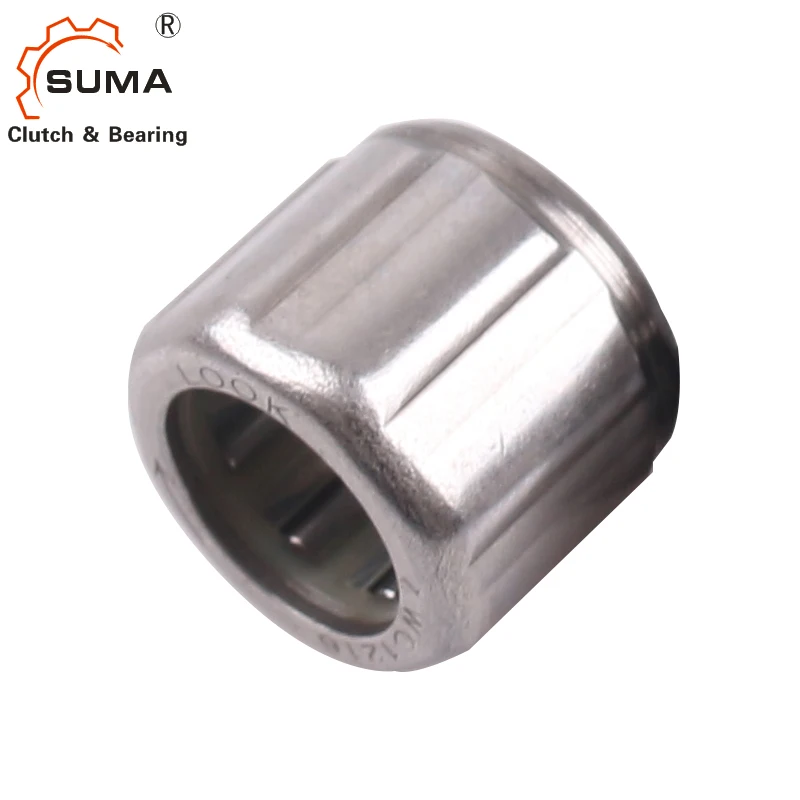

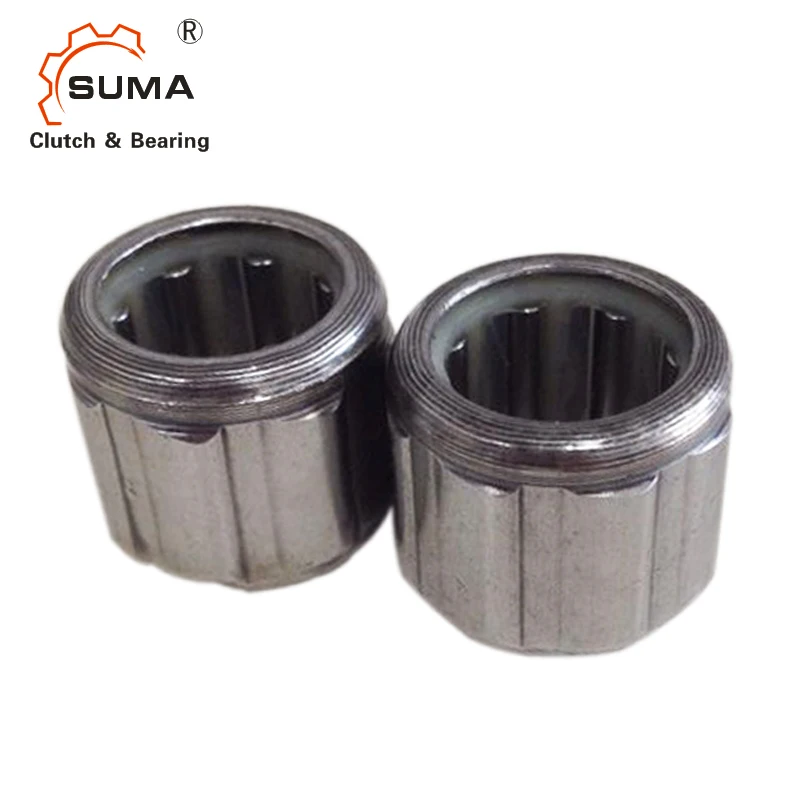

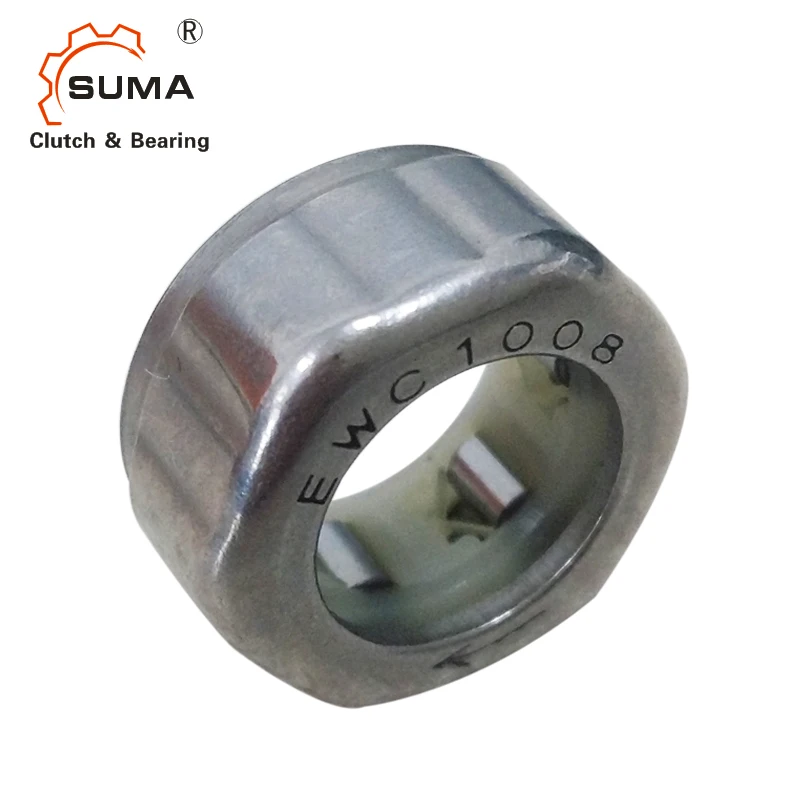

Outer Hexagonal Bearing One Way Needle Bearing Manufacturer 1WC0608
Product Description
Features of EWC Needle bearings manufacturer
EWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and
make the structure more compact as well as higher performance.
Product name | EWC needle bearing one way |
Model | 1WC0608 |
Material | Outer ring: ST14, Shelf strength: nylon |
Shaft diameter | 6mm |
Outer diameter | 8mm |
Thickness | 6mm |
Torque capacity | 0.45Nm |
Weight | 2.5g |
Package | Plastic Bags + Carton Box |
Catalogue of ewc needle bearing one way for your choice
| Shaft Dia. | Model | Weight | DIMENSION | Torque Capacity | |||
| MM | g | Inner Dia. FW | Outer Dia. | Height | (N.m) | (kgf.cm) | |
| D1-D2 | B | ||||||
| 4 | EWC0406 | 1.2 | 4 | 8-8.4 | 6 | 0.08 | 0.8 |
| 1WC0406 | 1.5 | 4 | 8-8.4 | 6 | 0.15 | 1.5 | |
| 6 | EWC0606 | 2 | 6 | 8-8.4 | 6 | 0.19 | 1.9 |
| 1WC0606 | 2.2 | 6 | 8-8.4 | 6 | 0.33 | 3.5 | |
| EWC0608 | 2.2 | 6 | 10-10.4 | 8 | 0.25 | 2.5 | |
| 1WC0608 | 2.5 | 6 | 10-10.4 | 8 | 0.45 | 4.5 | |
| 1WC0612 | 3 | 6 | 10-10.4 | 12 | 0.9 | 9.5 | |
| 8 | EWC088.5 | 2.5 | 8 | 12-12.4 | 8.5 | 0.5 | 5.5 |
| EWC0809 | 2.5 | 8 | 12-12.4 | 9 | 0.88 | 9 | |
| EWC0812 | 5.5 | 8 | 14.2-15 | 12 | 1.18 | 12 | |
| 1WC0812 | 6 | 8 | 14.2-15 | 12 | 1.96 | 20 | |
| 1WC0815 | 8 | 8 | 14.2-15 | 15 | 2.65 | 27 | |
| 10 | EWC1007 | 7 | 10 | 16-17 | 7 | 1.2 | 10 |
| EWC1008 | 8 | 10 | 16-17 | 8 | 1.85 | 19 | |
| 1WC1009 | 8.5 | 10 | 14-14.4 | 9 | 2.25 | 23 | |
| EWC1010 | 8 | 10 | 16-17 | 10 | 1.18 | 12 | |
| 1WC1010 | 9 | 10 | 16-17 | 10 | 1.98 | 20 | |
| EWC1012 | 10 | 10 | 16-17 | 12 | 1.37 | 14 | |
| 1WC1012 | 11 | 10 | 16-17 | 12 | 2.35 | 24 | |
| 12 | EWC1209 | 10 | 12 | 18-19 | 9 | 3.04 | 31 |
| EWC1216 | 12 | 12 | 18-19 | 16 | 6.29 | 64 | |
| 1WC1216 | 13 | 12 | 18-19 | 16 | 7.3 | 75 | |

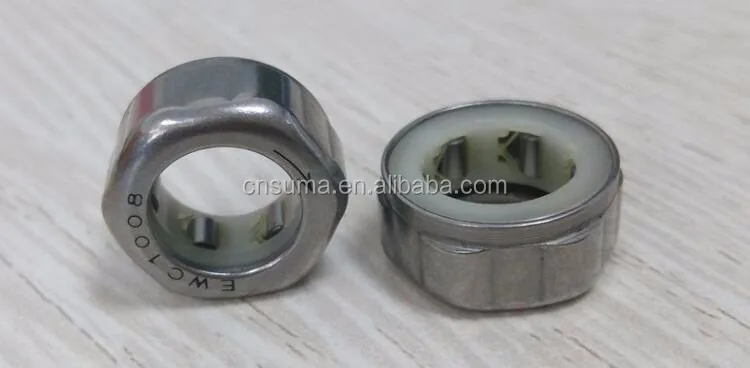

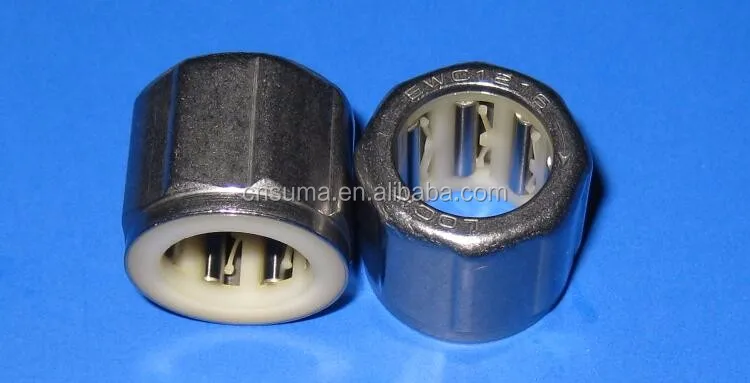

Detailed Images
Clients Visit
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
After-Sales Service
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
FAQ
Q: How do you pack the goods?
- Small Quantity :
Roll Pack - in 19x18x9CM carton box - 29*28*19CM carton box
- Big Quantity : 29*28*19cm carton box + Wooden box /Wooden pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
