Aluminum composite panel (acp) grooving machine electric,aluminum composite panel 3mm

Panel thickness: 2mm, 3mm, 4mm, 5mm

Aluminum skin thickness: 0.12mm/0.15mm/0.18mm/0.21mm/0.25mm/0.30mm/0.35mm/0.40mm/0.45mm/0.50mm

Standard width: 1220mm or 1250mm, other width AVAILABLE

Panel length: according to your need. Usually maximum length is 6000m.

Surface coating: PE or PVDF coated

Standard colors: 30 kinds of regular colors. Special colors available upon request.

Recommend Specifications:

1220*2440*3mm for imterior

1220*2440*4mm for exterior

Other specifications upon request.

Coating evenness

Diversified colors
Impact resistance

Easy to maintain.

High resistance to peeling

Superior weather resistance

Light weight and easy to process

Excellent fire resistance properities

Curtain wall boards for outside walls of normal buildings

Renovations of old buildings and movable houses,exterior architecture cladding

Billboards, exhibition desks and notice boards,advertising signage

Materials for industrial application, car and ship bodies ,interior designs

Refresh and decoration for indoor walls, ceilings, bathrooms, kitchens and balconies.

A.  in bluk---can load more panels, but need manual unloading.

B. in wood pallets----load less panels than bulk load, but convenient in unloading.

1. How to choose the panel thickness for different usages?

Exterior usage: 4mm panel with 0.30mm,0.40mm or 0.50mm aluminum skin, better in PVDF coating.

Interior usage: 3mm panel with 0.10mm,0.15mm or 0.21mm aluminum skin, PE coating is ok.

2. How to check whether this product is in good quality?

A. First is to see whether the surface is smooth enough, no ripples, bubbles and scratches.

B. Second is to check whether the panel thickness and aluminum skin thickness is thick enough.

C. To check the core material, whether it's easy broken.

D. To test the peel strength between aluminum skin and the core .

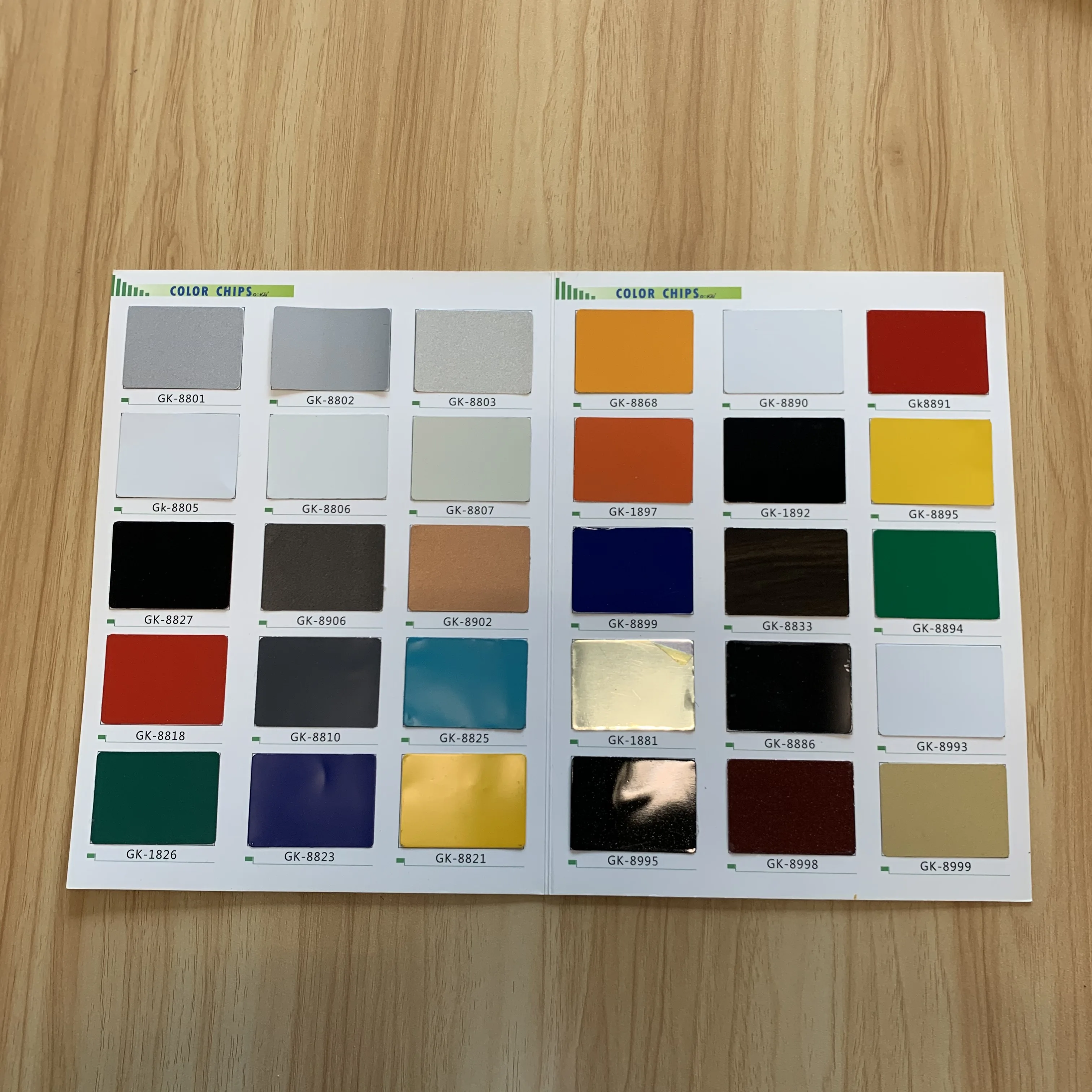

3. How to confirm the color for what  you want?

You can contact me for our color card.

You can also choose a color from the RAL/Panton color card.

4. More questions, please contact us....
