Product Overview
Description
Tractors, Front End Loader, Backhoe, Disc Harrow, Plough, Farm Trailer, Mower, Rotary Tiller

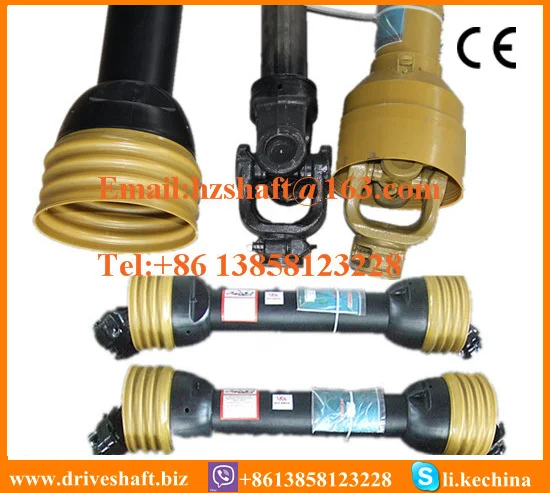

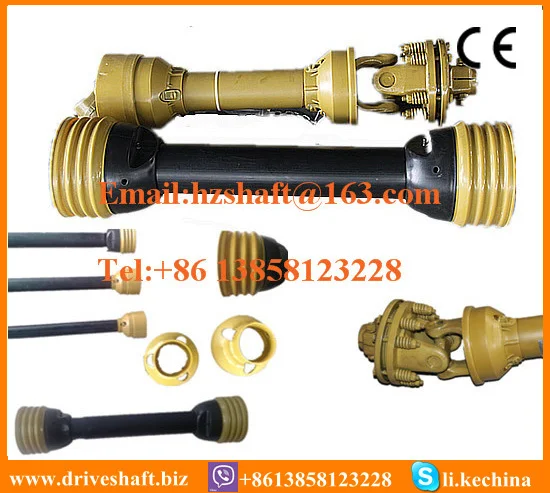

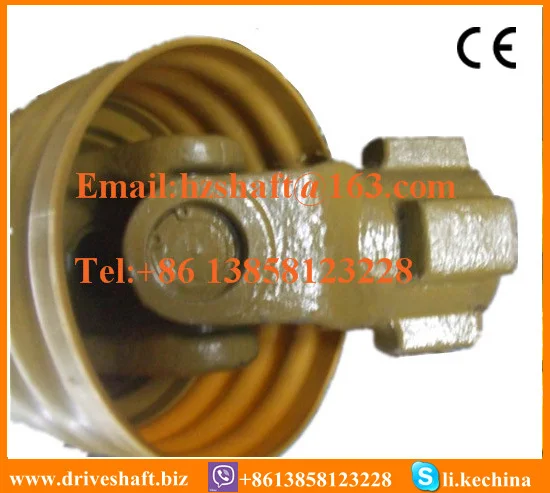

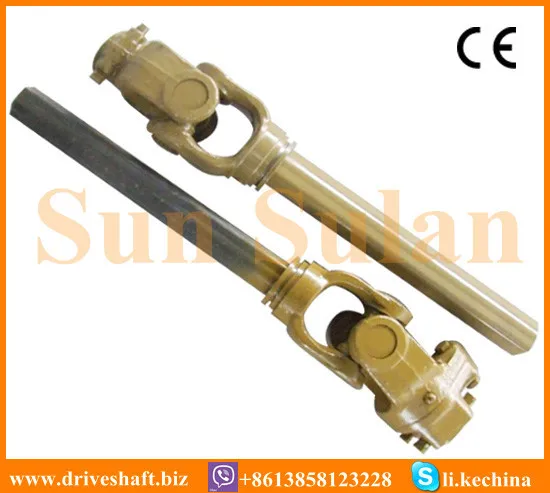

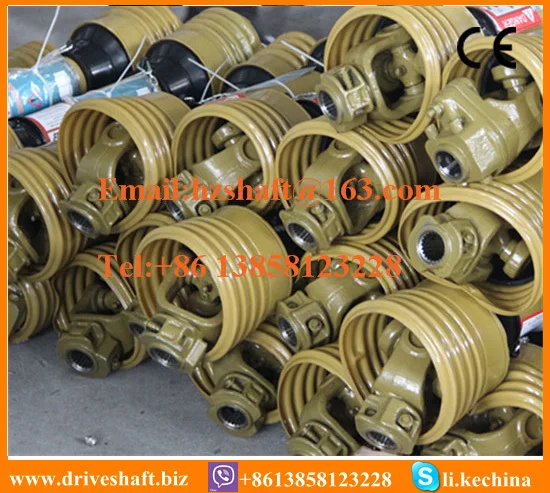

PTO Shaft with clutch for Agricultural machine
PTO Shafts Ratchet Torque Limiter
Company Information
1.With CE certificate
2.Forged yoke
3.Use for 80-100HP
4.Multi-tooth spline. Specifications from the 1 3 / 8 "Z6, 1 1 / 8" Z6, 1 3 / 4 "Z6, 1 3 / 8" Z20, 1 1 / 8 "Z20, 1 3 / 4" Z20, 1 3 / 8 "Z21 , 1 1 / 8 "Z21, 1 3 / 4" Z21, etc., complete specifications are welcome.
5.Triangle shaped tube, lemon tube, pipe welding fork Star,sqare tube .
6.This shear bolt torque limiter device interrupts the transmission of power by shering a bolt when the torque exceedsthe setting.
PTO drive shaft for different brands of agriculture machinery, such as tractor Johndeer, case,and newholland
| Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
| Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
| Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
| Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
| Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
| Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
| Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
| Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
| Series 8 | 35mm | 106.5mm | 70KW | 95HP | 110KW | 150HP |
| Series 38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |
