lb-jyb flexible arms/stainless pipes for smoke extraction/fume extractor arm

Share on:

Price:RUB 9,233.18 - RUB 13,247.61
Price in USD:Details


Product Overview


Product Description



loobo lb-jyb flexible arms/stainless pipes for smoke extraction/fume extractor arm


*Facility Characteristics:


> Length: 2m-5m Diameter: φ150mm, φ175mm, φ200mm (other specification should be customized)

> Import PVC steel wire air hose, anti-corrosion; endure acid, and high temperature 1400C Skeleton material: the spring steel is galvanized, and other metal components and fasteners are all stainless steel 304#.

> Suction cover: stainless steel, 360 degree arbitrary hover with wind control valve for suction mouth

 > Light weight, high strength, with power device, easy to operate, hover freely. It can be adjusted in any direction, and its capture effect is good.

> Compared with the fixed pipeline system, flexible suction arm has unparalleled performance superiority. It can adapt to all kinds of complex conditions .Not only can with suction pipeline, but also can be placed any best capture location. Thus, it can capture welding fumes effectively

>Can work according to the scene of the need to configure the different suction hood, for example, large type, round type, square shape, hat shape, etc.

>Options: fire prevention network, work light, smoke/light/ temperature probe


* Application places:


 Suction arm is widely used in metal processing, welding fume, polishing, and thermal processing of oil mist treatment, peculiar smell removing, dust removing and other industries.


Essential feature:

Model  Name Support Structure Material Hood Stype Length Diameter Resistance temperature Color Application
JYC/JYB Flexible Extraction Arms   built-in  or external structure stainless steel support Fire-proof material, anti-rust metal structure hat stype     or           hose-hoof stype 2m/3m/4m/5m from150 to 300mm 140-320degree blue or gray wall mounted, connected to Central Fume Extraction System



In fact, all directions, dia and lengths according to customer's requests.

Length from 2m-5m for regular uses, or longer type accordingly

Diameter from 150mm-300mm for regular uses, or other size accordingly



Wall-mounted type, mainly used for the central fume/dust extractions project





  General Specifications :

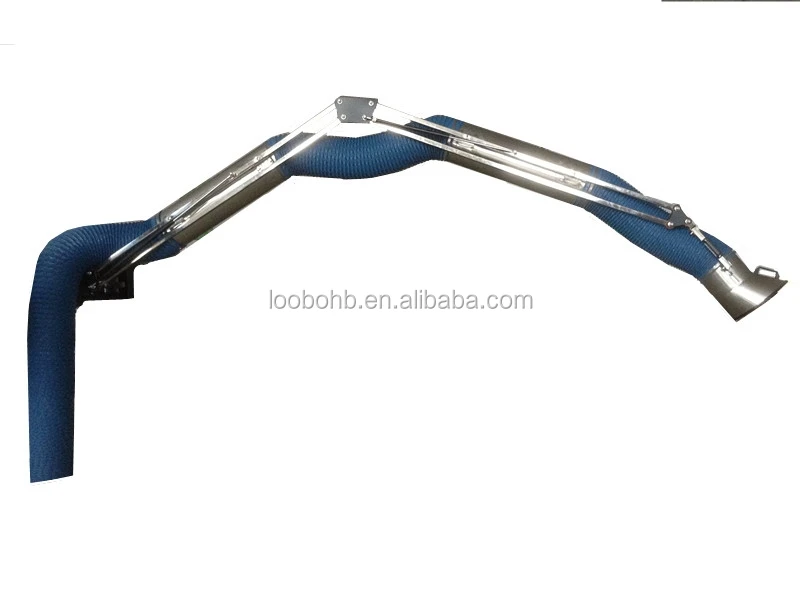

1.JYB Model, Bult-in structure support: Dia-150mm/200mm




2.JYC Model, External Support stucture: Dia-150mm/200mm

JYC external support arm, wall-mounted


3.LB-JC Model, Extension External support structure:



4.LB-QXB Model, Joint Arm: Dia-75mm , length-1.0-1.5m




5.LB-JYD Mini Model: 1.0m*50mm

JYD mini type(11(06-09-09-51-23)



  6.LB-JD Multi-joint arms:

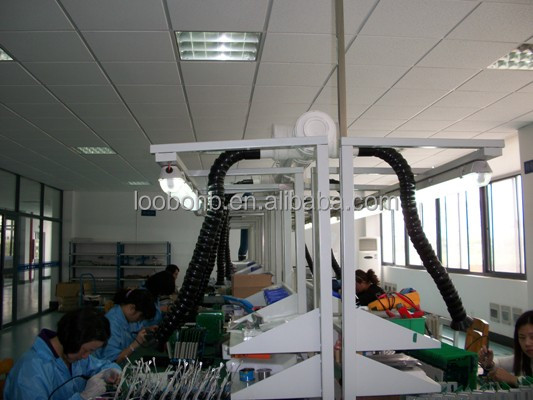

Industrial System:
