Product Overview

Description

Welcome to use ST78-3 Infrared Sensor Light!

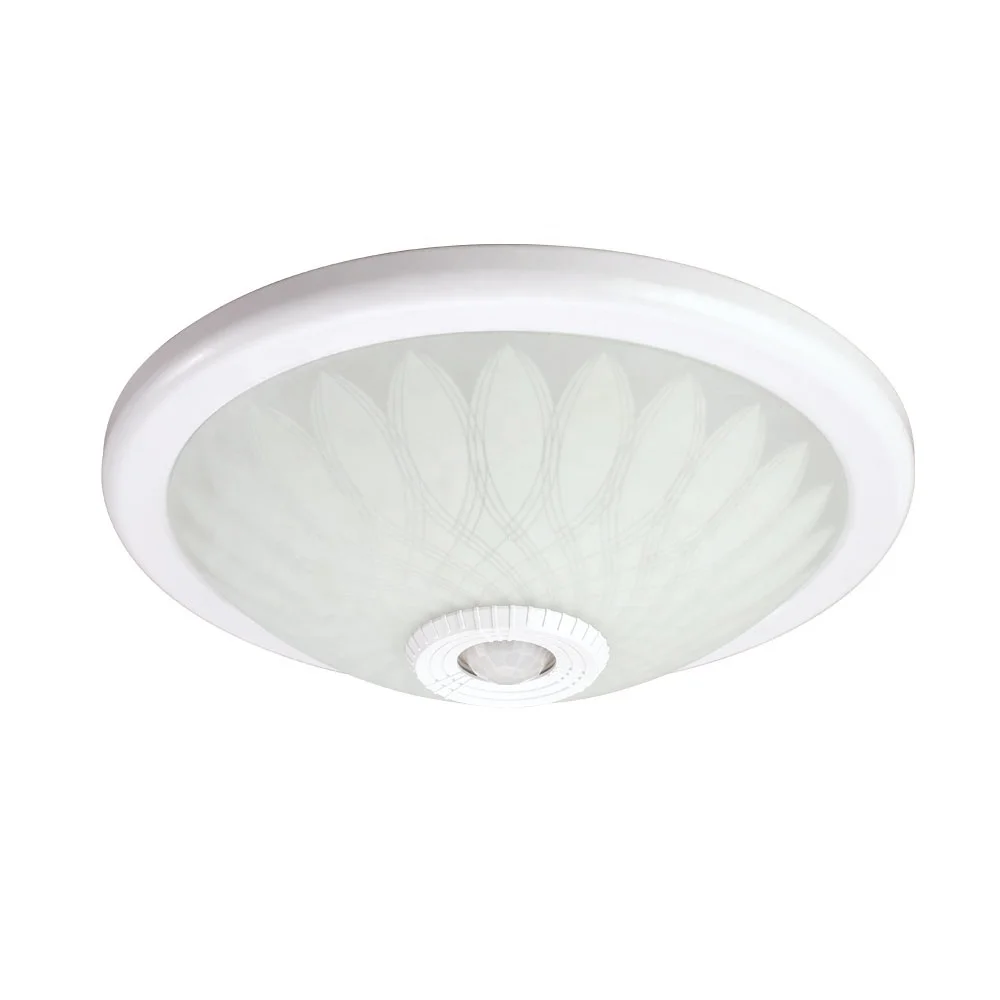

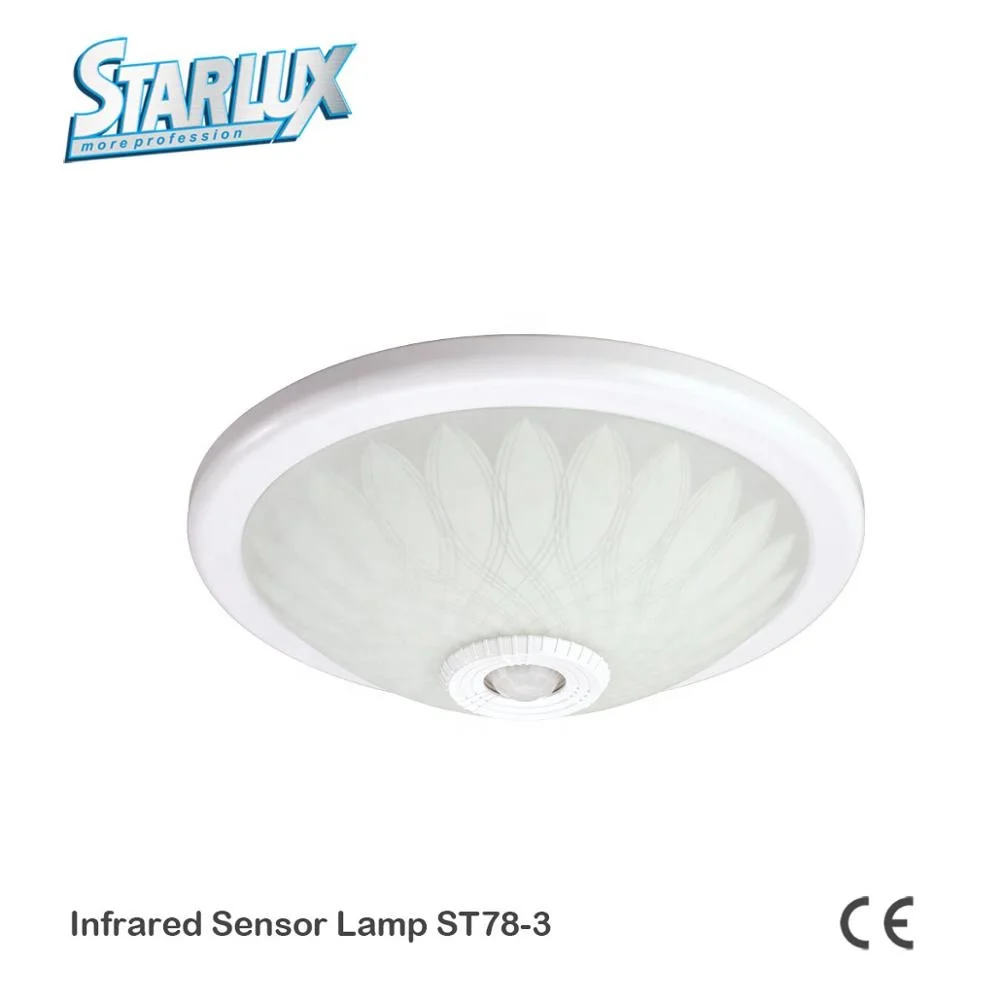

High Quality and Security lamp lighting fixture design ST78-3 Infrared Motion Sensor Light E27

The product is an energy-saving automatic sensor lamp, adopting integrated circuit and precise detecting components. It gathers automatism, convenience, safety, saving-energy and practical functions. Its performance is stable. It can identify day and night. The lamp can turn on when one enters detection field and can turn off automatically when one leaves detection field.

Specifications:

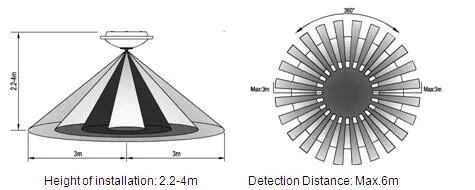

Power Source: 220-240V/AC                         Detection Range: 360°

Power Frequency: 50/60Hz                           Detection Distance: 6m max(<24℃)

Ambient Light: <3-2000LUX (adjustable)      Working Temperature: -20~+40℃

Time Delay: Min.10sec±3sec                       Working Humidity: <93%RH

                   Max.3min±30sec                       Installation Height: 2.2-4m

Rated Load: Max. 2x40W (E27)                   Detection Moving Speed: 0.6-1.5m/s

Lifetime and Warranty:

FUNCTION:

Ø  Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø  Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

Ø  Adjustable Time Delay: the length of time delay could be set according to the customers’ requirement, the minimum time of this item is 10sec ± 3sec, the maximum is 3min±30sec.

INSTALLATION:

Ø  Switch off the power.

Ø  Unscrew the plastic screw nut and remove the glass lampshade.(refer to figure1)

Ø  Pass the wire through the hole in the bottom and connect the power wire into connection-wire column according to the connection-wire diagram. Install the sensor lamp in the position where you need with inflated screws. (refer to figure2)

Ø  Enclose the incandescent bulbs or energy-saving lamps. Install back the lampshade, then electrify and test it. (refer to figure3)



CONNECTION-WIRE DIAGRAM:



SENSOR INFORMATION:
