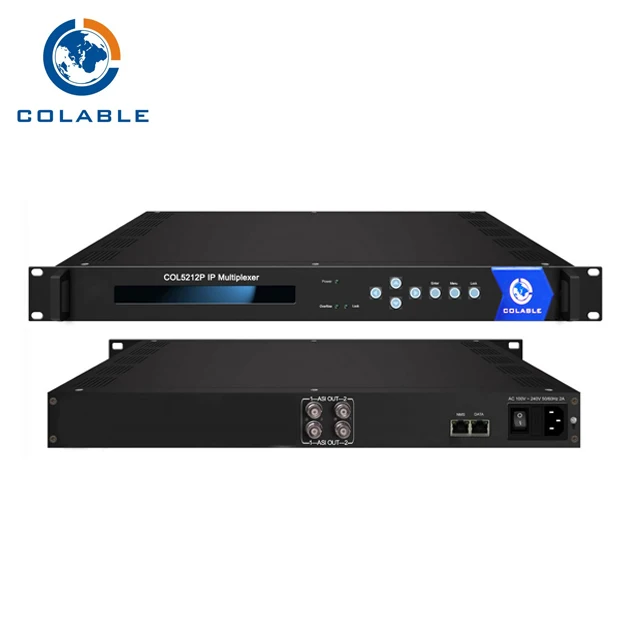

Одноадресной многоадресной 512 * МБ/SPTS IP multipexer COL5212P

Product Overview

Description

 Digital unicast/multicast 512*mpts/spts IP to IP Multiplexer

Model: COL5212P   ( Skype: colable6    Enail: dana@colable.com   Whatsapp: 86-18180687761 )

Outline

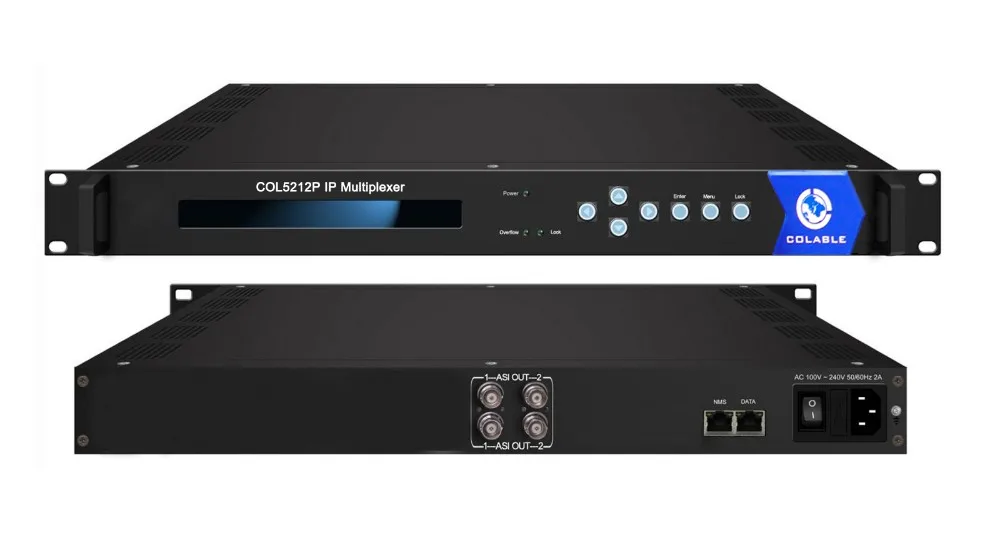

COL5212P IP multiplexer is a professional TS processor used in digital TV broadcasting head-end system.

It receives up to 512 IP (SPTS/MPTS) channels and multiplexes the input programs into 2 TS stream

output inserted with EPG (electronic program guide), CA (conditional access), data broadcasting and etc.

It can be controlled and upgraded via web management in addition to front panel keyboard.





Features



• Fully complying with ISO13818 and EN300 468 standard
• 512 IP (SPTS/MPTS) input over UDP
• 2 independent groups of ASI output (each group has 2 ports)
• 2 IP output over UDP, IP to IP multiplexer
• Support accurate PCR adjusting
• Support PID passthrough, re-mapping, multiplex up to 2048 PIDs per out channel
• Support PSI/SI rebuilding and editing
• Huge buffer memory for saving the overflowing code stream
• LCD/keyboard and Web-based NMS management





Specifications





Input	IP (RJ45,GE)	512 x MPTS/SPTS, Unitcast/Multicast, UDP Protocol,  IGMP V2/V3
Re-multiplex	PID re-mapping (auto or manually available)
	PCR accurate adjusting
	Automatic generating PSI/SI table
	PID passthrough
	Support multiplex maximum 2048 PIDs each output channel
Output port	ASI	2 x independent channels of ASI output (each channel has 2 ports) (up to 210Mbps)
	IP(RJ45,GE)	2 x IP (Unitcast/Multicast), UDP Protocol (up to 230Mbps)
NMS port	Ethernet port	GE
General	Demission	482mmx410mmx44mm(WxLxH)
	Weight	2.0kg
	Temperature	0~45℃(operation), -20~80℃(storage)
	Power supply	110VAC±10%,50/60Hz; 220VAC±10%,50/60Hz
	Consumption	<25w

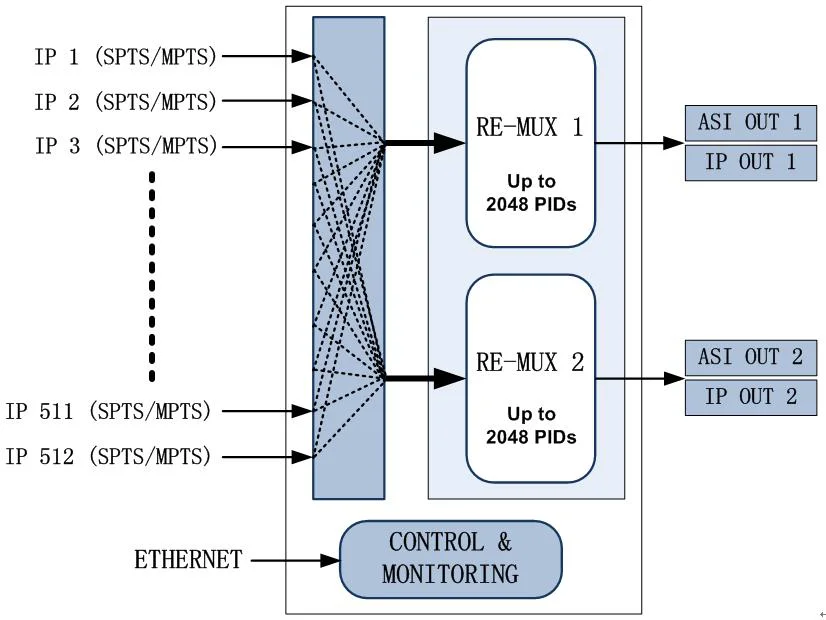

Principle Chart
