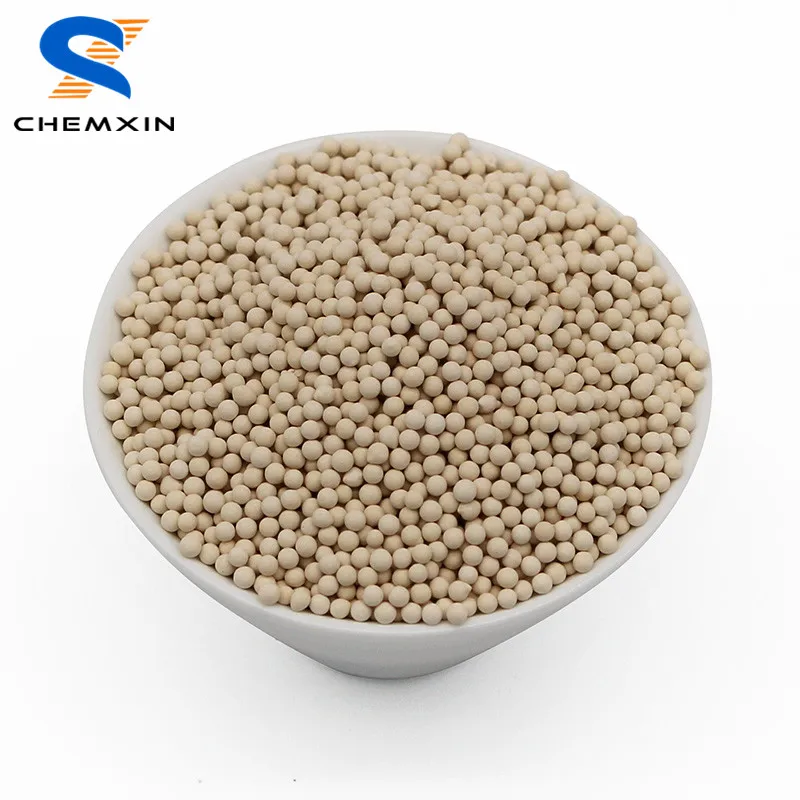

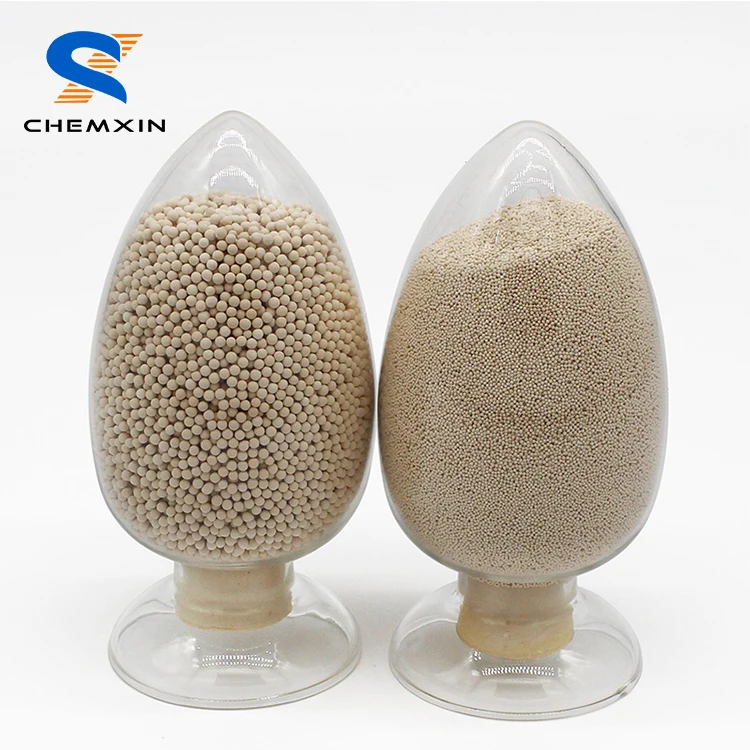

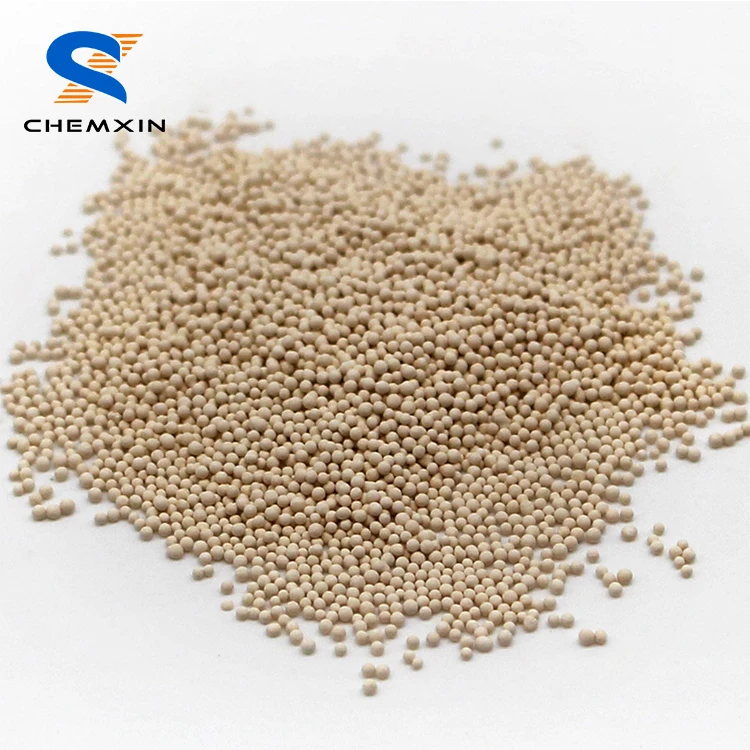

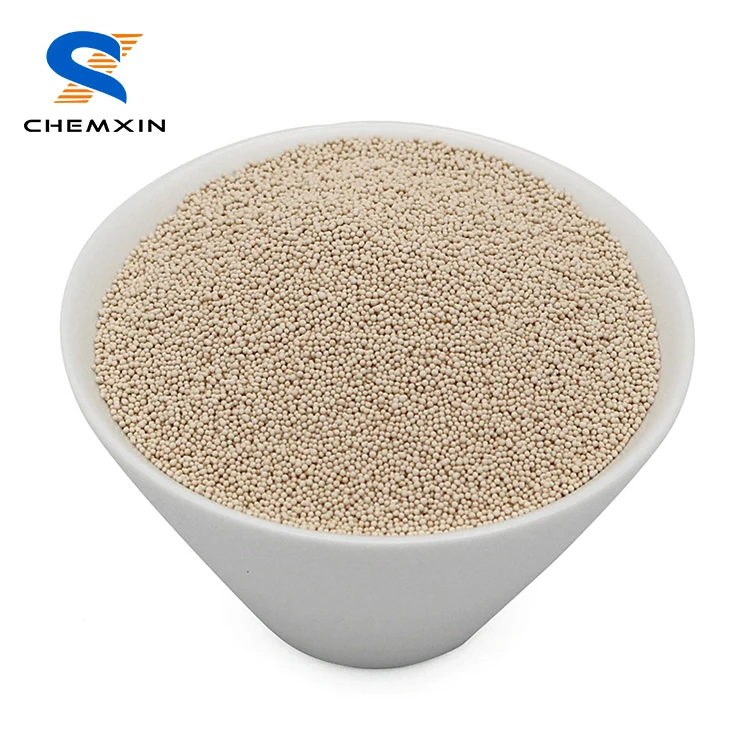

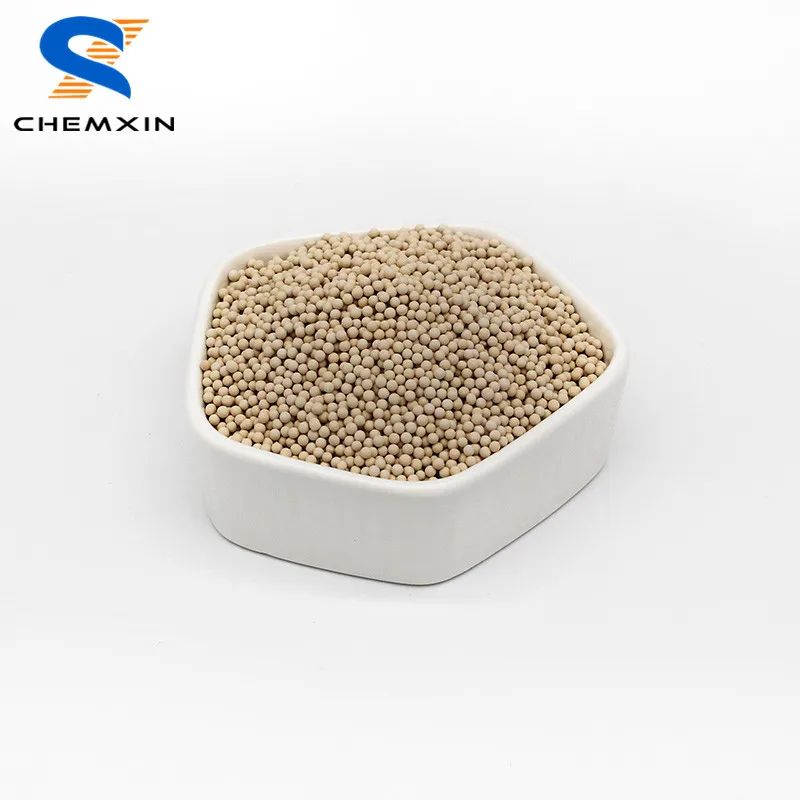

high oxygen concentration molecular sieve 13x hp zeolite for psa oxygen concentrator 0.4-0.8mm molecular sieve jlox-501
Product Description
Chemxin Molecular Sieve 13X HP is equal to jalon molecular sieve jlox-500. It is mainly used in PSA oxygen concentrators and oxygen concentrators device, and as well as the industrial PSA unit, with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity, easy desorption and etc.
Technical Parameter:
Model
13X HP
Color
Light gray
Nominal pore diameter
10 angstroms
Shape
Sphere (ball)
Diameter (mm)
0.4-0.8
1.6-2.5
Loss on Ignition (wt%.575℃, 1hr)
≤1.0
≤1.0
Bulk density (g/ml)
≥0.62
≥0.62
Crushing strength (N)
/
≥30/piece
Static H2O capacity (wt% RH60%,25℃)
≥30
≥30
Static CO2 capacity(wt% 250mmHg, 25℃)
≥19.8
≥19.8
Attrition (wt%)
≤0.2
≤0.2
Particle Ration (%)
≥95
≥97
N2 capacity(ml/g,)
≥8
≥8
N2/O2 Selectivity(a,)
≥3
≥3
Hand & Storage Recommendation: It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.
Attention: To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
Related Products

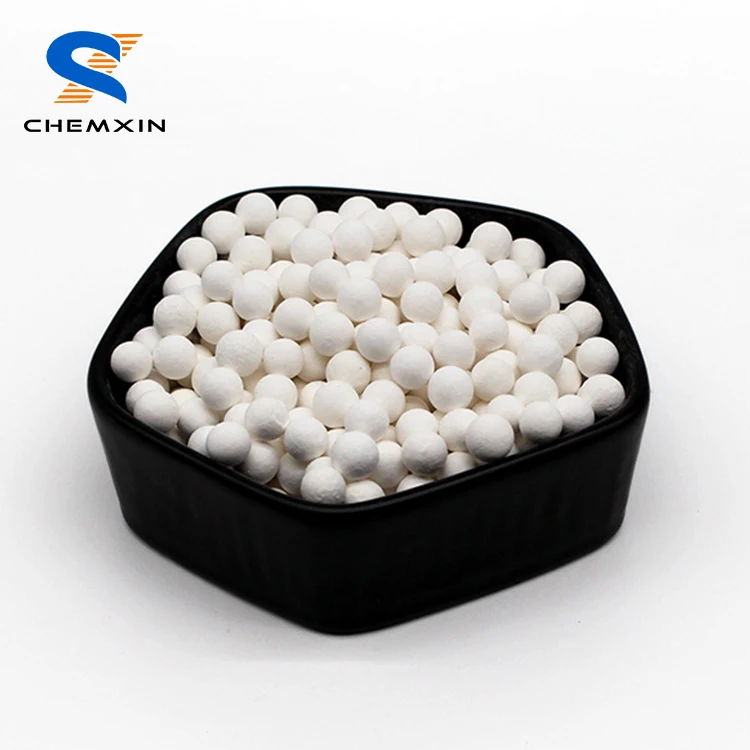

CHEMXIN Activated alumina KA401 is an excellent desiccant for drying a wide variety of liquids and gases. It is widely used in large and small dryers. It is appropriate for use in dehydrating gases in both thermally regenerative and pressure swing adsorption (PSA) process.
