tractor truck container semi trailer truck tractor ISUZU,international tractor truck head for sale
- Category: >>>
- Supplier: Shanghai Cimc J.t Vehicle Co. Ltd. [Shanghai China]Shanghai
Share on (60599183767):
Product Overview
Description

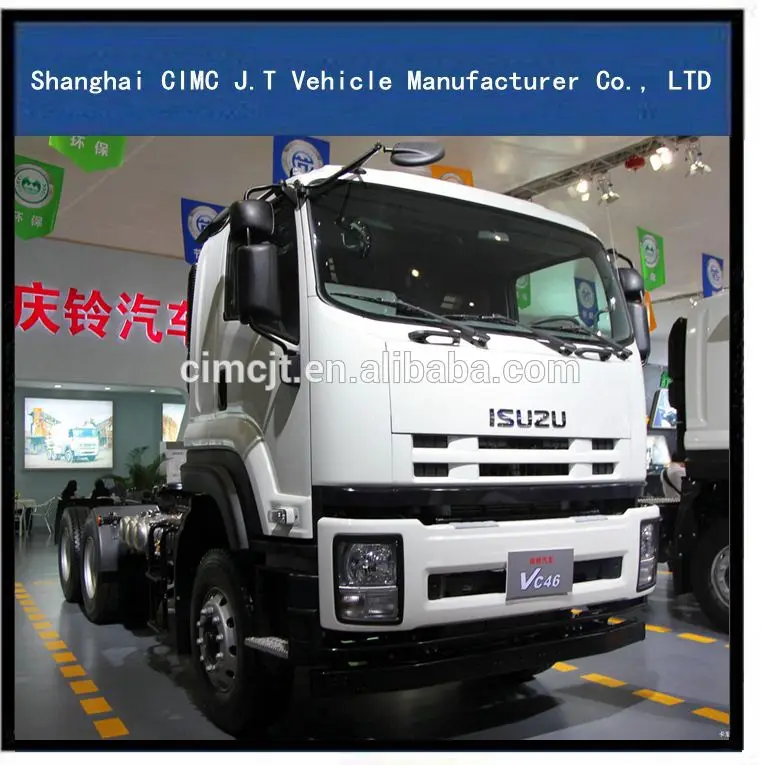

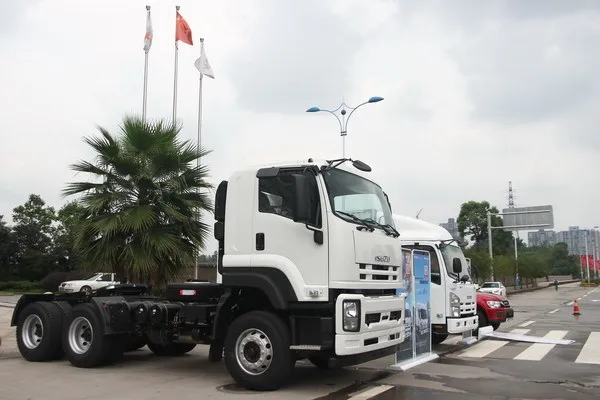

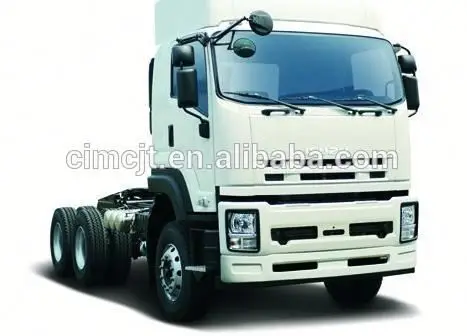

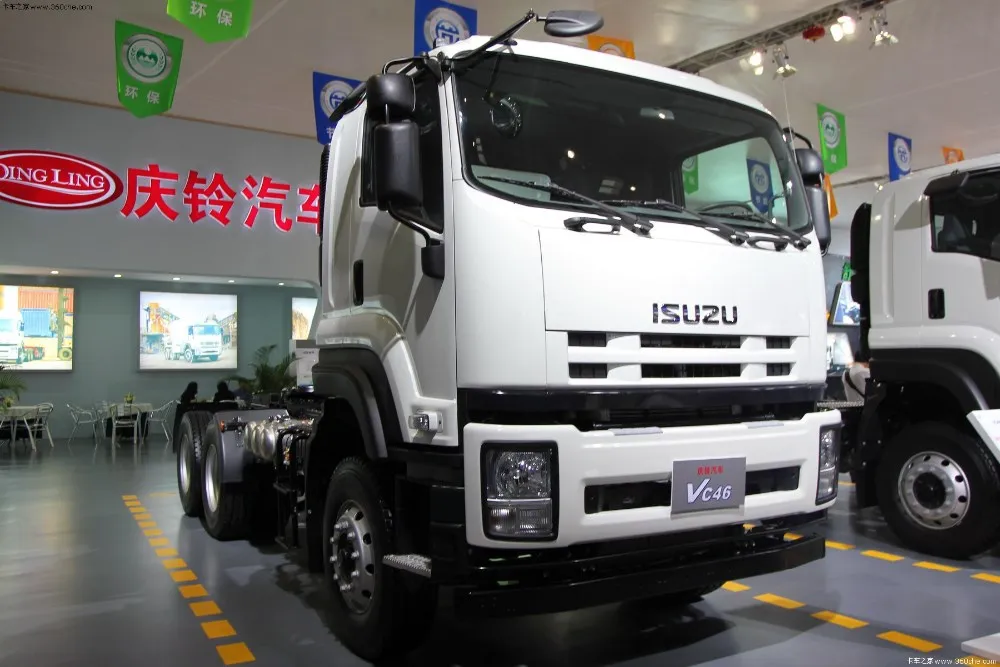

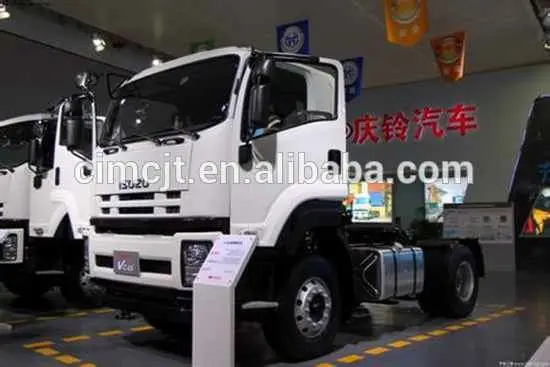

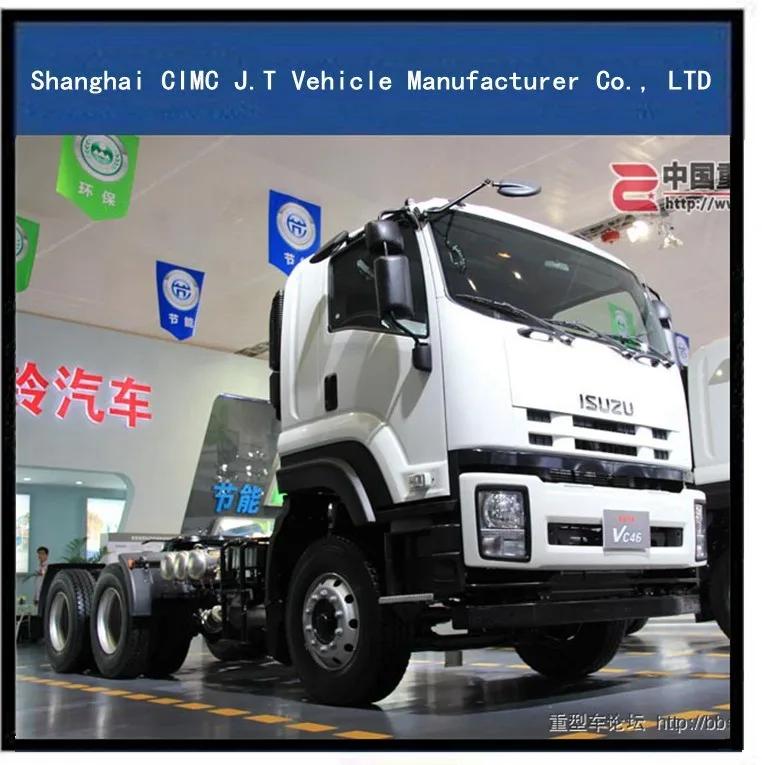

tractor truck container semi trailer truck tractor ISUZU,international tractor truck head for sale
![[1O4E$4~`UR6V[T]}DI)}{I](http://sc02.alicdn.com/kf/HTB16eshPXXXXXX8apXX760XFXXXX/227533878/HTB16eshPXXXXXX8apXX760XFXXXX.png)
ISUZU dump truck, started production in China since 2015, with stable quality in the world!
SPECIFICATION
| Model | QL4251UKCZ |
| Driving type | 6*4 left hand driving |
| Engine Make | ISUZU |
| Engine Typle | 4-stroke direct injection diesel engine, Electronic control |
| Engine mode | 6UZ1-TCG40 |
| Maximum output | 350 hp (257 Kw) at 2000 rpm |
| Maximum torque | 1422 Nm 1400 r/min |
| Number of cylinde | 6 |
| Displacement | 9.8 L |
| Specific fuel consumption | 184 g/kWh |
| Engine oil filling quantity | 19 L |
| Cooling system filling quantity | 40 L |
| place of origin | china |
Photo of Dump truck
Transmission FULLER 12JSD160(TA), 12 forwards and 2 reverse, 1600N.m, 2600rpm
Ratio: 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.1 1.64 1.28 1 14.86(R1) 3.33(R2)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU RT210, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
21 Tons Capacity, Ratio Selective:3.9, 4.1, 4.3
Chassis Frame: U-profile parallel ladder frame, and reinforced subframe 285×85×7 all cold riveted cross members, Manganese steel
Front suspension: leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:leaf semi-elliptic springs, bogie spring and stabilizer
Aluminium fuel tank: 400L capacity with locking fuel cap, fitted to the off side of the chassis
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre
Saddle 3.5 inch
Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, 24V USB, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
of compressed air pressure, coolant temperature, engine oil pressure and battery charging
Dimensions mm Wheel base 3425+1300
Front wheel track 2060
Rear wheel track 1855
Front overhang 1370
Rear overhang 905
Approach angle (0) 17
Departure angle (0) 42
Overall length 7000
Overall width 2500
Overall height 3300
Weight kg Dead weight 8200
Maximum Loading Capacity 40000
Gross vehicle weight 48200
Front axle loading capacity 7500
Rear axle loading capacity 18000
Performance Maximum driving speed (km/h) 110
Maximum gradeability (%) 34
Minimum ground clearance (mm) 278
Fuel consumption (l/100 km) 29
Our company
CIMC VECHICLE was founded by 1980, having over 63, 000 staff across China, North America, Europe, Asia and Australia. CIMC the biggest truck and truck body manufacturer in China, CIMC is famous in the world!
CIMC China truck supermarket cooperates with all brands of trucks which all produced in China for the GVW>15, 000 kgs heavy trucks, CIMC produces the cargo body or special truck body for the trucks. The CIMC own truck brand is C&C, and cooperate other truck chassis brand which produced in China, FAW, DFAC-DONG FENG, SHACMAN, SINOTRUK, FOTON, JAC, CAMC, SAIC-Iveco, NORTH Benz(BEI BEN), HYUNDAI China, Nissan UD China, HINO China, ISUZU China...
ISO Certificate:
FAQ
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q: How about the quality guarantee and after -sale service?
A: For quality guarate, we give one year guarantee, and with 24hours response principle for better service.
We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Welcome to have a visit to our company and factory.
