JHS brand 2017 extruder machine plastic recycling manufacture

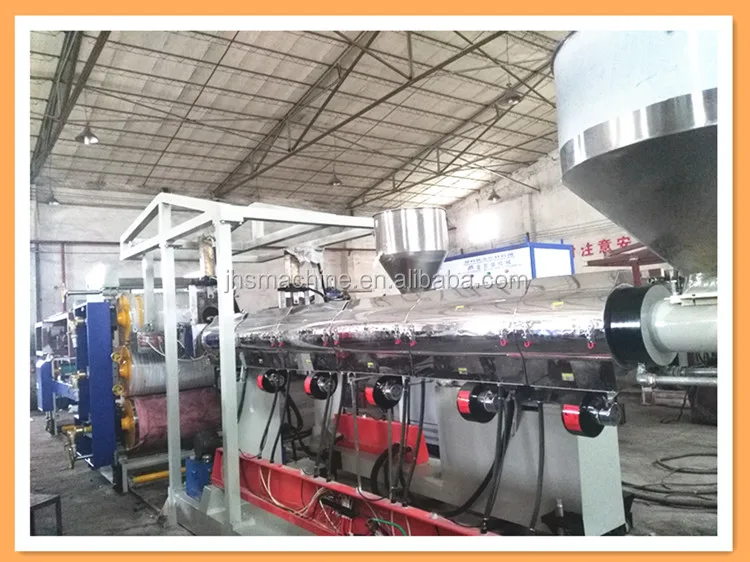

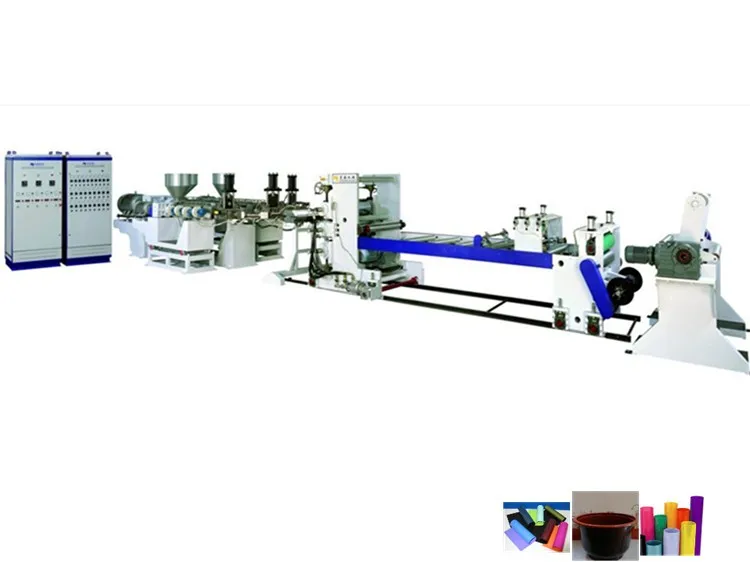

1. The plastic sheet extrusion unit is a combination of Extruder, calender, haul-off unit, winder(including waste sheet winder)
and electric control cabinet.
2. The main parts, such as screw, barrel, screen exchanger, adopt superior alloy steeel(38Cr MoAIA) with high hardness, strong corrosions resistance and long operating life after nitrogen treatment
3. The screw adopts big L/D (length and diameter) ratio, equal plasticization and high plasticizing capability.
4. Non-stop fast screen changer with double-sieve, controlled by hydraulic device, the operation is conventient and improve the production efficiency.

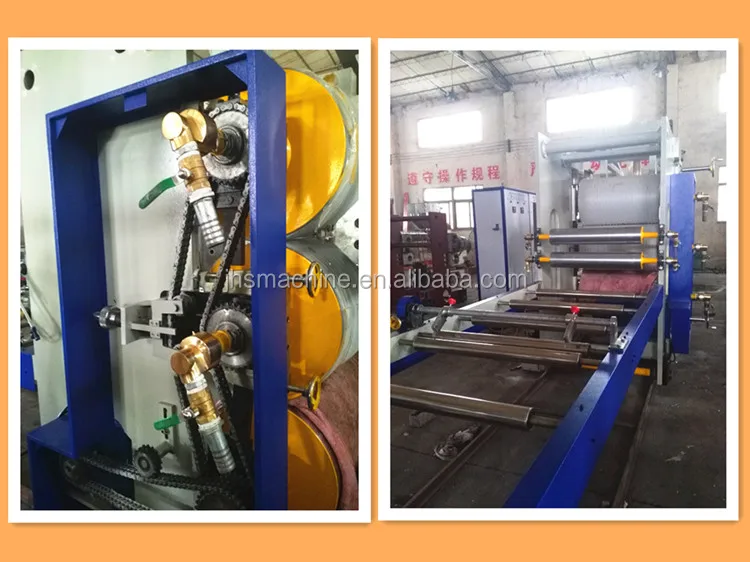

5. The Calender, haul off unit and winder adopt integration design, nice appearance, convenient and fast installation and adjustment

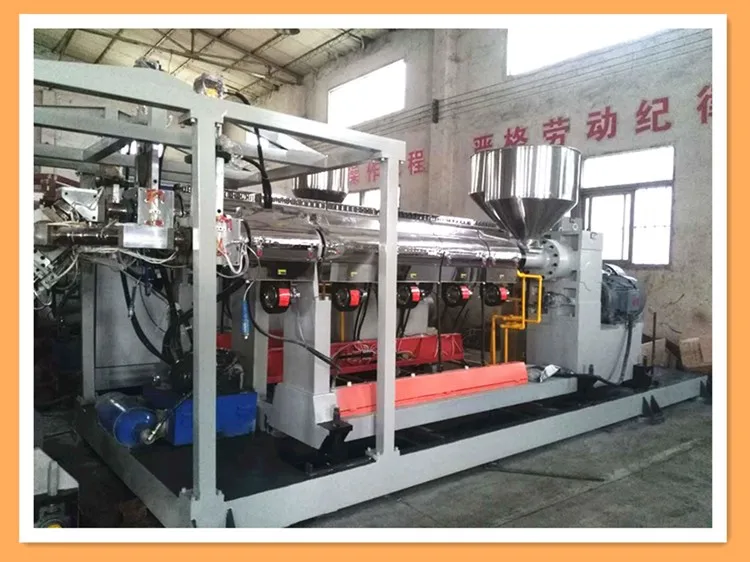

6. The extruder adopts square steel, to make sure the machine works stably in high speed, the motor is connected with gear box directly, Improve production efficiency.
7. Pressing roller uses worm wheel to adjust, the operation is convenient and high precision.

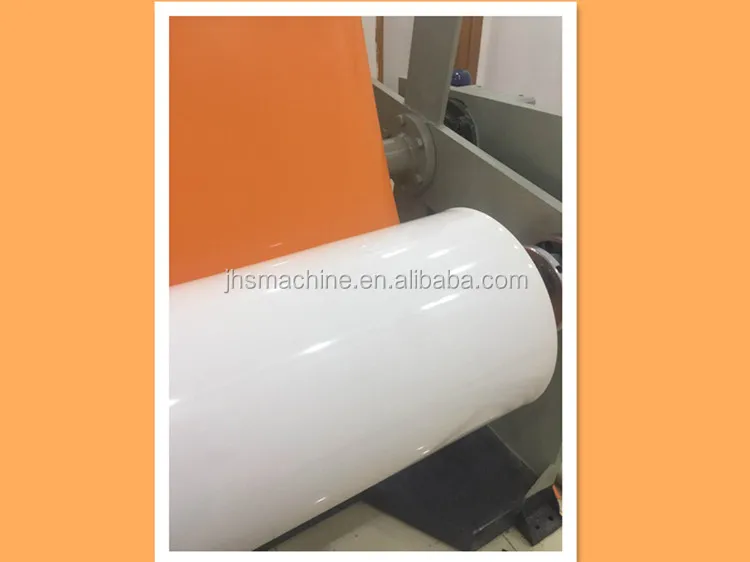

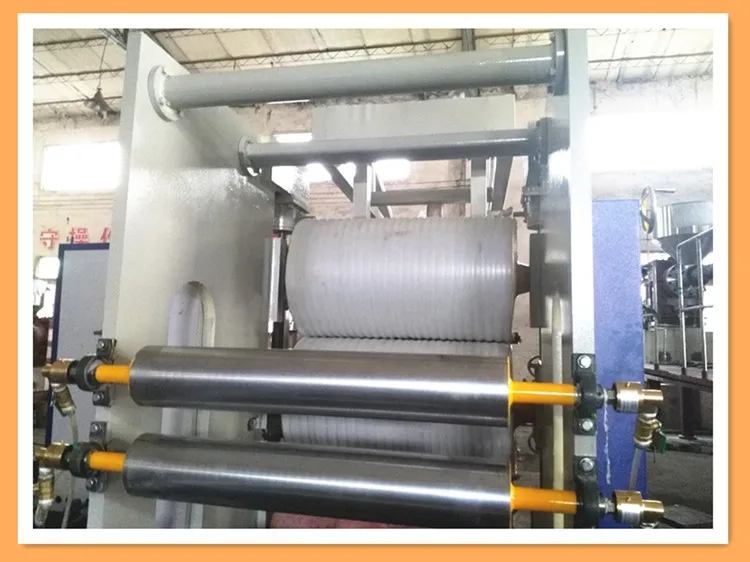

8. rollers adopt precision mirror polishing, the heating temperature of the roller in the surface is equal, to make sure the sheet has even thickness, high quality
Horizontal Style Multy-layers Extruder
| Model | HWDPC-850(Ø105⁄Ø65/Ø65) | HDPC-900(Ø110⁄Ø90/Ø65) | HDPC-900(Ø120⁄Ø90) |
| Diameter of Screw | Ø105*33 Ø65*33 | Ø110*34 Ø90*33 Ø65*33 | Ø120*34 Ø90*33 |
| Main Motor Power | 55+22+22 | 75+45+22 | 110+55 |
| Max Capacity | 300-350 | 400-500 | 500-800 |
| Thickness of Sheet | 0.3-2.0 | 0.3-2.0 | 0.3-2.0 |
| Width of Sheet | 760 | 780 | 780 |
| Arrangement of Rollder | Horizontal | Horizontal | Horizontal |
| Total Power | 135 | 175 | 210 |
| Outlook Size | 16*4.1*2.2 | 16*6*2.2 | 17*4.5*2.3 |
| Total Weight | 13 | 15 | 16 |
| Hard gear,Strong torque,low noise | Waster Rewinding system |
| Screw material:38 crMoAL Nitrogen treatment :0.4-0.7mm | Roller Hard Chromium plating0.08-0.18mm Hardness:HRC58-62 Surface rough:≥Ra |
| Screw with air cooling system | Moving wtih electromotion control system |
| 5 Heating zones of the screw | Double post gantry traction Rewinding system |
| Uninterrupted hydraulic screen changer system | 4 Heating zones of the die hear |
| Energy-saving Die head with plating and polishing | Auto Material Feeding system |
| Synchronous 45° three roller calender control system | Japan Fuji Temp.Controller PID Adjusting Memory&Antijam Digital Temp.Control |
| Full frequency conversion control (ABB) | Other electric part:Taiwan brand |
Machine Composition
| 1.double-screws Extruder | 1 set |

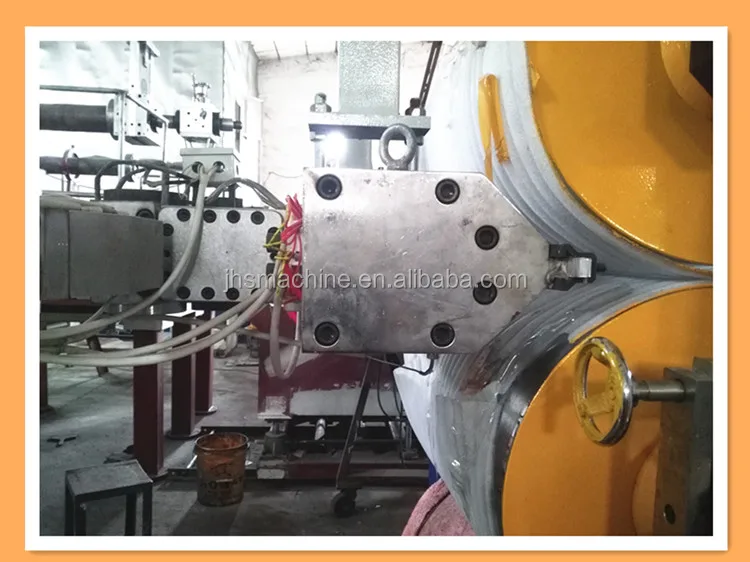

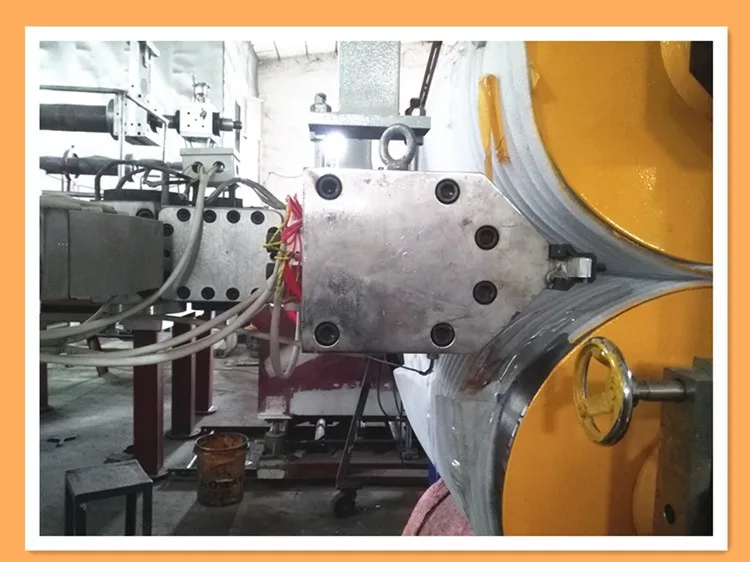

| 2.T-die and Screen Changer | 1 set |
| 3.Three-roller Calender | 1 set |
| 4.Air cooling Stand and Online Sitting unit | 1 set |
| 5.Hual off unit | 1 set |

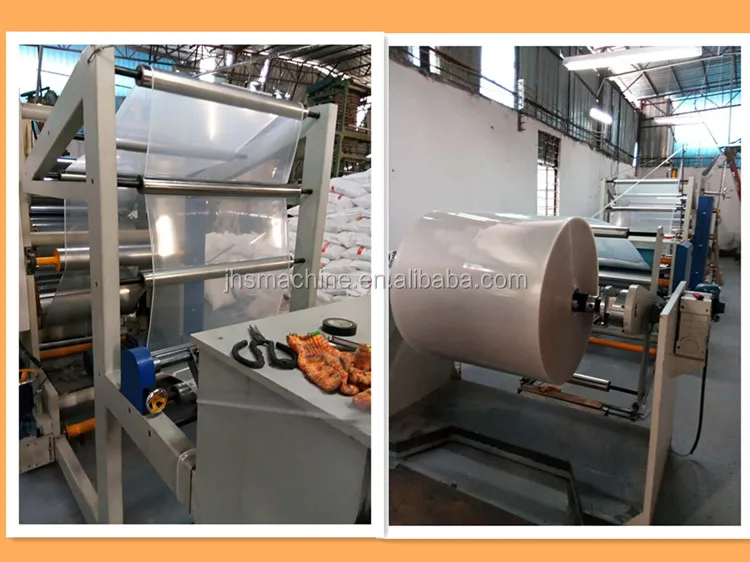

| 6.double-position Rewinder | 2 set |
| 7.Electric control cabinet | 1 set |
| 8.Free spare parts | Several |
Machine Electric brand
| Temperature control meter | WINPARK FUJI,JAPAN |
| Thermocouple | BRMNZE |
| Frequency convertor | CAMORAN SANCH ABB |
| Main working motor | SIMENS ABB XL WN |
| Proximity switch | FANICS |
| Screw barrel roller | HUAZHOU BRAND,CHINA |
| Reduction gearbox | HS |
| Die head | JC HL |
| Screen Changer | JC |
| Button switch | INT |
| Ampere meter | KAWASAKI,JAPAN |
| Votage module | YANGMING,TAIWAN |
