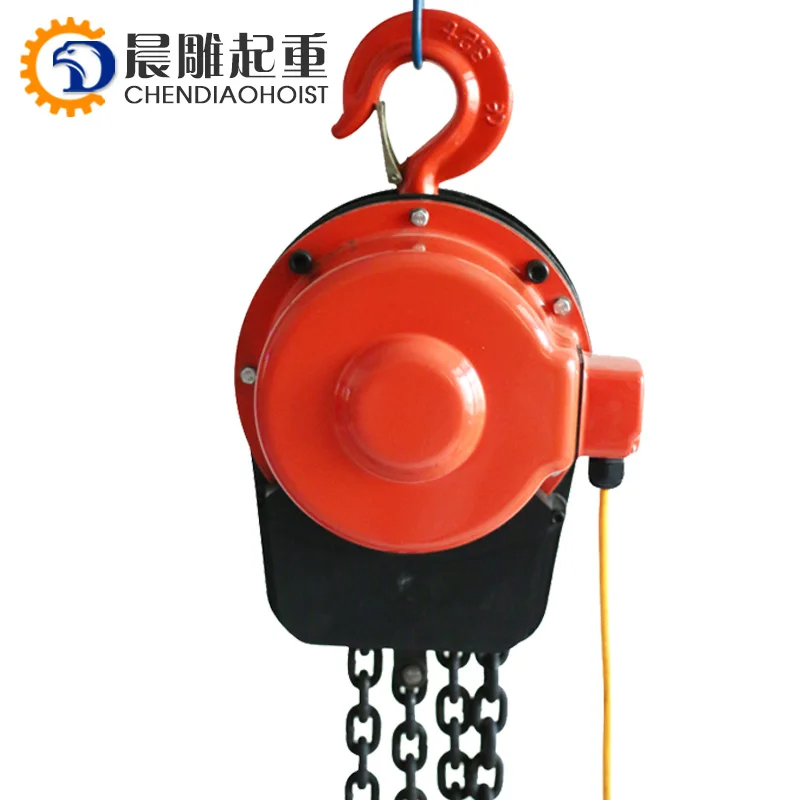

Overhead cranes Mini electric chain hoist

Product Overview

Description

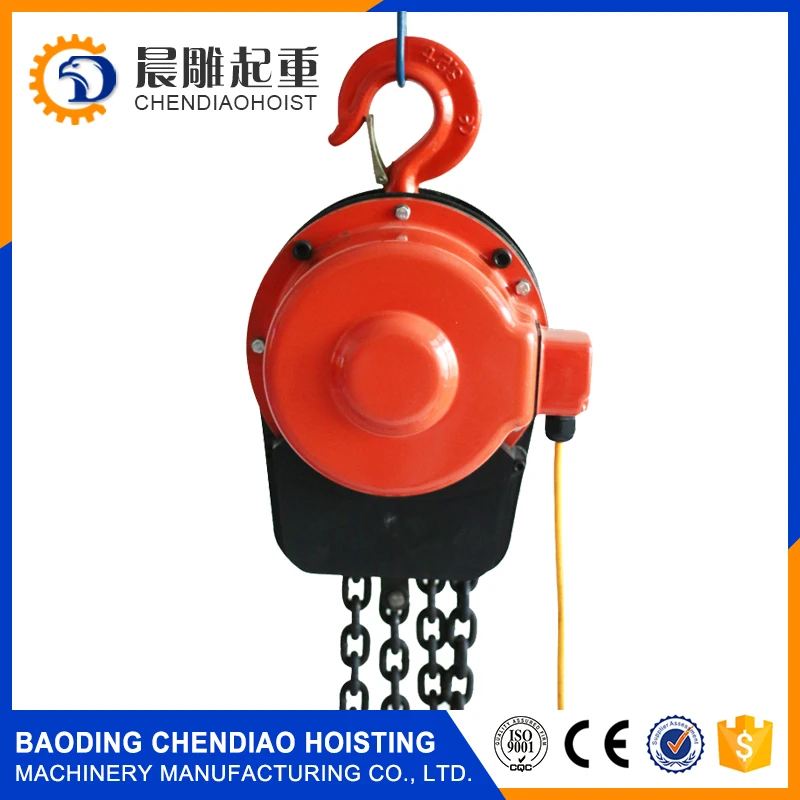

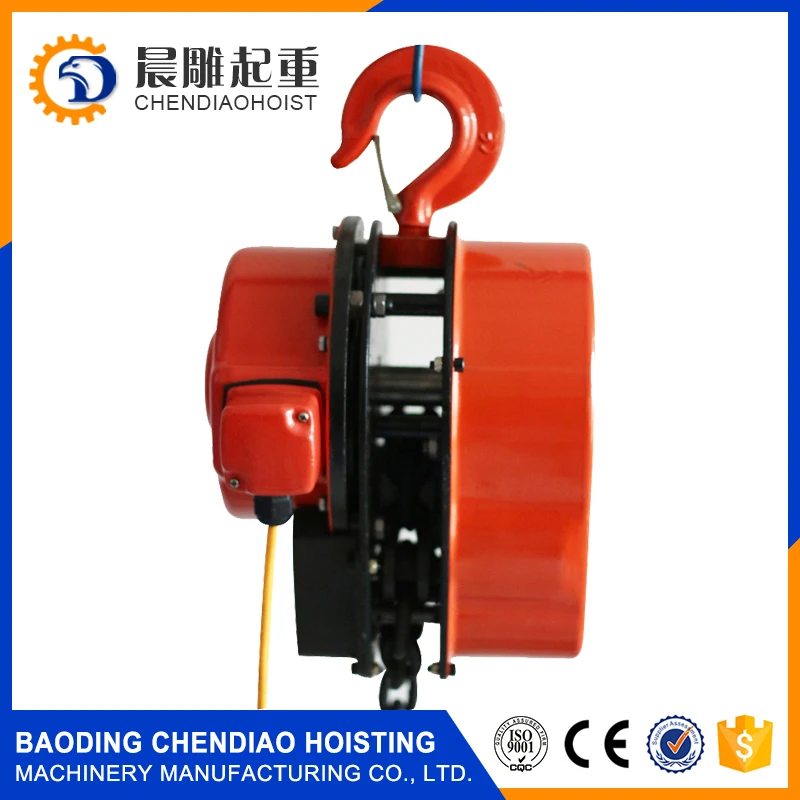

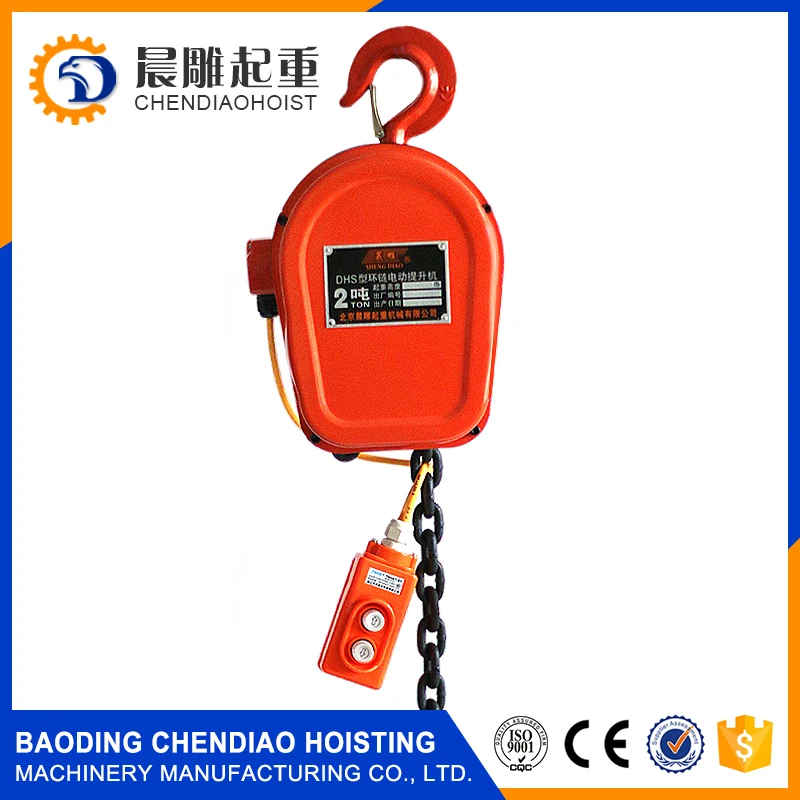

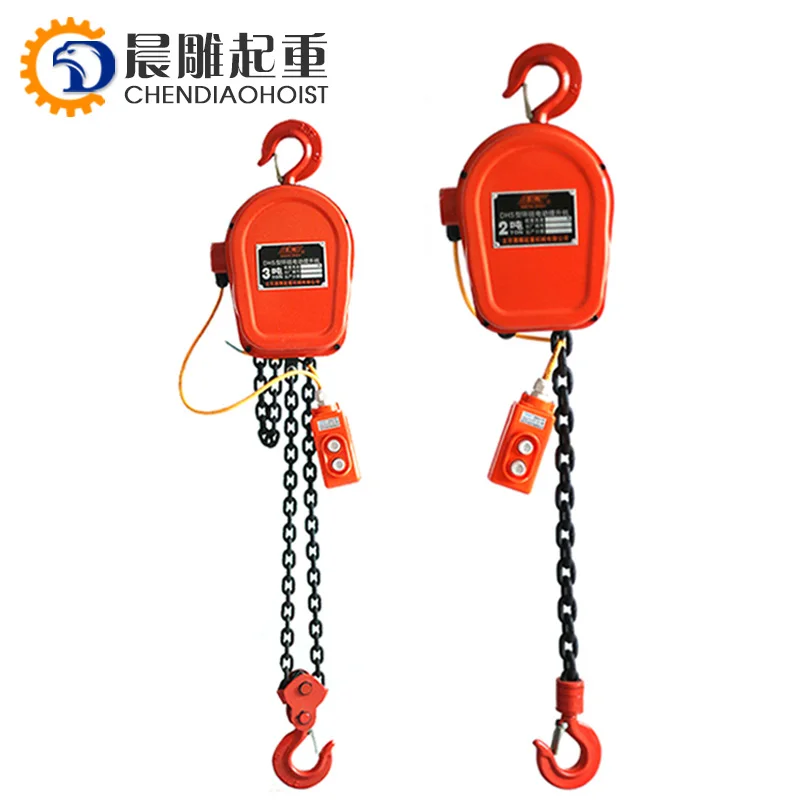

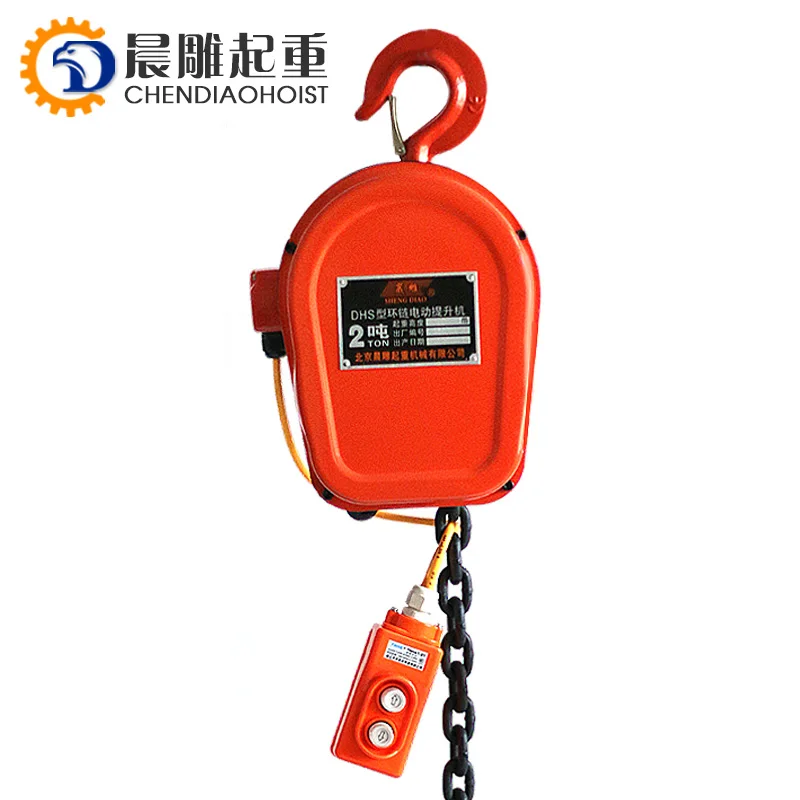

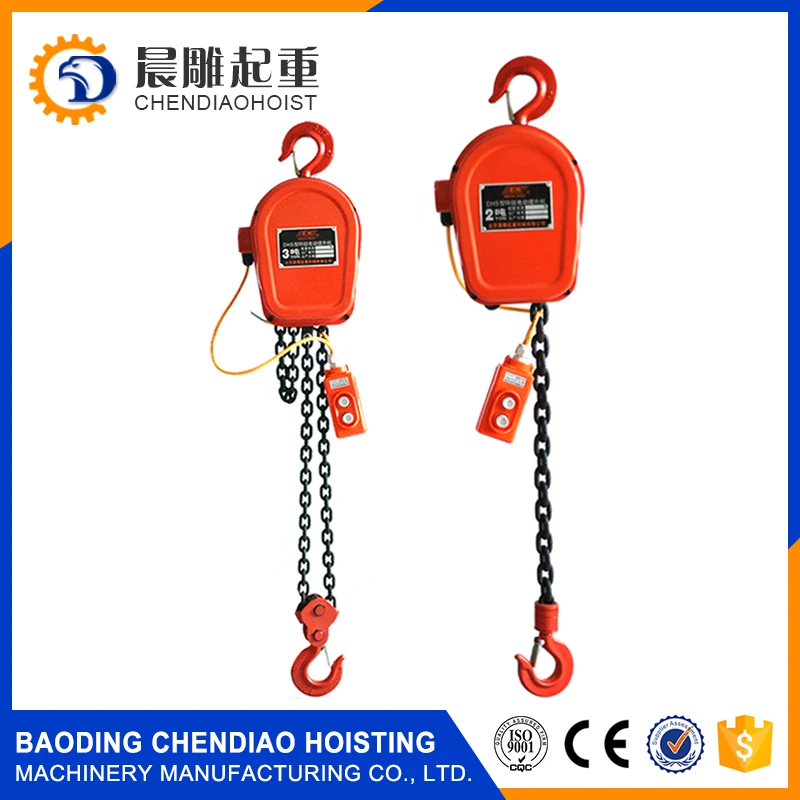

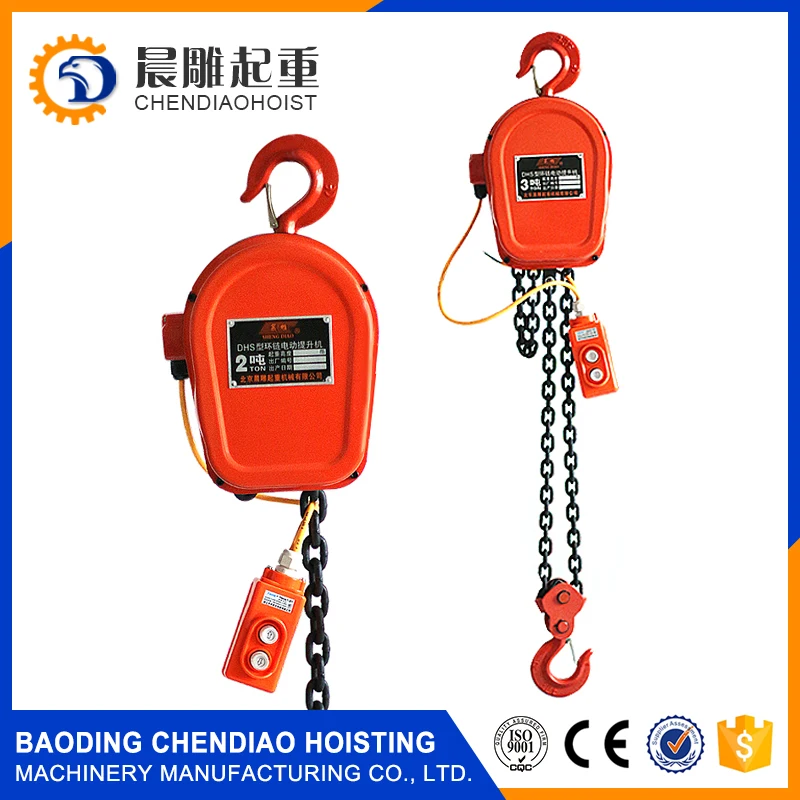

Overhead cranes Mini electric chain hoist



Descritpiton:

DHS series electric chain hoists are the most famous products of our company.

The traits of our products are of reasonable design, advanced structure, remarkable frame,

small volume, great wear resistace, big tenacity easy maintenance and dutability.



Specification:

Model	DHS-1	DHS-2	DHS-3	DHS-5	DHS-10	DHS-20
Rated Load	1T	2T	3T	5T	10T	20T
Test Load	1.5T	3T	4.5T	6.25T	12.5T	25T
Motor Model	YHPE500W	YHPE500W	YHPE500W	YHPE750W	YHPE750W	YHPE750W
Power Supply	380V / 50HZ
Lifting speed	2.5M/Min	2M/Min	1.25M/Min	1M/Min	0.5m/min	0.45m/min
Loading Chains	1PCS	2PCS	2PCS	2PCS	4PCS	8PCS
Weight (3Mtr)	36KG	45 KG	42 KG	57 KG	115 KG	195 KG
Weight (6M)	40 KG	52 KG	50 KG	70 KG	142 KG	235 KG

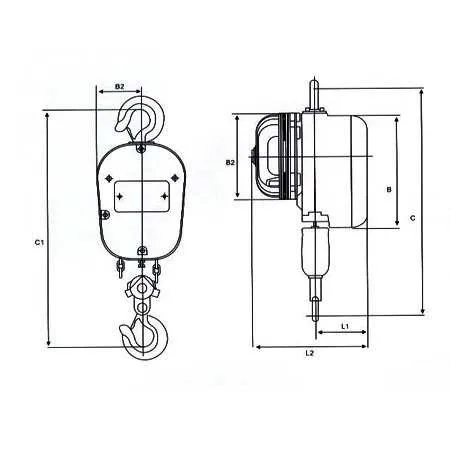

Dimension (CM)	50*32*28	50*32*30	52*32*30	60*32*32	50*50*43	72*72*85
