9 14 tons KRM160C dump truck hydraulic telescopic system dump hoist
- Category: Hydraulic Cylinders >>>
- Supplier: Jiangsu Fangrui Machinery Co. Ltd.
Share on (60599479113):
Product Overview
Description
Product Description
9-14 tons KRM160C dump truck hydraulic telescopic system dump hoist
.
Product Detail
| color | black |
| Weight | 120kg |
| Shaft material | steel |
| Application | truck cranes,trucks,loaders etc |
| rated lifing capacity | 10000-20000kg |
| Product Keywords | KRM160C hydraulic hoist for dump truck |
Features:
used in loaders,excavators,truck cranes,Dump trucks and other vehicles
the body is black and the triangle plates have steel bars to make the integration more firm.
the air viscosity is small, the resistance to less than the hydraulic oil

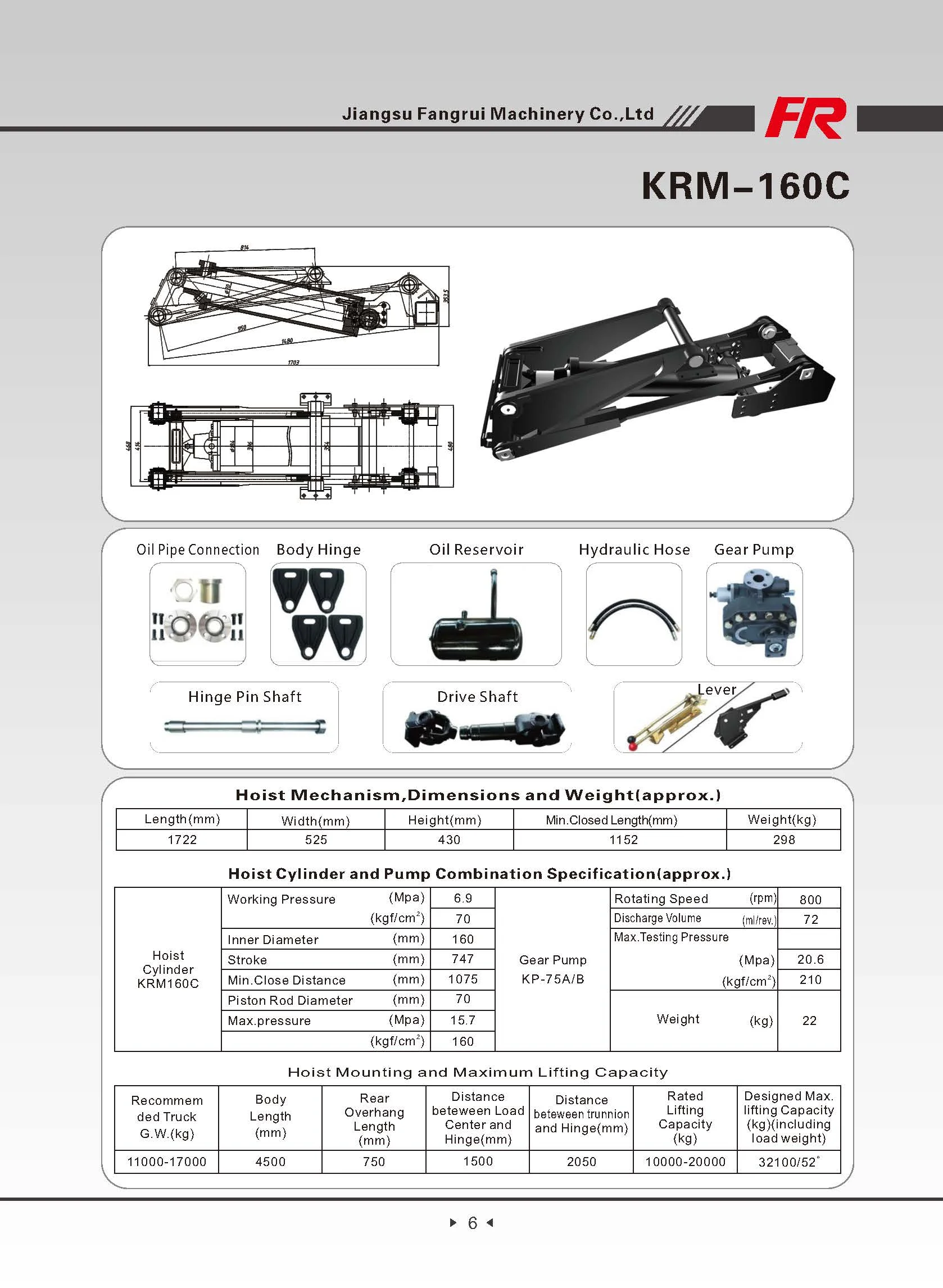

Cylinder specification(approx.)
| Model | Piston Rod diameter(mm) | Cylinder Inner diameter(mm) | Stroke(mm) | Weight(kg) | Min.Close Distance(mm) | Working Pressure(Mpa) | Max. Pressure(Mpa) |
| KRM-160C | 70 | 160 | 747 | 120 | 1075 | 6.9 | 15.7 |
Hoist Mechanism,Dimensions and Weight (approx.)
| Length(mm) | Width(mm) | Height(mm) | Min.Closed Length(mm) | Weight(kg) |
| 1722 | 525 | 430 | 1152 | 315 |
Gear pump specification(approx.)
| Model | Rotating speed(rpm) | Discharge Volume(ml/rev.) | Max.Testing Pressure(Mpa) | Weight(kg) |
| KP-75A/B | 800 | 72 | 20.6 | 22 |
Hoist Mounting and Maximum Lifting capacity
| Recomended Truck G.W(kg) | Body Length(mm) | Rear Overhang Length(mm) | Distance between Load Center and Hinge(mm) | Distance between Trunnion and Hinge(mm) | Rated Lifting Capacity(kg) | Designed Max.Lifting Capacity including load weight(kg) |
| 11000-17000 | 4500 | 750 | 1500 | 2050 | 10000-20000 | 32100/52° |
Quality assurance:
1.customer can come to test the quality directly
2.the structure will not deform
Our Service
We could come and get the product specifications
All of your designing demands can be accepted
We will send the sample you request within 4 days
Packaging & Shipping
PACKAGE:
Standard export pallet packing.
DELIVERY TIME:
3-25 days after confirming order,detail delivery date should be decided according to
order quantity.
