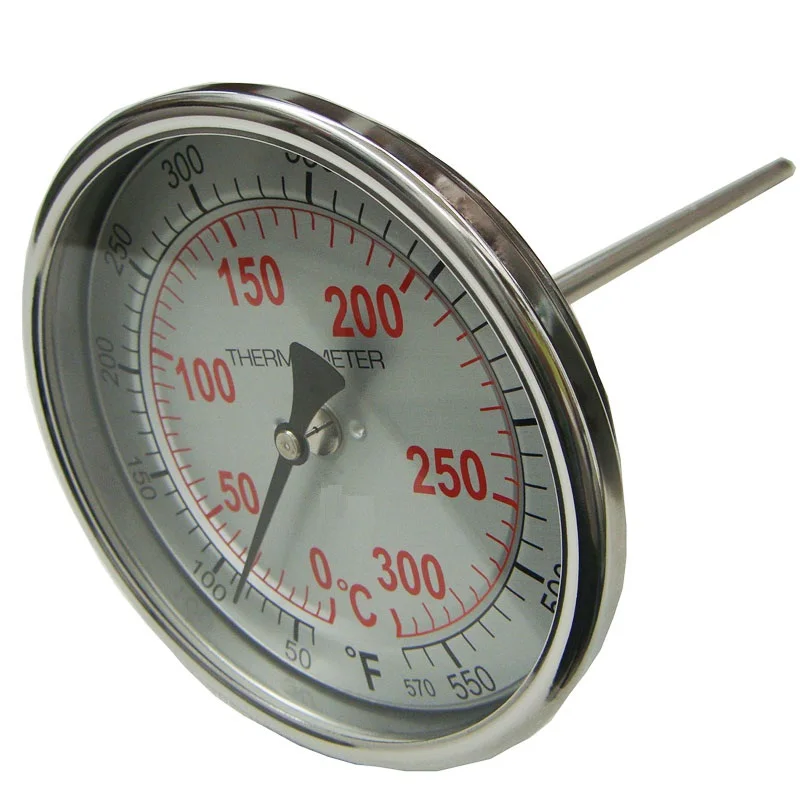

Degrees Celsius and Degrees Fahrenheit double scale bimetal thermometer

Product Overview

Description



Degrees Celsius and Degrees Fahrenheit double scale bimetal thermometer



Application

Bimetal thermometer is a measurement instrument that can measure middle and lower temperature on site.
Can directly measuring liquid and gas temperature in a variety of production processing temperature range in -80C~500C.

Characteristic
Local display temperature value, direct and convenient;
Safe and reliable, long working life;
Many kinds of structure forms, can meet different requirements

Working principle
The bimetal thermometer consists of bimetallic strip that is based on round and bent.
When one end is heated expands, drive the indicator rotation, the instrument will show the corresponding temperature value.

Main technical data
Dial nominal diameter:60,100,150
Accuracy:1.0,1.5
Thermal response time: </=40S
Protection class: IP55
Angle adjust error: should not exceed the 1.0% of measure range
Return difference: should not more than the absolute value of basic error limit
Repeatability: should not more than 1/2 absolute value of basic error limit





Double scale bimetal thermometer More Specification



Dial:	2",2.5",3",4",5", and 6", aluminum
Case:	AISI 304 stainless steel
Lens:	Glass standard, Shatterproof Glass Len Is Available
Bezel:	AISI 304 stainless steel, hermetically sealed or detachable
Pointer:	Aluminum, painted black
Movement:	Bi-metallic coil
Stem:	AISI 304 stainless steel standard
Connection:	1/4"NPT standard on 2" dial, fixed centre back and bottom 1/2"NPT standard on 3", 4", 5" and 6" available, fixed centre back, bottom and adjustable angle.
Accuracy:	+/-1.5% full scale standard; +/-1% full Scale Available
Other:	With recalibrator-reset screw or without
Range:	From -80 C/0 C And 0 C/550 C



Guide Selection:



1. Dial Size?
2. Temperature Range?
3. Back or Bottom or Adjustable Type?
4. What is the thread size?
5. Display C&F or only C?

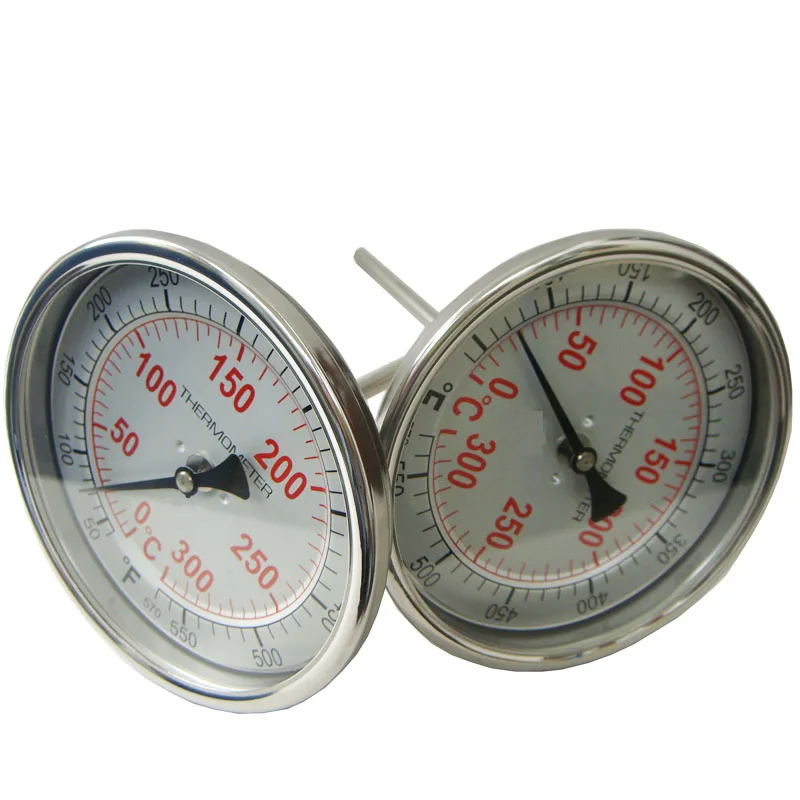

Double scale bimetal thermometer Show
