Roller glass coating machine
US $10000-$13000

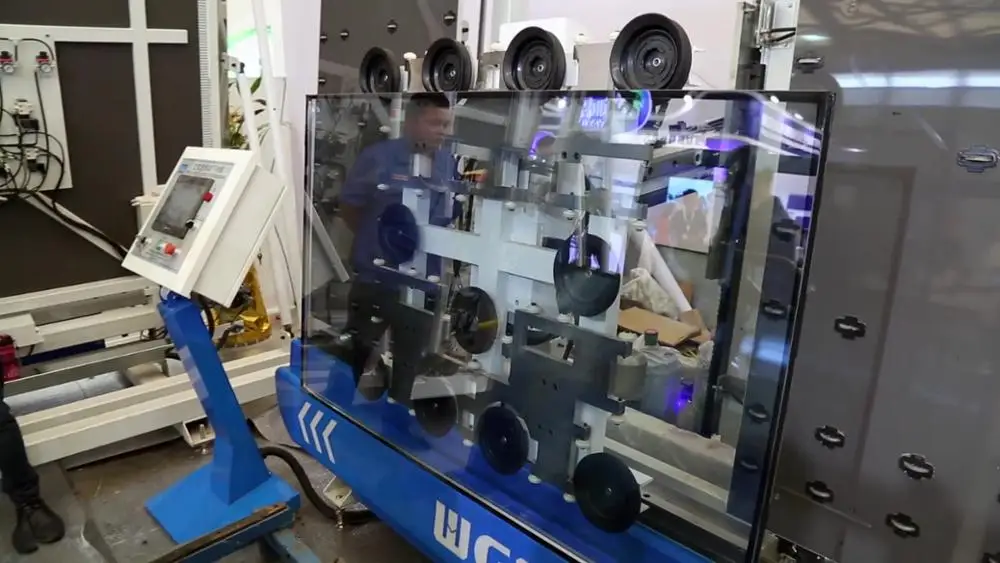

Double Glazing Processing Machine WLXP2000 Automatic Insulating Glass Unloading Machine
- Category: >>>
- Supplier: Jinan Weili Machine Co. Ltd.
Share on (60599706151):
Product Overview
Description
Product Description
Double Glazing Processing Machine WLXP2000 Automatic Insulating Glass Unloading Machine is composed of PLC control system, machine-head section, transportation section, sucker-structure section, servo drive section, etc.

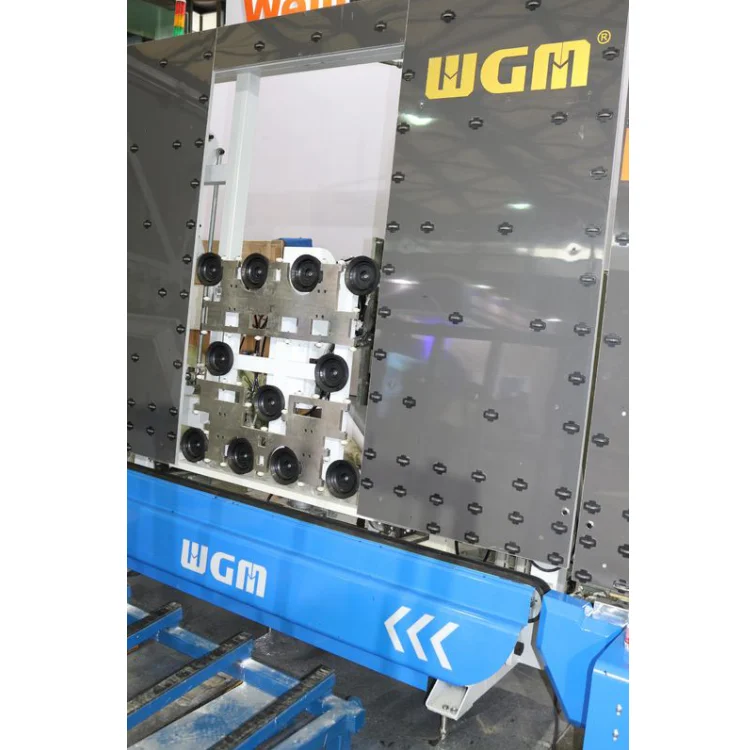

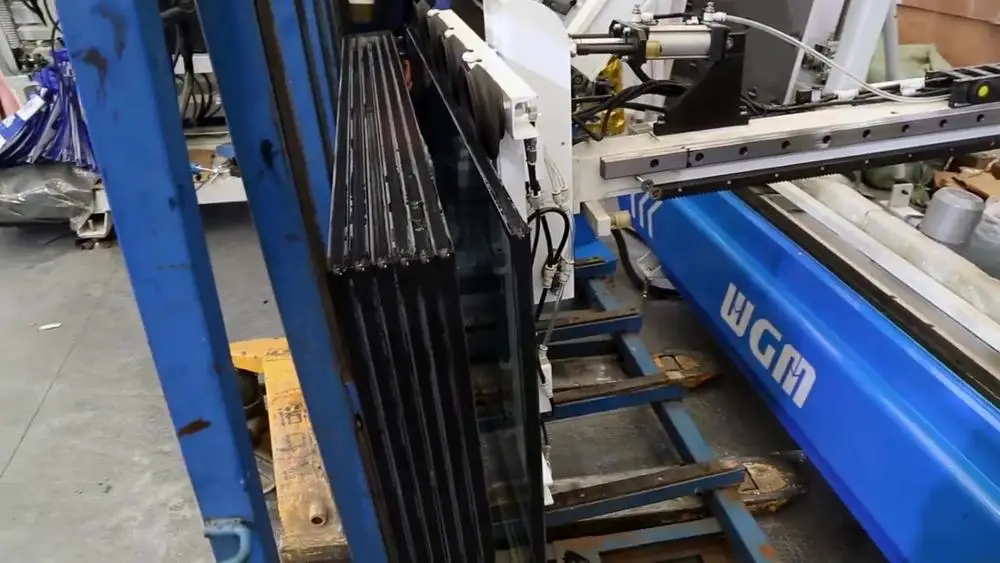

Detailed Images
Feature

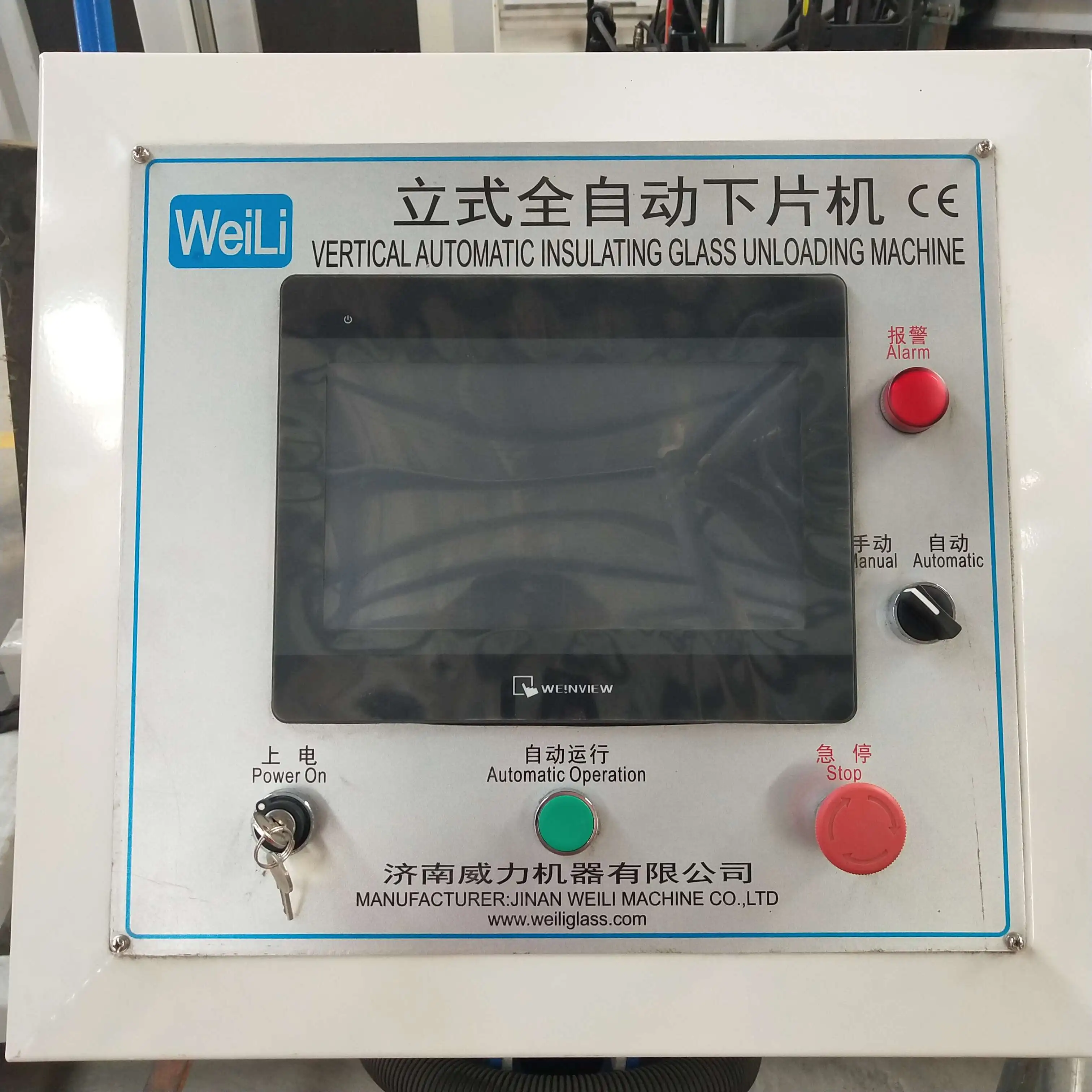

1. It adopts PLC control, 10 inches touch screen. The dynamical system adopts 3 servo motor drive, it is easy to operate.
2. The V belt can automatically adjust to the center position of glass thickness; The motor drives ballscrew of reduction gear to adjust the V belt.
3. The machine-head automatically goes up to the glass height; the servo motor drives the reduction gear by chain sprocket make the machine head up / down accurately to the needed height;
4. The transportation section automatically conveys the glass to the center position of sucker support.
5.The sucker support can automatically adjust at up/down by glass’s length and width.
7.The machine can save labor 2-3people,and improve the working efficiency by 2times
5.The sucker support can automatically adjust at up/down by glass’s length and width.
7.The machine can save labor 2-3people,and improve the working efficiency by 2times
7.The sucker up/down, sucker front/back,V belt transportation are drived by servo motor.
Item | Data |
Max glass size | 2000*3000mm |
Glass thickness | 12-48mm |
Suction arm speed | 0-12m/min |
The max. size of suction arm | 800mm |
The work angle of swing arm | 84~100° |
Air consumption | 100L/min |
Related Products
Packing&Shipping
Delivery
1.Machine packing with plastic film and plywood pallet for necessary parts.
2.Packing with wooden box ccording to customers' requirements.
2.Packing with wooden box ccording to customers' requirements.
After Sales Service
* Provide factory layout according to your factory size in advance.
* Provide English Version of Installation / Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support, video technical support
* Field installation commissioning and training.
* Provide English Version of Installation / Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support, video technical support
* Field maintenance and repair service.
* Field installation commissioning and training.
Company Introduction
Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
FAQ
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.
2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.
2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
