Heat Resistance PP 125Y Plastic Corrugated Plate Structured Packing For Distillation Tower
- Category: >>>
- Supplier: Jiangxi Eloong Environmental Technology Co. Ltd.
Share on (60599721747):
Product Overview
Description
Product Overview

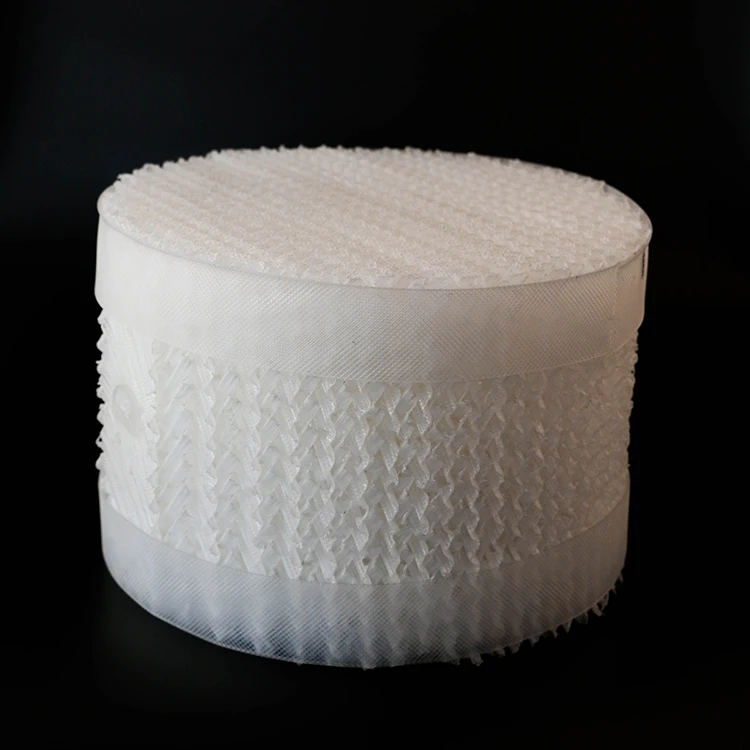

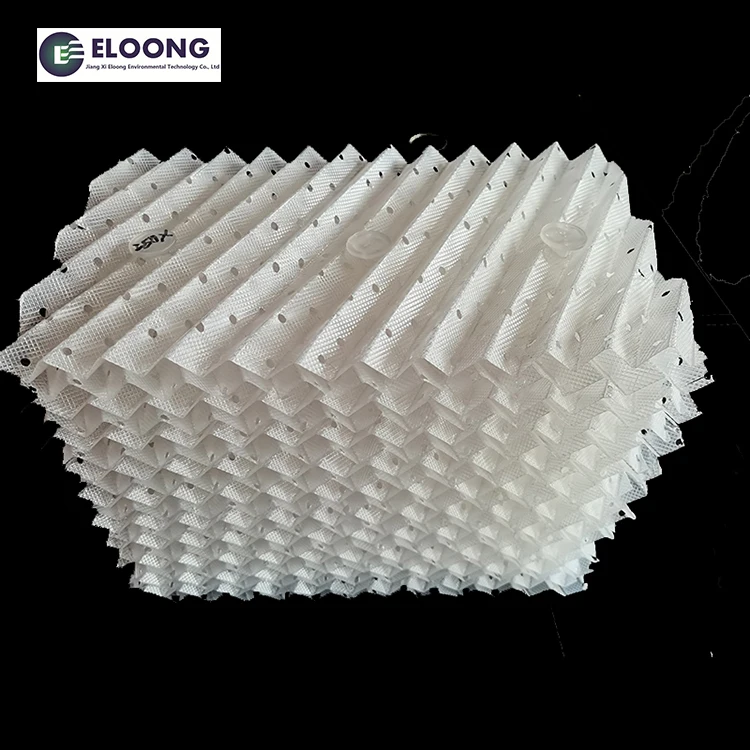

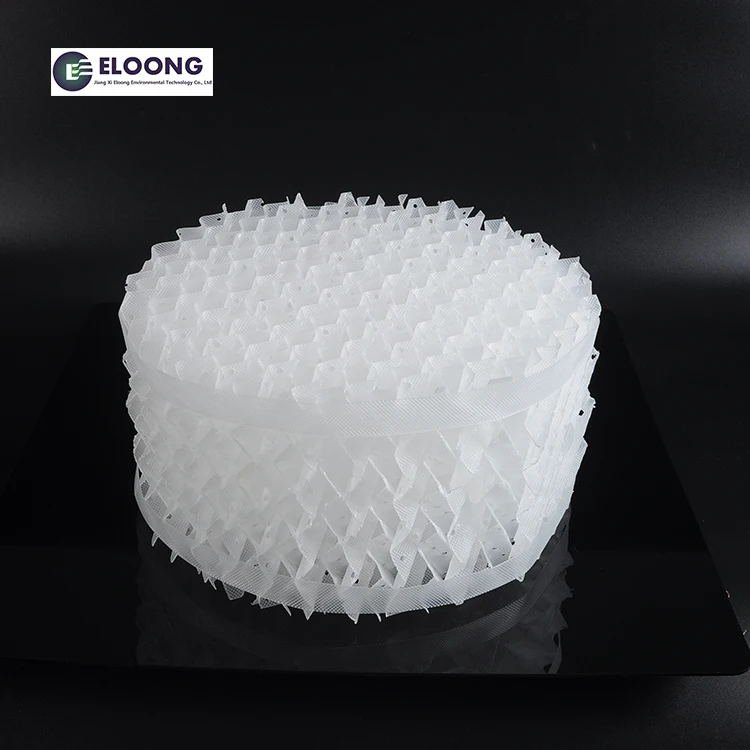

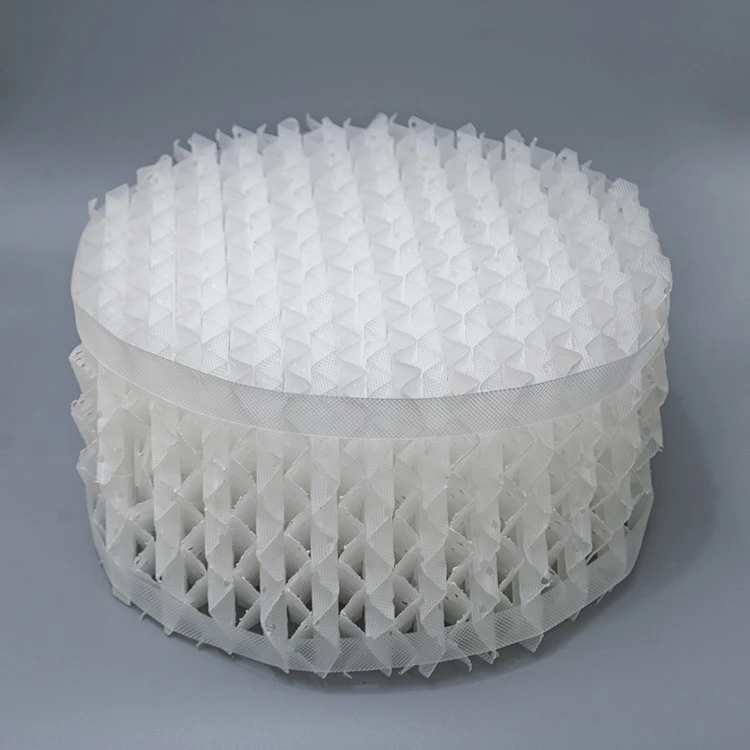

Heat Resistance PP 125Y Plastic Corrugated Plate Structured Packing For Distillation Tower
The Plastic Corrugated Plate Structured Packing has the advantages of light weight, big flow, low drop pressure, big specific
surface, easy change, etc. It's able to endure 100 centigrade if it's made of PP. And it's able to endure 150 centigrade if it's
made of PVDF. The plastic plate can be perforated to increase the transfer efficiency.
Application:
This packing is widely used in the operation of absorption and decomposing absorption units, it's especially used in the
production procedure of heavy liquid loading and high operative pressure, such as hydrochloric acid (HCl) and sulphuric acid
(H2SO4) production, deaerating CO2 and H2S from natural gas, drying chlorine, making ammonia liquid, waste gases purification and decomposing absorption deaeration apparatus.HCI absorbers,SO2 absorbers,Flue gas cleaning columns,Sea water deaerators.
surface, easy change, etc. It's able to endure 100 centigrade if it's made of PP. And it's able to endure 150 centigrade if it's
made of PVDF. The plastic plate can be perforated to increase the transfer efficiency.
Application:
This packing is widely used in the operation of absorption and decomposing absorption units, it's especially used in the
production procedure of heavy liquid loading and high operative pressure, such as hydrochloric acid (HCl) and sulphuric acid
(H2SO4) production, deaerating CO2 and H2S from natural gas, drying chlorine, making ammonia liquid, waste gases purification and decomposing absorption deaeration apparatus.HCI absorbers,SO2 absorbers,Flue gas cleaning columns,Sea water deaerators.
Technical data | ||||||||
Size (Inch/mm) | Material | Number (per m3) | Surface area (m2/m3) | |||||
Customized | 6*6*0.3 | stainless steel, Monel, titanium, PP, PVC, PE, PTFE | 4000000 | 904 | ||||
Technical data | ||||||||||||||
Product Name | Item | Surface Area m2/m³ | Free Volume % | Theo. plate Piece/plate | PPa/plate | F factor m/s(kg/m³)0.5 | Liquid Load m³/m².h | |||||||
Plastic Structured Packing | SB-125Y | 125 | 98.5 | 1.0-2.0 | 200 | 3 | 0.2-100 | |||||||
SB-125X | 125 | 98.5 | 0.8-0.9 | 140 | 3.5 | 0.2-100 | ||||||||
SB-250Y | 250 | 97 | 2.0-2.5 | 300 | 2.6 | 0.2-100 | ||||||||
SB-250X | 250 | 97 | 1.5-2.0 | 180 | 2.8 | 0.2-100 | ||||||||
SB-350Y | 350 | 95 | 3.5-4.0 | 200 | 2 | 0.2-100 | ||||||||
SB-350X | 350 | 95 | 2.3-2.8 | 130 | 2.2 | 0.2-100 | ||||||||
SB-500Y | 500 | 93 | 4.0-4.5 | 300 | 1.8 | 0.2-100 | ||||||||
SB-500X | 500 | 93 | 2.8-3.2 | 180 | 2 | 0.2-100 | ||||||||

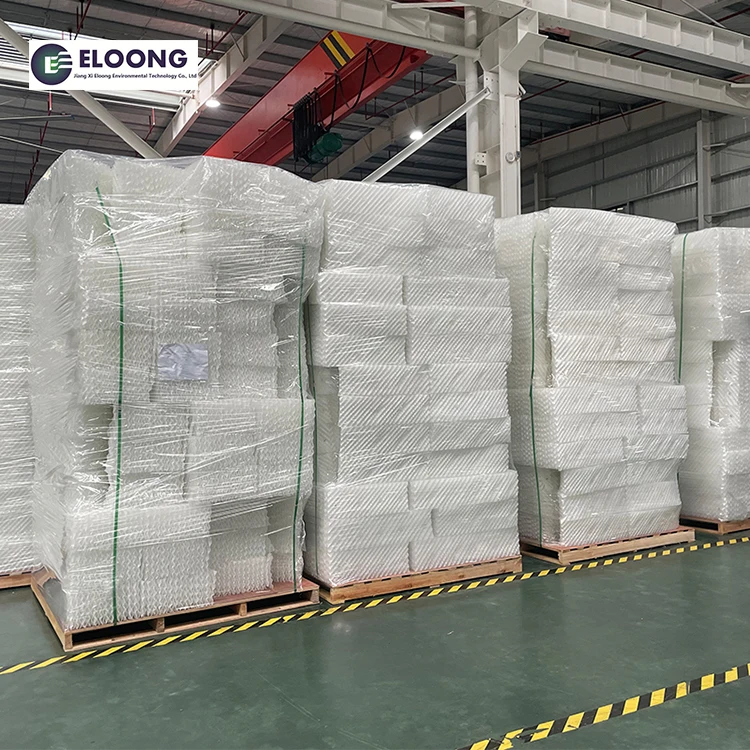

Product packaging
Our workshop
Customer Photos
Certifications
SIMILAR PRODUCTS
FAQ
Q1：What's the MOQ?
A1 : The MOQ is 1 cubic meter or 1 ton, The price will be higher if the quantity is less than 1 cubic meter or 1ton.
Q2 : What are the terms of payment?
A2 : T/T , L/C at sight, Papal , Alibaba Trade Assurance and etc.
Q3 : What's the delivery time?
A3 : About 3-7 days .after received the fund.
Q4 : Can you provide free samples?
A4 : Yes , Sample will be free within 0.5 kg.
Q2 : What are the terms of payment?
A2 : T/T , L/C at sight, Papal , Alibaba Trade Assurance and etc.
Q3 : What's the delivery time?
A3 : About 3-7 days .after received the fund.
Q4 : Can you provide free samples?
A4 : Yes , Sample will be free within 0.5 kg.
