Quality low price portable fluxgate magnetometer
Product Description
Technical parameters of portable fluxgate magnetometer:
AMC-6 high-precision magnetometer is our new generation fluxgate magnetometer. With latest American technology, it has high resolution and accuracy, and can calibrate the surrounding interfered magnetic field. It is more advantageous in transportation and usage comparing with silicon oil liquid probe. The display is a powerful mainframe, which is with a LCD screen; you can operate directly on it and then mark the measurement.
| Detect axial | geomagnetic field of vertical component or three-components |
| Measurement method | relative measurement and absolute measurement |
| Measuring range | -10000nT ~ +100000nT |
| Resolution | 0.1nT~1nT |
| Direction difference | Z-axis ≤ ±10nT, total magnetic ±20nT |
| Accuracy | ≤±0.5% |
| Data acquisition frequency | 10 times per second |
| Display | difference or the absolute value, display the data and curves directly |
| Data storage capacity | 100,000 points, transmit the data via U disk |
| Data port | USB2.0 |
| Whole power consumption | 120mA~200mA |
| Working temperature | -10℃~+50℃ |
| Power supply | 7.2V 4000mA big-capacity rechargeable lithium batteries, under energy-saving mode, the standby time is more than 18hours |
| Probe size | 88mm*60mm |
| Power data line | 1.5m |
| Probe weight | 0.5 Kg |
| Mainframe weight | 2Kg |
| Mainframe size | 270mm×110mm×223mm |
Characteristics of portable fluxgate magnetometer:
1. Small size, light weight and portable
2. Simple and easy to operate, you can master it within 5 minutes even without professional knowledge.
3. High-performance sensors are made by high permeability permalloy via special heat treatment and high precision manual winding method, to get high resolution, high precision, stable performance and no drift.
4. Wide range up to ±100,000nT

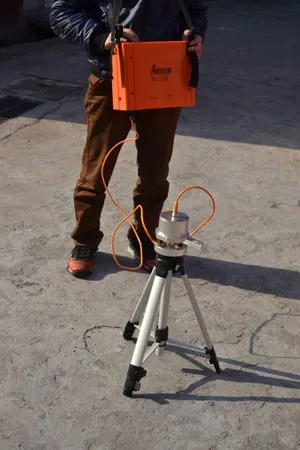

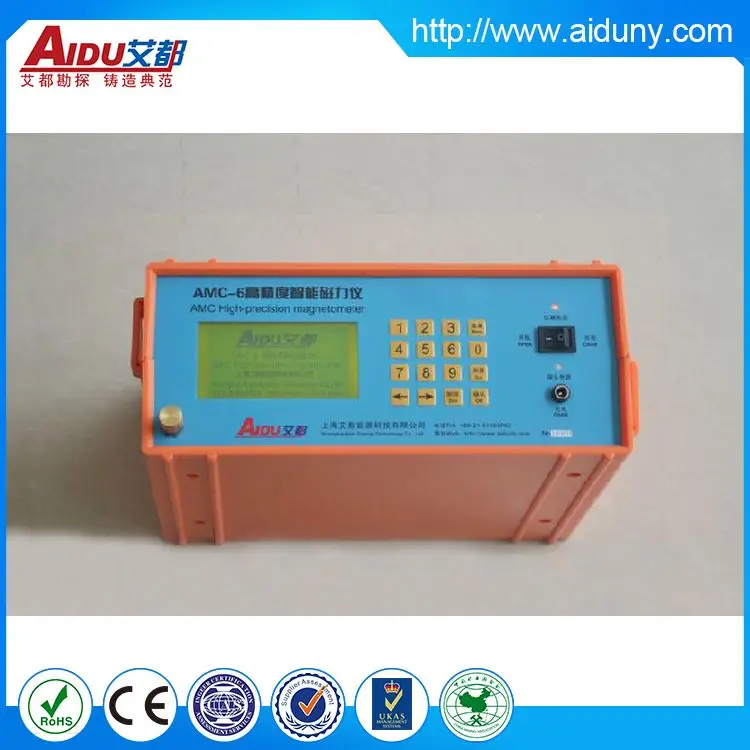

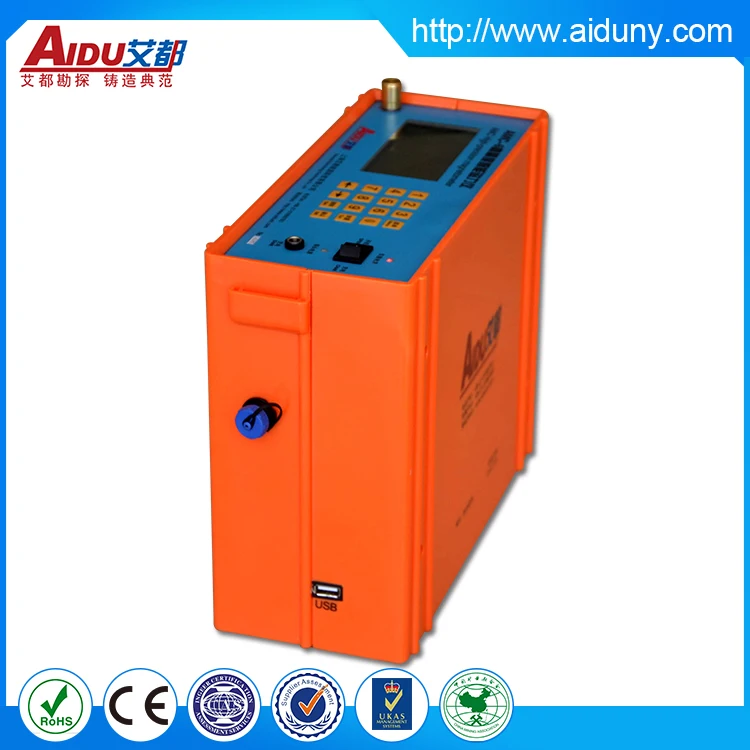

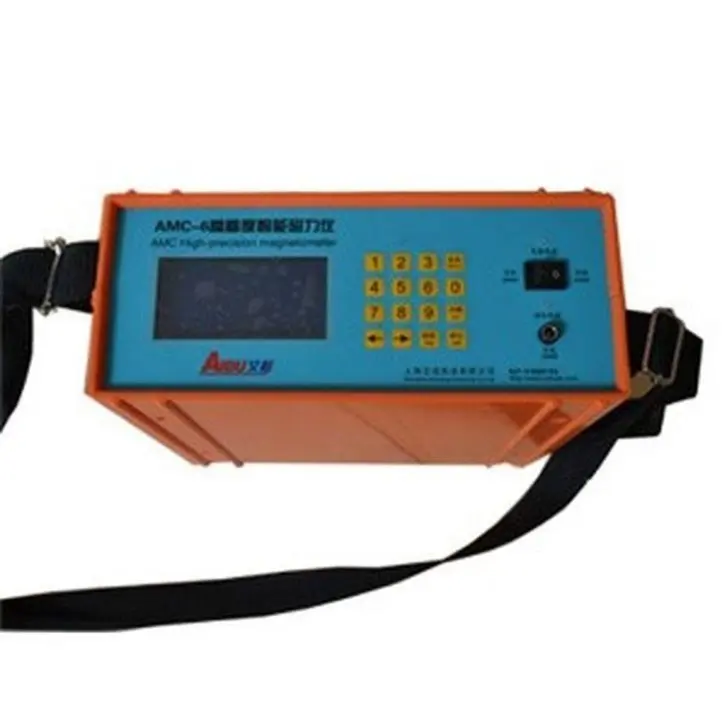

Pictures of portable fluxgate magnetometer:
Probe Selection (freely):
Probe optional:
1) All-solid-state probe (with horizontal base support, which is used to control level);
2) Automatic level probe (silicone oil damping, no need the support).
Main Application of portable fluxgate magnetometer:
1. Magnetic exploration of various magnetic ores (magnetite), combined with other prospecting method, it can research ore’s buried depth, vein direction, continuity, and shape, size, ore deposit scale as well.
2. Magnetic prospecting and geological mapping of metal and non-metal ore deposits.
3. Faults location, archeology, hydrology, engineering exploration (pipe detect), seismic omen survey, volcano observation and magnetic prospecting &geological mapping of other environment and disaster geological work.
