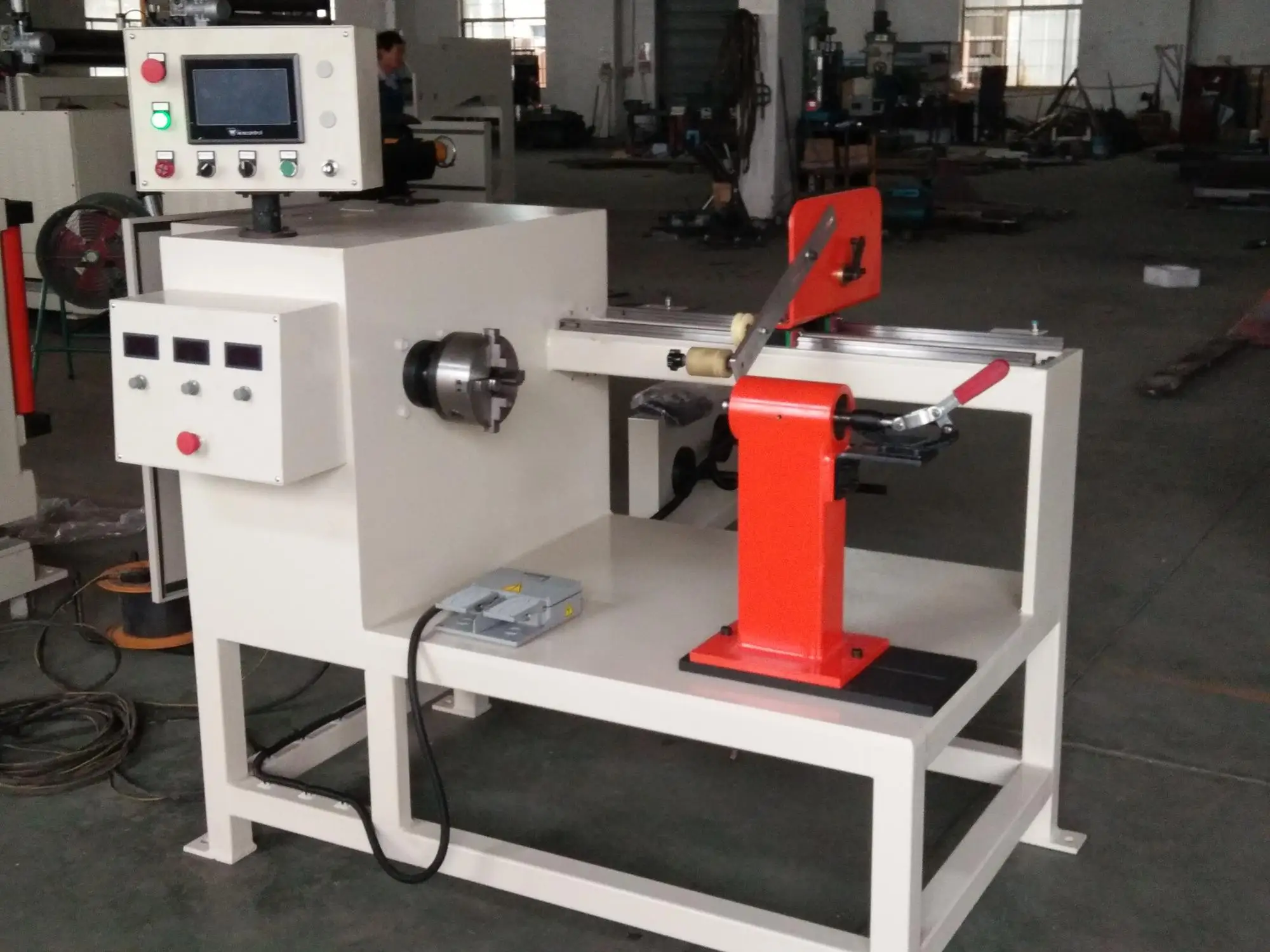

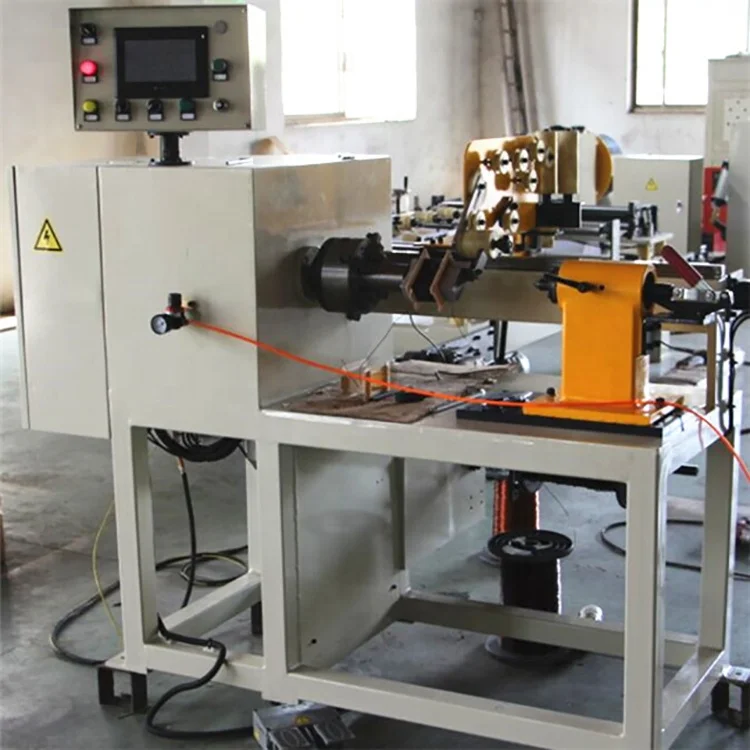

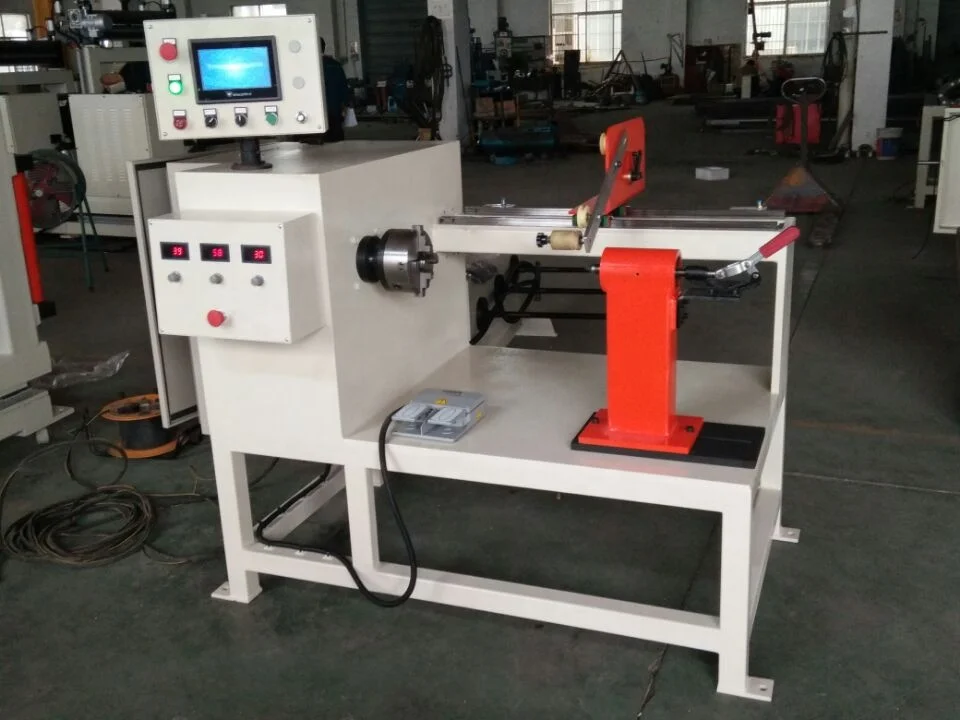

Automatic Aluminium Copper Round Flat Wire Small Oil Type Transformer Coil Winding Machine ZPX400, adopting automactic winding displacement and tensioning technologies, is especially suitable for winding different shapes of coil. These coils can be used in small and medium-sized transformers and other similar products. This kind of automatic winding machine is provided with main winding motor, automatic winding displacement unit, tension adjustable decoiler, pneumatic system, PLC control, and servo motors, etc. The autuomatic winding machine features high automation, full functions, and strong driving force, etc.



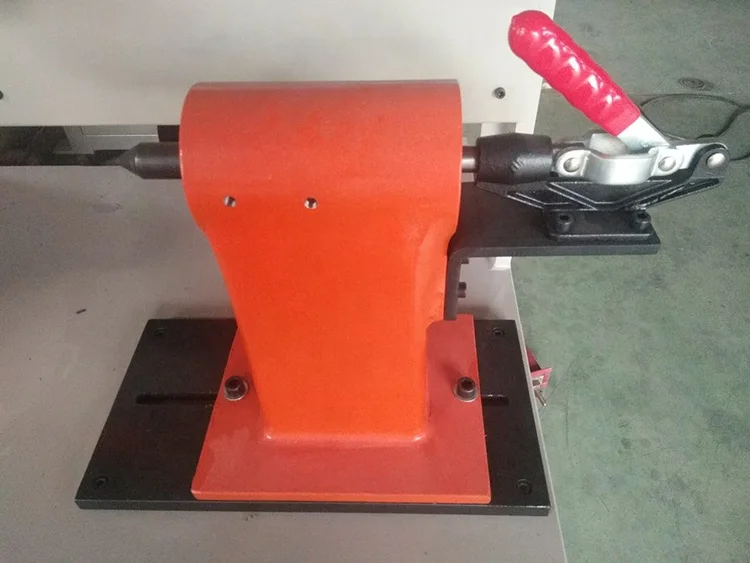

Main components



1.Main frame

2.Main winding unit

3.Automatic winding displacement unit

4.Decoiler

5.Electronic control system

6.Pneumatic system



Main Technical Parameters:



Typical standard specifications of ZPX400 are shown below, however these can be easily modified as requested.

Center Height:	900mm

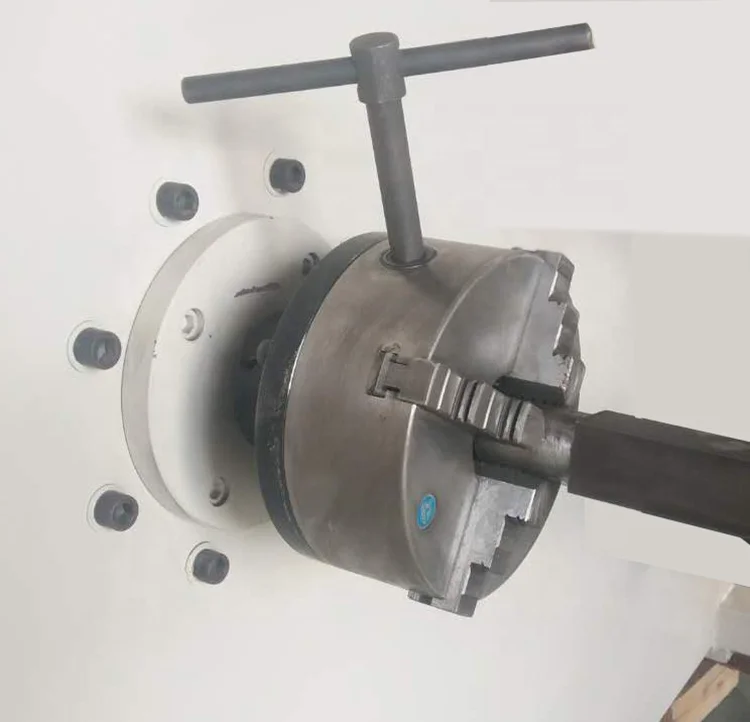

Connecting Mode:	4-jaw chuck
Winding Power:	2.2Kw
Winding Speed:	0-200 rpm
Speed Regulation:	Variable frequency and stepless regulation
Round Wire Diameter:	0.3-3.0mm
Max. Diameter of Finished Coil:	600mm
Max Height of Finished Coil:	400mm
Max. Loading Capacity:	300kg
Min. Automatic Spread Pitch:	0.01mm
Counting Mode:	5-digit counting, preset by segments, total number of turns preset, reversible counting, and power off memory, etc.
Max. Turns Preset Number:	9999.9
Counting Turn Range:	0 - 9999.9
Stored Winding Programs Number:	More than 50 pcs
Total Weight:	600 kg
Dimension(L*W*H):	1200x600x1500mm
