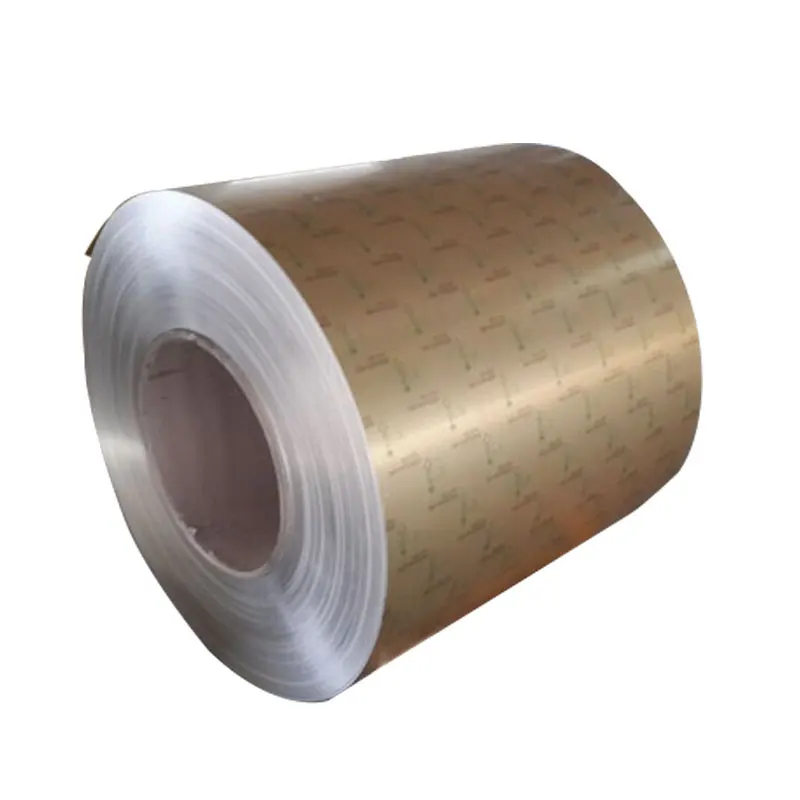

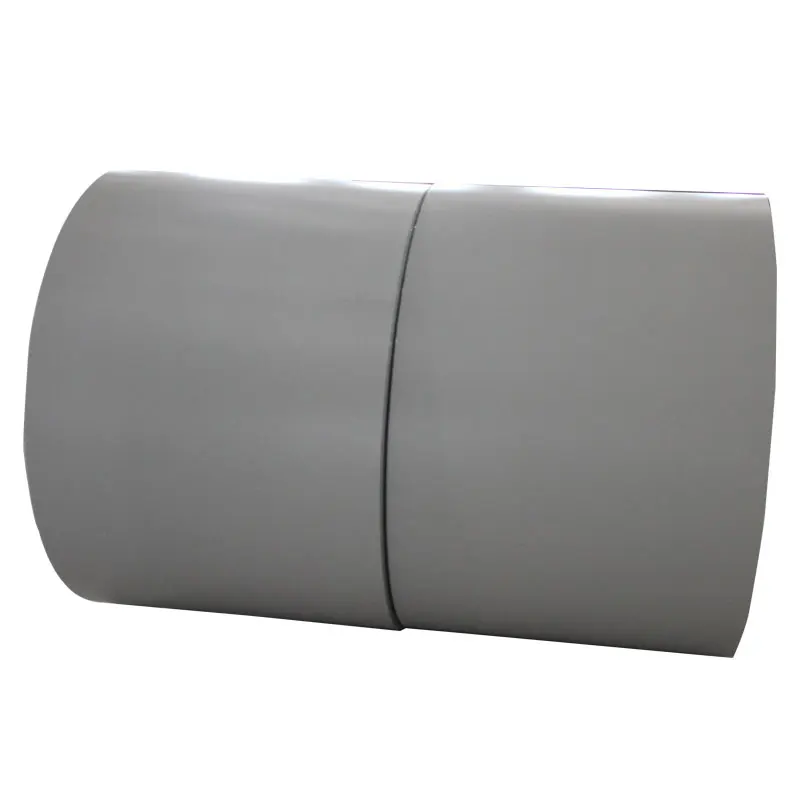

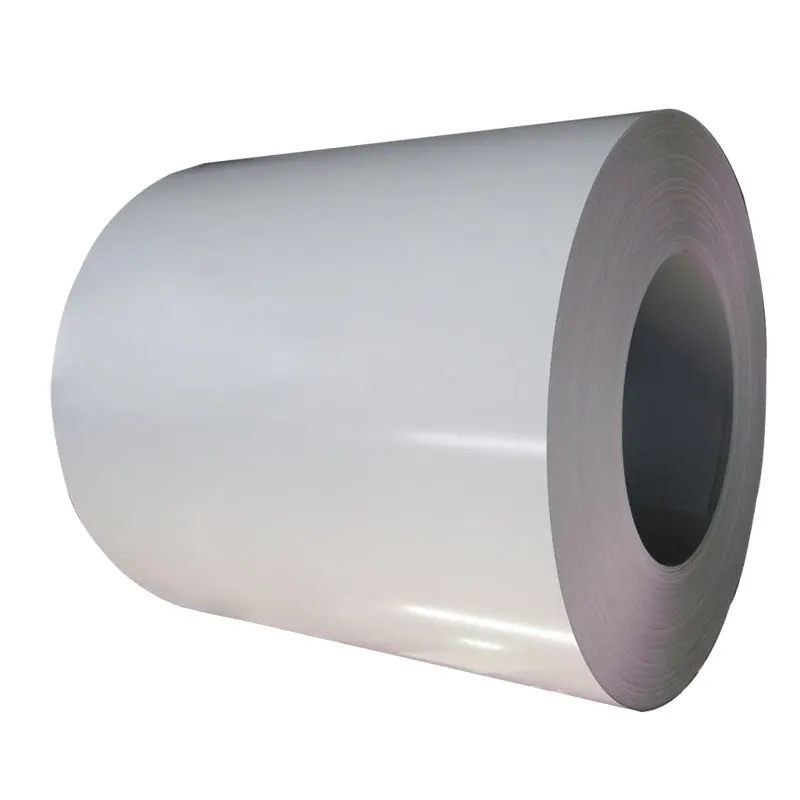

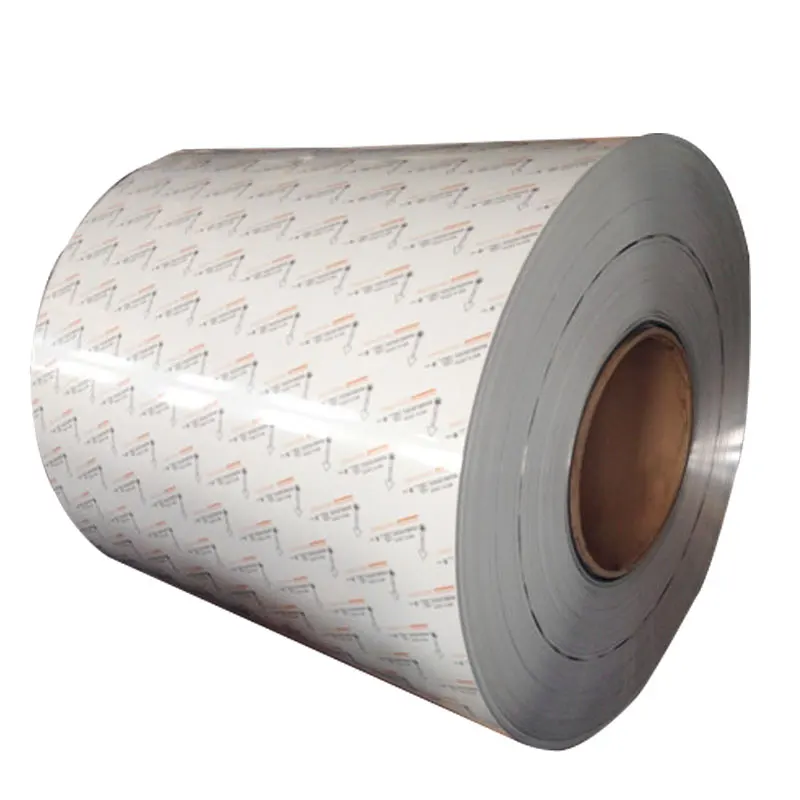

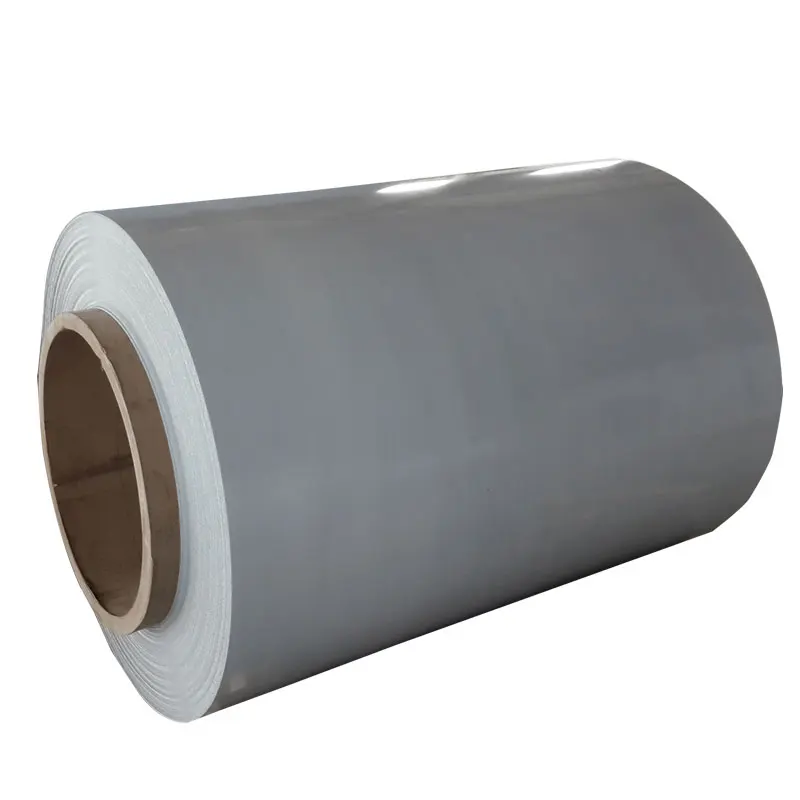

1100 h14 color coated aluminum coil
- Category: >>>
- Supplier: Shandong AT New Material And Technology Co. Ltd.
Share on (60599790255):
Product Overview
Description
1100 h14 color coated aluminum coil
Product Description
1100 h14 color coated aluminum coil | |
Alloy | 1000, 3000, 8000 series |
Temper | H16,H26 |
Thickness | From 0.02mm to 3.0 mm |
Width | From 40- 1600 mm |
Diameter
| Standard dia:1100mm |
Interior dia:150mm, 405mm,505mm | |
Weight | 2.0-3.0 Tons/coil |
Coating | PVDF, PE or AC |
Surface | Embossed, mill finish, coated |
Color | RAL or Customized |
Gloss | 10-90%(EN ISO-2813:1994) |
Coating Thickness
| PE: more than 18 micron |
PVDF: more than 25 micron | |
Coating Hardness(pencil resistance) | More than 2h |
Coating Adhesion | 5J(EN ISO-2409:1994) |
Impact Resistance | No peeling or cracking(50 kg/cm,ASTMD-2794:1993) |
Flexibility (T-bend) | ≤2T |
MEK Resistance | More than 100 |
CHEMICAL COMPOSITION | |||||||
Grade | Si | Fe | Cu | Mn | Mg | Cr | Zn |
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | / | 0.05 |
1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | / | 0.04 |
1100 | 1.0 (Si+Fe) | 0.05-0.2 | 0.05 | / | / | 0.1 | |
3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | / | / | 0.1 |
3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | / | 0.25 |
8011 | 0.05-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.05 | 0.1 |
We can produce the thickness from 0.05mm to 3.0mm, the width from 40mm to 1600mm, the paint including AC/PE/PVDF/HDPE/FEVE. The Alloy No. is 1000 series, 3000 series and 8000 series .

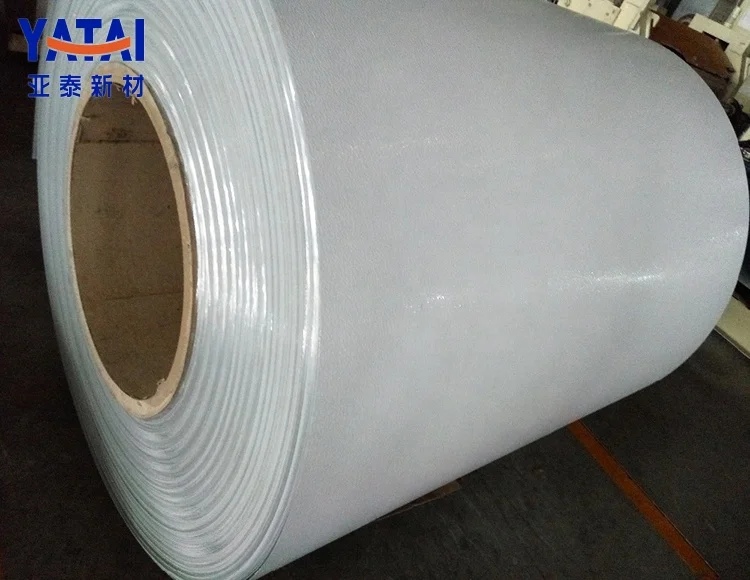

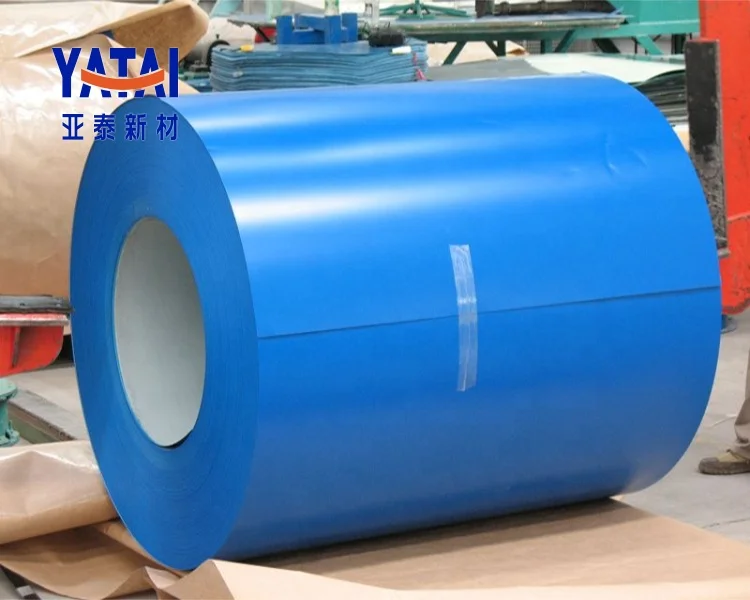

Product Details
All the series can accept OEM and ODM, they are widely used in construction, decoration, packing and advertisement areas.

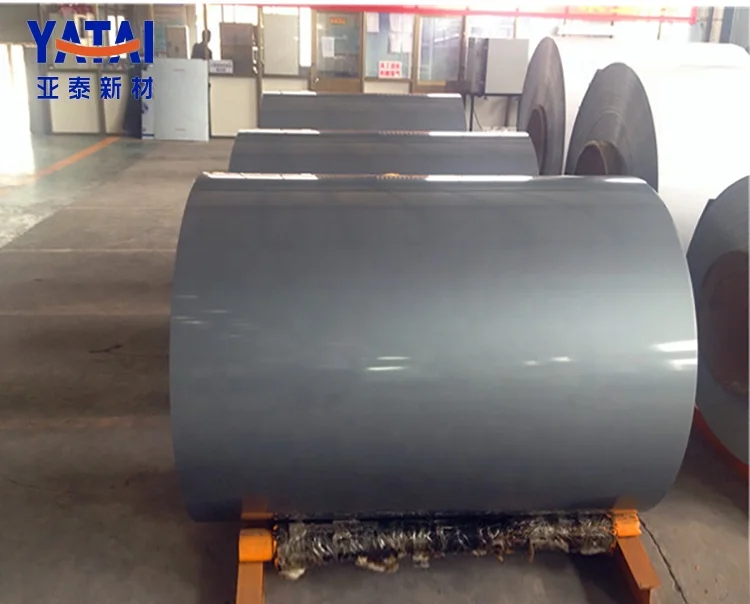

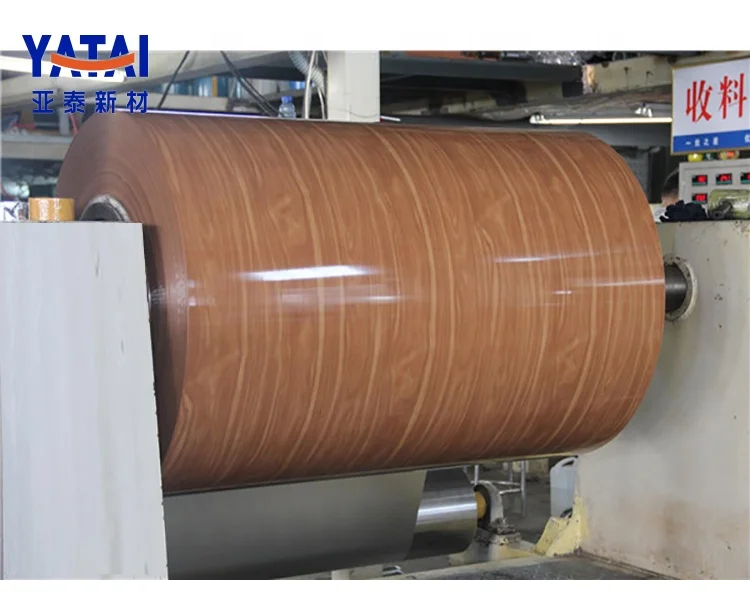

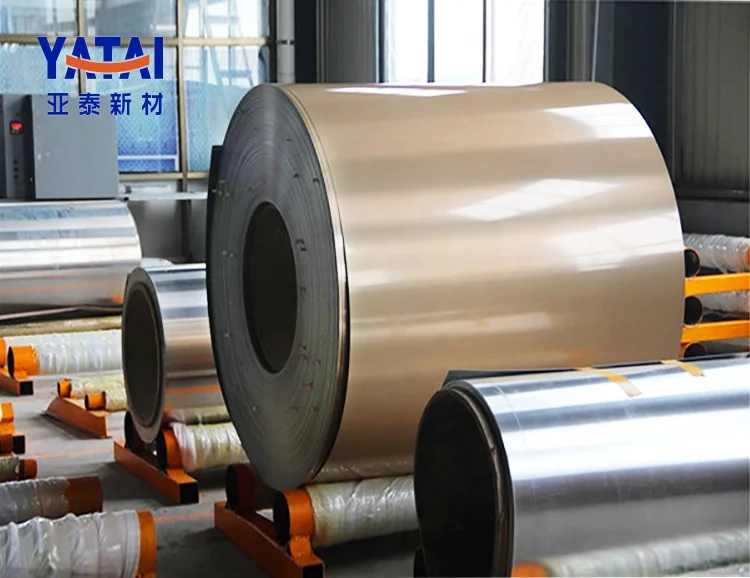

Produce Process
Engineering Projects
Packaging & Shipping
Company Information
Shandong AT New Material And Technology Co., Ltd. was established in 2010. It is one of the biggest manufacturers of color coated aluminum coil, embossed aluminum coil and aluminum ceiling in Linyi City, Shandong Province, China.
The company has got ISO9001:2008 and SONCAP certifications in 2013. We have 4 color coating lines, 2 slitter lines and 2 embossing lines. And our coating lines are high-speed automatic production line from Germany. Production capacity reaches 36000MT per year.
Our products are widely used in the field of aluminum composite panel, aluminum roofing, aluminum ceiling, aluminum curtain wall, roller shutter doors, aluminum can, aluminum cap rain-gutter and other indoor, outdoor decoration.
Also, we have good cooperation with some famous suppliers, such as PPG, Nippon, Chinalco, Southwest Aluminum etc. Our staff are stilled, especially our engineers, they have rich experience in color coating area for more than 10 years. With high quality, very competitive price, precision equipment and famous brand raw material, our products are very popular both in domestic and abroad market, such as USA, Brazil, Vietnam, Russia, UAE, Nigeria and all over the world.
FAQ
1) Can you accept OEM and ODM?
Yes, we can.Your designs are available.
2) Is it alloy?
Yes, it is.
3) What’s the product width and thickness you can produce?
We can produce the thickness from 0.02mm to 3.0mm, the width from 50mm to 1500mm.
4) Which kinds of painting can you accept?
AC/PE/PVDF/HDPE/FEVE
5) What is the thickness of painting?
8-35 micron
6) Is sample available?
Yes, it is.
7) Where are the products can be used?
They are widely used in the areas of Construction, Decoration, Packaging and Advertisement.
