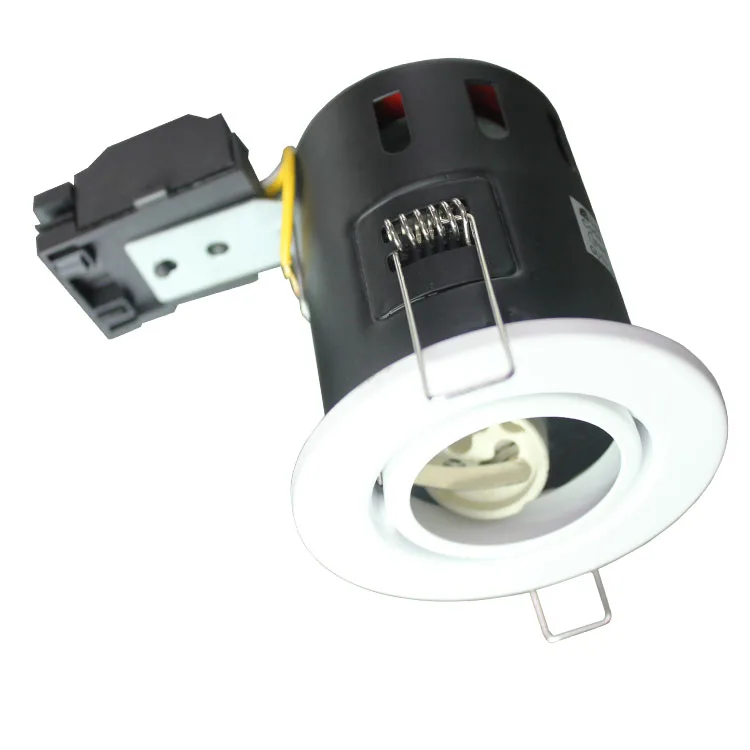

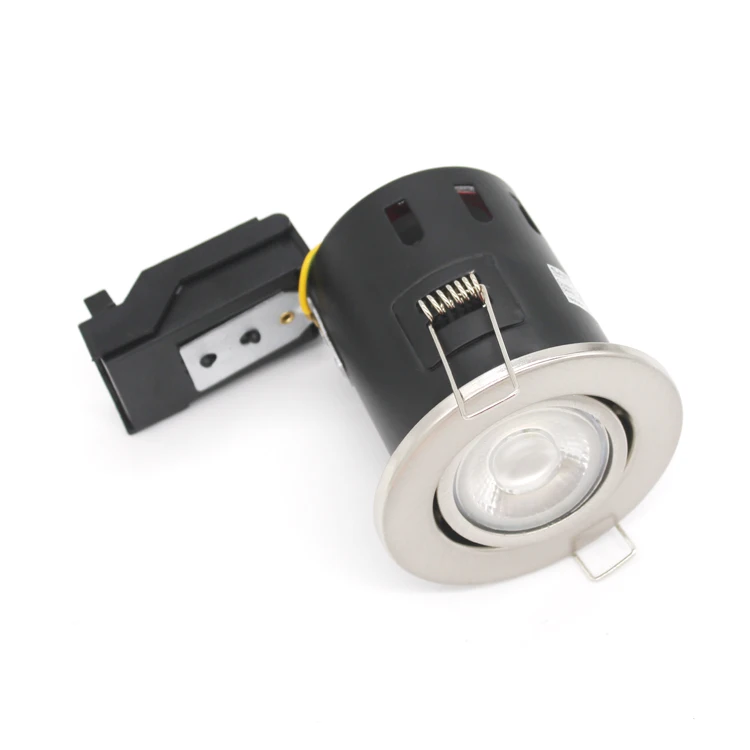

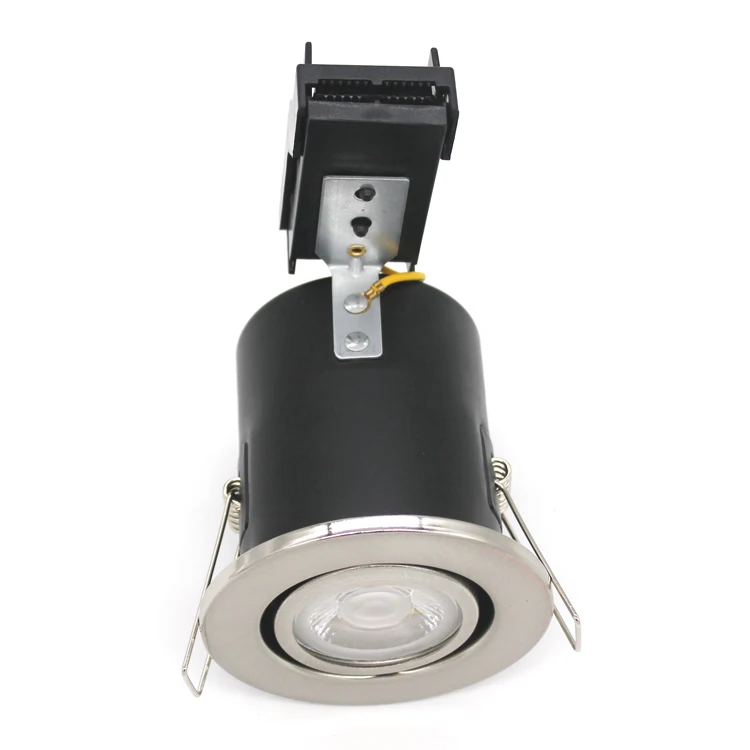

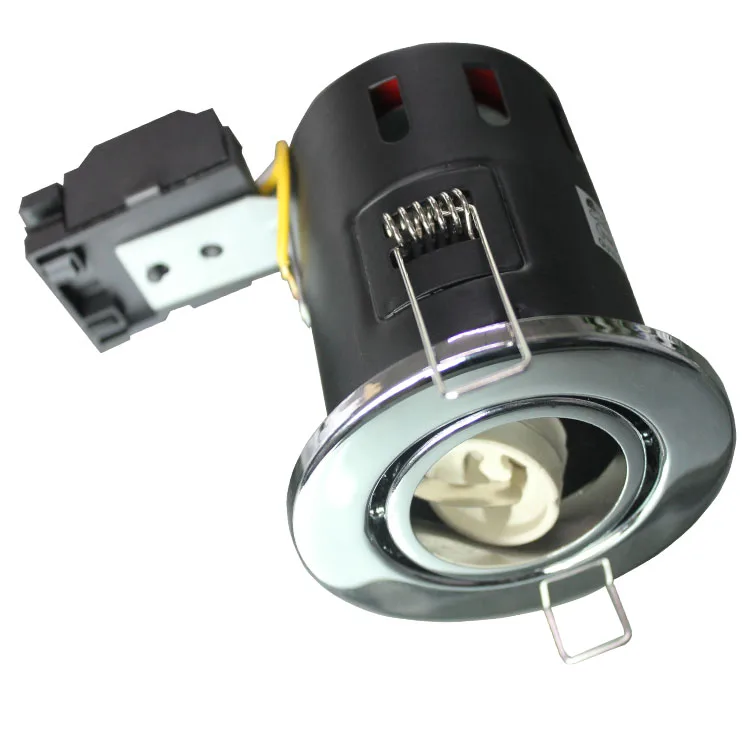

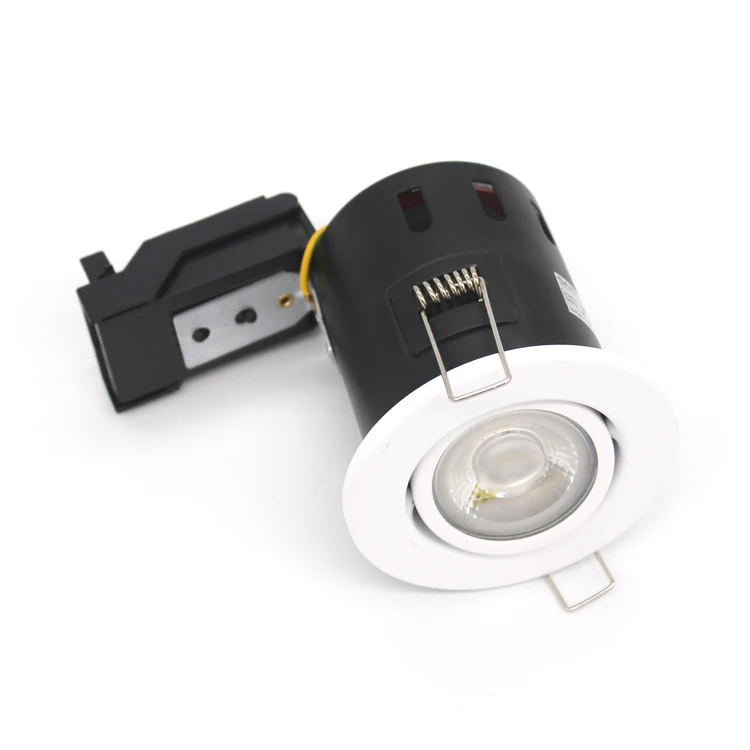

GU10 Fix / Tilt steel Fire Rated LED Recessed Downlight Ceiling Twist Lock Spot Lights

Product Overview

Description

Steel gimbal gu10 90min. Fire rated downlights:

Specifications

Model	Version	Material	Max Watt	Cap Type	Size	Cutout	IP	Class	Finish
AF201P	Fixed	Steel	50	GU10/MR16	80mm*100mm	65	20	II	White/chrome/satin nicek/gold/antique/matt chrome
AF202P	Tilted	Steel	50	GU10/MR16	83mm*110mm	65	20	II
AF203PIP65	IP65	Steel	50	GU10/MR16	85mm*108mm	70	65	I
AF201D	Fixed	Die-casting	50	GU10/MR16	92mm*108mm	75	20	I
AF202D	Tilted	Die-casting	50	GU10/MR16	103mm*108mm	85	20	I
AF203DIP65	IP65	Die-casting	50	GU10/MR16	85mm*108mm	70	65	I



 Complies with BS EN60598,BS5250 BS476 PART20, 21,23
Suitable for mounting on normally flammable.

Minimum distance from illminated object is 0.5 meter.

Mounting: Recessed

Main Material: Steel or Die-casting

Installation Accessories: Single action spring





 Application :



1. Commercial using: Office buildings, Factory, Hotel, Supermarket, Hospital, Restaurant, Exhibition, Advertising board, Show room, Jewelry shop, Amusement  park, theater lighting , meeting room Etc.



2. Home using: Living room, Bathroom,  Bedroom, Villa,  Gym, hallway
