95% energy saving electro permanent magnetic table CNC milling machine fix workpiece use
- Category: >>>
- Supplier: Zhuzhou HVR Magnetics Co. Ltd.
Share on (60600080472):
Product Overview
Description
Products Description

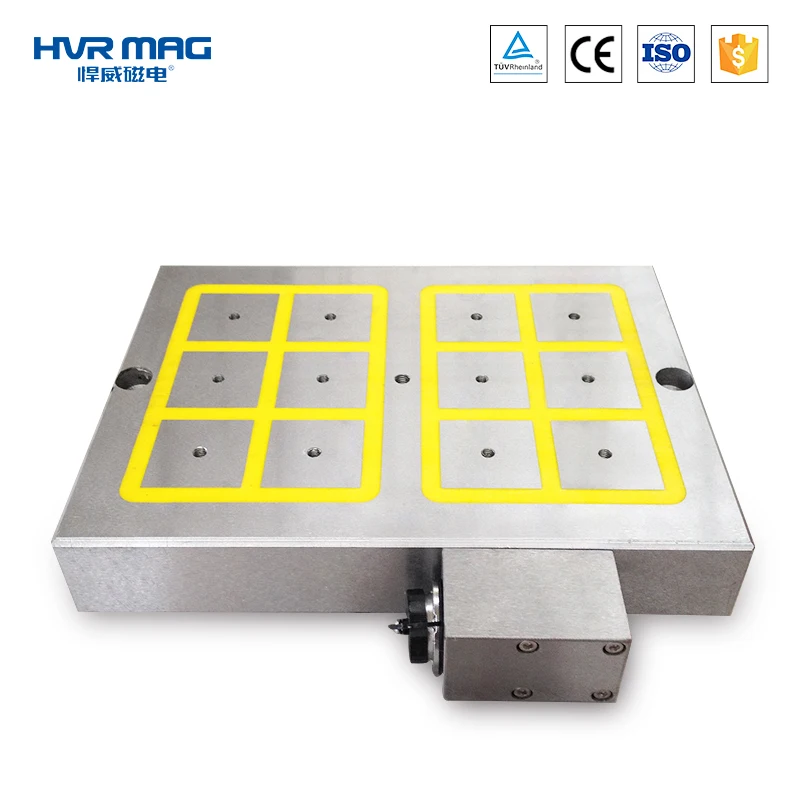

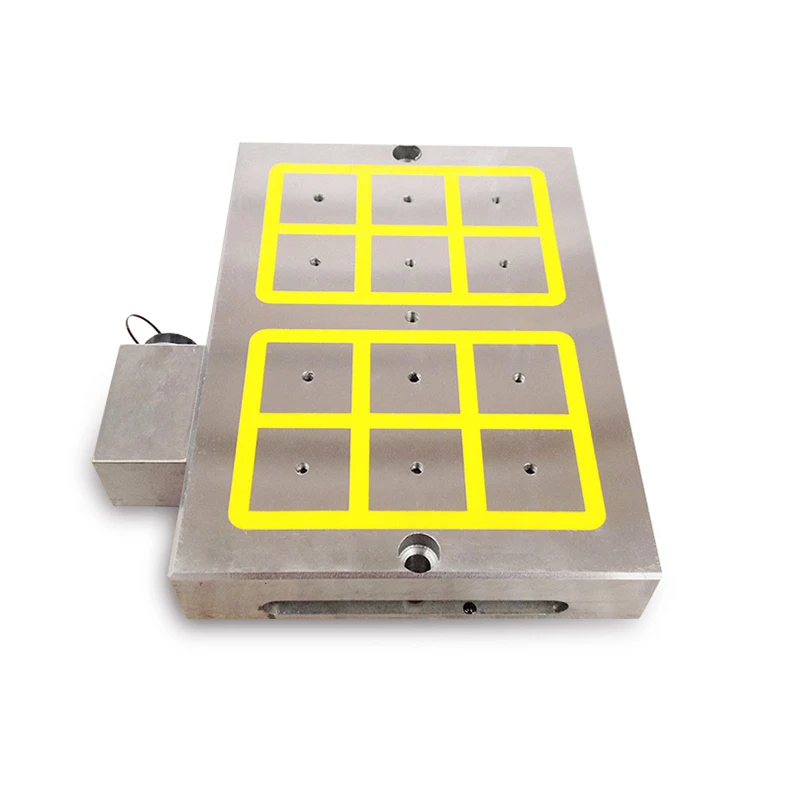

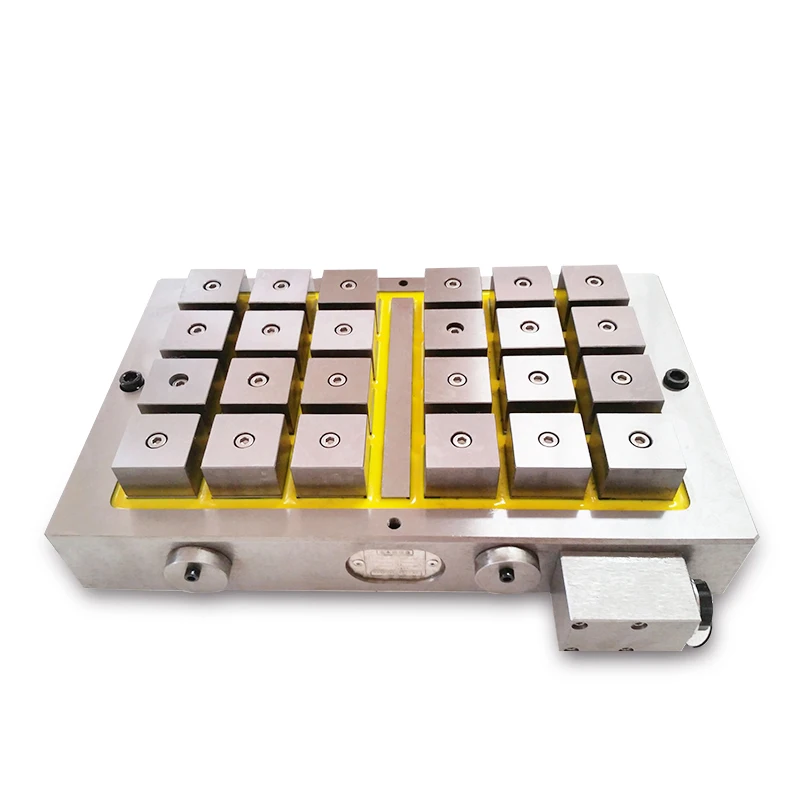

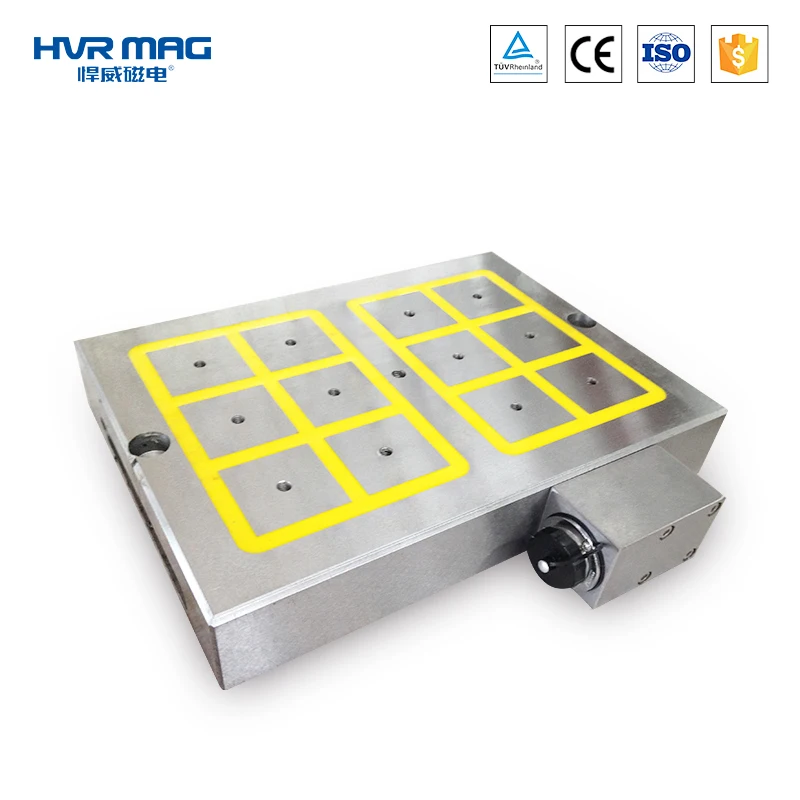

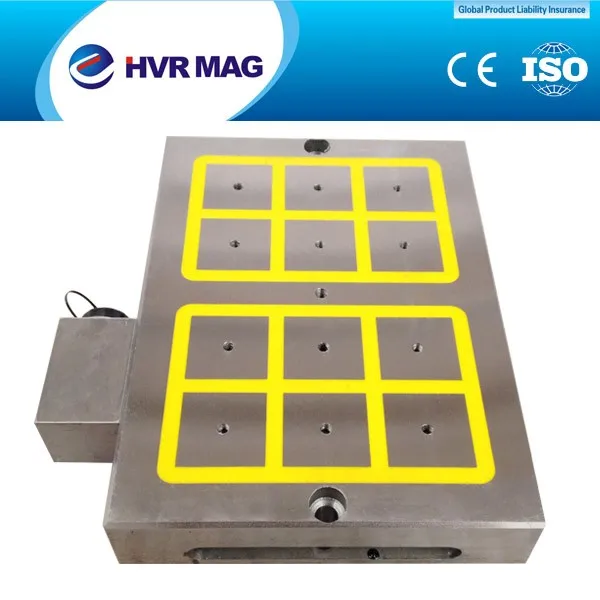

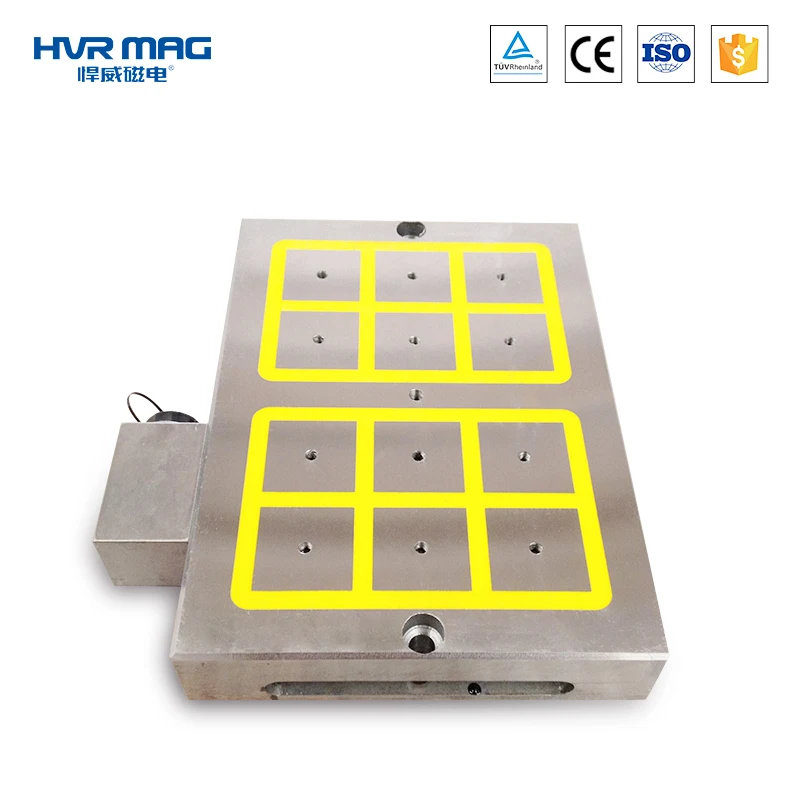

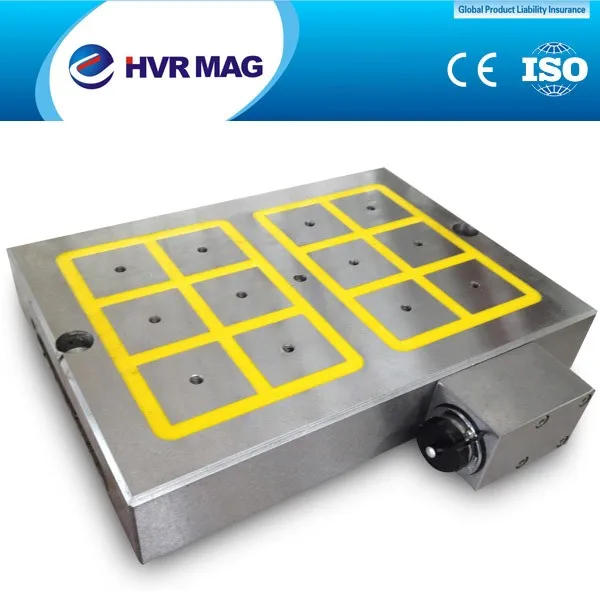

Electrical permanent magnetic chuck for milling machine
The DYCX series electrical permanent magnetic chuck widely used for the milling, cutting, tool grinding and other work piece processing, Uniform clamping, High machining precision, suitable for machining thin small work pieces.

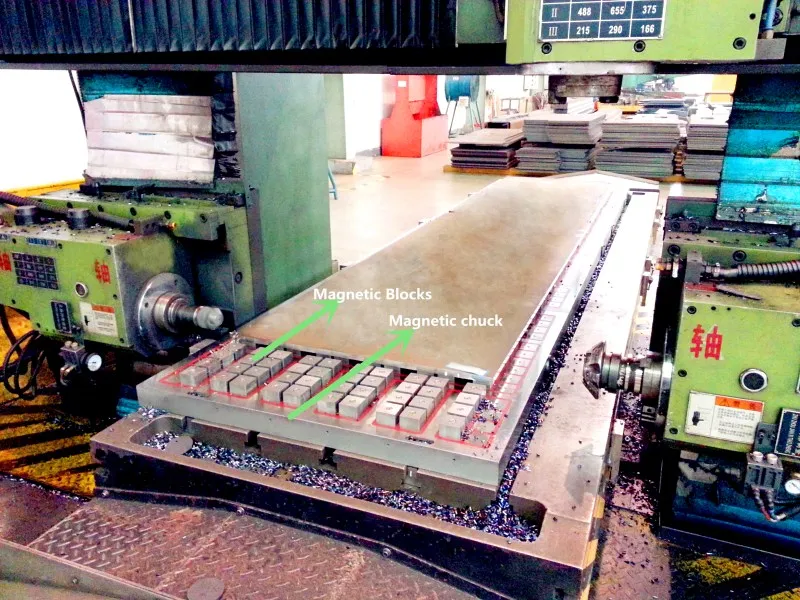

Details Images
Advantage:
1.High and uniform magnetic power.
2.Perfect safety in case of power failure. No electricity needed to keep the magnetic chuck on.
3.Unobstructed movement of cutters during machining.
4.Drastically reduces set up time.
5.Help in achieving best machining accuracy.
6.Uniform clamping over entire area, no chattering of tools, increase of service life.
7.All-steel surface, water and oil proofing
2.Perfect safety in case of power failure. No electricity needed to keep the magnetic chuck on.
3.Unobstructed movement of cutters during machining.
4.Drastically reduces set up time.
5.Help in achieving best machining accuracy.
6.Uniform clamping over entire area, no chattering of tools, increase of service life.
7.All-steel surface, water and oil proofing
Application:

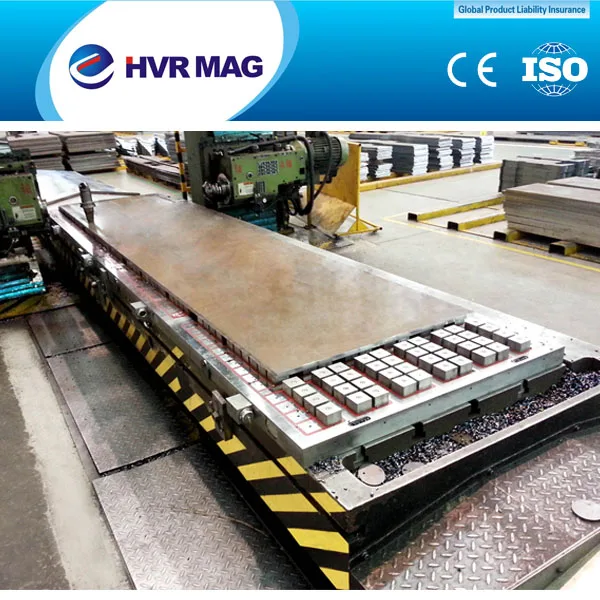

1) Most suitable for heavy duty milling operations on medium, large sized and even rough components.
2) A minimum of a alternate poles contact is necessary for optimum clamping.
3) Minimum thickness of job-15mm
4) Easily integrated with pallet changing and FMS systems
2) A minimum of a alternate poles contact is necessary for optimum clamping.
3) Minimum thickness of job-15mm
4) Easily integrated with pallet changing and FMS systems
Product Paramenters
Type&Data | Magnetic pole number | Total magnetic force(≤KN) | Overall dimension(mm) | Weight(kg) | ||||||||
A | B | H (standard) | H (Strong magnetic) | M1 (standard) | M2 (Strong magnetic) | |||||||
DYCX-2333P50 | 12 | 42 | 230 | 330 | 56 | 71 | 32 | 40 | ||||
DYCX-2348P50 | 18 | 63 | 230 | 480 | 56 | 71 | 46 | 58 | ||||
DYCX-2362P50 | 24 | 84 | 230 | 620 | 56 | 71 | 58 | 76 | ||||
DYCX-2377P50 | 30 | 105 | 230 | 770 | 56 | 71 | 72 | 94 | ||||
DYCX-2392P50 | 36 | 126 | 230 | 920 | 56 | 71 | 86 | 112 | ||||
DYCX-2310P50 | 42 | 147 | 230 | 1070 | 56 | 71 | 100 | 130 | ||||
DYCX-3033P50 | 16 | 56 | 300 | 330 | 56 | 71 | 40 | 50 | ||||
DYCX-3048P50 | 24 | 84 | 300 | 480 | 56 | 71 | 60 | 75 | ||||
DYCX-3062P50 | 32 | 112 | 300 | 620 | 56 | 71 | 80 | 100 | ||||
DYCX-3077P50 | 40 | 140 | 300 | 770 | 56 | 71 | 100 | 125 | ||||
DYCX-3092P50 | 48 | 168 | 300 | 920 | 56 | 71 | 120 | 150 | ||||
DYCX-30107P50 | 56 | 196 | 300 | 1070 | 56 | 71 | 140 | 175 | ||||
DYCX-4133P50 | 24 | 84 | 410 | 330 | 56 | 71 | 55 | 70 | ||||
DYCX-4148P50 | 36 | 126 | 410 | 480 | 56 | 71 | 80 | 100 | ||||
DYCX-4162P50 | 48 | 168 | 410 | 620 | 56 | 71 | 105 | 130 | ||||
DYCX-4177P50 | 60 | 210 | 410 | 770 | 56 | 71 | 130 | 160 | ||||
Certifications
Packing&Shipping
Why Choose Us
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
FAQ
Q: HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best clamping solution for workpiece machining based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best clamping solution for workpiece machining based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
