Transformer Iron Core Stacking Table And Tilting Assembly Table

Product Overview

Description

Transformer Iron Core Stacking Table And Tilting Assembly Table :

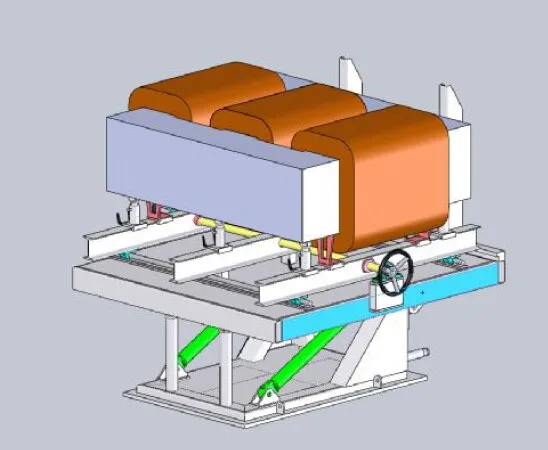

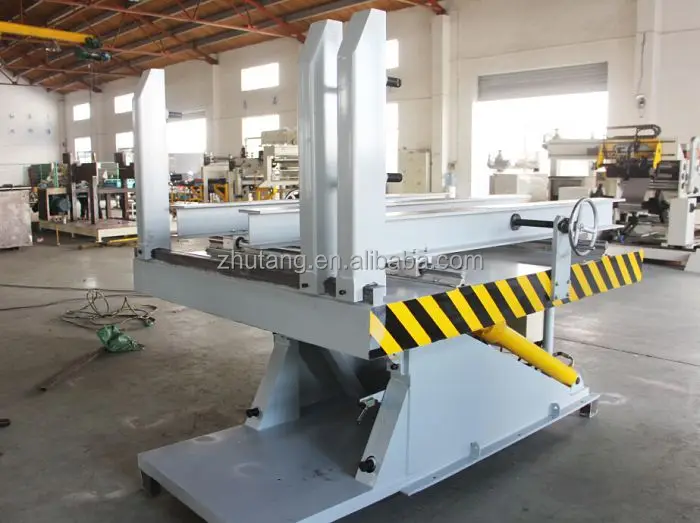

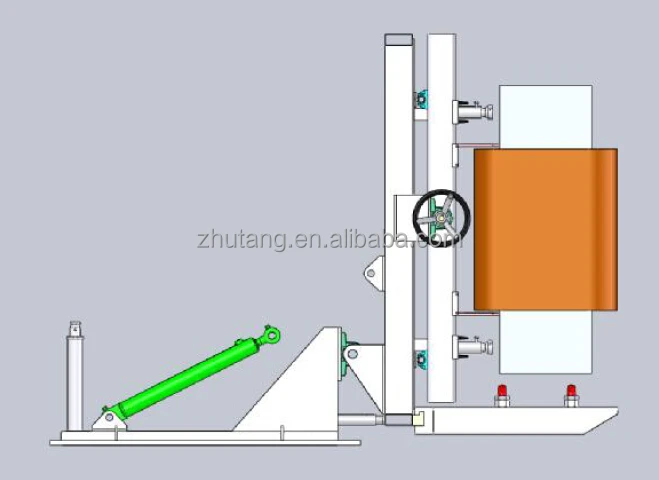

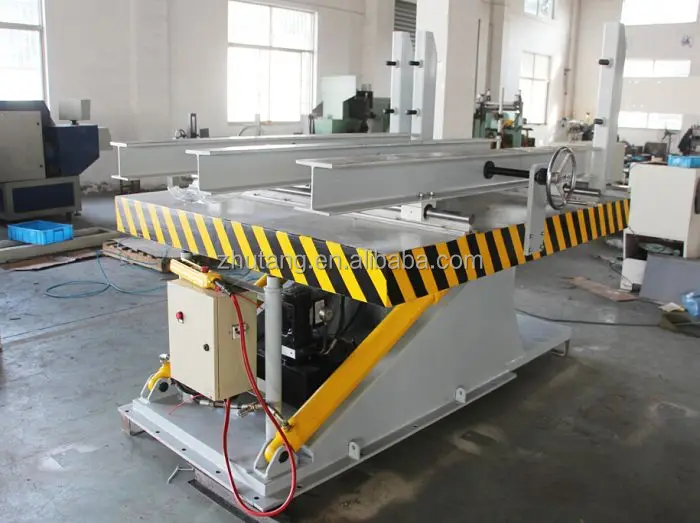

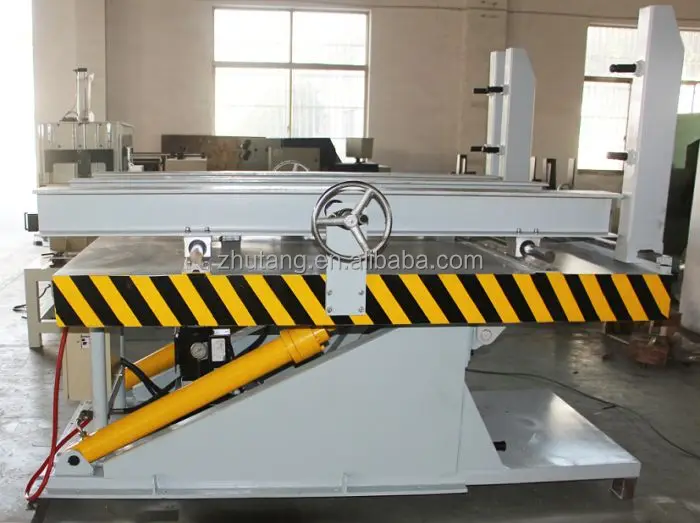

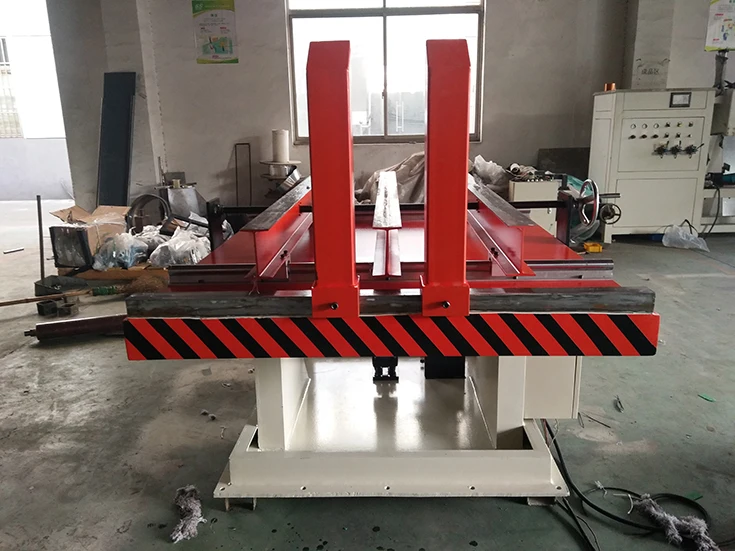

Transformer Iron Core Stacking Table And Tilting Assembly Table  is a special equipment to assembly large-sized transformer iron cores and can tilt the laminated iron cores up to 90°. This machine adopts an adjustable mode to improve tilting accuracy and speed regulation accuracy. Furthermore, this machine is provided with a linear guide and a hydraulic system for tilting.



It features smooth tilting and easy to operate, which assures the quality of laminating iron cores and improves the production efficiency.



Our product models include FZT-1T, FZT-3T and FZT-5T, etc.



Main Technical Parameters:



Typical standard specifications of FZT series are shown below, however these can be easily modified according to your requirement.





No.	Item	FZT-1T	FZT-3T	FZT-5T
1	Platform Size:	1300×1000mm	1500×1200mm	2000×1600mm
2	Max Load Capacity:	1000Kg	3000Kg	5000Kg
3	Stacked Accuracy:	0.1-0.2mm	0.1-0.2mm	0.1-0.2mm
4	Working Height:	1000mm	1000mm	1000mm
5	Driven Mode:	Hydraulic Pressure	Hydraulic Pressure	Hydraulic Pressure
6	Main Power:	1.5KW	2.2KW	3KW
7	Max. Iron Core Thickness:	400mm	500mm	600mm
8	Tilting Speed:	90°/Min(Stepless speed regulating)	90°/Min(Stepless speed regulating)	90°/Min(Stepless speed regulating)
9	Distance Between Columns:	Adjustable	Adjustable	Adjustable
