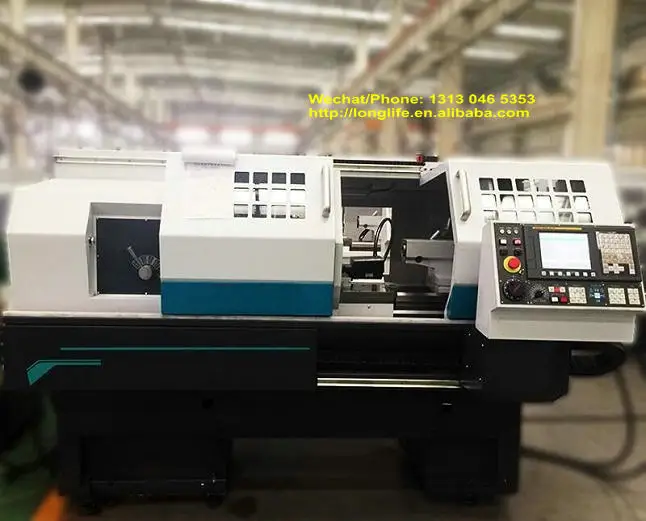

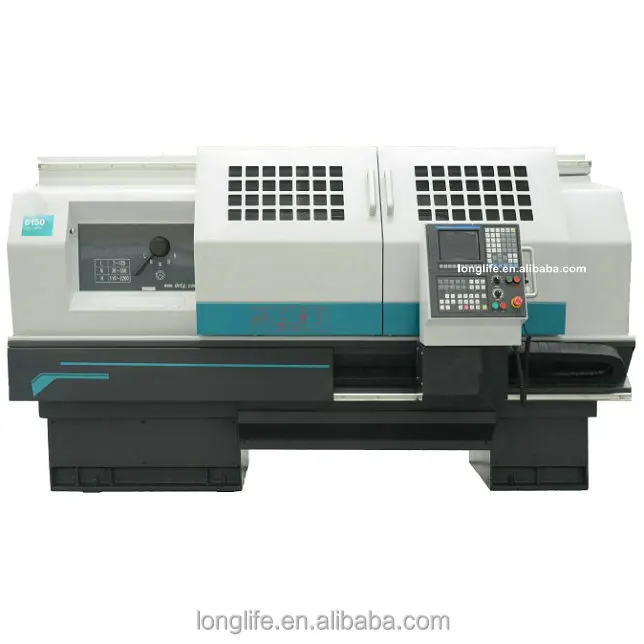

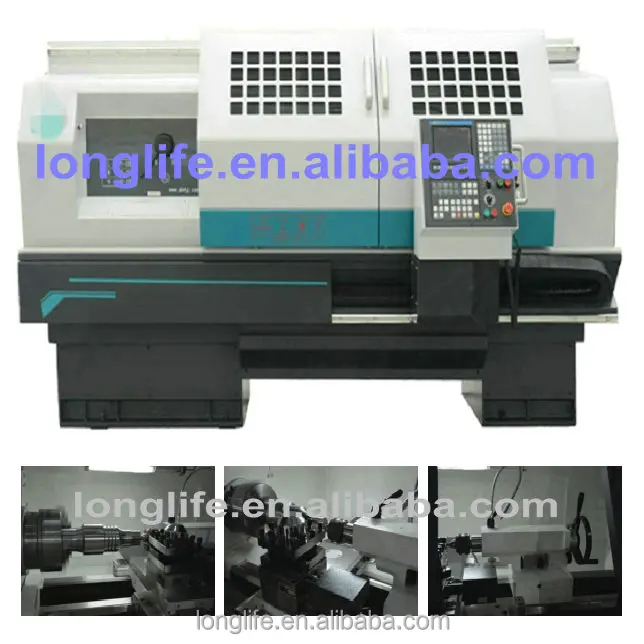

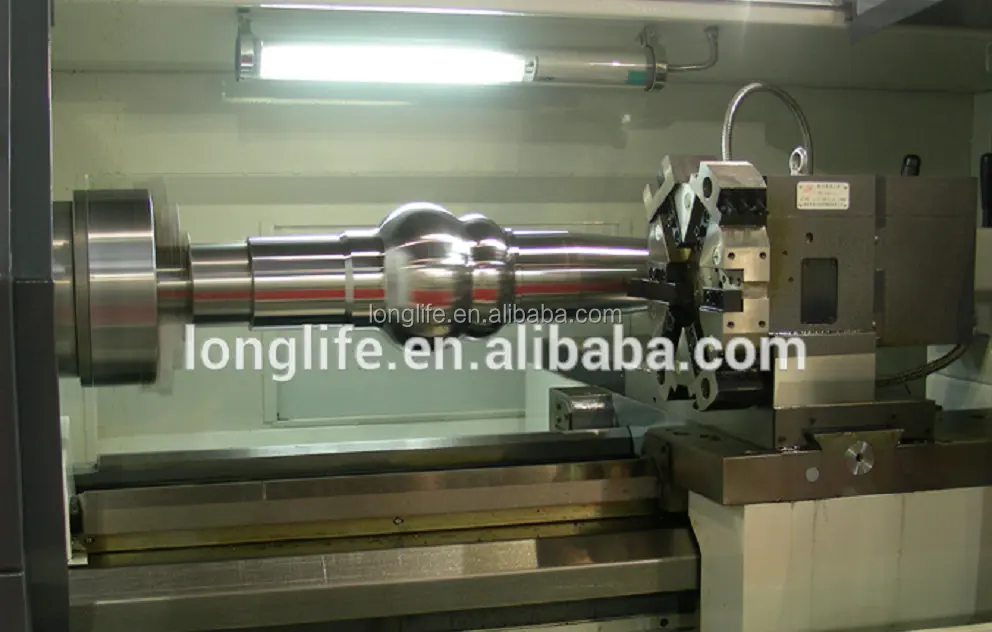

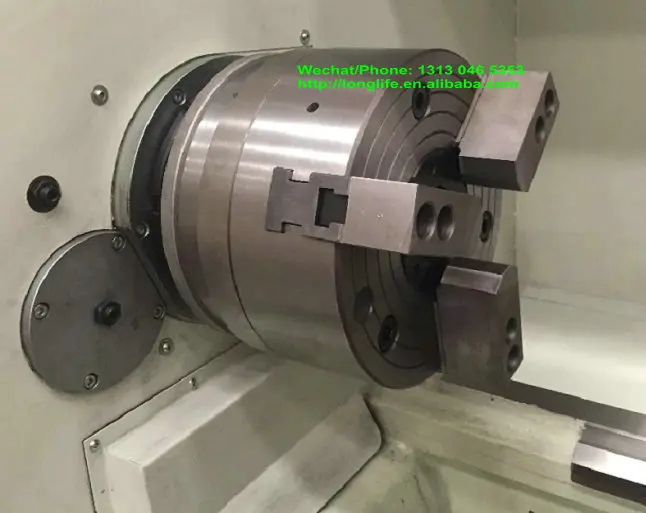

CKE6180Z Series Flat Bed CNC Lathe Machine

Max. swing over bed

mm

dia.800

Max. swing over slide

mm

dia 490

Max. length of work piece

mm

1000/1500/2000/3000/4000/5000

Max.workpiece length

mm

795,1245,1845,2745,3785,4745

Max.turning diameter

mm

dia.800

Spindle center height

400

Width of bed

mm

550

Ultimate weight of workpiece (using only chuck)

kg

1000

Variable frequency motor drive

Manual four-speed, with automatic stepless variable adjustment in each speed

Frequency conversion motor power

kW

11

Spindle speed range

r/min

10~1000

(10~90,20~200,50~445,110~1000)

Spindle bore

mm

dia.100

Spindle nose

C11

Taper of spindle bore

Morse

1:20 Front Enddia.120

Positioning accuracy

mm

(X)0.018(Z)0.024(1000)0.025(1500/2000)

0.030(Machine length 3000,4000,5000)

Repeat positioning accuracy

mm

(X)0.006

(Z) 0.011(1000) 0.014(1500/2000)

0.014(Machine length 3000,4000,5000)

Workpiece machining accuracy

IT6~IT7

Workpiece surface roughness

Ra1.6

X-axis rapid feed speed

mm/min

4000

Z-axis rapid feed speed

mm/min

7500 (Machine length 1000 and 2000)

4000 (Machine length 3000)

3500 (Machine length 4000 and 5000)

X travel

mm

400

Z travel

mm

800,1250,1850,2750,3790,4750

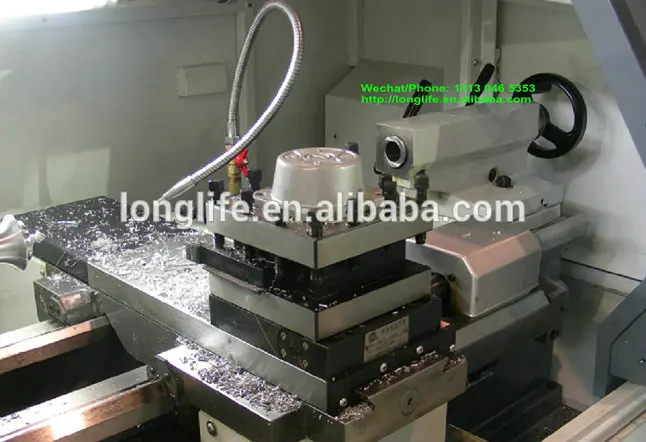

Vertical 4-position Tool post changing time

s

3.17

Horizontal 6-station (optional)

s

2.85

Horizontal 8-station (optional)

9.4

Diameter of tailstock quill

mm

100

Travel of tailstock quill

mm

240

Taper of tailstock quill

Morse

M6

Cooling pump motor power

W

150

Cooling pump flow

L/min

25

Net weigh

kg

4800/5100/5600/5900/7100/8100

Overall dimensions

mm

3455x2000x1800

3955x2000x1800

4510x2000x1800

5410x2000x1800

6510x2000x1800

7510x2000x1800

Machine package size

mm

3920x2240x2220(Machine length 1000)

4370x2240x2220(Machine length 1500)

4970x2240x2220(Machine length 2000)

5870x2240x2220(Machine length 3000)

7000x2350x2220(Machine length 4000)

8080x2350x2220(Machine length 5000)

The machine is inspected strictly with reference to the standard GB-T25659.1-2010 "Simple CNC Horizontal Lathe Part 1: Accuracy Inspection", and the machine is allowed to leave the factory only after passing all the accuracy tests.
