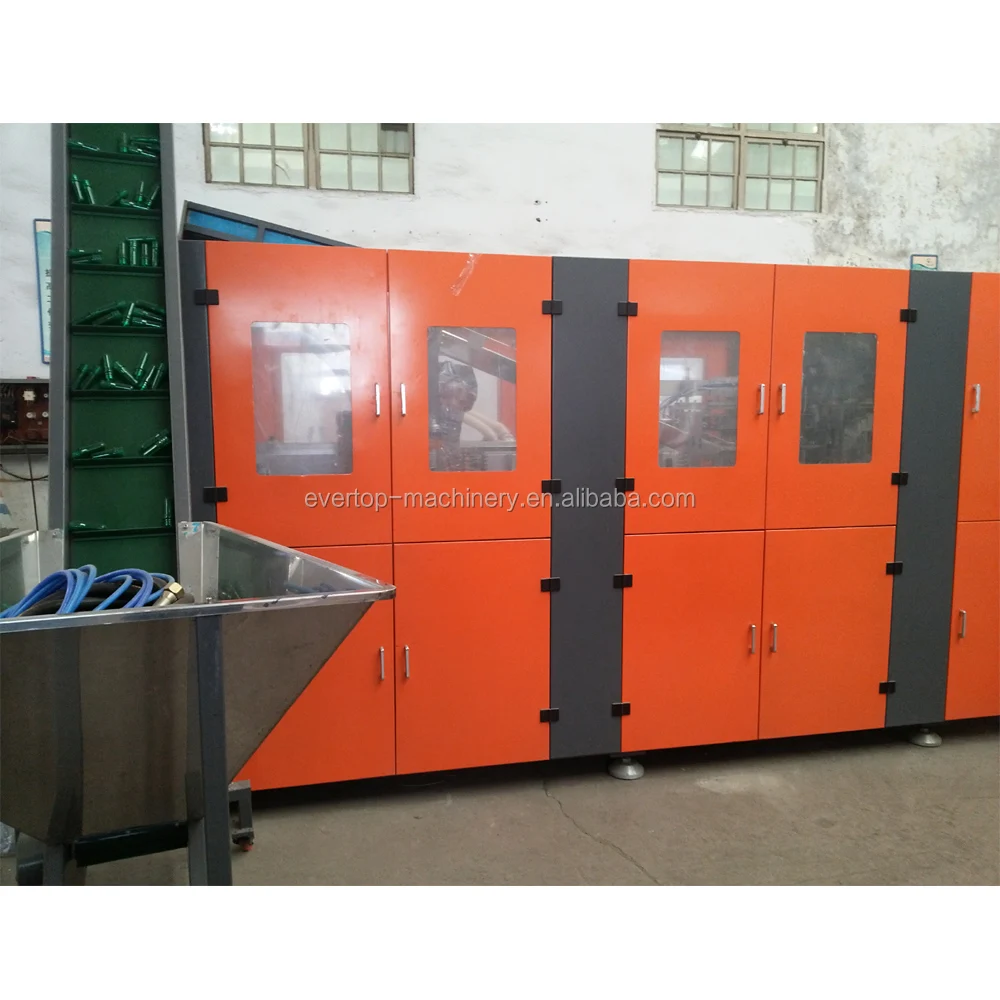

This Full automatic PET bottle blow molding machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
The quality of the equipments can reach the international advanced level and gained good reputation among our clients.
Characteristics:
Stable performance with advanced PLC.
Automatic preform conveyer to save human cost.
Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
Introduce the air cylinder to avoid contamination and noise.
Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
Strong clamping force with high pressure and double crank links to lock the mould.
Two ways of operating: automatic and manual.
Safe, reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
Low cost, high efficiency, easy operation and maintenance etc., profited from the fully automatic technological process.
Ideal cooling system makes the finished bottles without any flaws.
Easy to install, test and start up.
Low rejection rate: less than 0.2 percent.
Independent electricity box makes sure every electrical appliance works normally.
The key electric and pneumatic elements adopt international famous products, such as SIEMENS, MITSUBISHI, OMRON, SCHNEIDER, AIRTAC/FESTO etc.
Technical Parameter:
Model
ITEM
ET-A1(2L)
ET-A1(5L)
ET-B2 (5L)
ET-C3 (1.5L)
ET-A2 (2L)
ET-A4 (2L)
Productivity (Pcs/Hour)
Depend on bottle design
800-1200
500-800
800-1000
1800-2500
1800-2000
3200-4000
Product type
Volume
0.1-2L
2-5L
≤5L
≤1.5L
≤2L
≤2L
Body diameter
≤100mm
≤175mm
≤175mm
≤100mm
≤100mm
≤100mm
Height
≤330mm
≤330mm
≤330mm
≤305mm
≤310mm
≤310mm
Neck diameter
≤30mm
≤45mm
40mm-45mm
28mm-30mm
≤38mm
≤38mm

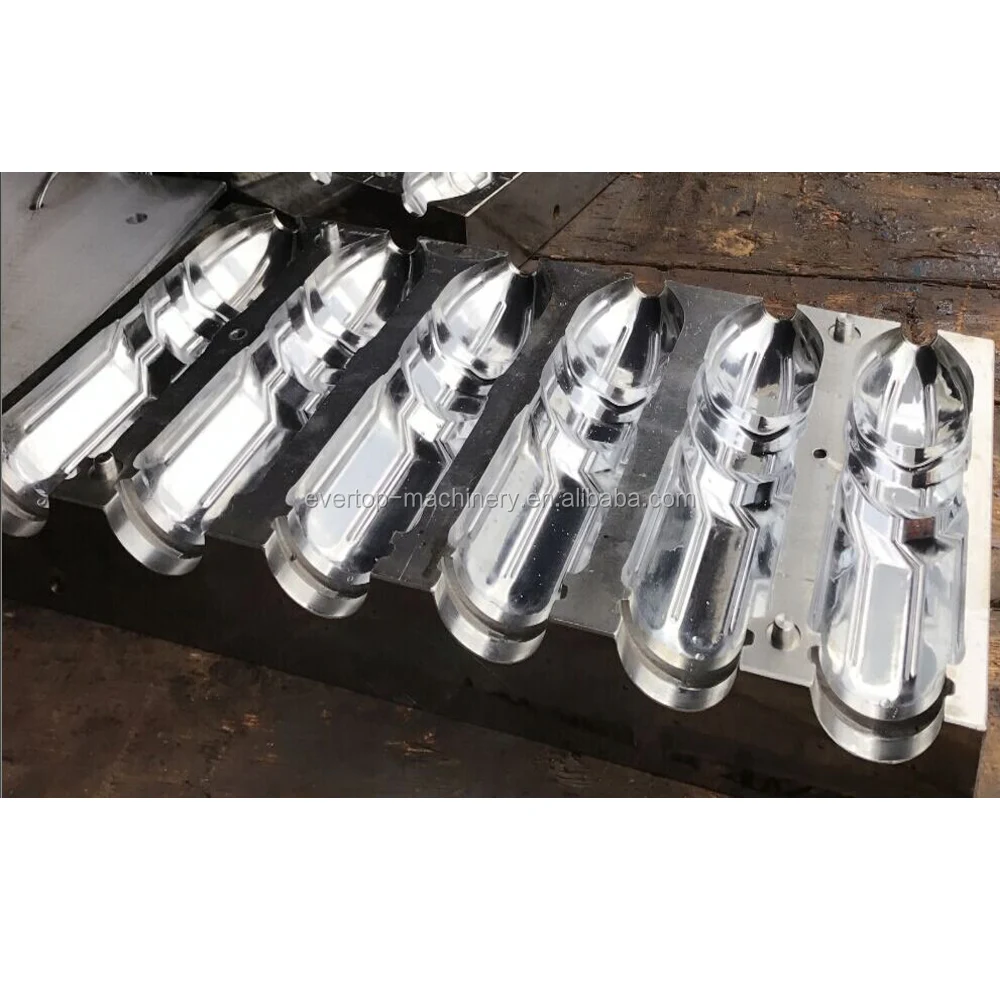

Mould
Cavity
1
1
2
3
2
4
Mold thickness
240mm
260mm
260mm
240mm
240mm
240mm
Mold size (mm)
300*240*380
300*260*380
480*260*380
450*240*360
260*240*370
510*240*360
Main machine power
Electrical source power
380V/220V/415V/440V 50/60HZ 3Phases
Power
25kw
25kw
33kw
25kw
25kw
49kw
Really use power
7kw
10kw
13kw
9.5kw
6.5kw
13kw

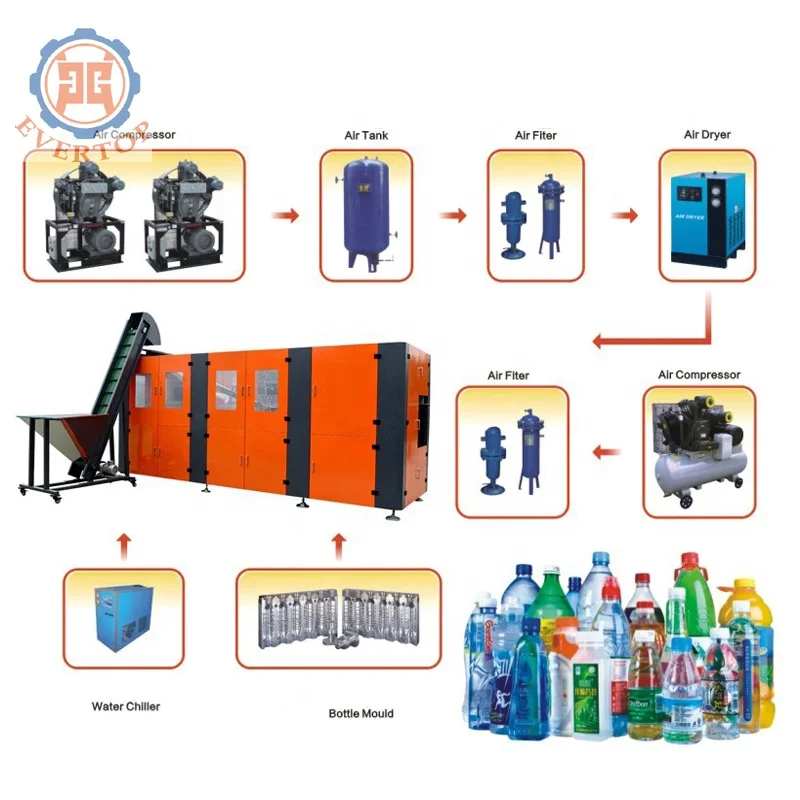

Air system

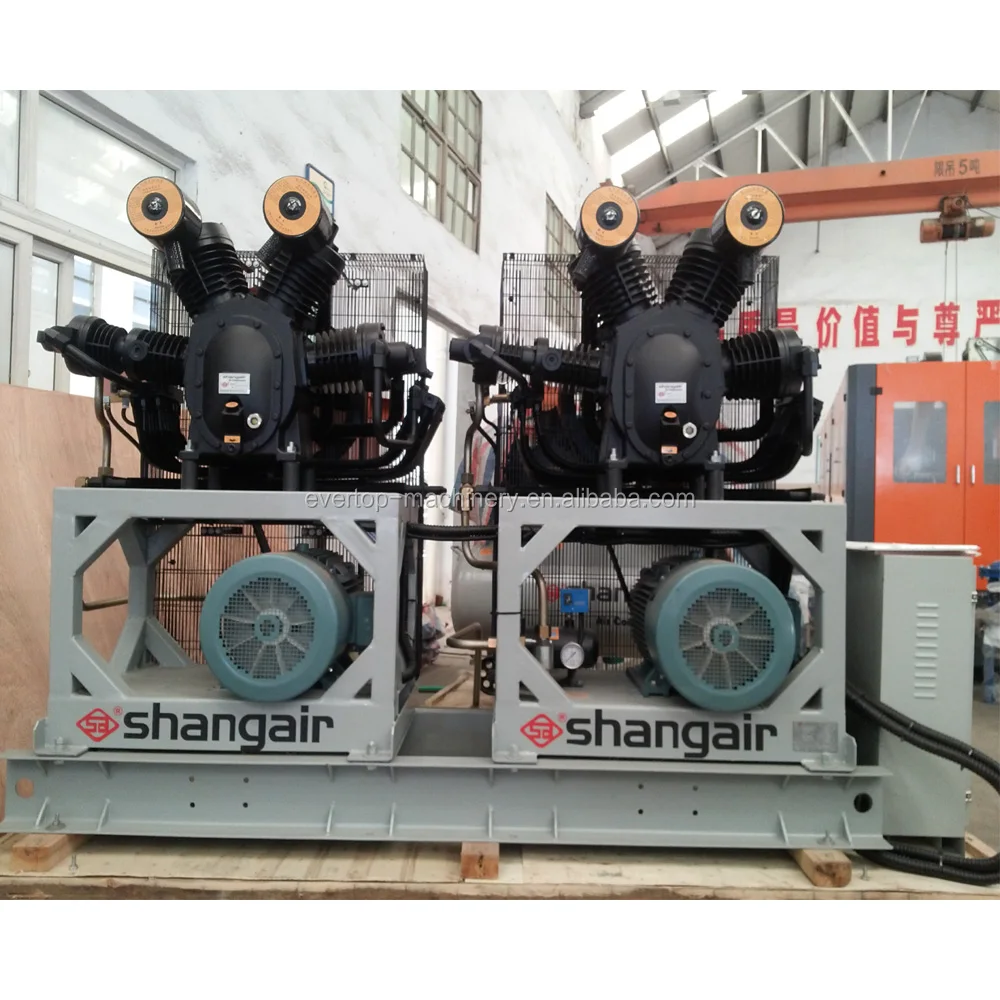

HP air compressor
1.6m3/min 3.0MPa
1.6m3/min 3.0MPa
4.0m3/min 3.0MPa
2.0m3/min 3.0MPa
1.4m3/min 3.0MPa
2.4m3/min 3.0MPa

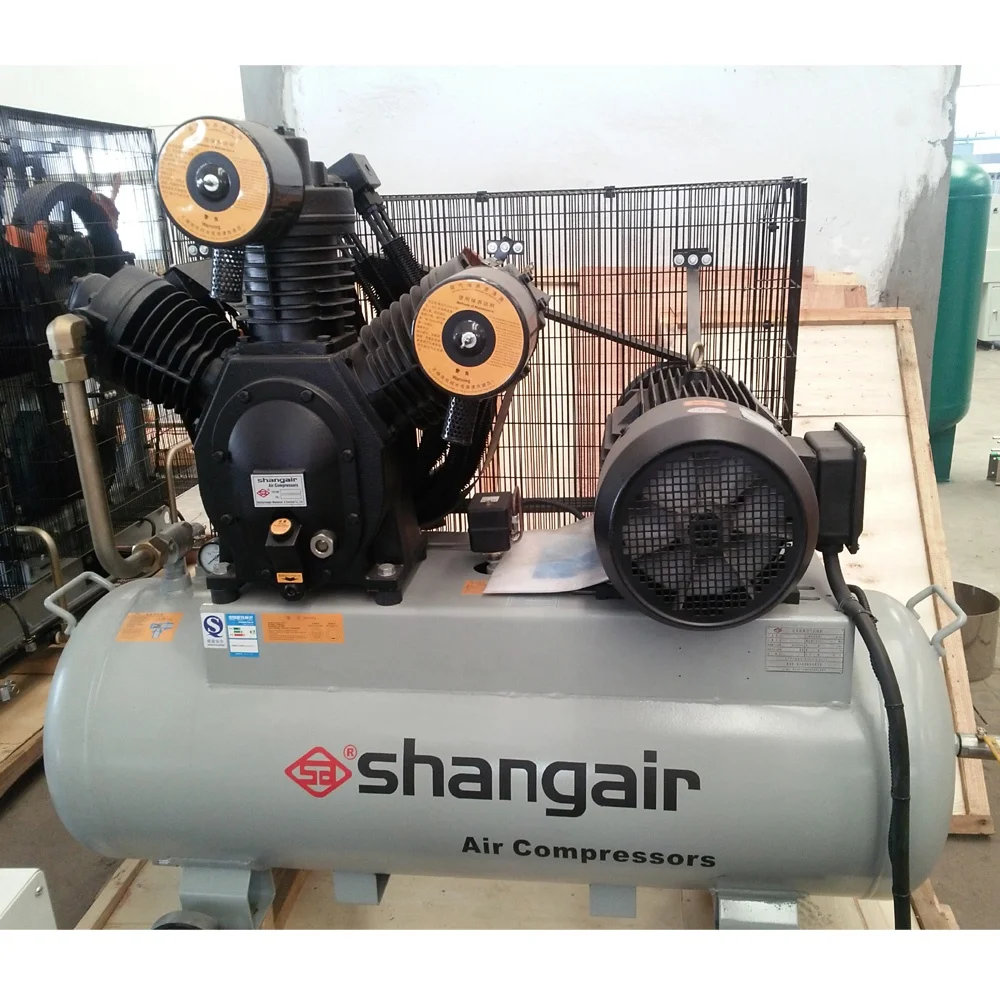

LP air compressor
/
1.0m3/min 1.0MPa
1.6m3/min 1.0MPa
/
1.0 m3/min 1.0MPa
1.6 m3/min 1.0MPa
Air Tank
/
0.6m33.0MPa
1.0m33.0MPa
1.0m3 3.0MPa
0.6m3 3.0MPa
0.6m33.0MPa
Air dryer
1.0m3/min 3.0MPa
2.0m3/min 3.0MPa
4.0m3/min 3.0MPa
2.0m3/min 3.0MPa
1.0m3/min 3.0MPa
2.0m3/min 3.0MPa
Cooling water
Air Chiller
3HP
3HP
3HP
3HP
3HP
3HP
Machine
Size(L*W*H)
1.5*1.2*1.8m
2.0*1.2*1.8m
2.5*1.5*1.8m
2.0*1.3*1.8m
1.9*1.28*1.93m
3.5*1.9*2.1m
Weight
1500kg
1800kg
2200kg
1800kg
2000kg
3000kg
Preform unscrambler
Size(L*W*H)
2.0*0.95*2.48m
Weight
250kg
Technological Flow Sheet (PET Bottle Blowing System): 1. PET Preform Injection Molding System
PET material→ Dehumidify→ Load material→ Injection machine→ Preform 2. PET Bottle Blowing System PET Preforms→ heat preform→ stretch→ blowing→ bottles
Packaging & Shipping
Our Services
1. The plant layout
To provide customers with pre-project workshop planning, design.
2. Commissioning services Send experienced engineers and technicians to be responsible for equipment installation and commissioning, to ensure customers' factory normal production.
3. Spare parts With one year of wearing parts when the device is shipped. In addition, we prepare adequate equipment spare parts in stock. Customers ever need spare parts to repair and maintain quipment, we can supply to them quickly.
4. Technical training To ensure that your technical staff to become familiar with the performance of the equipment, to master the equipment proper operation and maintenance procedures, we provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.

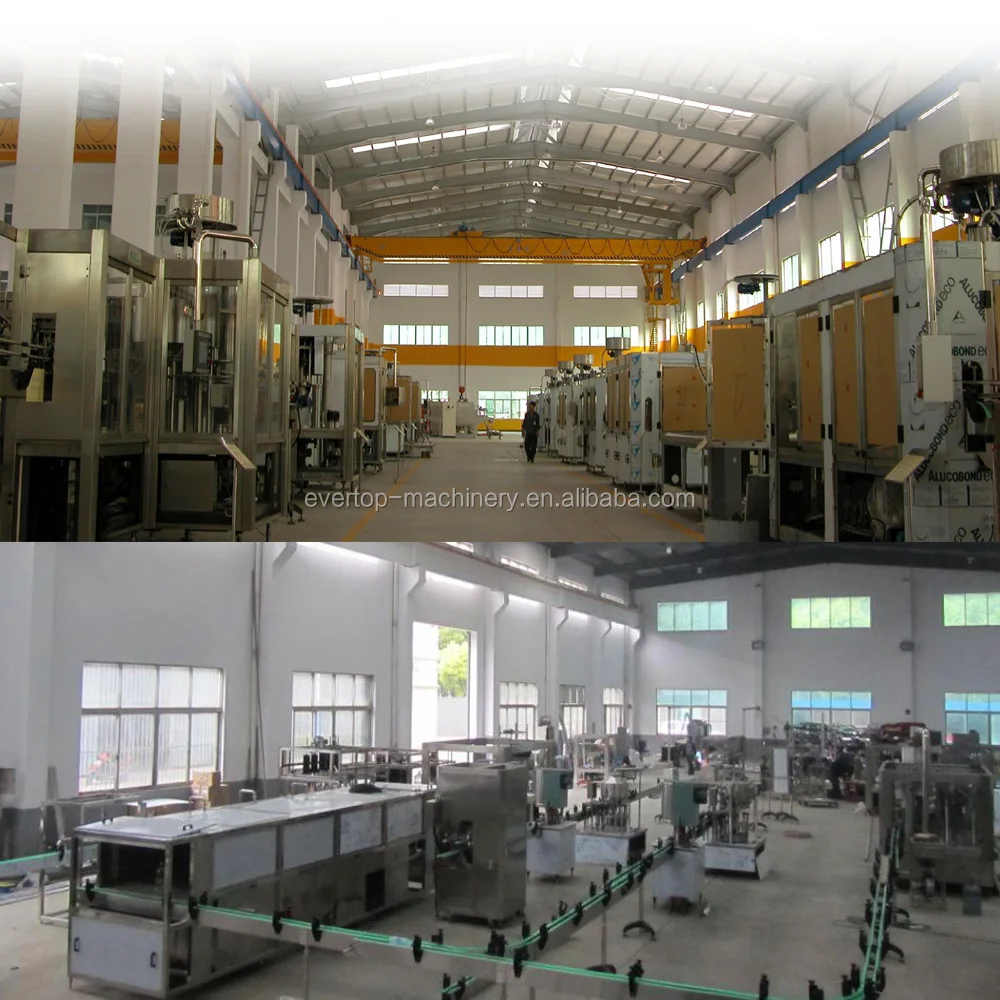

Company Information
Zhangjiagang Evertop Machinery Co., Ltd., which has the function of research, development and manufacture, is specialized in beverage packaging machinery.
We are providing the following products: liquid filling machine (bottle water, juice/tea, carbonated drink, oil, milk, wine etc.), 3 to 5 gallons water filling production line, water treatment machine, labeling and packing machine, automatic/semi-automatic bottle blow molding machine, injection molding machine and automatic batching, mixing system, a variety of sterilization equipmentetc.
Since foundation, we devote all the strength to the new field of beverage packaging machine technology and absorb the advanced technology from German and Italy. Company insists the management ideas of market-oriented, technology-first, quality of life, faith-based, service paramount, and has established perfect quality assurance system.
FAQ
Q What is your trade clause? A We mainly handle it by FOB, CFR, CIF, EXW, FCA. It depends on the client’s need.
Q What is your payment term? A 30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Q What is the valid of your price? A Because the cost and exchange rate changes rapidly, so all of our quotation for you is with 30 days valid. If you need any update price, please feel free to contact us.
Q How could I know if your products' specification is suit for our country power? A All the machines are custom made. We will make suitable voltage and frequency products according to your need.
Q How long can you arrange delivery? A About 30 days after we received the deposit payment, all the machines will be ready. You are welcomed to test the machine in my factory or we send you video of your machine running. Then you arrange the balance payment and we will pack the machines with wooden case and arrange the shippment by sea or by train.
