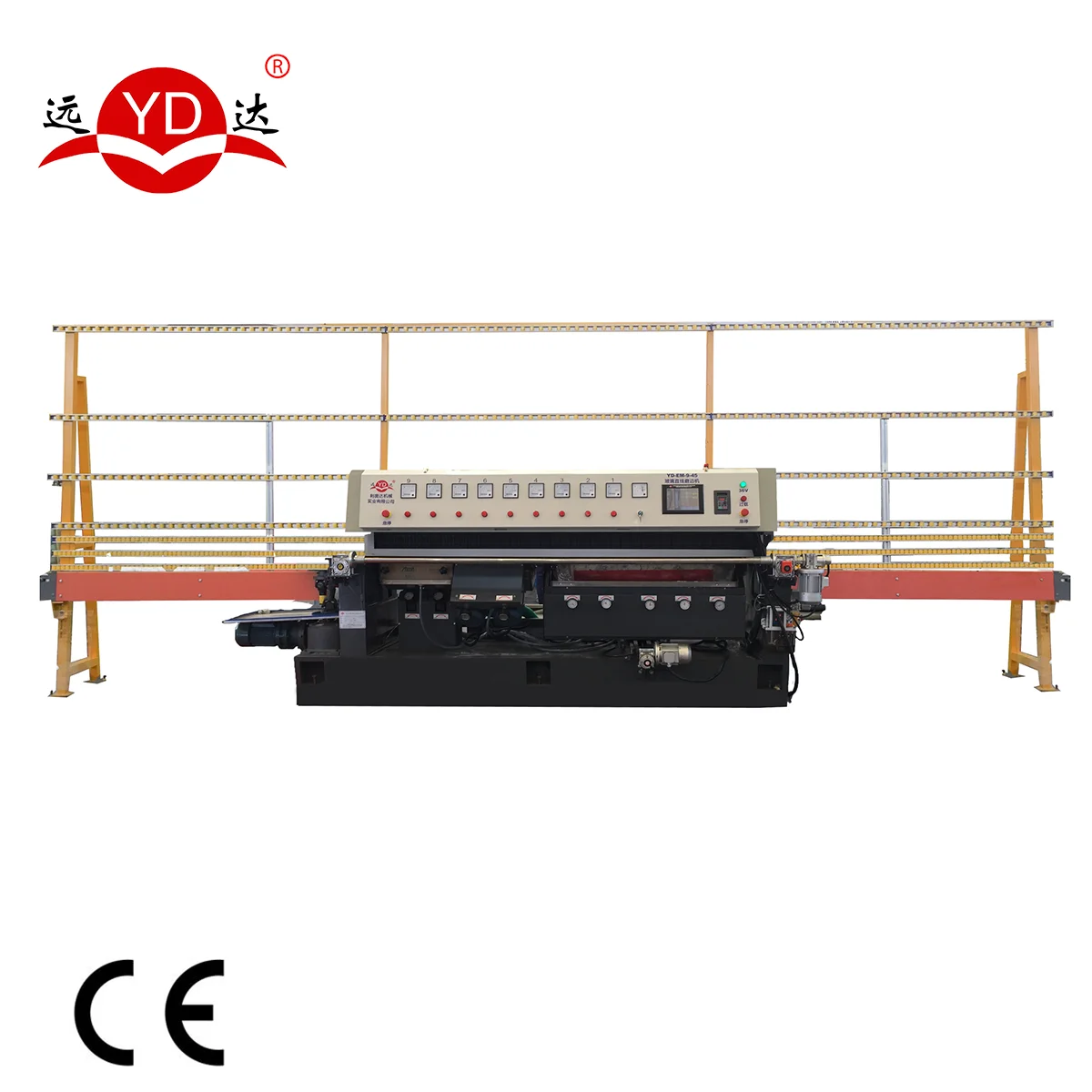

China glass machine foshan manual glass polishing machine with beveling price
Applications:
This machine is specially designed for the process of mirror. It can process Min. glass size 150*150mm, and it also called as mosaic beveling machine.
Main data:
Specification | Date |
Speed range | 0.8-3m/min |
Min. Glass size | 150x150mm |
Glass thickness | 3-19mm |
Beveling width range | 3-35mm |
Beveling angle range | 3°-30° |
Working height | 720mm |
Installed power | 23.5kw |
Voltage/frequency | 220/380/415/480V 50HZ/60HZ |
Weight | 3500kg |
Overall size | 7000x1200x2600mm |

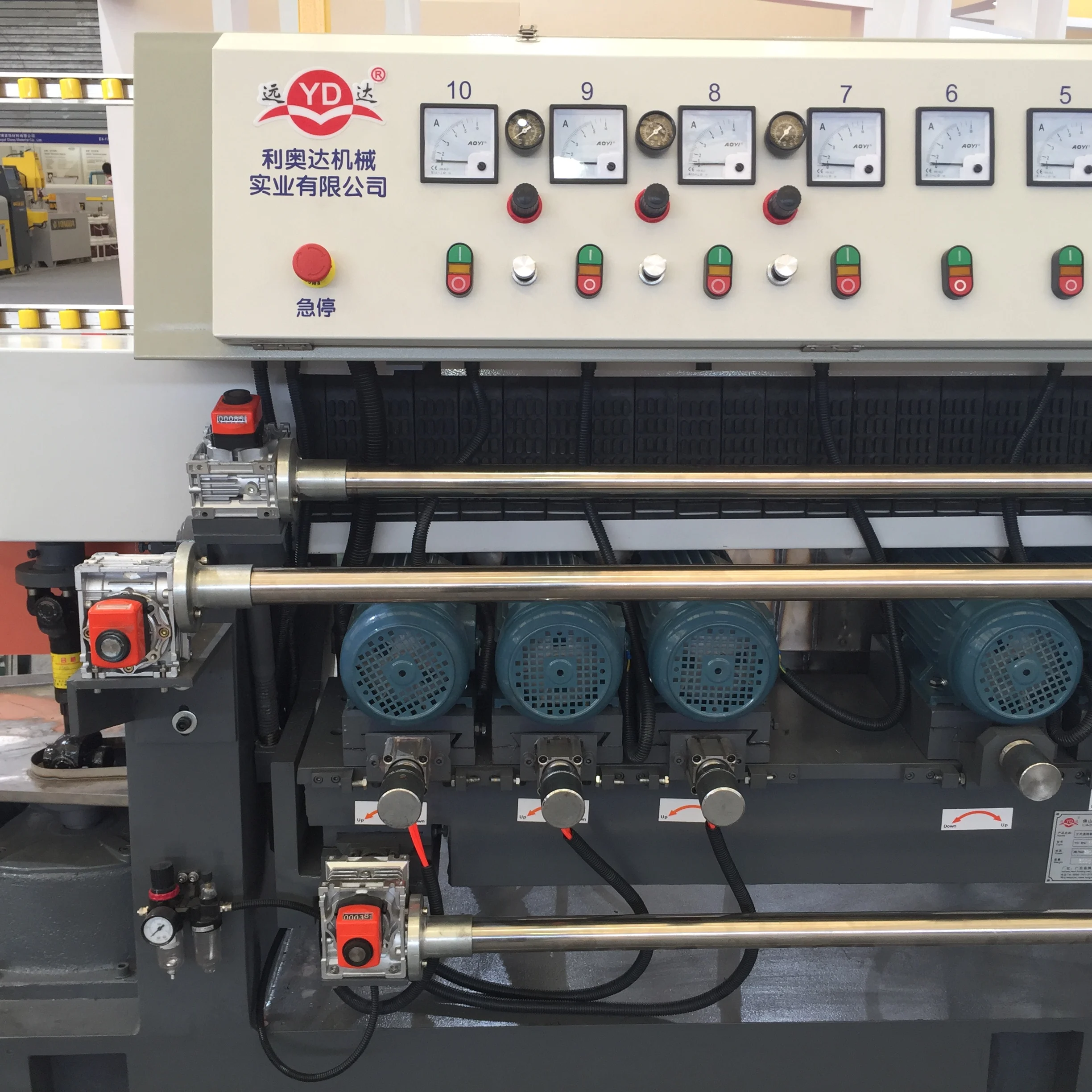

The position of grinding wheels:
No. | Name | specification | Quantity | remark |
1,2 | Diamond wheel | Φ150 | 2 | |
3 | Diamond wheel | Φ150 | 1 | Pencil edge |
4, 5,6,7 | Resin wheel | Φ150 | 4 | |
8,9,10 | Felt wheel | Φ130 | 3 | Pneumatic polishing |
Machine specification:

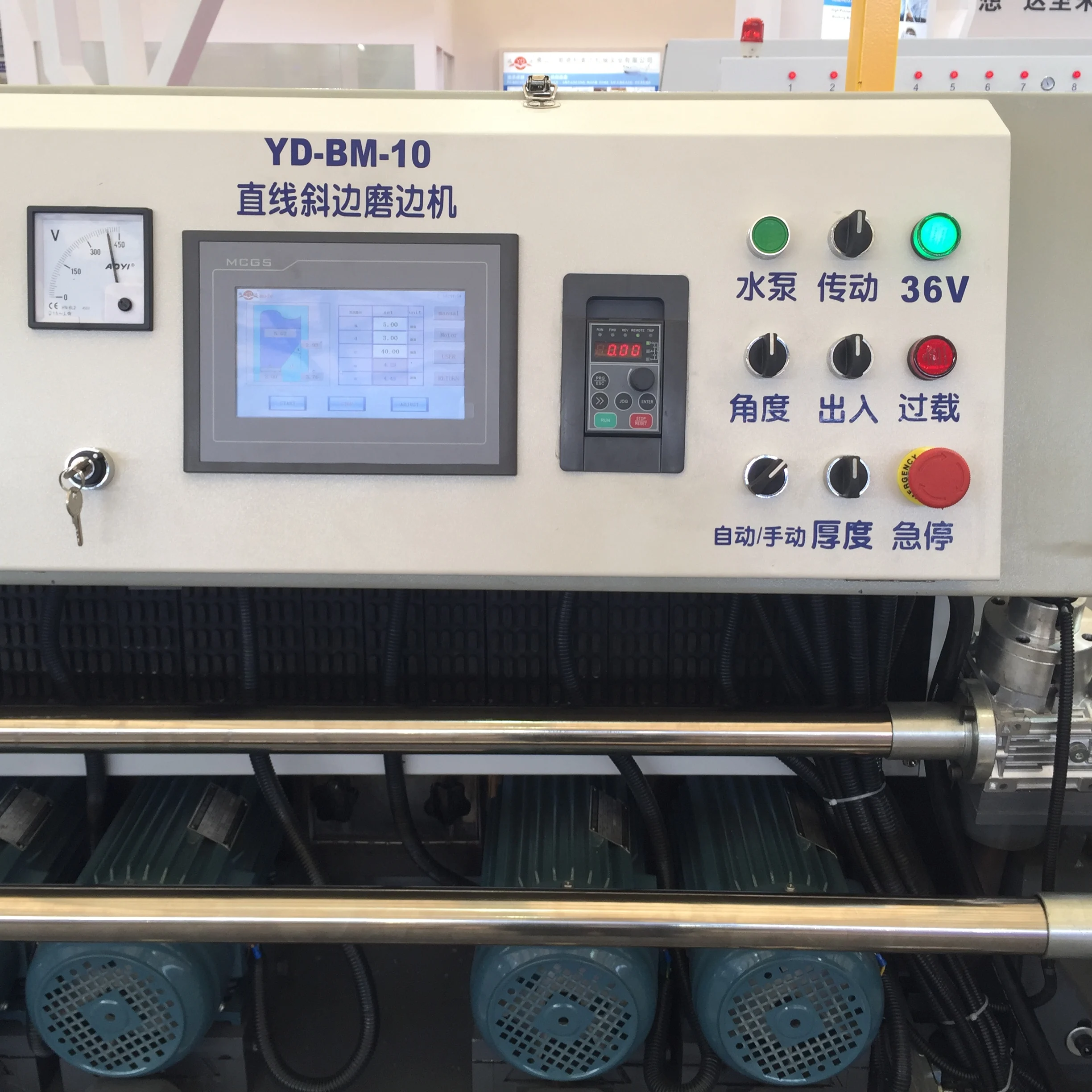

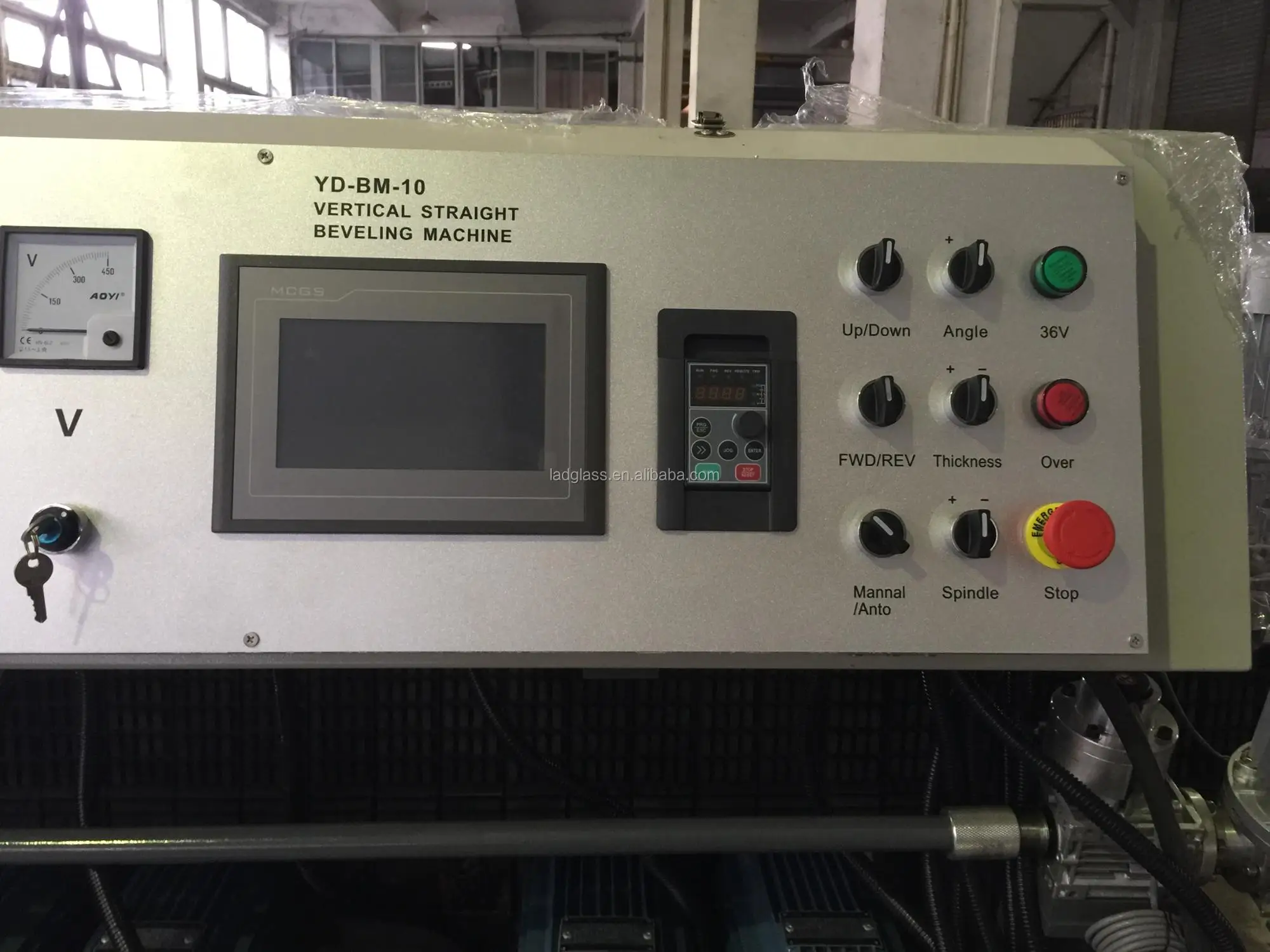

l Single chip or PLC control system for option
l Frequency speed adjust

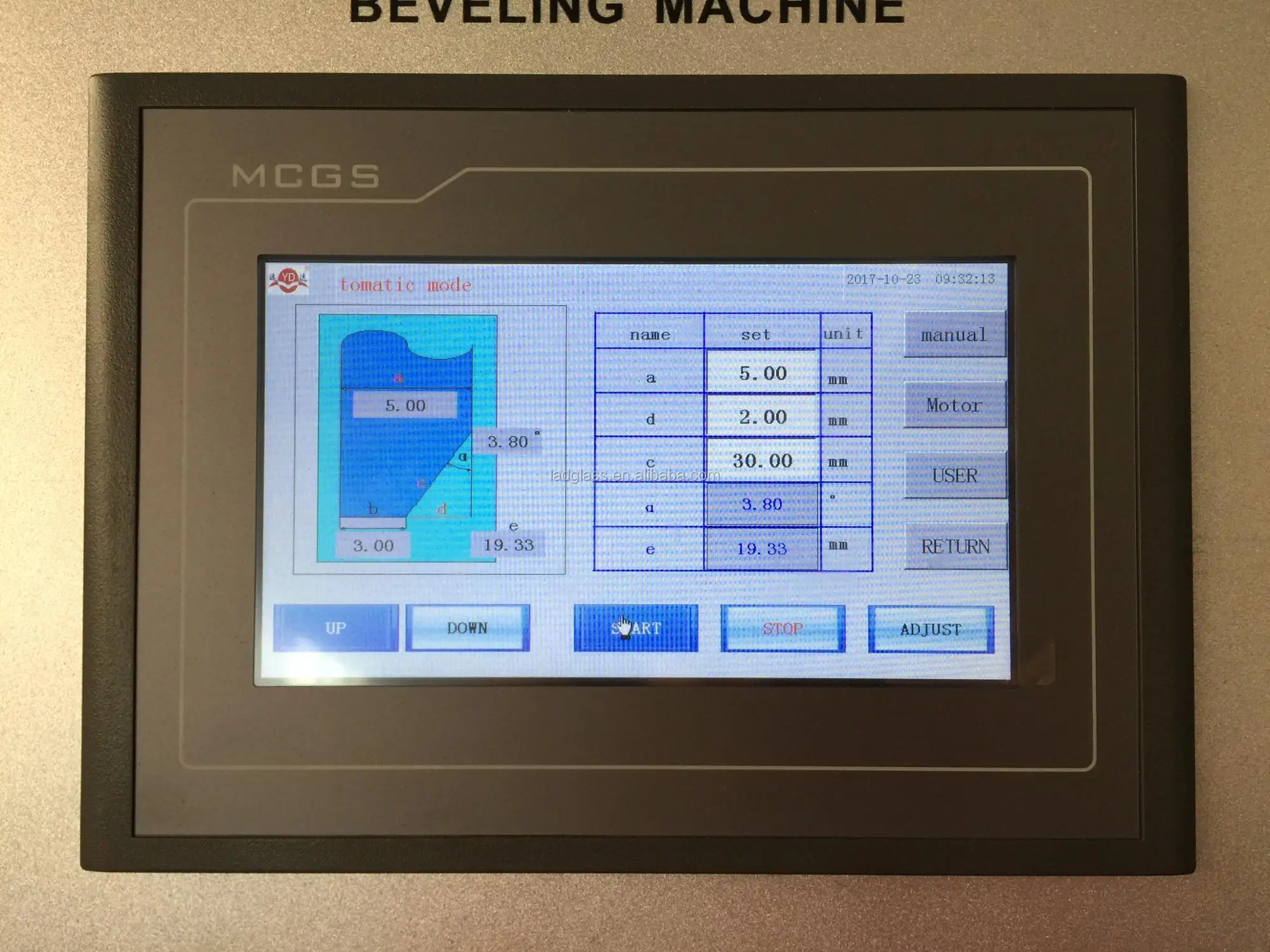

l Automatic thickness, angle adjustment, beveling width adjustment
l High speed inducing motor. Speed 2480rppm/min.
l Synchronous belt
l Stainless steel water tank
l Cast steel machine base
l Pneumatic polishing assistant, polishing with felt wheel and cerium oxide
l Aluminum glass support

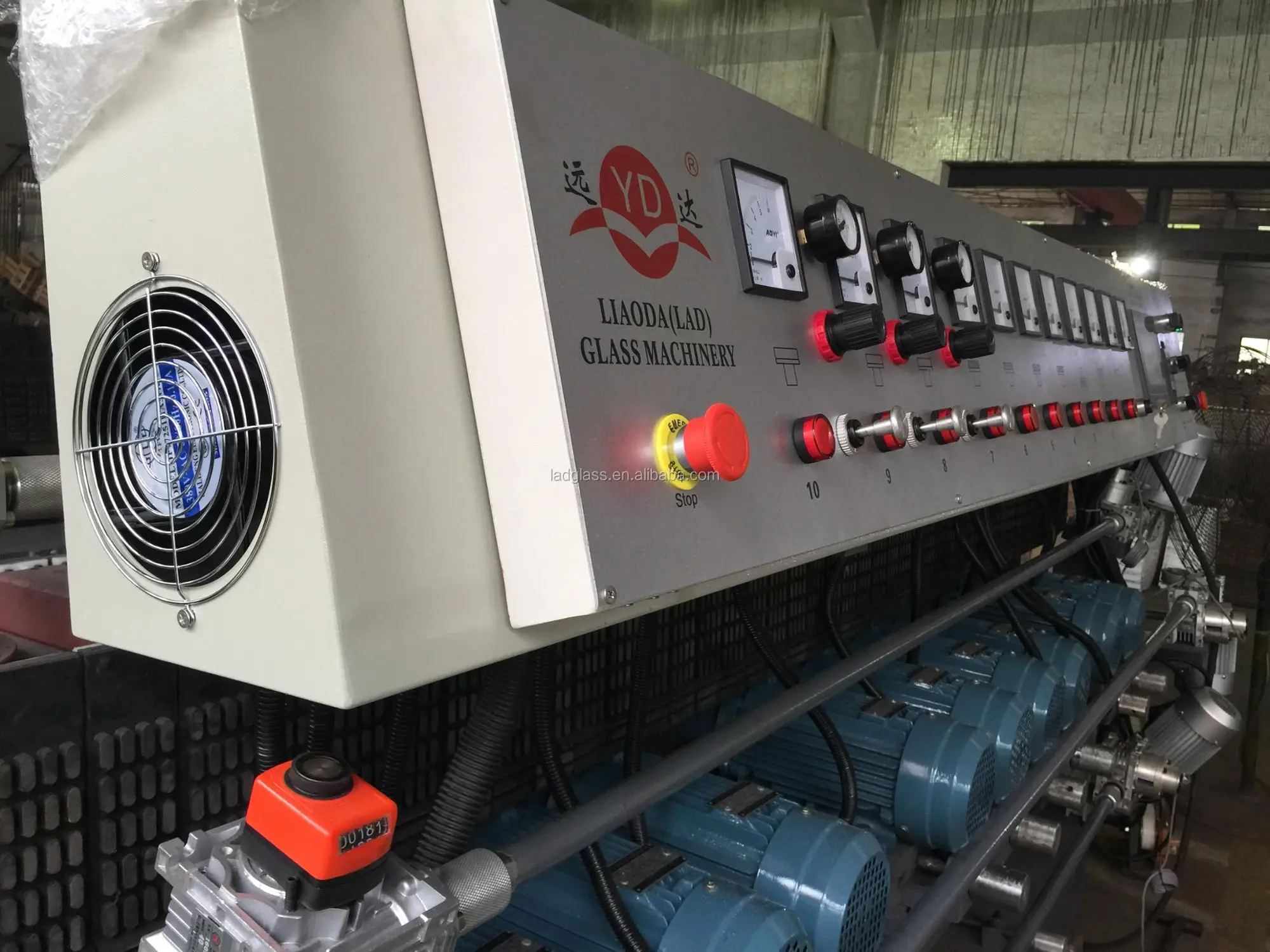

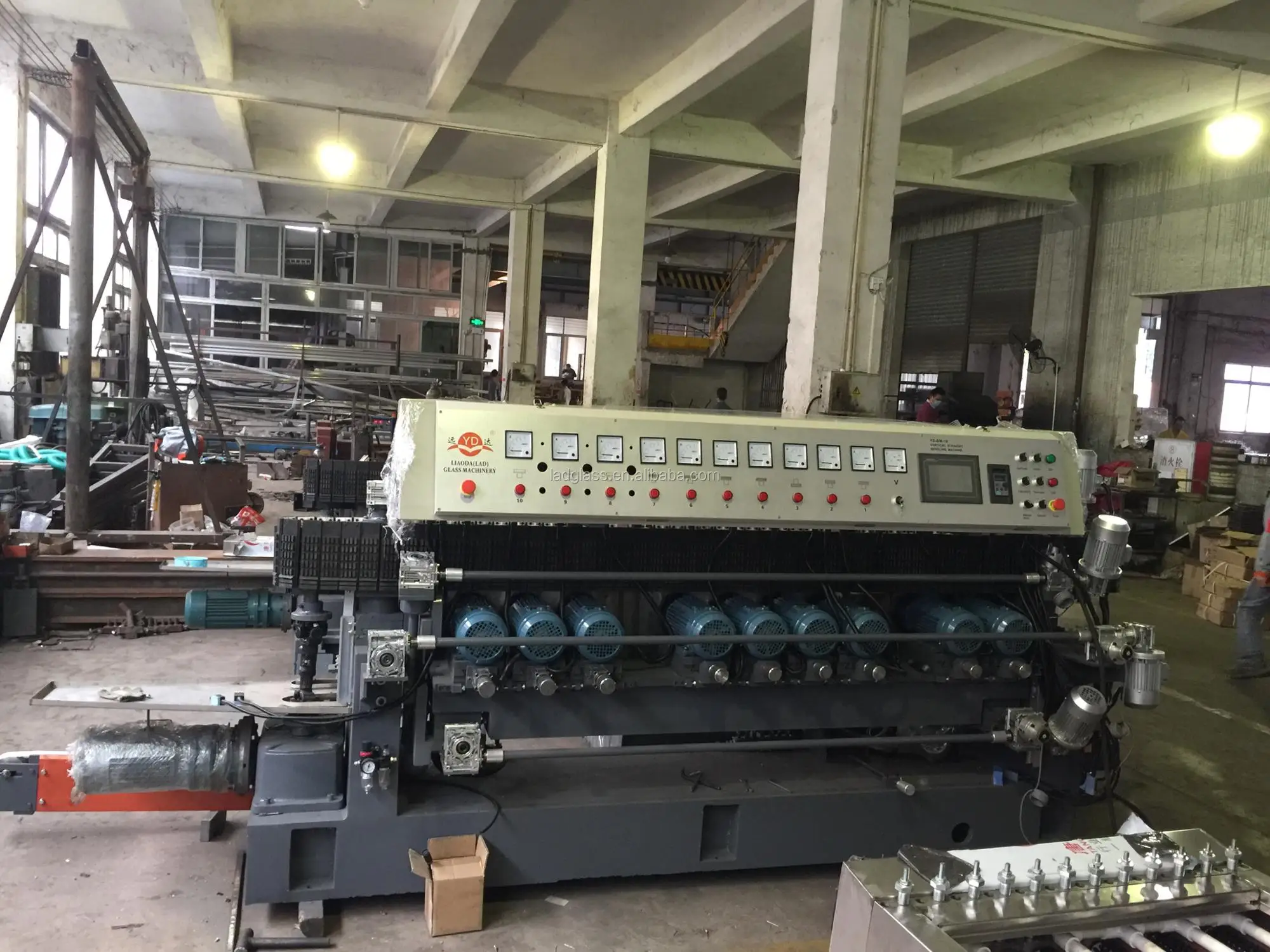

Machine in workshop
Warranty and Service.
- 1 year warranty for the machine
- Life time technical support and parts
- English version machine operation manual, machine operation video and on site service if necessary
We are a factory specialized in manufacturing of glass cold & hot processing machines.

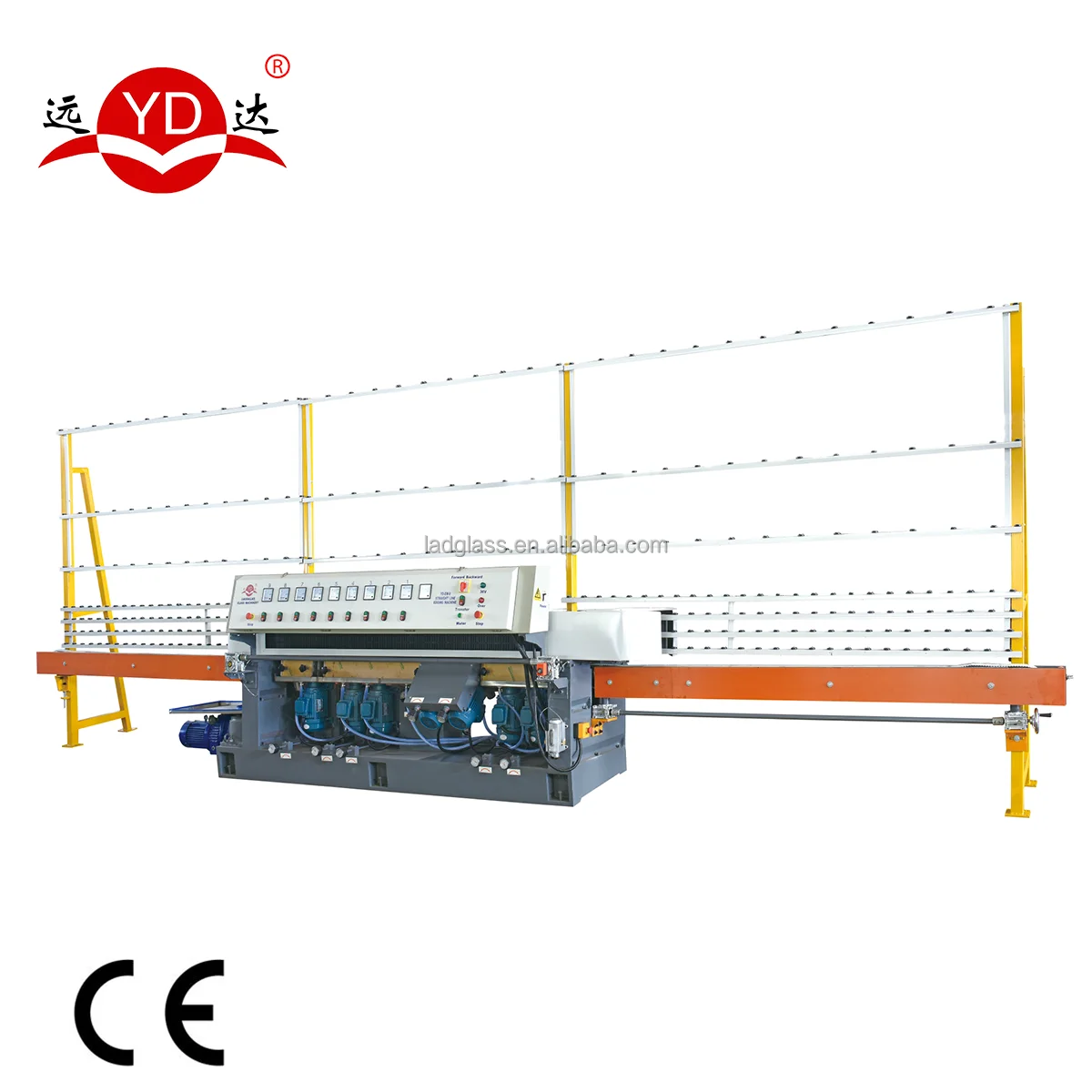

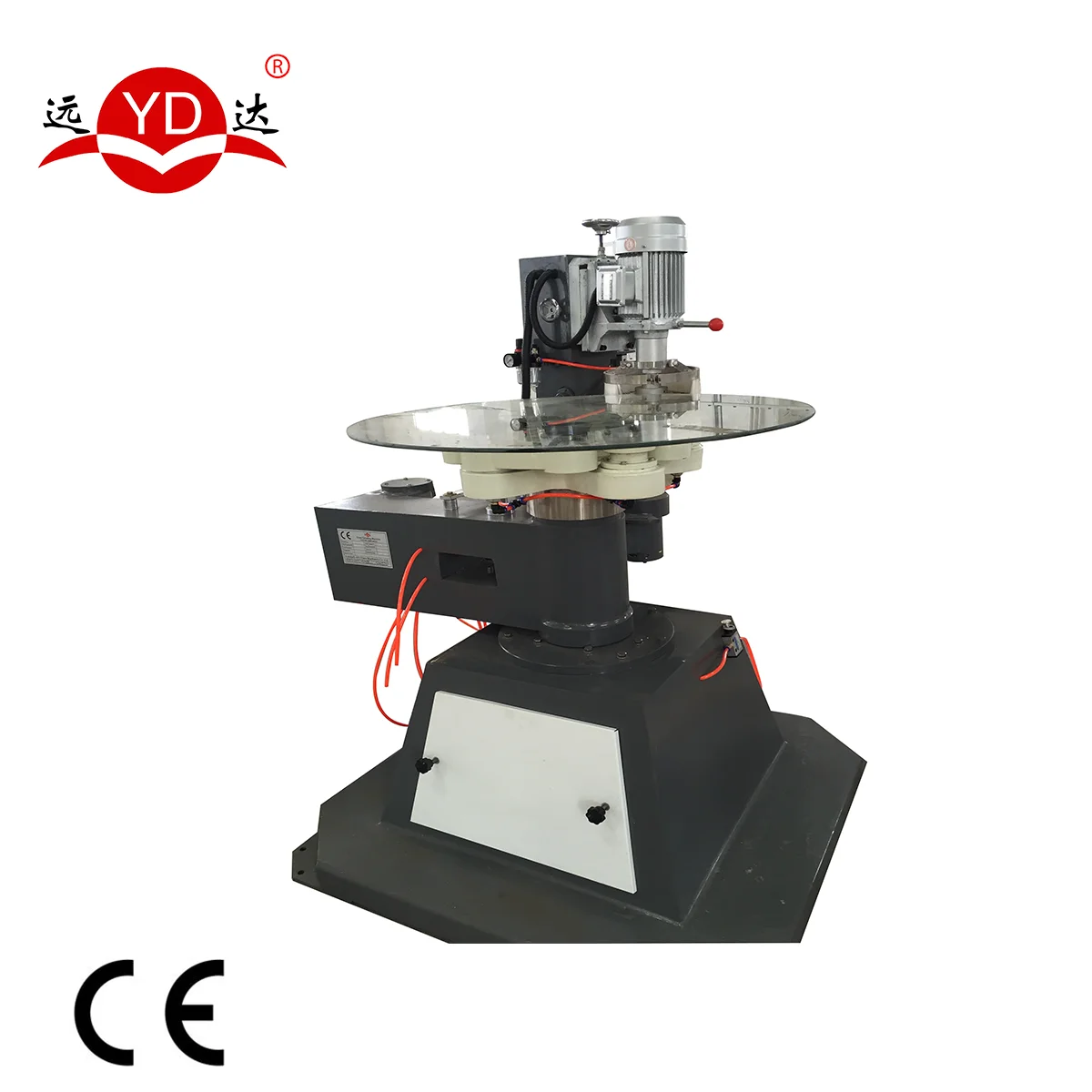

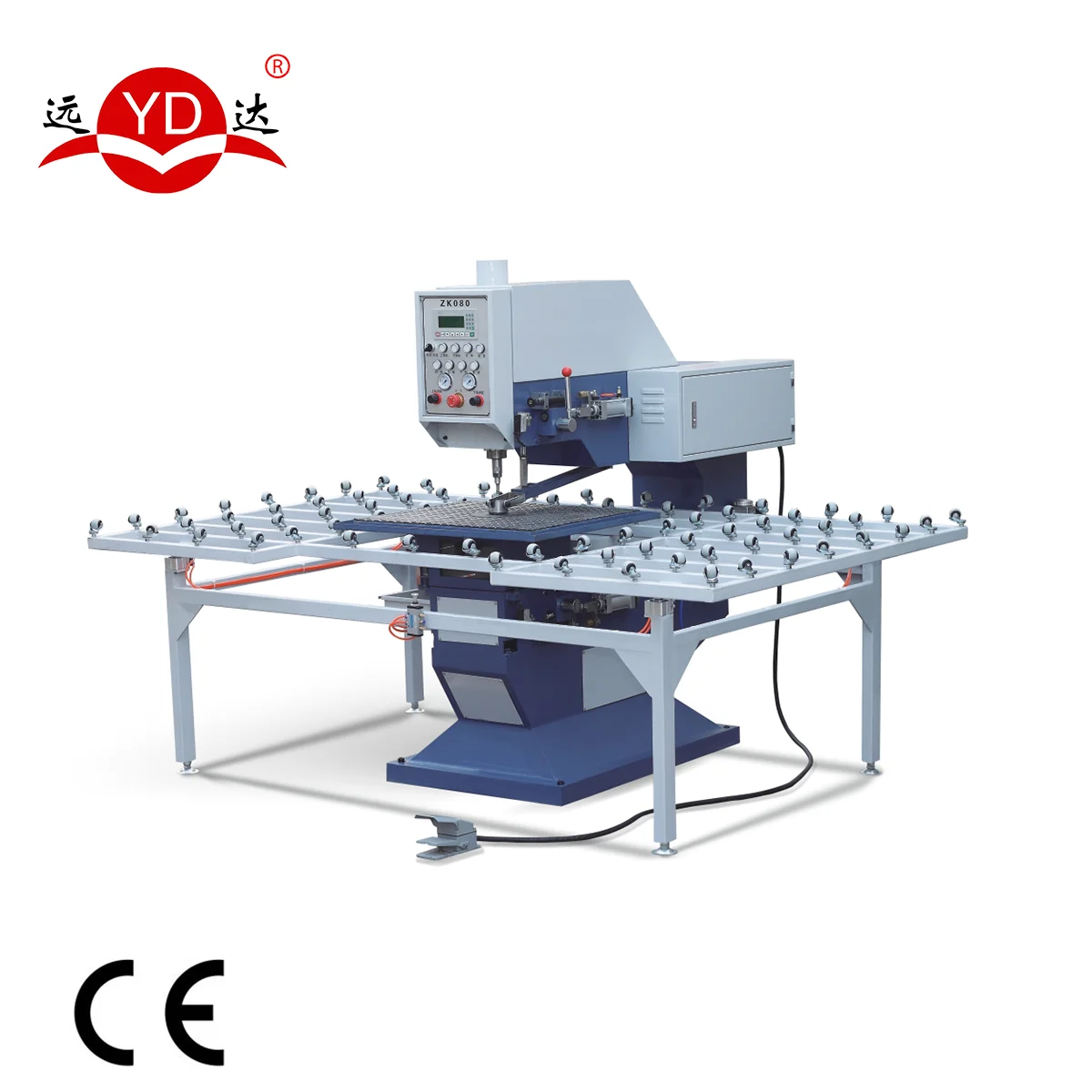

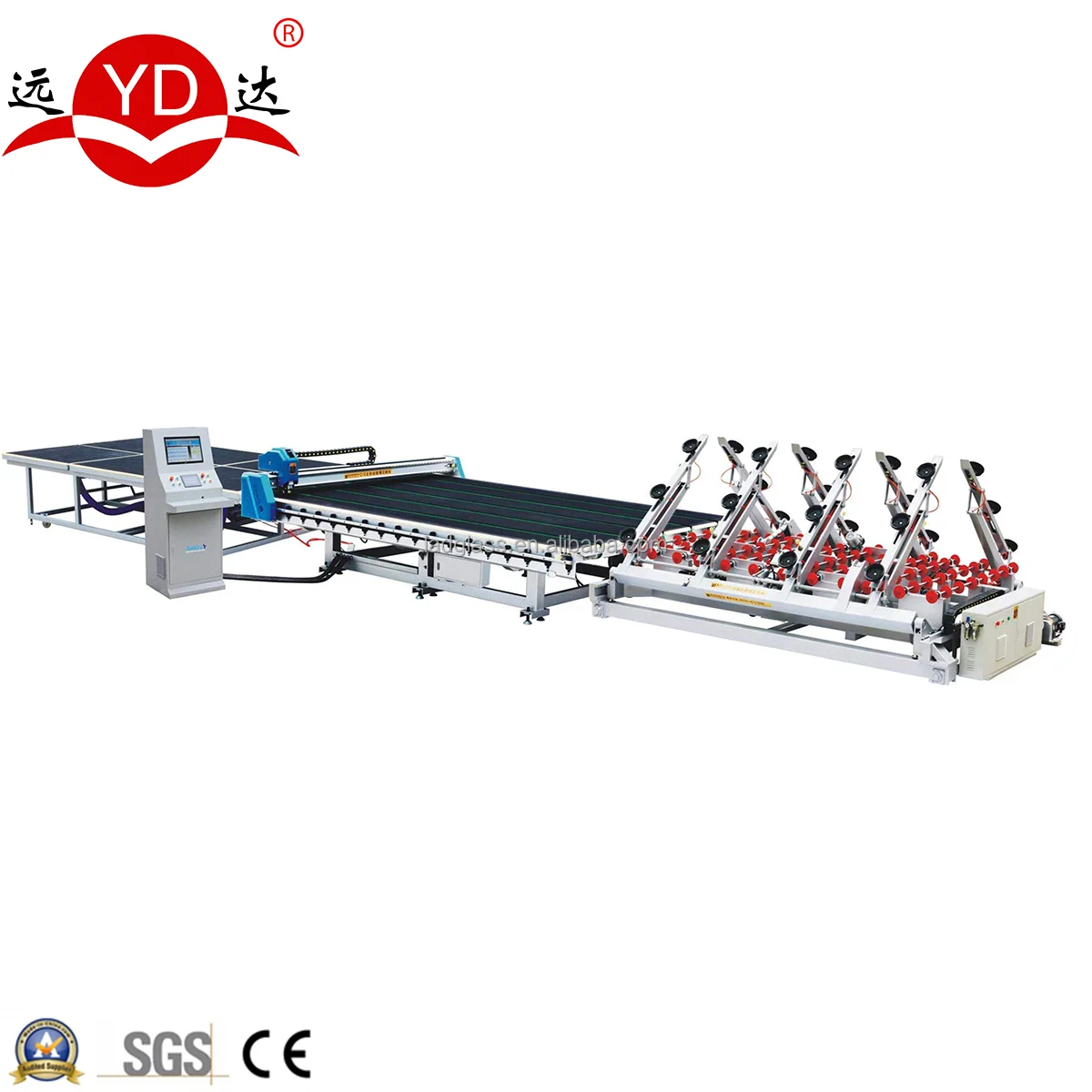

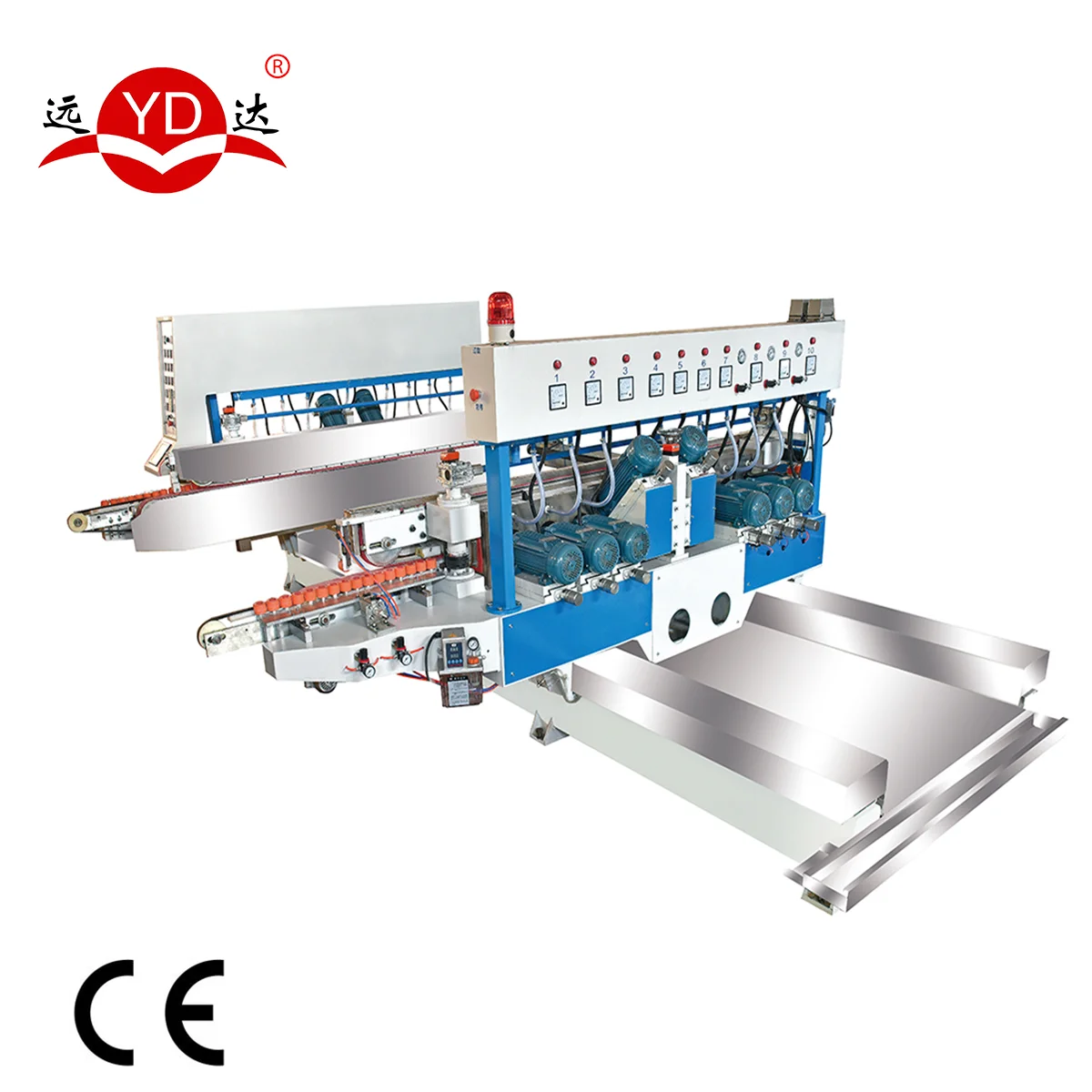

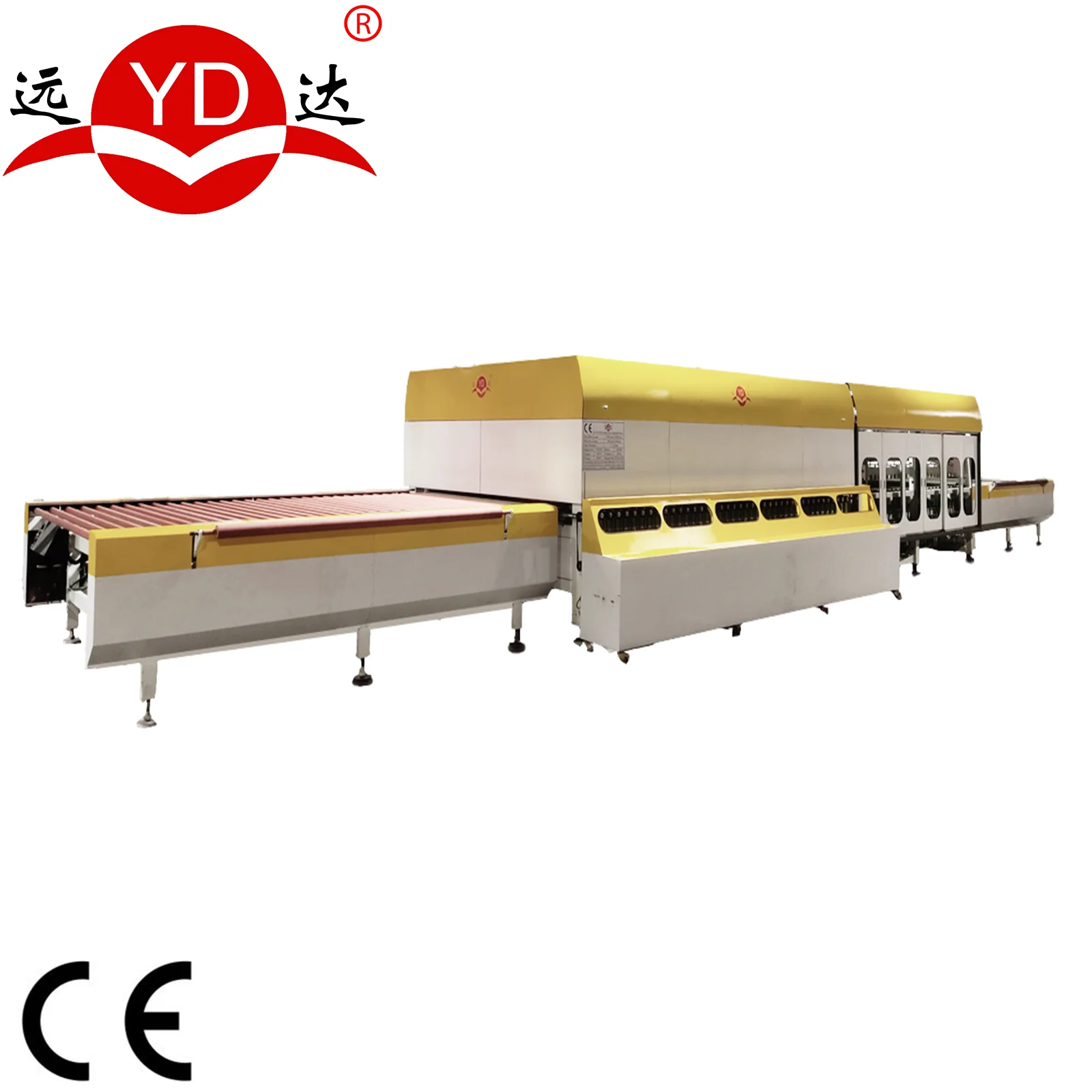

The main products include glass cutting machine, glass double edging machine, glass vertical edging machine, vertical beveling machine, glass drilling machine, glass shape edging machine, glass sandblasting machine and glass flat/bent tempering furnace.
The factory started production of glass processing machines since year 2000.
All of our machines have CE certifications and thousands of our machines are working well all in customer’s factories over the world .
We have our own export team and service team. We are glad to support our high quality glass processing machines and give our instant, sufficient service to you!
