Product Overview
Description
Shantou degisn used plastic product thermoforming machine manufacture
High production quantity output
Easy to operate
Intelligent temperature automatic adjustable
PLC touch screen monitor
Save labor cost
1. The machine is completely automatic, productive speed is fast. Different products can be produced with different molds.
2. It uses import famous brands of electric and pneumatic fittings, so the operation is stable, quality is reliable and life is long.

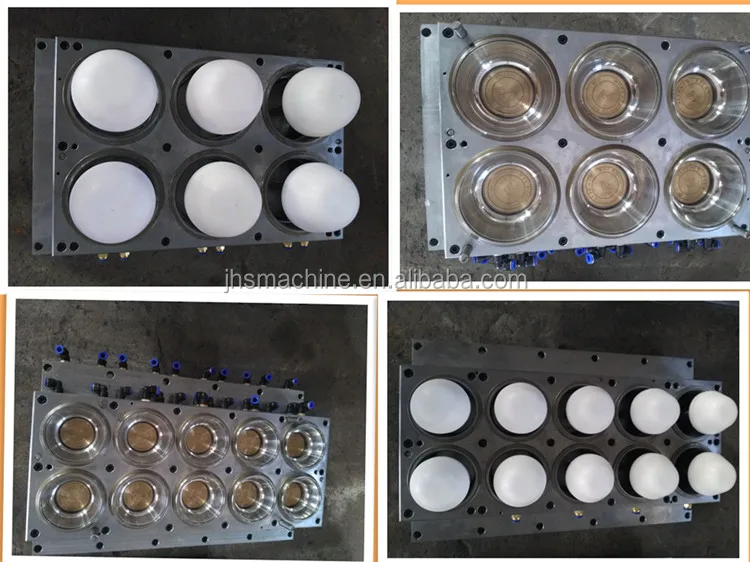

3. The design of the mold is advanced and special, heat the thermoplastic plastic flake board and put on the mold, pull the piston, give the pressure to the air, keep the flake board close to the inside of the mold to form, then, cut and automatically blow the product. The structure of the whole machine is compact, one mold has all the functions, like pressure giving, forming, cutting, cooling, and finished product blowing, so the process is short, quality of the finished product is high and matches with national sanitary standard.
HYC-780 Main technical parameter:
| Sheet material | PP.PS.PE.PET |
| Sheet width | 720-730mm |
| Sheet thickness | 0.3-2mm |
| Max.Forming Area | 730*500 |
| Max.Forming depth | 140-200mm |
| Forming Pressure | 0.5-0.8MPA |
| Productivivty | 10-35 time/min |
| Heating Power | 90KW |
| Motor Power | 25KW |
| Total Weight | 6.5T |
| Water Temperature | >30 degree |
| Machine dimension | 6.5*1.8*2.2M |
Machine List
| 1.Main machine | 1 set |
| 2.Electric control cabinet | 1 set |

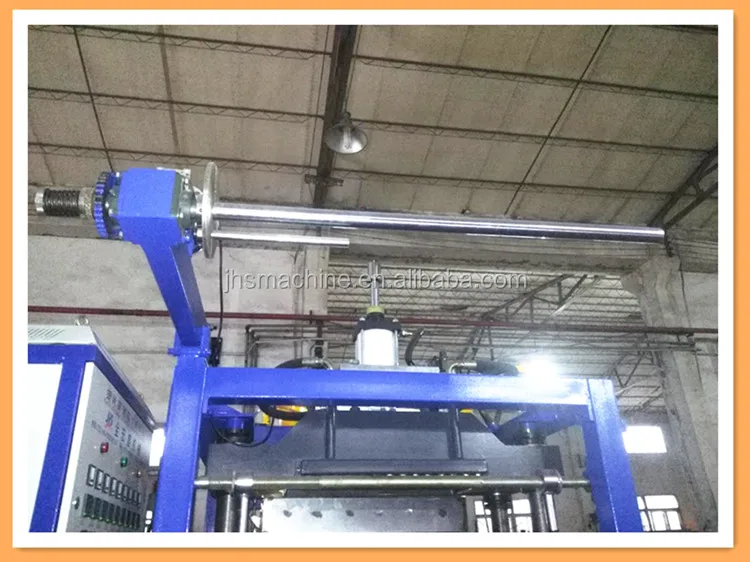

| 3.Auto reel unwinder | 1 set |
| 4.Waste sheet winder | 1 set(install on top of machine or separate sitting on the floor) |
| 5. Free spare parts | Several |
Shantou degisn used plastic product thermoforming machine manufacture
Machine parts brand
| Main oil station motor | Simens of Germany,WN of China,XL of China |
| Temperature control meter | Fuji of Japan,Winpark of China |
| Temperature control module | YM of Taiwan |
| Solenoid valve | SMC of Japan |
| Hydraulic system | Yuken of Taiwan |
| Proximity switch | Fanics |

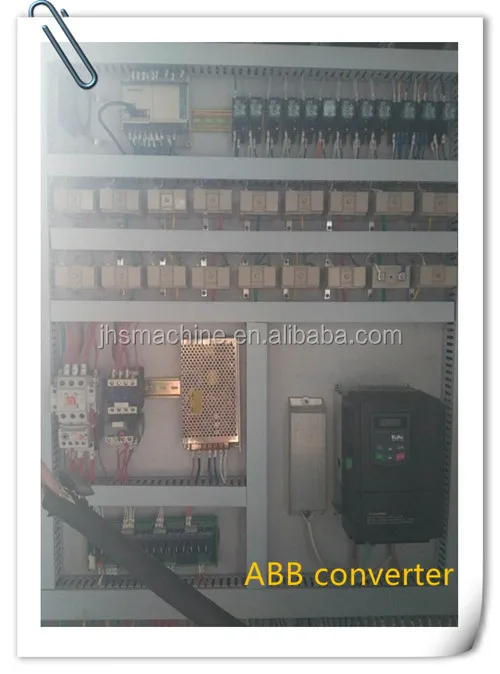

| Frequency converter | Camoran of China,SANCH of Taiwan,ABB |
| Power switch | OMRON |
| Motor | WN of China,Yaskawa servo of Japan |

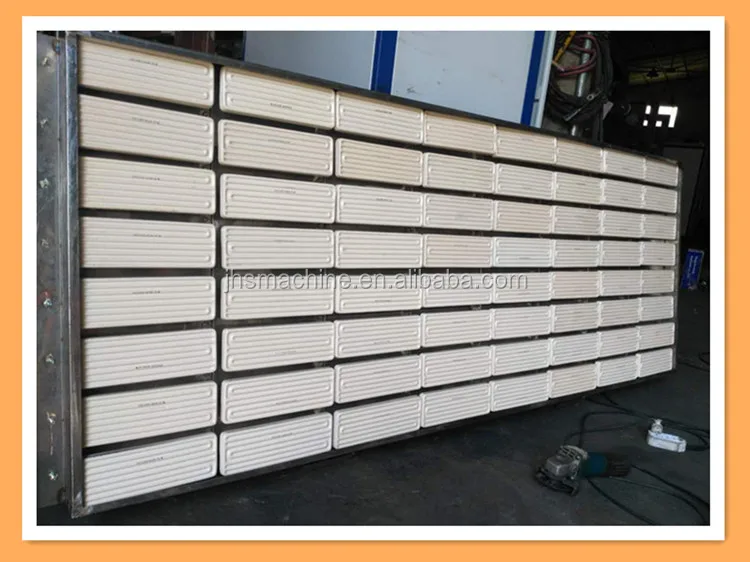

| Ceramics heater | JS of China,Elstein of Germany |
FAQ
1.How many years have your company established?
Our company have been established for 10 years more.
2. Who's your machine quality main controller?
Technical engineer is our boss,he control the important core technology.
3. Are you manufactue or trading company?
We are manufactue,we have over 50 staffs in our workshop.
4.Can we go to your factory for visiting?
Sure,welcome to come to our factory and give some good advice to us.
5.We don't have time to go to your factory,but how can we know if your are
trading company or manufacture ?
It is easy to know,if you are on internet,we could open cam to video chat with
you,we could take you to visit our factory on line.
6. How&When can I get the price?
Email us your inquiry or communicate online, state your specifications (product,
material, size, quantity etc).
We usually quote within 24 hours. Please call us or inform in your email when
it is urgent, we will regard your inquiry priority.
