Product Overview
Description
Product Description
Natural flower plant herb essential oil extraction machine
Application:
The machine is suitable for the extraction process of plant foliage, flower, grass with high oil content and common oil, aromatic oil of animal material. Adopt water distillation extraction craft and isolated distillation extraction craft.
Widely used in cosmetic, herb, health products, pharmaceuticals and food industries.
Extraction process:
Use water steam distillation process to carry out the essential oil from material, adopt coeno-water distillation, isolated distillation, ordinary pressure extraction.
Working principle:
The equipment uses the heat conduction oil indirect heating or the steam direct heating, can guarantee the clean, safe, the normal temperature condition to be able to achieve 100℃ high temperature quickly.
Under the condition of the process, combined working with the vacuum pump, which used to guide the steam to pass through the condenser quickly, and the oil which is easy to evaporate is collected in the oil-water separator rapidly.
Distillation tank capacity: 10-200L.
Model | JYTQ-10 | JYTQ-20 | JYTQ-30 | JYTQ-50 | JYTQ-100 | JYTQ-200 |
Tank capacity (L) | 10 | 20 | 30 | 50 | 100 | 200 |
Jacket pressure (MPa) | 0.3-0.4 | |||||
Tank pressure (MPa) | Ordinary pressure | |||||
Extraction temp.(℃) | ≤100 | |||||
Heating method | Electric heating or steam heating | |||||
Heating power (KW) | 3 | 4.5 | 6 | 7.5 | 12 | 16 |

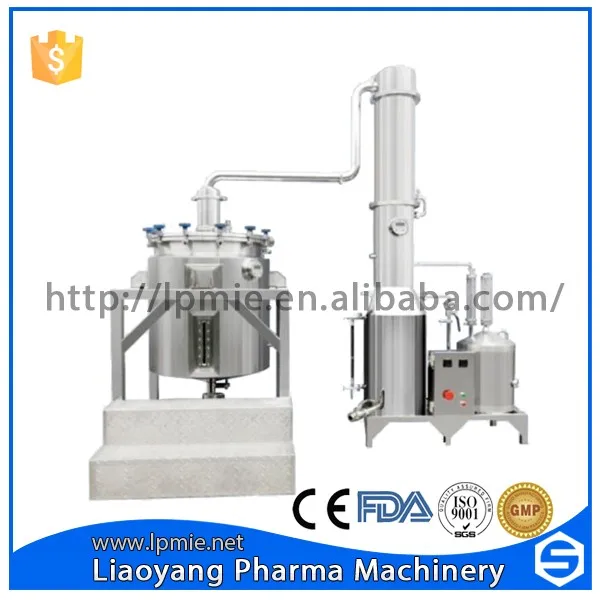

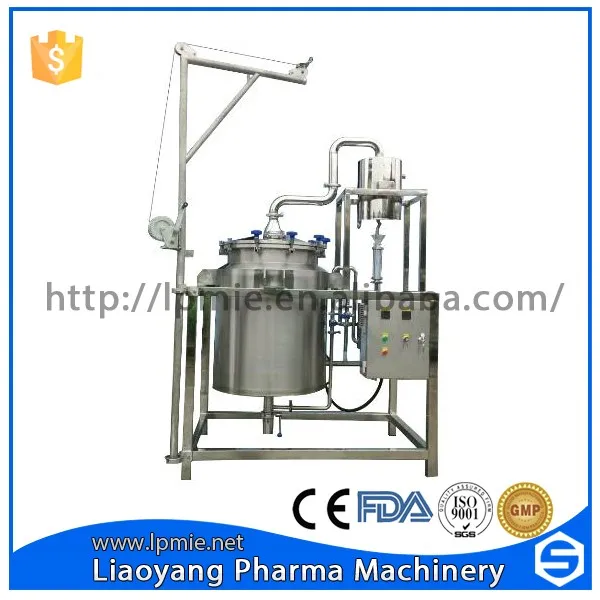

Product Picture
The machine is suitable for the extraction process of plant foliage, flower, grass with high oil content and common oil.
Company Information
Liaoyang Pharma Machinery Co., Ltd (LPMIE) is a grouping enterprise which contributes to production and sale of pharmaceutical, chemical and packaging machinery, the group consists of several sub branches, pharmaceutical machinery factory, packaging machinery factory and plastic machinery factory, Clean-room Factory and 2 offices, her products are popular in the whole nation, furthermore exported over 70 countries and regions in the world, such as: USA, Japan, Sweden, France, Spain, Canada, Australia, Thailand, Vietnam and Indian etc, the products are beyond 800 kinds, includes Blender, tablet press, capsule filler, dryer, blister packing machine, tea bag packing machine, centrifuge, Glass-lined Reactor clean-room equipment and instruments etc. she also provided the whole set of pharmaceutical, chemical and packaging line for the customers from UAE, Romania, Nigeria, Georgia, Pakistan and Ethiopia.
Packaging & Shipping
Packaging:
Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Shipping:
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
Our Services
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
FAQ
Why choose us?
14 years golden supplier of Alibaba.
20 years experience of machinery.
Trade assurance member of Alibaba.
How long can we get the goods?
For standard machine, we usually delivery in two weeks.
Customized machine delivery in 30-60 days.
How should I do if meet some trouble while using?
We supply 24 hours online service.
What is your terms of payment?
T/T 50% deposit and balance before shipment or as negotiated terms with clients.
