high quality Krm143 Hoist krm for dump truck With Good Service

Product Detail

color	black
Weight	170kg
Working Pressure	6.4MPa
Shaft material	steel
Application	truck cranes,trucks,loaders etc
Product Keywords	Krm143 Hoist krm for dump truck

Features:

used in loaders,excavators,truck cranes,Dump trucks and other vehicles

the body is black and the triangle plates have steel bars to make the integration more firm.

the air viscosity is small, the resistance to less than the hydraulic oil

Cylinder specification(approx.)

Model	Piston Rod diameter(mm)	Cylinder Inner diameter(mm)	Stroke(mm)	Weight(kg)	Working Pressure(Mpa)	Min.Close Distance(mm)
KRM-143	60	140	504	65	6.4	727

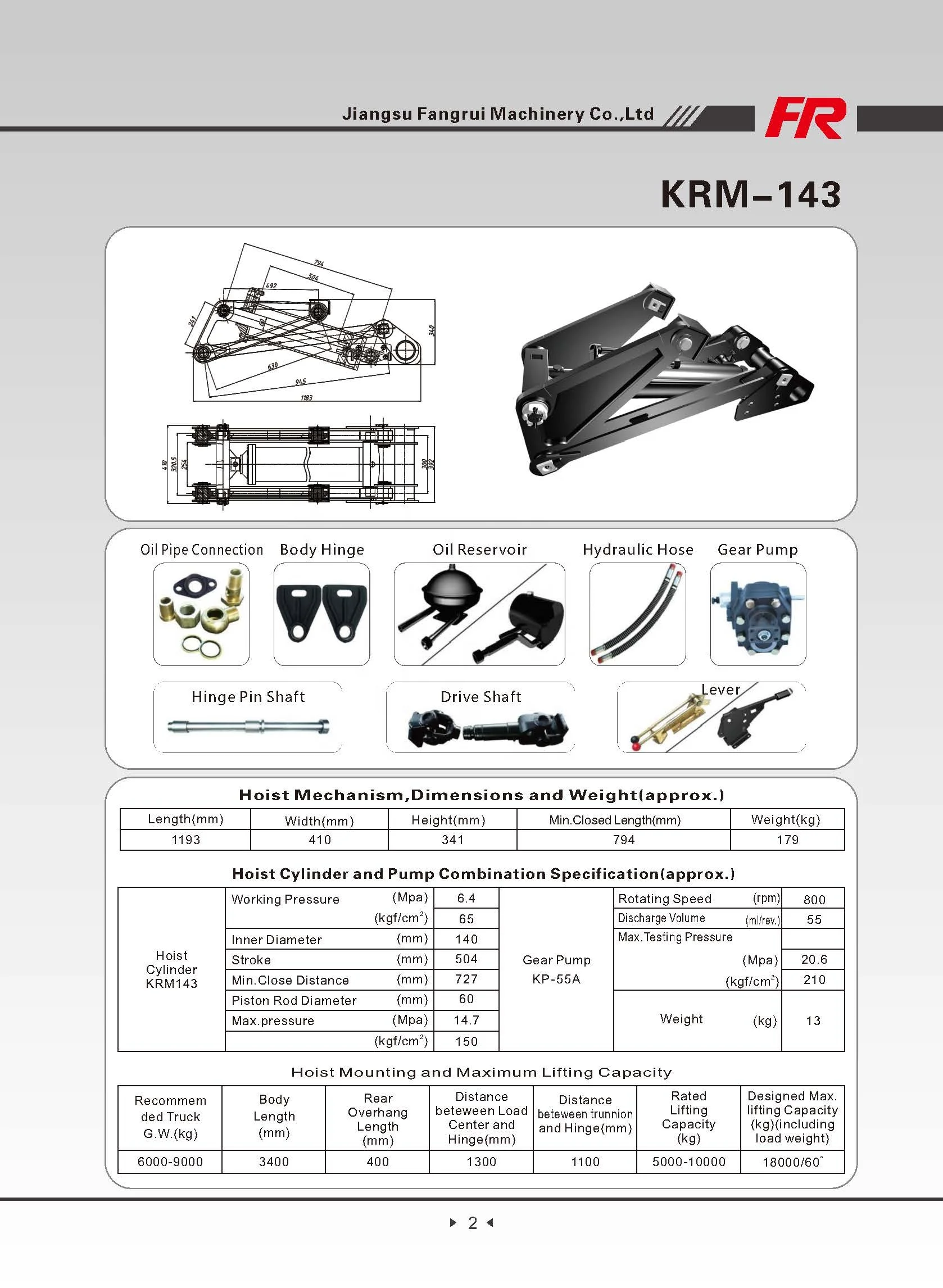

Hoist Mechanism,Dimensions and Weight (approx.)

Length(mm)	Width(mm)	Height(mm)	Min.Closed Length(mm)	Weight(kg)
1193	410	341	794	170

Gear pump specification(approx.)

Model	Rotating speed(rpm)	Discharge Volume(ml/rev.)	Max.Testing Pressure(Mpa)	Weight(kg)
KP-55A	800	55	20.6	13

Hoist Mounting and Maximum Lifting capacity

Recomended Truck G.W(kg)	Body Length(mm)	Rear Overhang Length(mm)	Distance between Load Center and Hinge(mm)	Distance between Trunnion and Hinge(mm)	Rated Lifting Capacity(kg)	Designed Max.Lifting Capacity including load weight(kg)
6000-9000	3400	400	1300	1100	5000-10000	18000/60°

Quality assurance:

1.customer can come to test the quality directly
2.the structure will not deform

Our Service

We could come and get the product specifications

All of your designing demands can be accepted

We will send the sample you request within 4 days

Packaging & Shipping

PACKAGE:

Standard export pallet packing.

DELIVERY TIME:

3-25 days after confirming order,detail delivery date should be decided according to
order quantity.
