Highlight HPC008 camera people counter customer people counting system with API
- Category: >>>
- Supplier: Highlight Manufacturing Corp. Ltd.
Share on (60600599805):
Product Overview
Description
Highlight HPC008 Automatic People Counter Electronic Wireless People Counting Camera for Supermarket
Product Description
HPC008 Camera people counter is widely used in China!
HPC008 Camera People counter is a powerful tool for keeping costs down and clients coming back while
reducing losses at the same time.
With HPC008 people counter, you will get:
• Identify Your Store's Peak Hours
• Manage Your Staff Efficiently
• Increase the Dwell Time in Your Store
• Measure the Effectiveness of Your Marketing Campaigns
Market
The overhead counting device can be applied in retail industry, gallery, park, scenic spots,transportation junction, crowded square and so on.
Specifications
Items | Highlight HPC008 Camera People Counter | |
Size | 18.9*14.5*5.8 CM | |
Processor | ARM cortex A7>1GHz(28 nm) | |
Sensor | Video Input | Cmos/ Simplexhigh Definition |
Video Compression standard | H.264, YUY2 | |
Video Definition | Adjustable | |
Image Processing | Exposure Control/ Gain Control/ White Balance/ Gamma Correction | |
Video Frame rate | 30 fps | |
Measuring Range | 2 m | |
Installation Height | 2.5-5.0 m | |
Port Protocol | Network Interface | RJ45, 10M/100M (Adaptive to Ethernet port) |
Protocol Standard | 802.11a or 802.11b/g | |
Maintenance Interface | Micro USB | |
SD card | Built-in, 8G~32G | |
Electronic Clock | Built-in, RTC module | |
Remote Upgrade | Upgrade By The Website | |
Physical Parameter
| Size | 120*120*48 mm |
Weight | 200g | |
Adapter | +5V/2A | |
Power | ≤10W/ POE(optional) | |
Hardware Monitoring | Hardware Watchdog | |
Temperature | -20℃~+65℃ | |
Model
To get a more accurate data, we use 6 lenses for different installation heights, details as below:
Model | Installation Height |
HPC008-2.1 | 2.6--2.7 M |
HPC008-2.5 | 2.8--3.0 M |
HPC008-2.8 | 2.9--3.2 M |
HPC008-3.6 | 3.2--3.8 M |
HPC008-4 | 3.9--4.4 M |
HPC008-6 | 4.4--5.1 M |
| The critical height, advised to choose a large lens |
Remark | This test results is based on persons of average 1.7M |
| Effective width detection 2M |
Product Show

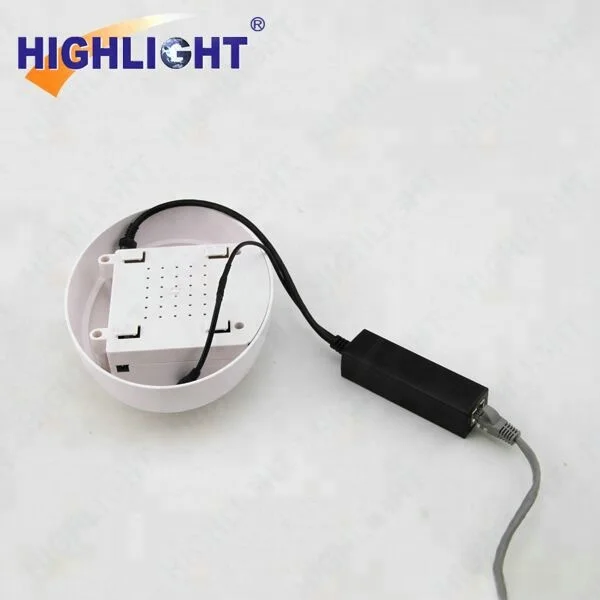

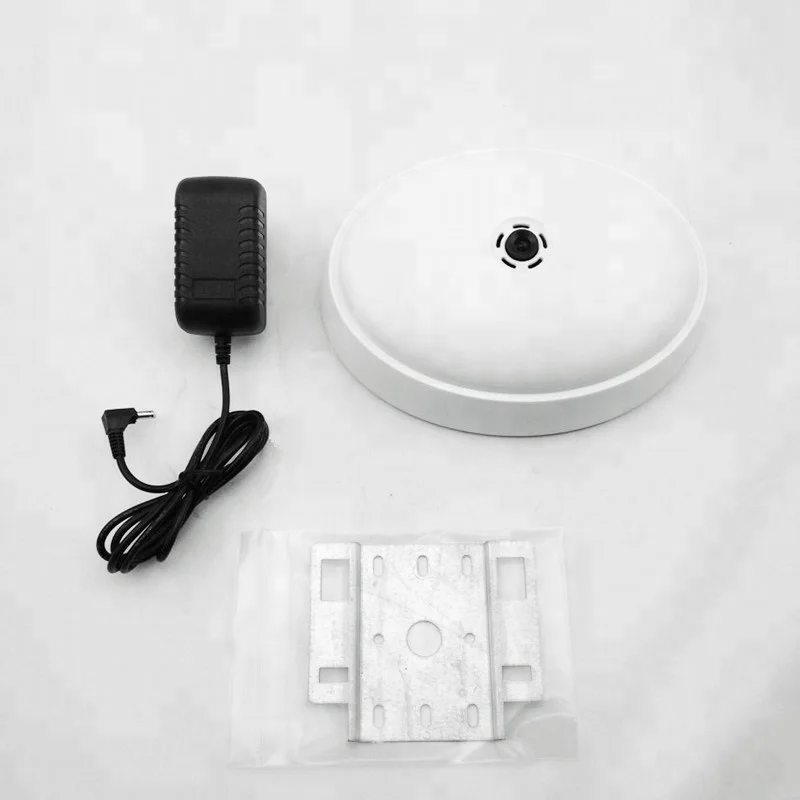

Full set of HPC008 overhead camera people counter includes the all-in-one processor and camera, free network software, adapter and other accessories.
Softwares
HPC008 retail store camera counter has one network software, which is free and suitable for chain stores (unlimited number).
With the network software, you can check all the data collected from different chain stores at anywhere and anytime.
You can also check the data on mobile phone for remote management. Kindly remind that it is not an APP, you need to input the website and login with account and password.
Used for Chain Stores
Installation

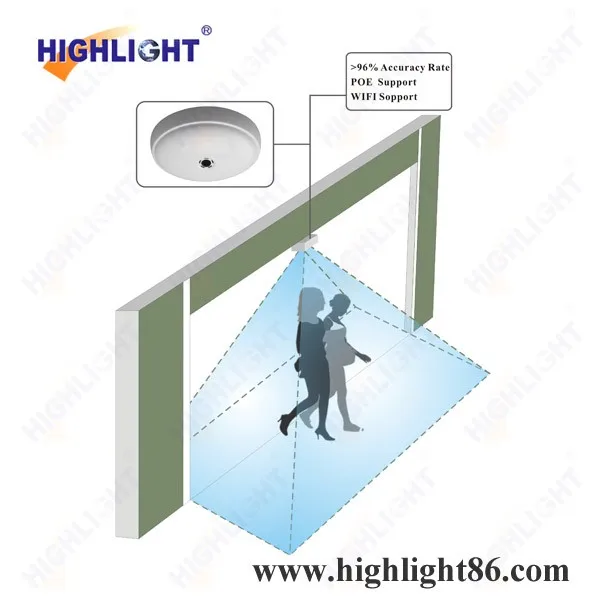

The hardware installation of HPC008 camera counting system is very easy, like "Plug and play".

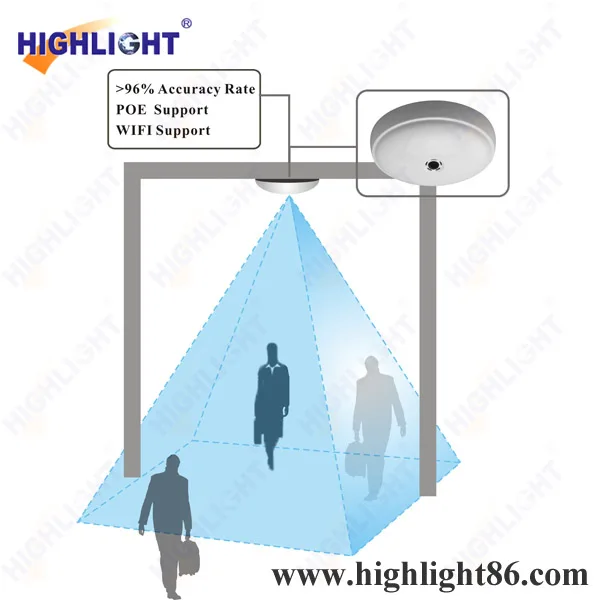

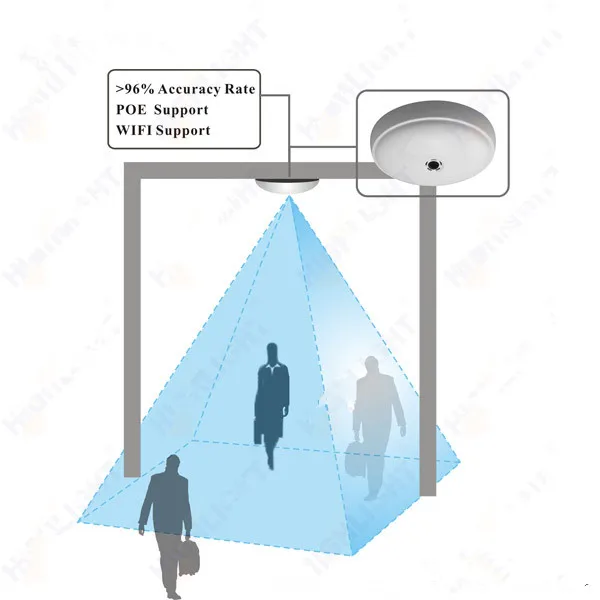

The effective detection width per device is 2 meters. Multiple devices can be installed side by side for wide entrance:
Why Us?
HPC008- Overhead-Tracking counter-Advantages
| High accuracy rate | 95%-98% 1. It counts according to person's head, so it can solve the problem when people walking shoulder by shoulder. 2. It eliminate the invalid pass by seting a counting area. 3. Different camera for different height of ceil. |
| Data safety | 1. Network-off protection: The data can be saved in the device for 10,000 seconds (nearly 3 hours), even there is no network. 2. The data can be exported in PNG, JPG, PDF form. 3. Data backup: When the IP address is changed, the data can be backed up. |
| Data transmission | 1. The data can be transferred to server directly. 2. It can work in wifi network. |
| Data report | 1. Detailed valid in-out-stay data. 2. Data from different entrances in different shops can be distinguished. 3. Sales info can be inputed manually. It is convenient for shop to make the commercial solution. 4. With a API, the data can be integrated into POS/ ERP system. |
| Power supply | Adaptor or POE as your requirement. |
Good Feedbacks from Worldwide Customers
This overhead counting camera is so popular among people! They are highly recognized by customers!
Our camera people counters for retailers are widely used in different stores all over the world.
Certification
Quality is our life. The people counter camera has obtained the qualification of different authoritative organizations.
Our Factory
We have our own factory for camera counting system counter. The quality can be assured.
Company Information
Highlight is a professional EAS/ ESL/ People Counters/ DVR manufacturer and exporter with over 15 years experience in China.
2022 Electronic Foot Traffic Camera People Counter, people Counting System Device, camera people counting system
pe2022 Electronic Foot Traffic Camera People Counter, Passenger Counting System Deviceople counter, people counting, customer counter, customer counting, person counting, person counting, digital counter, infrared counter, IR people counter, camera counter, video counter, overhead counting, head people counter, dome people counter, electronic directional wifi people counter, bus passenger counter, bus passenger counting, passenger counter for buses, bus people counter, bus people counting, bus passenger traffic counter
