VTL900 Single Column CNC Vertical turning Lathe for sale from China

Product Overview

Description

VTL-900 CNC Vertcal Lathe turning Machine



Product Discription:

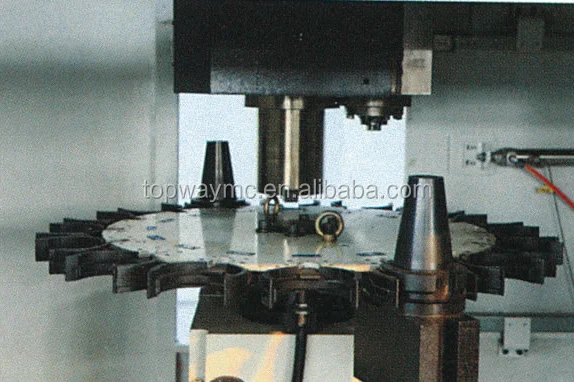

Umbrella-type magazine auto tool changer;
Body made by cast-iron can absorb vibrations;
Machine tool build in a box which contains a static and dynamic stability parts, ensure high rigidity and the reliability framework;
Machine made by quality cast iron with heat treatment and stress processing;
Main motor with high power and high torque;
The X/Z axis guide way with high frequency heat treatment, slide stick wear-resisting plastic, improves the accuracy and reduces the frictional factor;

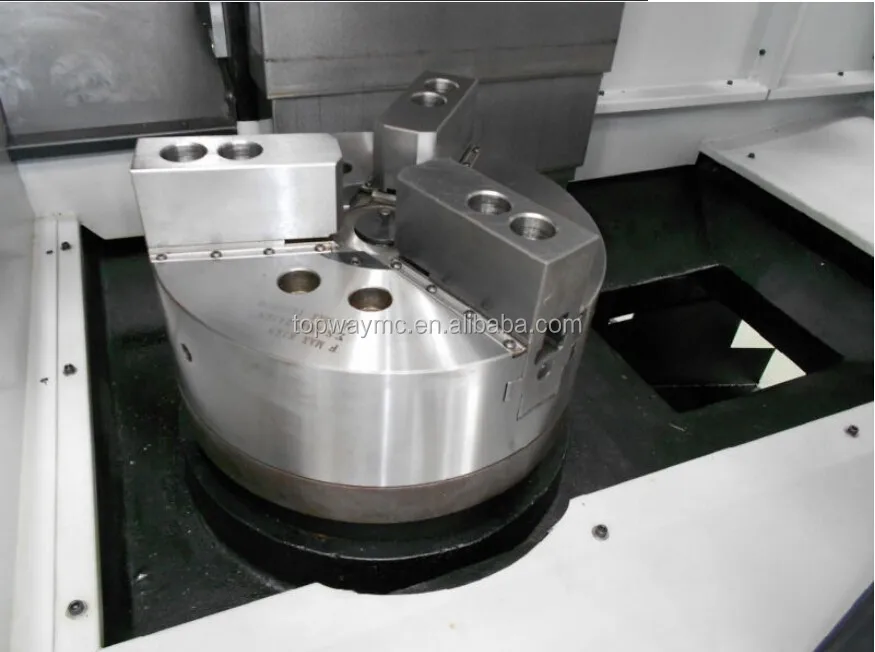

Chuck with four independent jaws, the max, Torque of each jaw is more than 18.5kg/m, and weight of each jaw less than 28kg, part of CAM and jaws with compact design;
Cooling system for reduction box, noise cancellation and prevent heat transfer to the spindle;
V belt to eliminate vibration and to prevent to the spindle;
Spindle speed change controlled by solenoid valve;
X/Z drive are AC servo drive;
X/Z axis with special high precision tune system to achieve the best performance of the motors;



Product Function:





Materials that could be processed: Non-ferrous and black metal, alloy, compounds, organic matter and polymers; Turing drilling, boring, threading etc;
Processing surface accuracy: 0.016mm;
Positioning accuracy: 0.03mm
Spindle radial beat and the flatness of machine surface 0.05mm
Number of axis can be controlled: 2
Spindle with braking;



Specification:



Specifications	unit	VTL-630	VTL-900	VTL-1200
Max. turning diameter	mm	660	900	1200
Max. cutting diameter	mm	650	900	1200
Worktable diameter	mm	500	600	1000
Speed range of worktable	--	80-500(stepless)	80-350(stepless)	80-350(stepless)
Cutting feed rate	mm/min	0.1-1000	0.1-1000	0.1-1000
Turret moving distance	mm	420 (Horizontal)	520(Horizontal)	720(Horizontal)
		650(Vertical)	650(Vertical)	750(Vertical)
Rapid feed of toolpost	mm/min	6000(Horizontal)	6000(Horizontal)	6000(Horizontal)
		4000(Vertical)	4000(Vertical)	4000(Vertical)
Turret form	--	Gany type/turret type	Gany type/turret type	Gany type/turret type
Section of tools	mm	25×25	32×32	40×40
Positioning accuracy	mm	0.012	0.012	0.015
Repositioning accuracy	mm	X:0.012  Z:0.02	X:0.015  Z:0.02	X:0.018  Z:0.02
Power of motor	kw	15	17	22
weight of machine	T	5	5.7	7.8
Overall dimensions	mm	2150×1950×2850	2450×2150×2950	2700×2300×3200

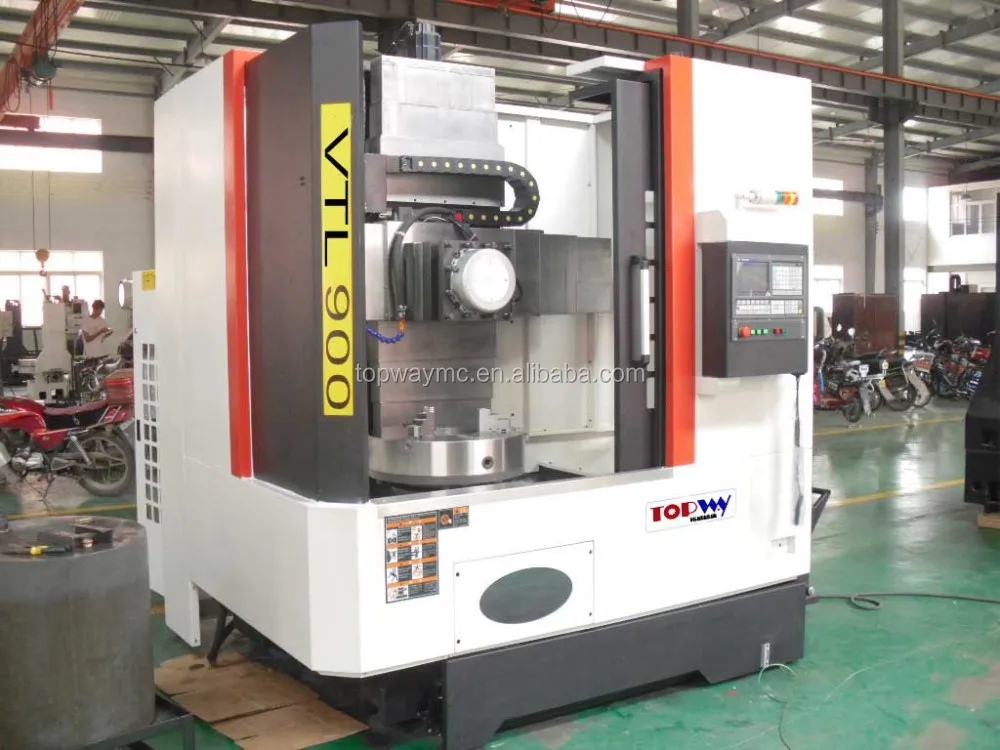

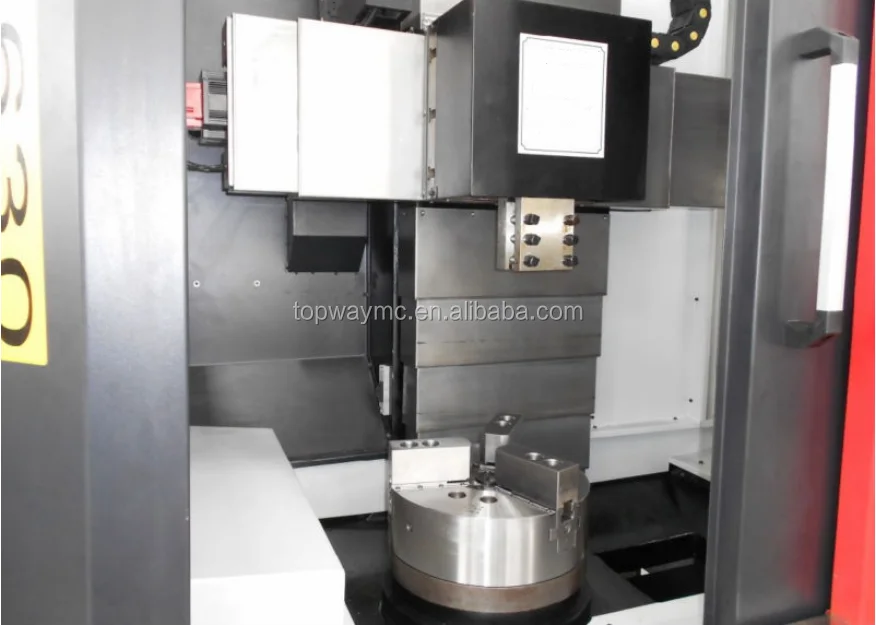

Product Photos :











Product Casting  Iron Photos :
