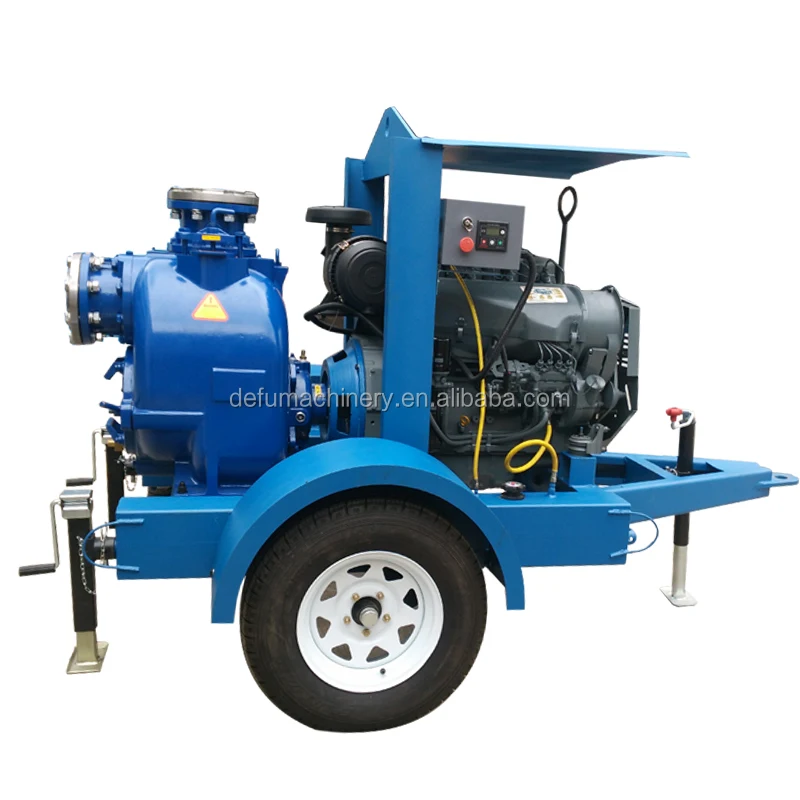

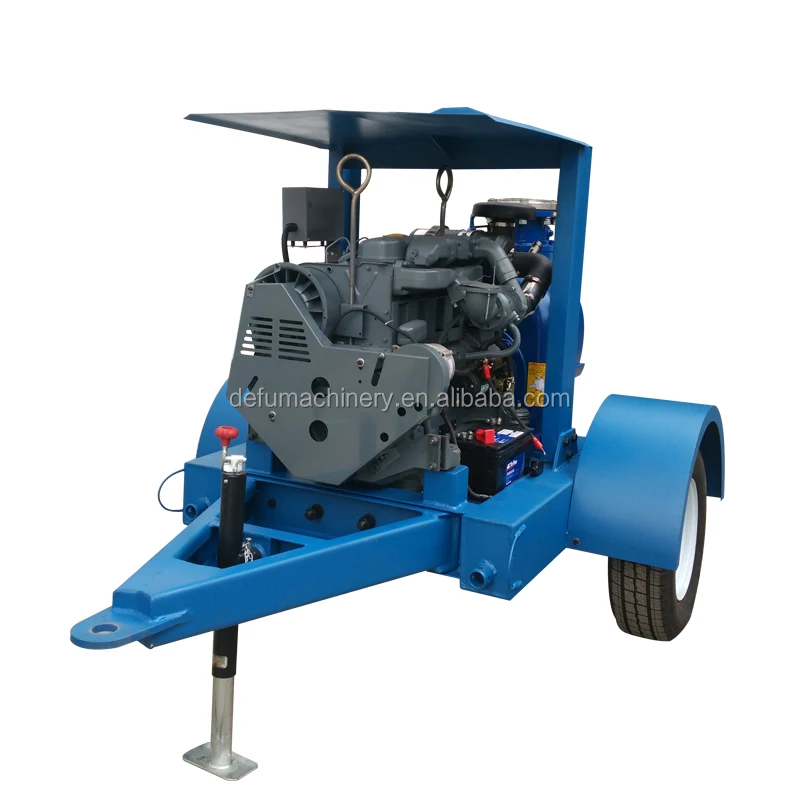

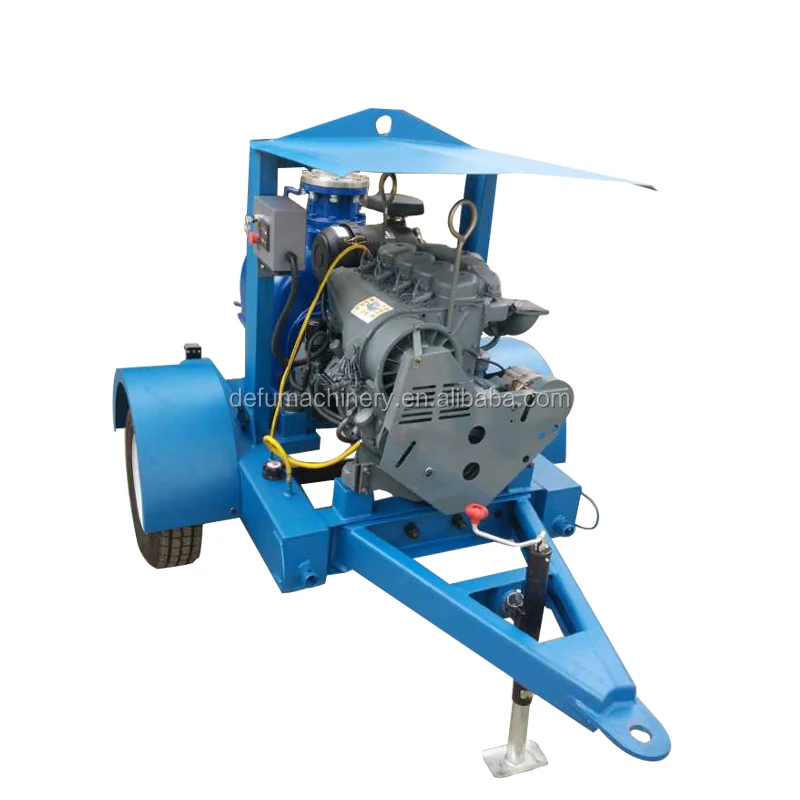

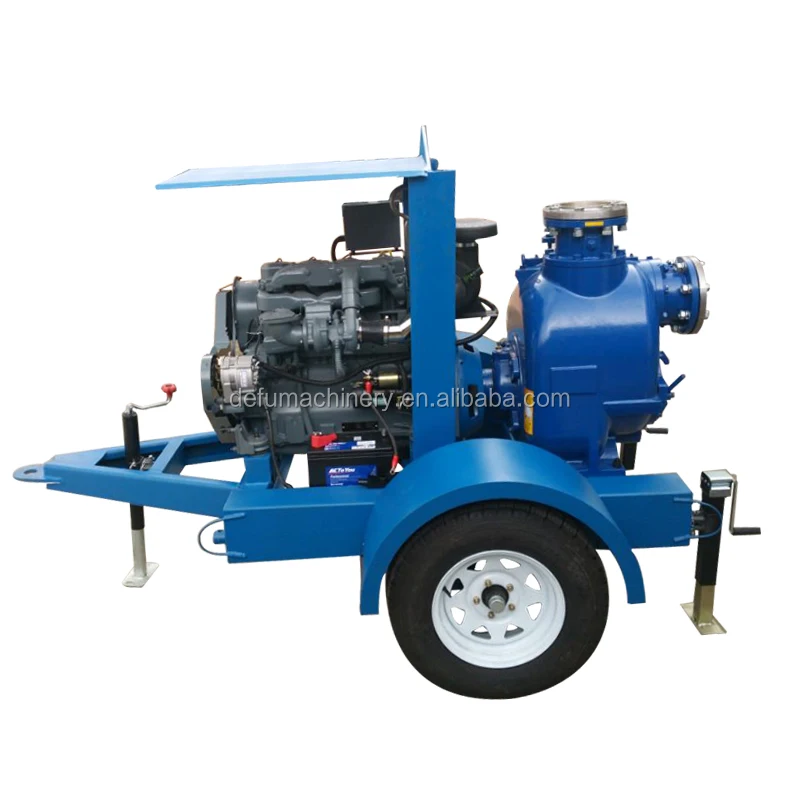

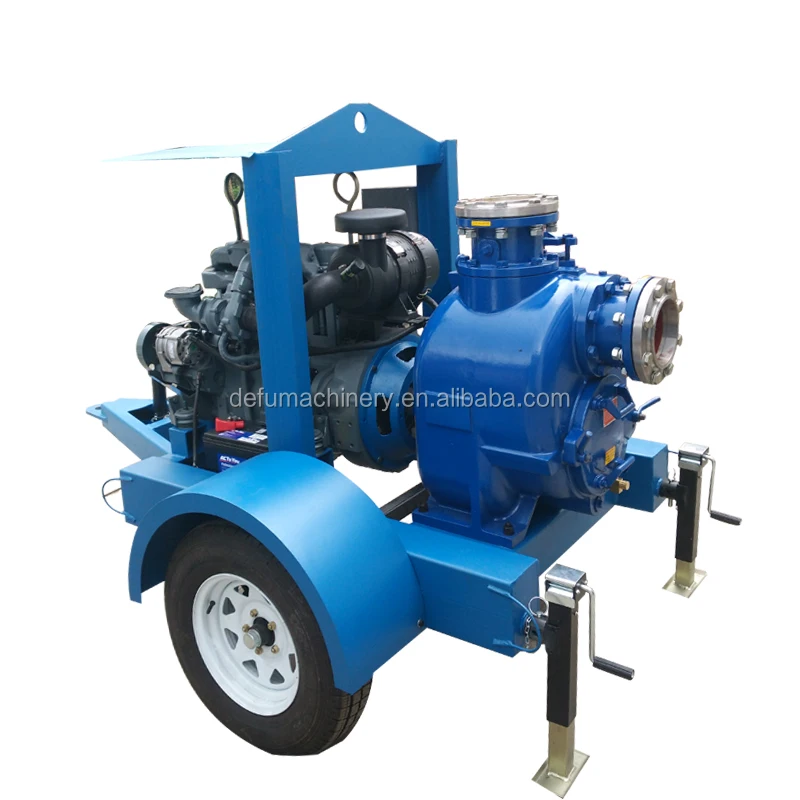

6 inch farm irrigation movable diesel water pump prices
6 inch farm irrigation movable diesel water pump prices
6 inch farm irrigation movable diesel water pump prices
6 inch farm irrigation movable diesel water pump prices
6 inch farm irrigation movable diesel water pump prices
6 inch farm irrigation movable diesel water pump prices
6 inch farm irrigation movable diesel water pump prices

6 inch farm irrigation movable diesel water pump prices

Share on (60600719851):


Price:$2,500.00

Quantity:


Product Overview

Description





Product Description


JT&JU series Non Clog Self-priming Sewage Pump is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service design have made pumps the standard in the industry. The combination of different sized pumps,impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it's a small sub-division or a large waste collection system. These pumps feature a large volute design that allows them to reprime automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.


Model
JT series
JU series
Type
High Capacity
High Pressure
Size
2 inch, 3 inch, 4 inch, 6 inch, 8 inch, 10 inch, 12 inch
3 inch, 4inch, 6 inch
Max.Flow Rate
1275m3/h
310m³/h
Max.Head
42 m
75 m
Max.Suction Lift
7.6 m
7.6 m
Max.Solids
76 mm
31.75 mm
Max.Rotation Speed
3200 rpm
2350 rpm
Seal Type
Mechanical Sea
Mechanical Seal


Materials of
Construction
Pump housing
Gray Cast Iron,HT200,Stainless Stee
Impeller
Ductileiron,QT450-10,Stainless Stee
Impeller washe
Stainless Steel
Impeller screw
Stainless Steel
Wear plate
A3 Steel
Shaft
40CR,Stainless Stee
Bearing
NSK,Gray Cast Iron,HT200
Mechanical sea
Silicon carbide VS Silicon carbide
Flap Valve
Buna-N


Model
Size
R.P.M.
Max.Flow
Max.Head
Max. Suction Lift
Power
Max.Solids
Gross Weight
(inch)
(r/min)
(m3/h)
(m)
(m)
(hp)
(mm)
(kg)
JT-2
2
1150-2900
46
36
7.6
1-10
44.45
114
JT-3
3
650-2150
107
35
7.6
1-20
63.5
205
JT-4
4
650-1950
163
36
7.6
1-30
76.2
280
JT-6
6
650-1550
330
33
7.6
2-40
76.2
391
JT-8
8
650-1350
600
34
7
7.5-75
76.2
634
JT-10
10
650-1450
775
40
6.7
10-100
76.2
663
JT-12
12
650-1250
1275
42
4.9
20-125
50
1066
JU-3
3
850-2150
85
62
7.6
1.5-25
20.63
225
JU-4
4
850-2150
148
60
5.2
3-40
28.57
297
JU-6
6
850-1950
308
58
4.5
5-75
31.75
437

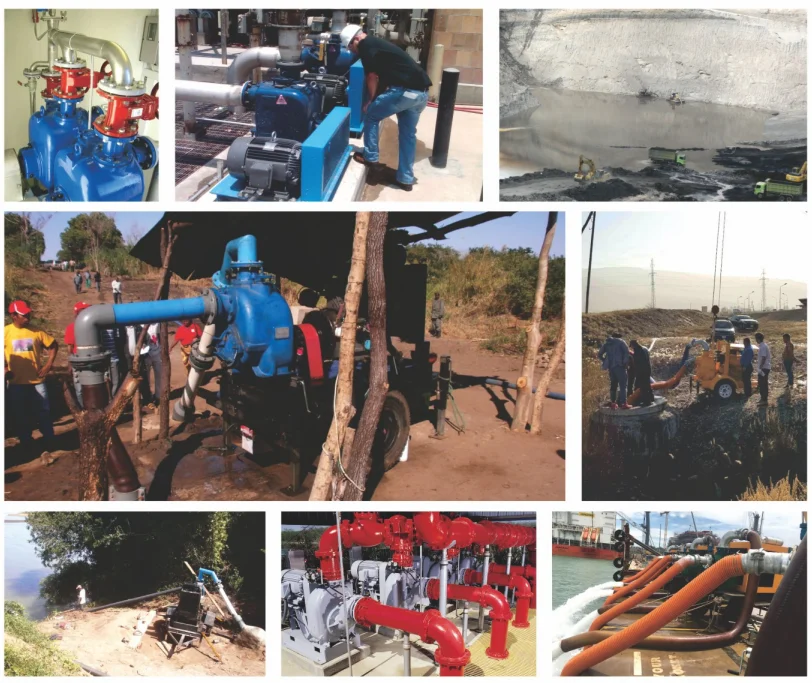

Application




Our Company


Wenzhou Defu Machinery Co., Ltd can supply diesel engine pump, self priming pump, diaphragm pump, end suction pump and other pumps.  We have factories in Shanghai and Jiangsu, which called Shanghai Y&L Pump Co., Ltd and Jiangsu Select Pumps Co., Ltd.


Pictures of our workshop and warehouse.




Pictures of our client visiting our factory


The clients from Russian visited our factory in June. He was interested in our end suction pumps.


(More Company Information, Please Contact Us)

Our clients visit our factory in June. He was satisfied with our diesel engine self priming pump sets.
