RV solar tracker

Product Overview

Description

Model No.: SST-008

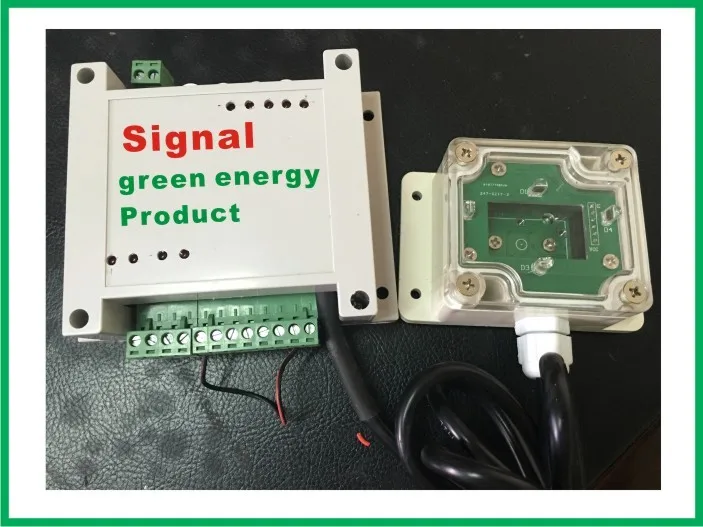

Solar tracker with Pan Tilt system



Specification :

Dual axis sensor

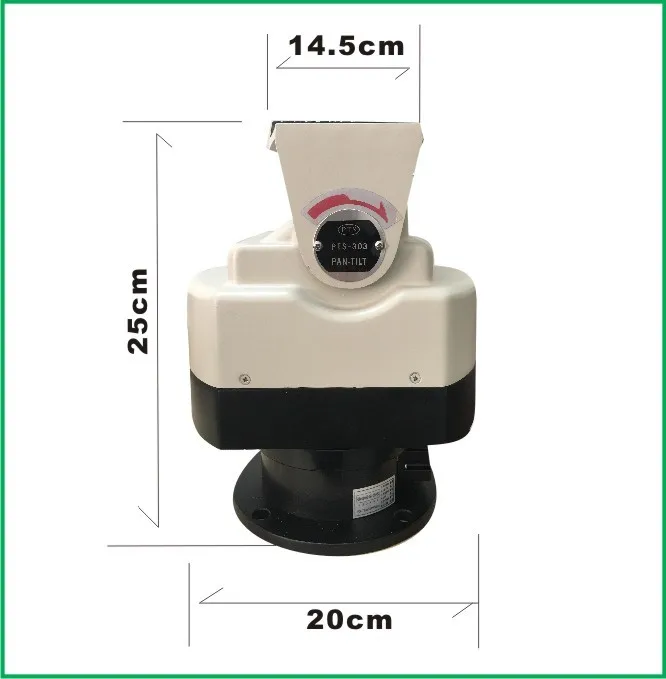

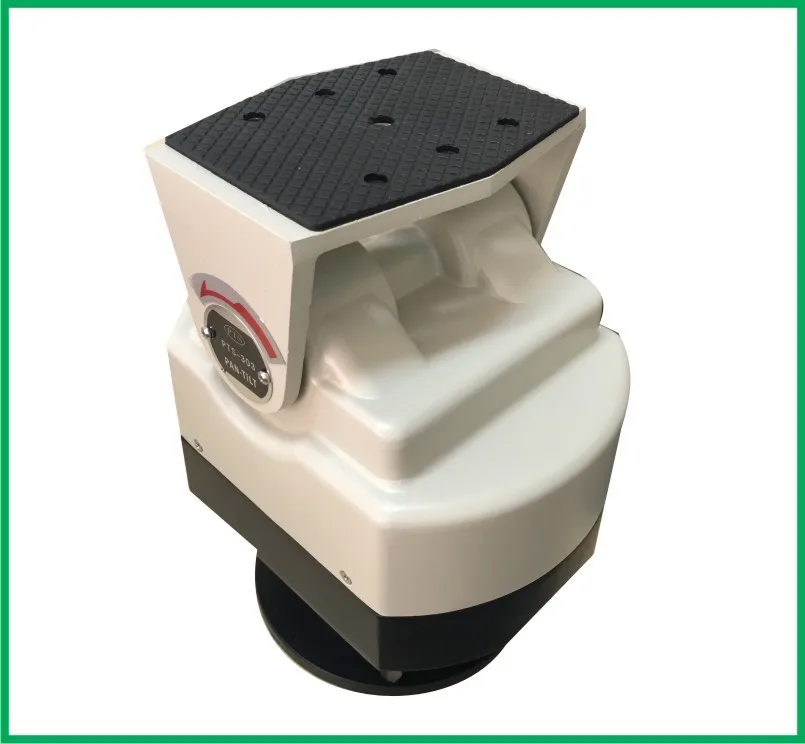

Pan / tilt device with Aluminium case
Sensor precision : + / - 0.1 degrees

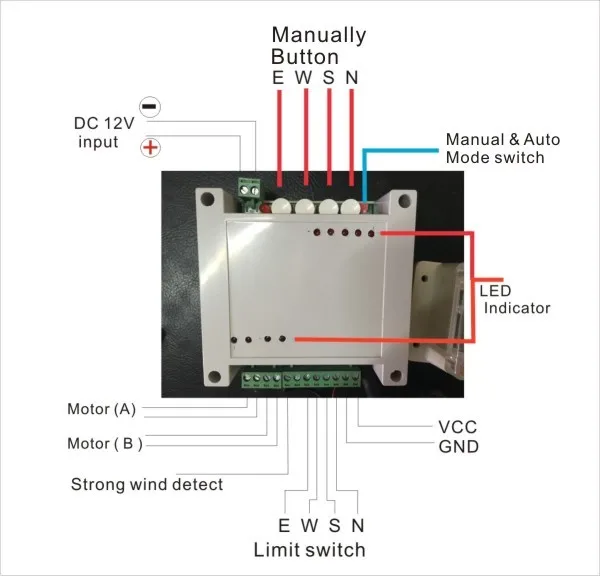

Dual axis tracking controller : Auto mode
                                                    Manually mode
Input power                : 12 DCV / 24 DCV
Output power             : 12 DCV
Night mode                 : yes
Wind speed detect function : Yes (wind  speed meter exclude in this item )
Limit switch                : 4 ways Internal type ( East / West / South and North )

Turn angle                  : Pan 0 ~ 350 degrees , Tilt +/- 35 degrees .
Load                            :  Level  25KGS , Plumb 12 KGS
Weight                        : 3.7 KGS
--------------------------------------------------------------------------------------
Please contact us if any question for this item , thanks .


If any idea : Please contact  us by e-mail Caution : Please do not attempt to change the use of this product, or change the input voltage and circuit. This may lead to damage to the product or burned, Please follow the instructions need to connect all the cables, otherwise the product can not work properly or damaged and the  Company does not make any compensation to any  improper use .
