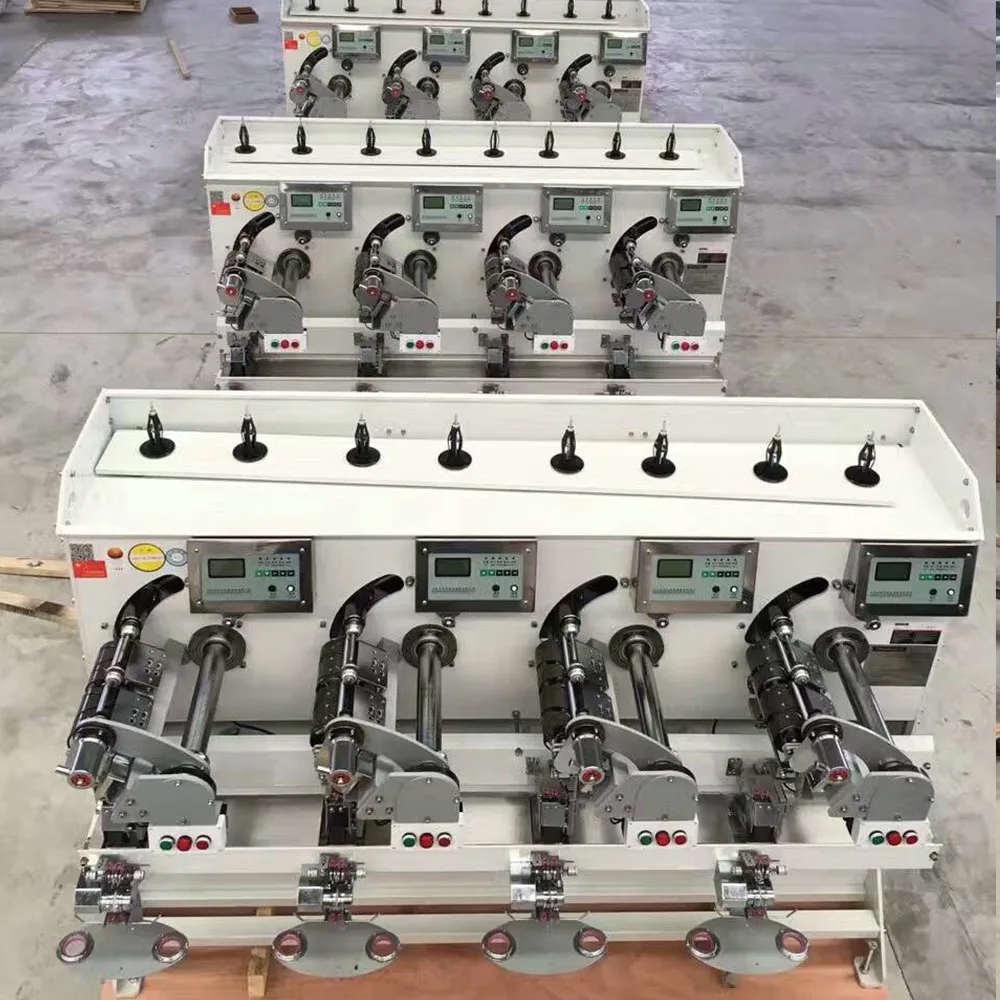

High speed thread bobbin winding machine
Product Details
Product Description
TS008O semi-auto sewing thread winding machine-----This machine is suitable for many yarns like embroidery thread,sewing thread,polyester,etc. Also,the machine is high efficiency with computer control system,electromagnetic adjustable tension,semi-auto recycle oiling device,etc.
Main Feature
1.With filter device and semi-auto recycle oiling system to improve the oiling quality.
2.Winding speed and take-up yarn length can be set on the control panel for each spindle.
3.With electronic anti-stack system.
4.The spare parts are high quality and each spindle equipped with transformer from Mitsubishi.
5.We make sure that the cones taken up by our machine are beautiful and high quality.
Product Parameter
Mode | TS008O-A | TS008O-H | TS008O-Y |
Con shape | Cone type | Cylinder type | Y-type |
No of spindles | 4 | 4 | 4 |
Cone for each spindle | 1 | 1 | 1 |
Cone angle | 0°-2°20′ | 0° | 2°20′-5°57′ |
Max. winding speed | 1000mtrs/min | ||
Max. take-up Dia. | 160mm | ||
Measurement(M^3) | 2250(L)×1050 (W)×1650(H)mm | ||
Machine weight | 680kg | ||
