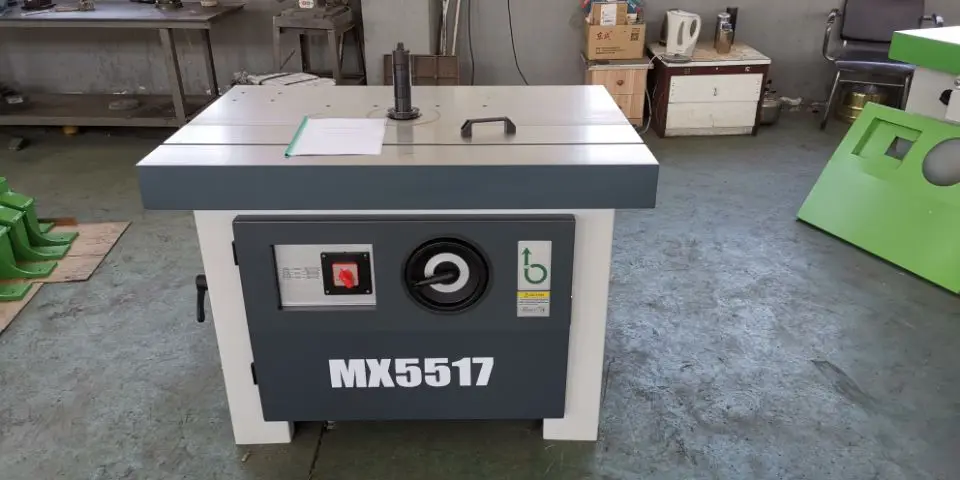

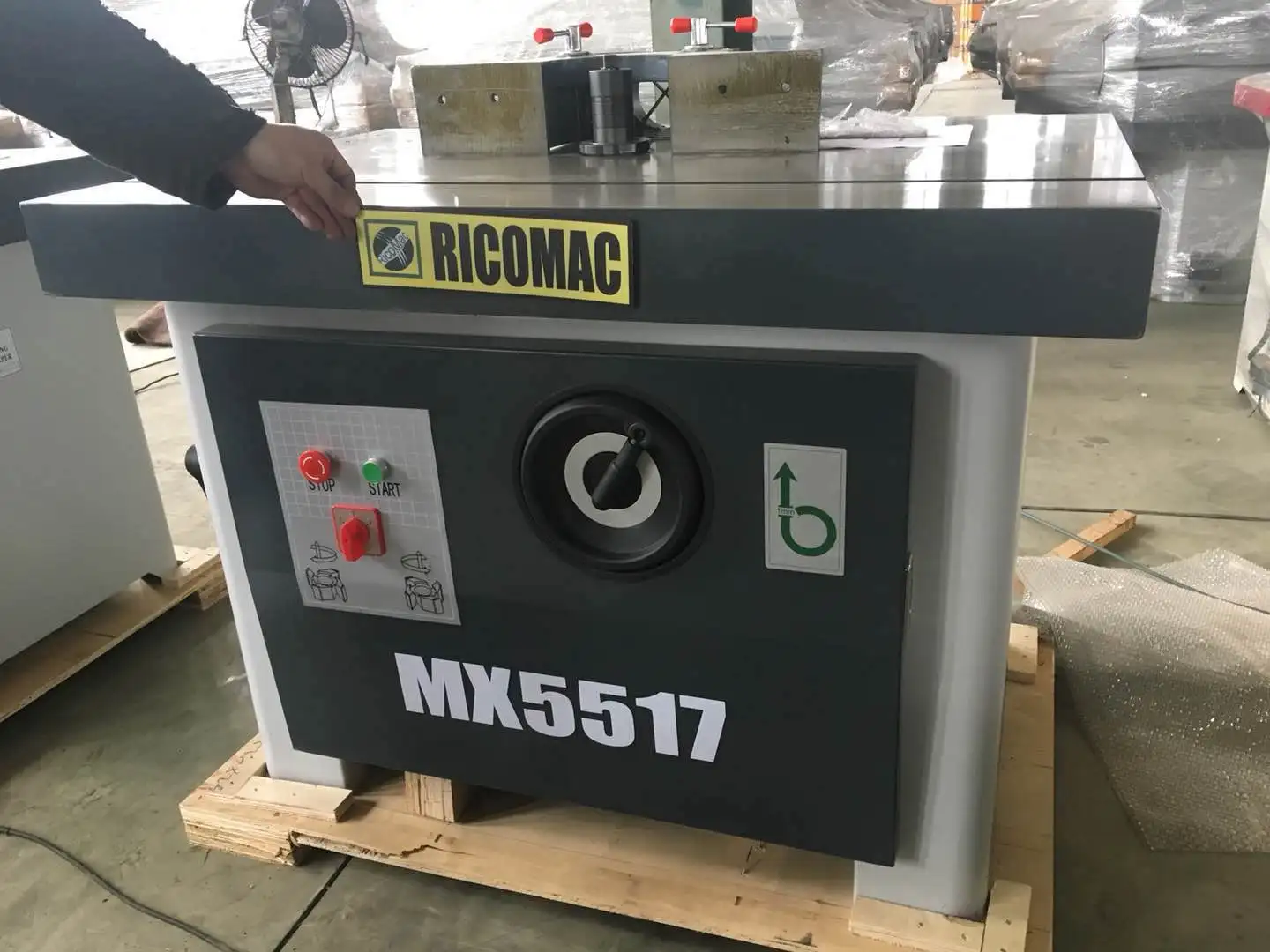

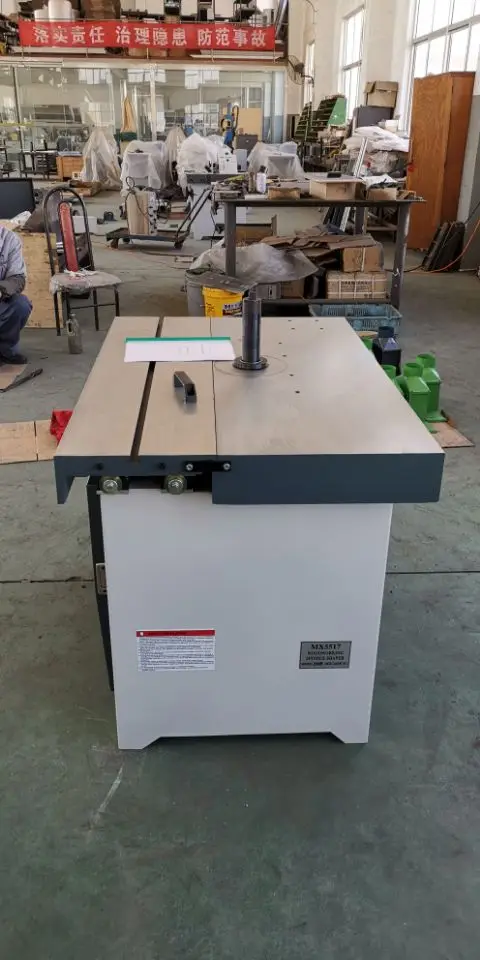

MX5517 Table sliding vertical wood shaper

Share on (60600777550):


Price:$1,300.00 - $1,400.00

Quantity:


Product Overview

Description


 Table sliding vertical wood shaper






Product Description




1.it can do beeline and bevel edge process,shaping different shape


2.with sliding table


3.long service life &durable


4.high precision


5.safe and easy to operate
























































Model



MX5517



Max milling height



120mm



Spindle speed



6000/8000/10000rmin



Spindle diameter



35mm



Max profile radius



R45mm



Max stroke of traveling table



780mm



Motor power



4kw(5.5kw as optional)



Fixed table size



11270*410mm



Traveling table size



1127*260mm



Overall dimensions



1127*670*1060mm



Net weight



358kg










Packaging & Shipping





1. MX5517 wood spindle moulder  Package:



  • Package: Plywood Case

  • Packing Qty: 1pc


2. Shipping



  • We accept shipping departure from Qingdao Port, Shanghai PortNingbo PortGuangzhou Port

  • Trade Term acceptable: FOB, C&F, CIF, door to door, Ex-works





Company Information

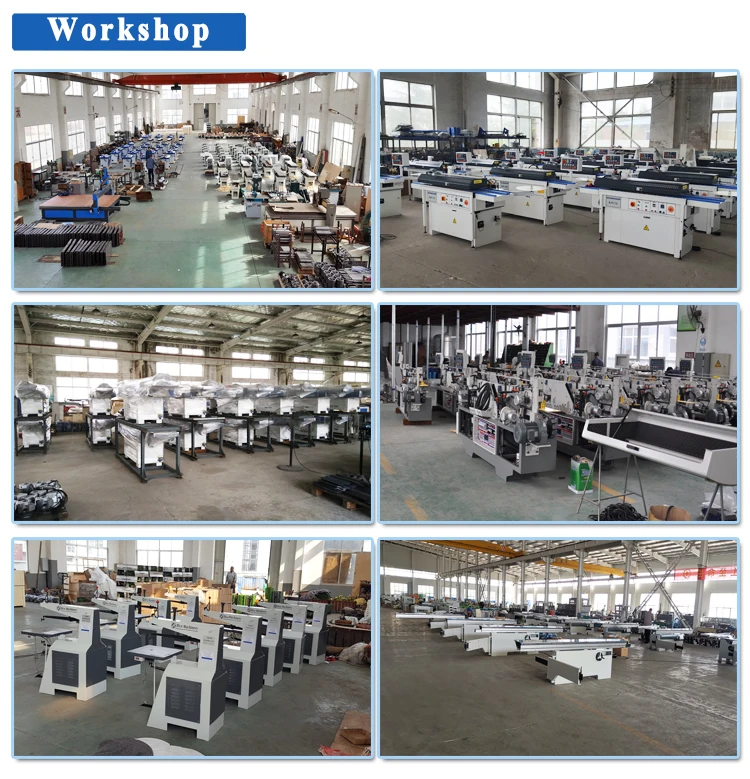

 company 2.jpgworkshop-2.jpg





Certifications










Market







Our Services




Guarantee&Aftersales service:


1.Guarantee for one year,spare parts can be change within this time, but for normal wear not human error damage


2.24 hour technical support by email or calling


3.User-friendly English manual for machine using and maintaining


4.As the improvement of the products, any change of the machines and parts should not be advised separately.


Pls send us the qty/model/size of the spindle moulder machine, we will contact with you within 24hours.Any problem pls let us know asap,we will carefully and committed to serve you!
