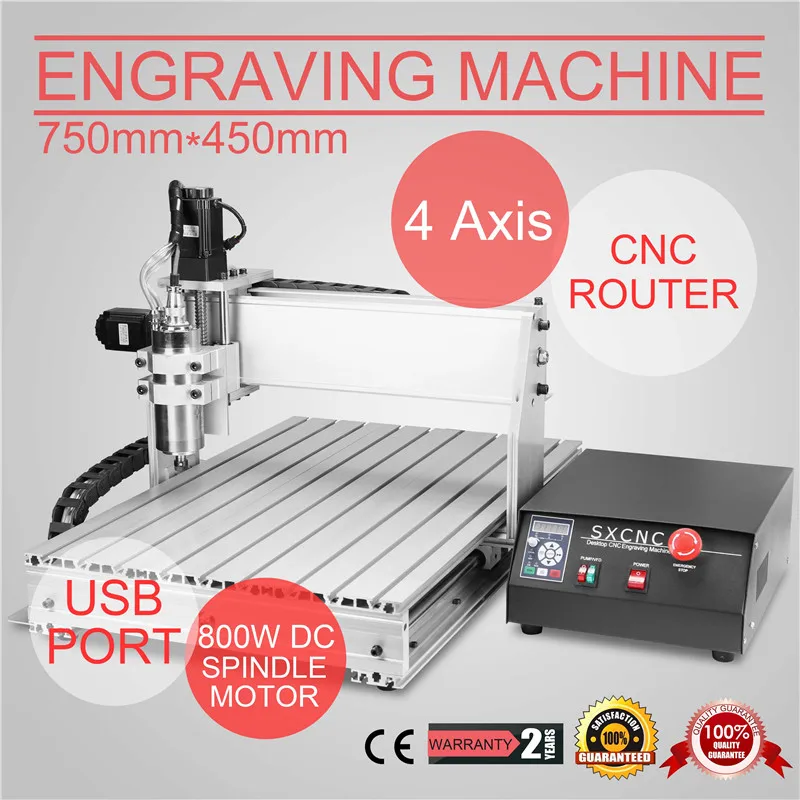

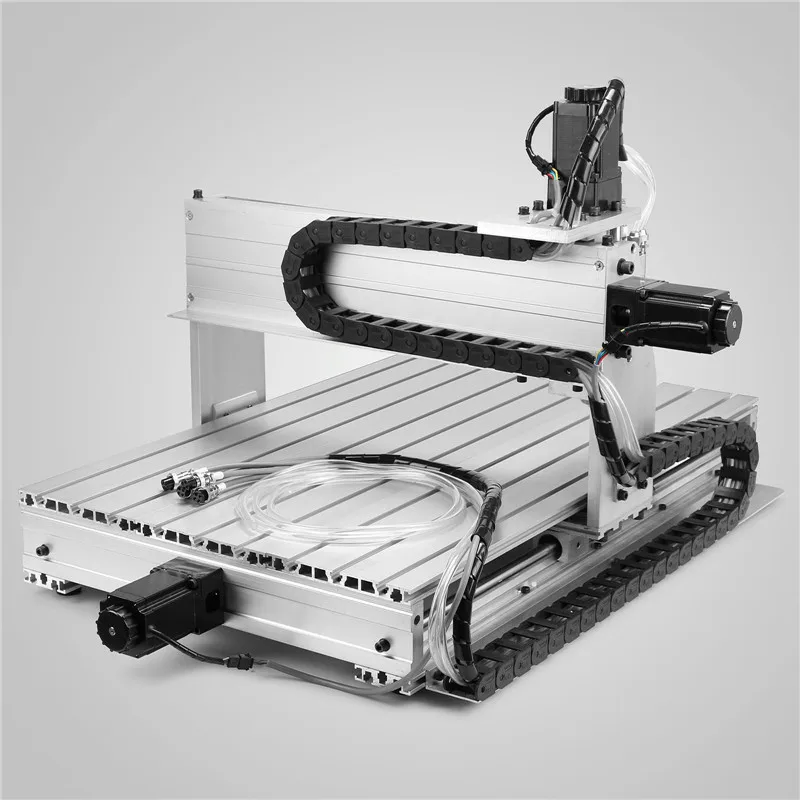

CNC USB 6040 is suitble for Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.
CNC USB 6040 is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making,PCB,Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.So,you can do engraving work at office or home.In addition,It is with four axis(rotary axis) and tailstock.
Application
CNC USB 6040 is designed for large area engraving work .The Computerized CNC Engraving and Cutting Machine is suitable for various materials, such as WOOD, PMMA or other plastic,MDF board,native wood,PVC,Acrylic, wood,composite board plywood,It can be used widely to process or make adverstising signs,PCB,nameplates,badges,seals,bronzing plate,aluminium alloy,acryplates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.
If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you.
How to use
1.Assembling and locating the CNC machine on steady desk well.
2.Make sure that your computer has a on-board parallel port output.
3.Installing a CNC control software and Drive such as the CNCUSB on your computer.
4.Connecting the control box with the CNC machine and you computer.
5.Fllowing our manual or guideline to set uo the software.
6.You can enjoy making you dream with using our CNC machine now.
Features

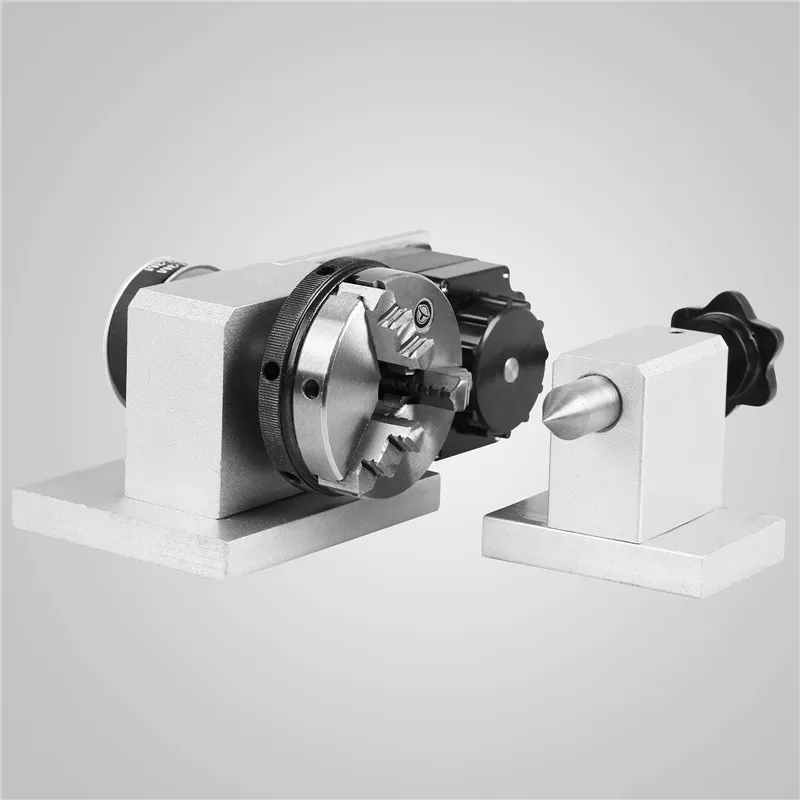

With four axis(rotary axis) and tailstock
With USB function
Simple operation and installation.
More steady and strong equiped with aluminum alloy frame materials.
Can be controlled only by desktop computer,not suitable for laptop
Mach 3 software is simple and intellgent
Can control the engraving more precise
Emergency stop button enhance security
Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic .
Stepping motor knob is useful for small positioning adjustment ,with steady and strong support structure.
Cover plates reducing pollution for the screws and shafts.
Thick 15mm aluminum 6063 plate,more stronger.
The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
The chrome shafts is not easy to deform,suitable for long time use.
Flexible coupling can be used for high torque transmission.

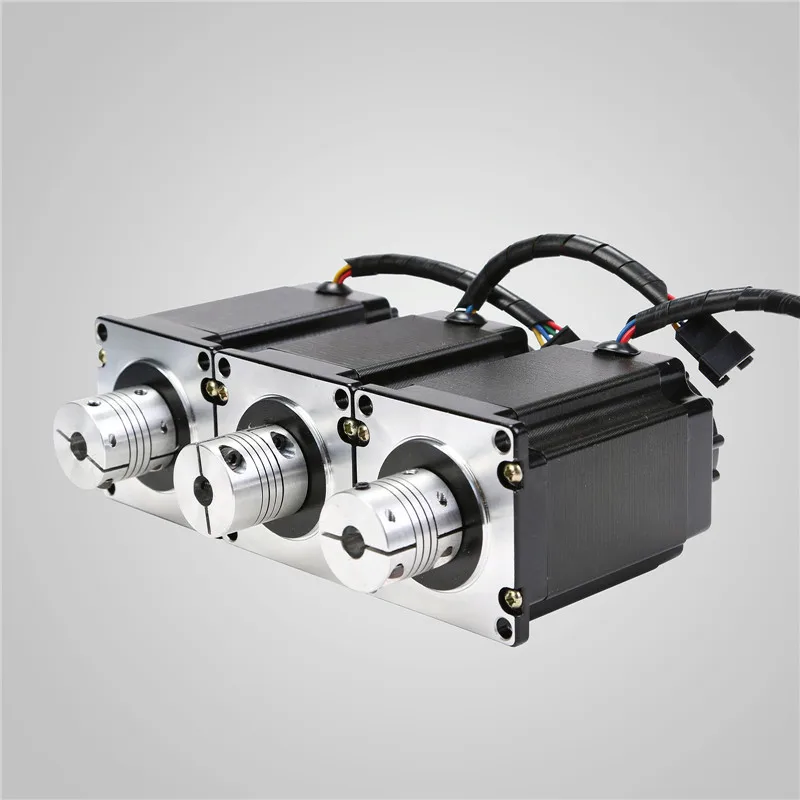

High Precision Stepping motor makes engraving more precise .

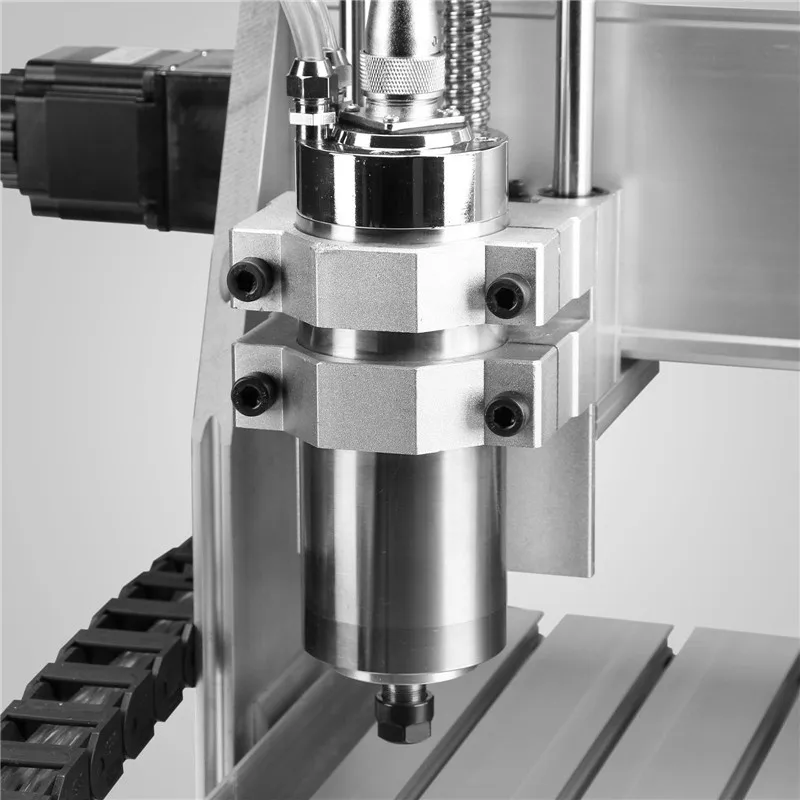

The NEW 0.8KW water-cooled VFD spindle is available operating for long time,which can reinforced the processing abilty of the machine and can be used to process aluminum alloy and hard wood.
This item already be equiped NEW 1605 ball screws. Anti-blackflash,high precision,long life circle.
2 years Free warranty.
Technical
6040 triaxial engraving machine part parameters:
Effective working travel:580(X)mm*400(Y)mm*65(Z)mm
Shape dimension:870*670*520mm
Max.thickness of the meterials:≤100mm(the distance between Z axis and the bottom of the working station)
Operating Voltage:110V or 220V 50/60Hz(we also stock USA.UK.EU.AU.plugs)

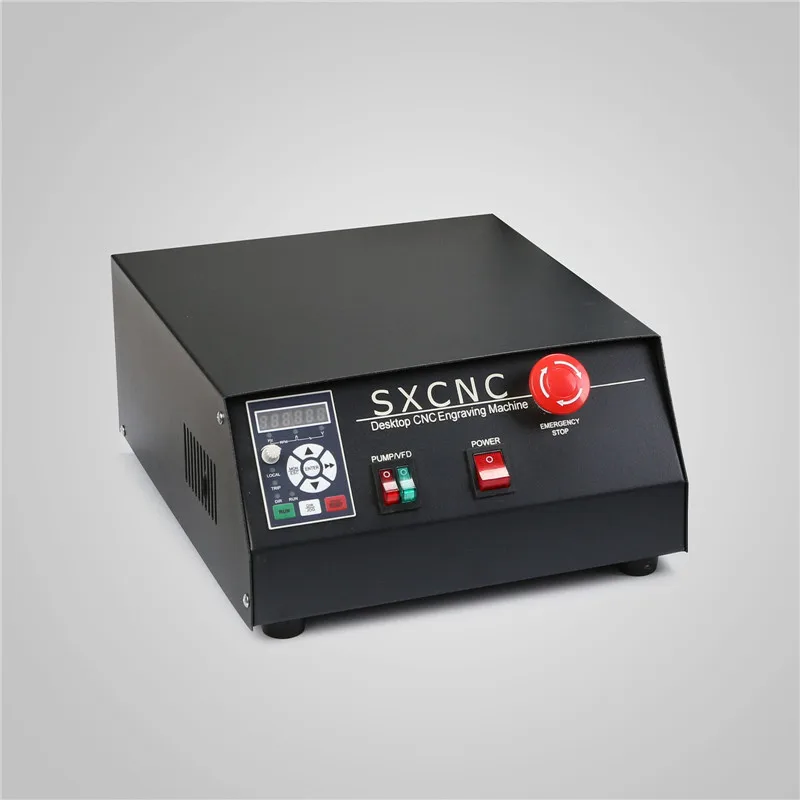

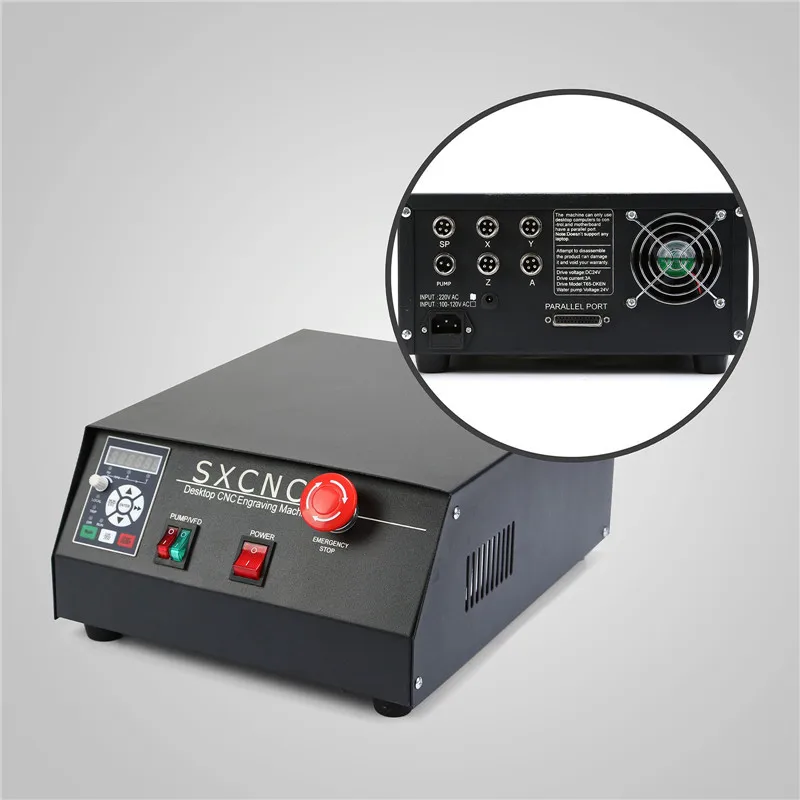

Control unit:Toroidal transformer + PWM power supply module + TB6560 drive board
Computer connection:on board palrallel port,USB
Command code:G code
Acceptable software:only CNCUSB
Protection:Emergency stop button
Package
1× Engraving machine
1× Control box
1× Parallel cable
1× Power cable(we also stock USA.UK.EU.AU.plugs.)
1× Tool box and tools
3× Axis motors
1pcs rotary axis and tailstock
2× Connect wires
CNCUSB software and machine manual

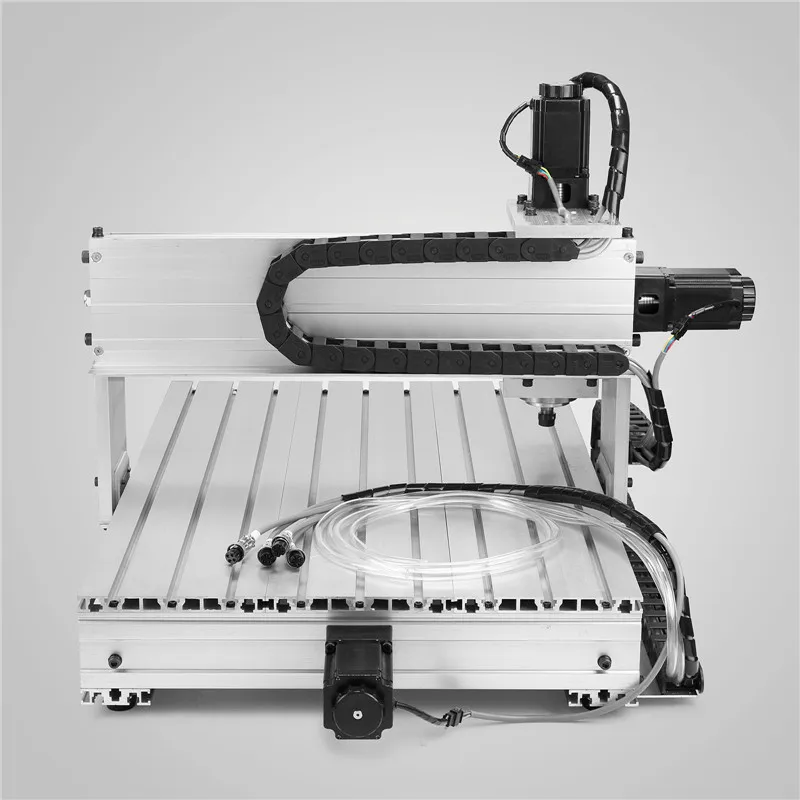

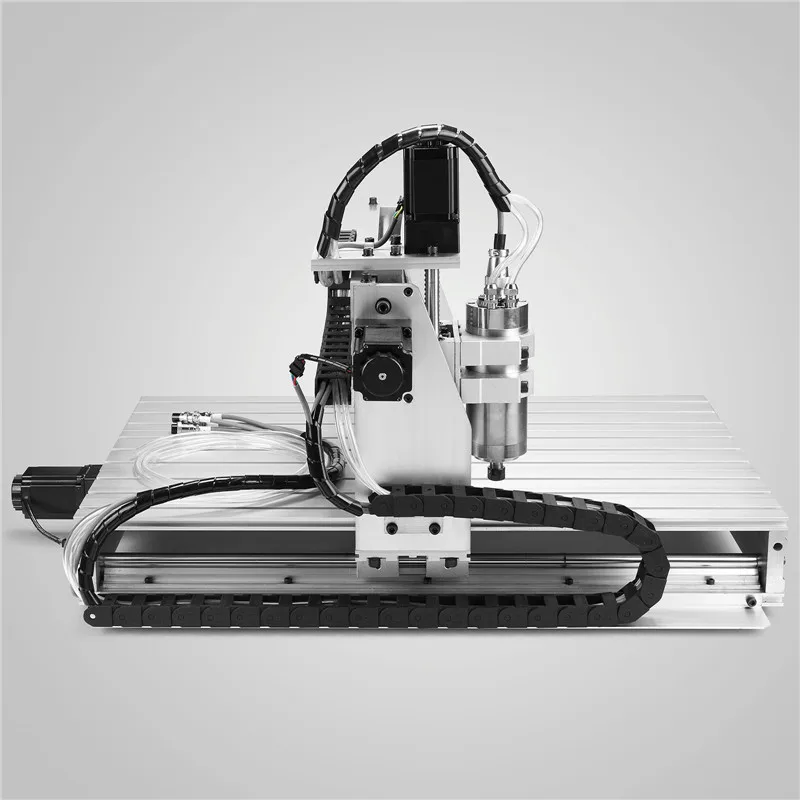

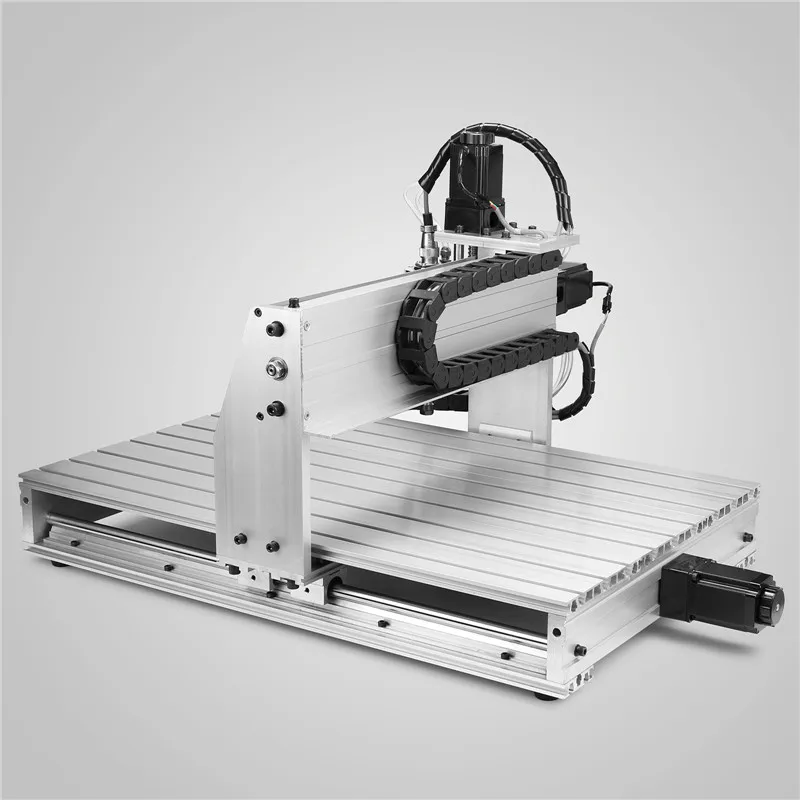

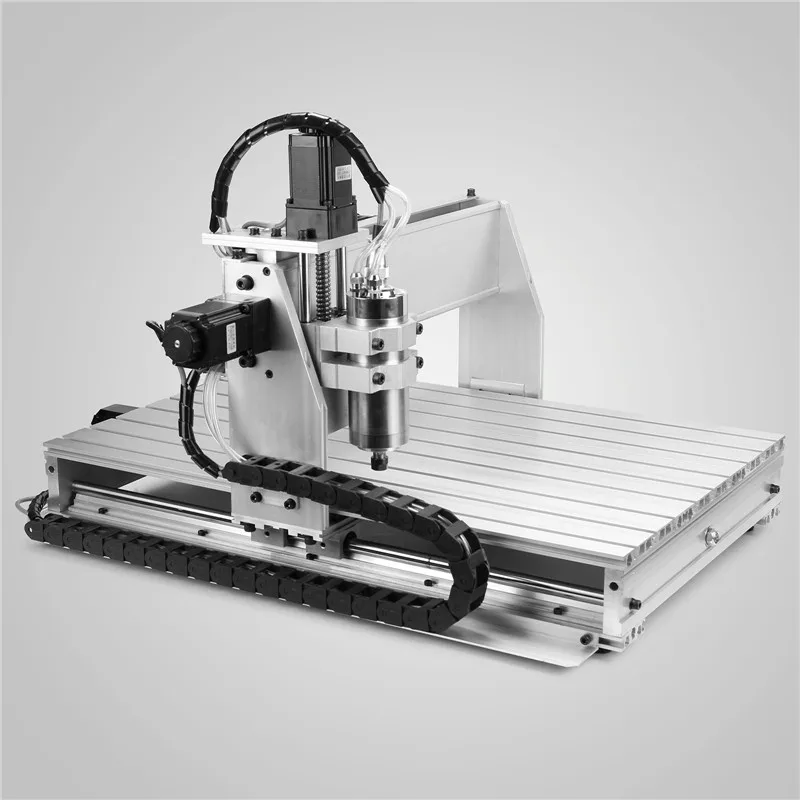

Pictures
