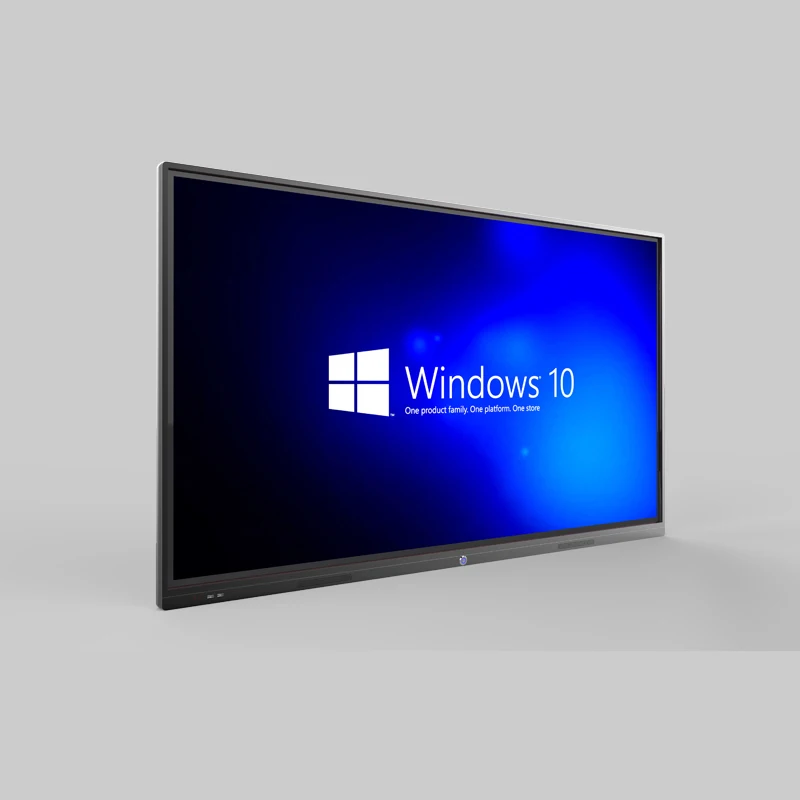

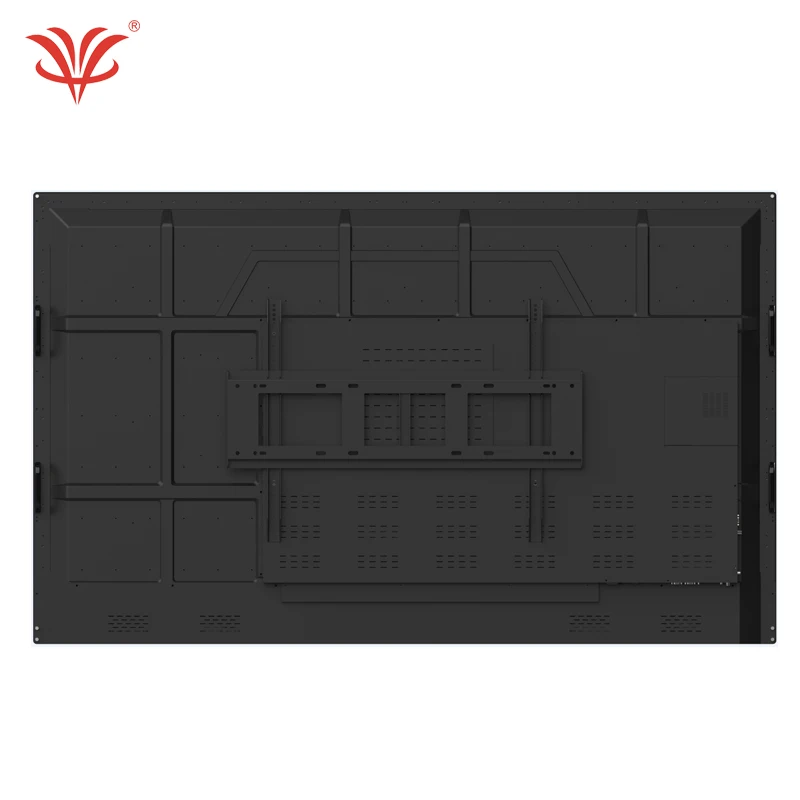

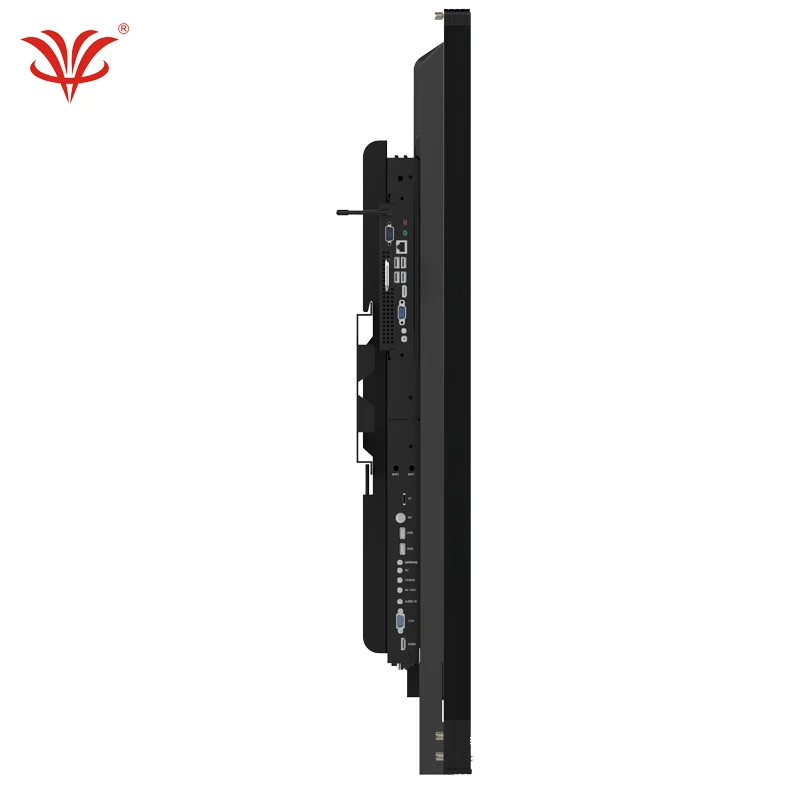

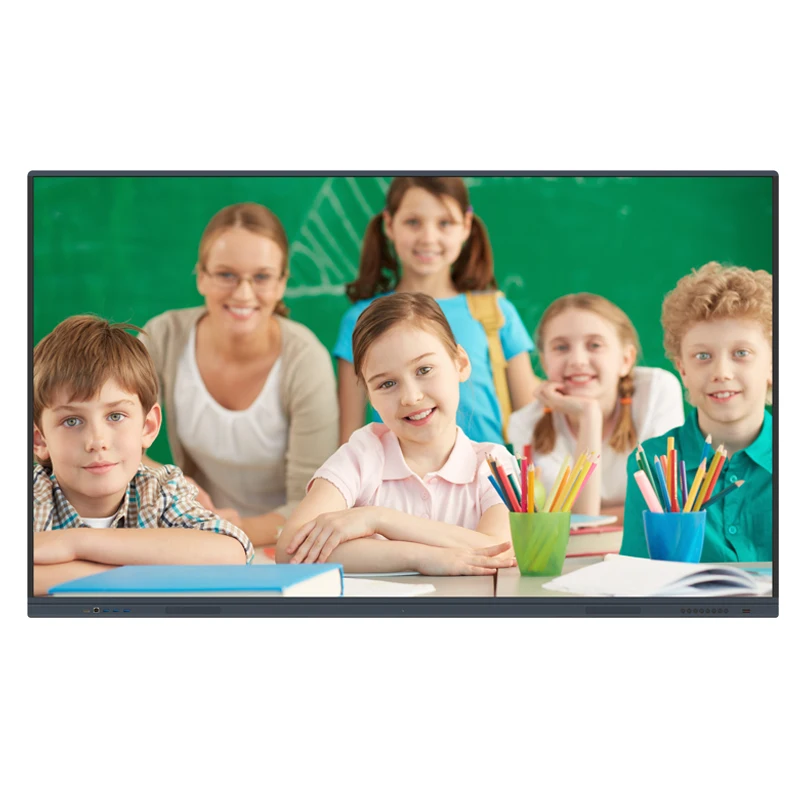

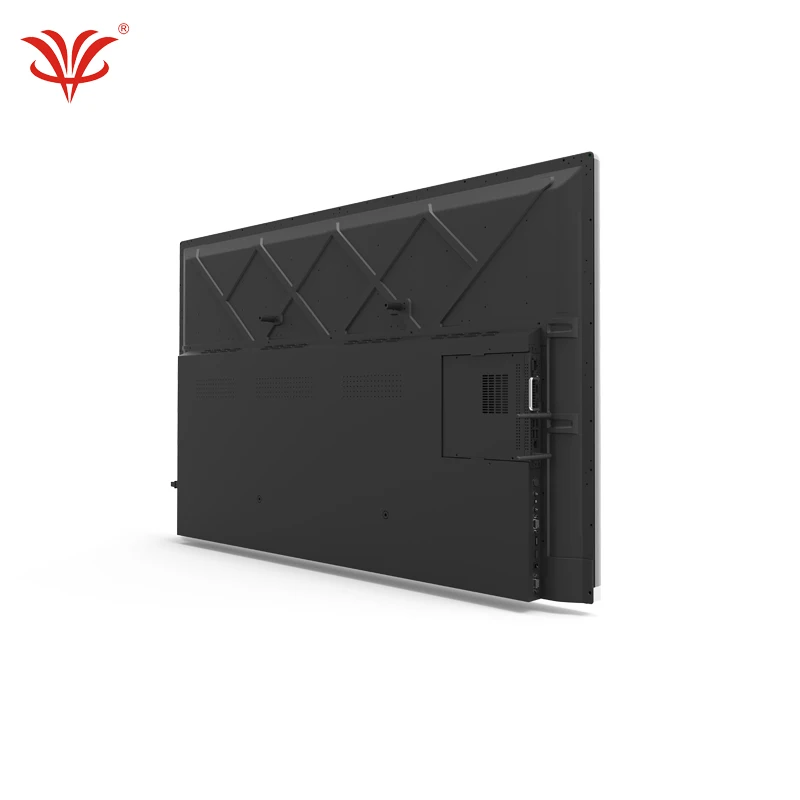

55/65/75/86/98 Inch Portable Interactive Smart Board LED Black Metal Smart Technology Smart Whiteboard Education ROHS I5 CPU
55/65/75/86/98 Inch Portable Interactive Smart Board LED Black Metal Smart Technology Smart Whiteboard Education ROHS I5 CPU
55/65/75/86/98 Inch Portable Interactive Smart Board LED Black Metal Smart Technology Smart Whiteboard Education ROHS I5 CPU
55/65/75/86/98 Inch Portable Interactive Smart Board LED Black Metal Smart Technology Smart Whiteboard Education ROHS I5 CPU
55/65/75/86/98 Inch Portable Interactive Smart Board LED Black Metal Smart Technology Smart Whiteboard Education ROHS I5 CPU
55/65/75/86/98 Inch Portable Interactive Smart Board LED Black Metal Smart Technology Smart Whiteboard Education ROHS I5 CPU
55/65/75/86/98 Inch Portable Interactive Smart Board LED Black Metal Smart Technology Smart Whiteboard Education ROHS I5 CPU

55/65/75/86/98 Inch Portable Interactive Smart Board LED Black Metal Smart Technology Smart Whiteboard Education ROHS I5 CPU

Share on (60600790710):


Price:$710.00-760.00

Quantity:


Product Overview

Description



Product Paramenters


                                                                                                                                                                          Panel
Screen Size
65"
75"
86"
100"

Panel Technology
LED




Aspect Ratio
16:9




Max Resolution
3840x2160




Brightness(H*V)mm
350 cd/㎡
350 cd/㎡

Active Area
1428.5×803.6
1649.66×928
1872×1053
2202.9×1240

Contrast Ratio
1200:1




Viewing Angle
178°/178°




Color
8 bit /16.7 M




Response Time
8ms




Screen Display
horizontal screen




Pixel Pitch(mm)
0.372 x 0.372
0.429 x 0.429
0.4935 x 0.4935
0.4935x 0.4935

Life
>50000 hours



                                                                                                      Android Parameter
Solution
MSD648/MSD8386/HISI811




RAM
3GB DDRIII&4GB DDRIII



ROM
16/32GB

                                            I/O Interface
HDMI*3, USB2.0*3, SD*1, AV out*2, AV out*1, YPbPr*1, RJ45*1, SPDIF*1, VGA in*1, VGA out*1, Audio in*1, Audio out*1, Touch USB*2,
RS232*1, RF*1, WIFI*1, Earphone*1, Microphone*1




Audio Format
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP



Video Format
H.263, H.264, VP8, RV, WMV, AVS, MPEG4
Picture Format
JPG, BMP, PNG

System
Android 8.0



                                                                 OPS Parameter
CPU
Intel I3/I5/I7




Graphics Card
HD4600




Memory
4G DDR3



Hard Disk
120G SSD / 500G HHD




Network Card
Realtek 8111F




I/O Interface
USB2.0*2, USB3.0*2, VGA*1, COM*1, HDMI*1, RJ45*1 WIFI*1, Earphone-OUT*1, MIC-IN*1, POWER*1




System
Support Windows 7/ Windows10



                                                                   Infrared Touch Parameter
Resolution
32768x32768




Touch Points
Android: 10/20 points; Windows: 10/20 points




Touch Accuracy
±1mm




Response Time
4ms~12ms




Light Transmittance
90%




Working Temperature
0℃~60℃




Working Voltage
DC5V




Working Consumption
≥1W



Operation System
                                         Dual System
                                                                                                                                      Android and Windows



                                         Product Spec
Product Size
1516*100*940
1737*117*1065
1991*109*1210
2284*96*1369

Max Power Consumption
180W
320W
380W
380W

Working Voltage
100V-240VAC, 50/60Hz




Built In Speakers
8Ω10W*2




Product Color
Black, silver



                           Environmental Conditions
Working Temperature
0℃-50℃




Storage Temperature
－20℃-60℃




Working Humidity
85%




Storage Humidity
85%



Product Structure
Shell Material
Aluminum + steel plate + glass




Glass Characteristic
Anti-glare Tempered glass





Details Images


















Recommend Products




Company Profile








SIMPLIEY YOUR SIGNAGE
To take away the complexity and provide a broad range of dedicated,OEM,easy-to-use,pratical and reliable digital signage solution.
Pro Vision Display was established in 2015,we are a fast growing company which specialized in commercial display applications,including video wall applications,digital signage,Interactive touch sreen kiosk and Outdoor digital signs.

We focus more on quality control and reliable cutomers service,instead of bringing price war in this business,and of course,we aim to seeking for long term cooperation relastionship,which is based on mutural benifit policy with reasonable price only.

Pro Vision display's mission is to be your reliable digital signage solution partner,to take away the complexity and provide a variety of sizes and screen resolutions to satisfy a broad range of application needs.
Our products have been exported into US,Thailand,Malaysia,Pakistan,Saudi Arabia,etc.With the fast growing trend of LCD Commercial display,we are seeking for parners/distributors all over the world,you are welcome to inquiry anytime on this.

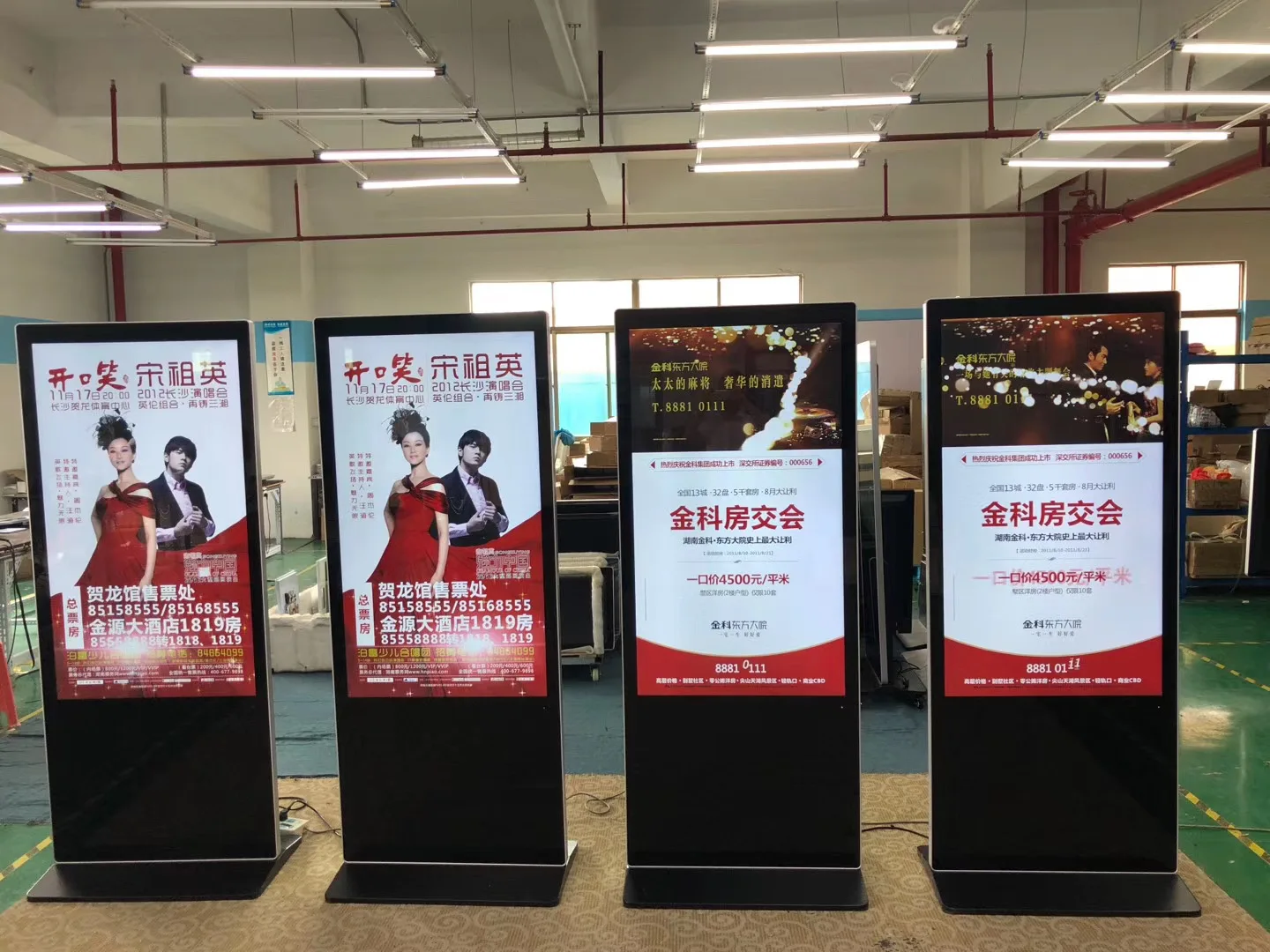

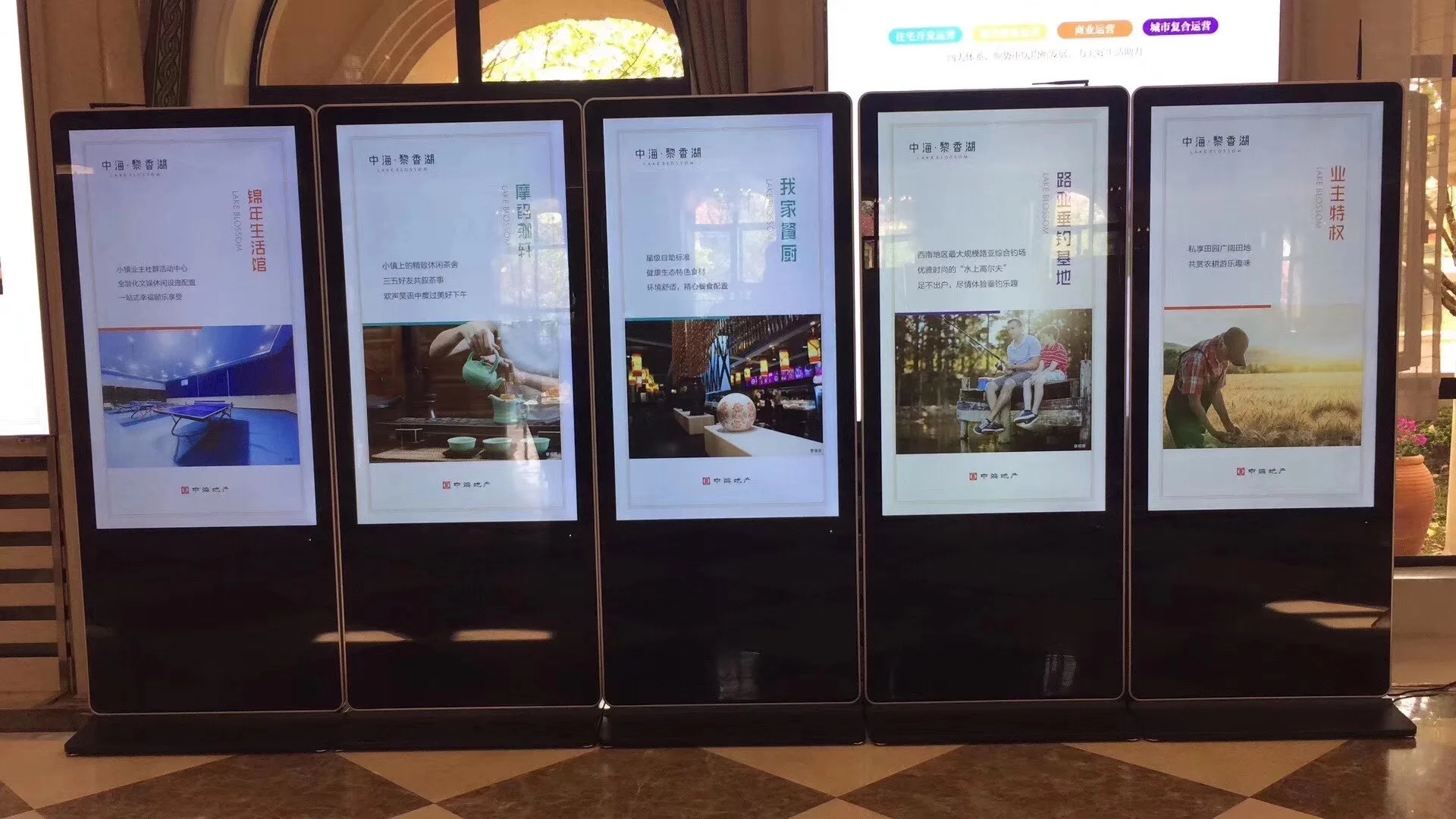

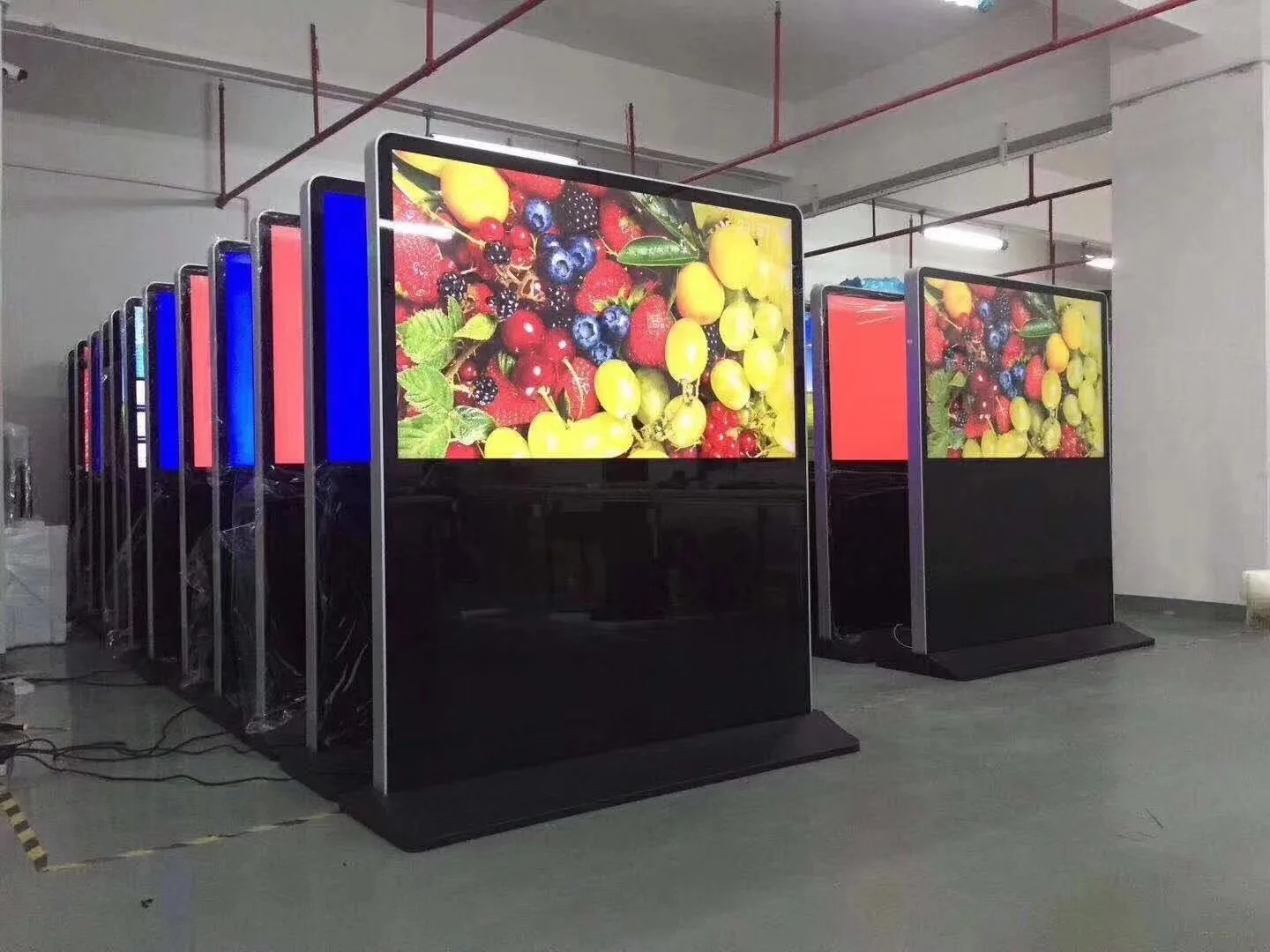

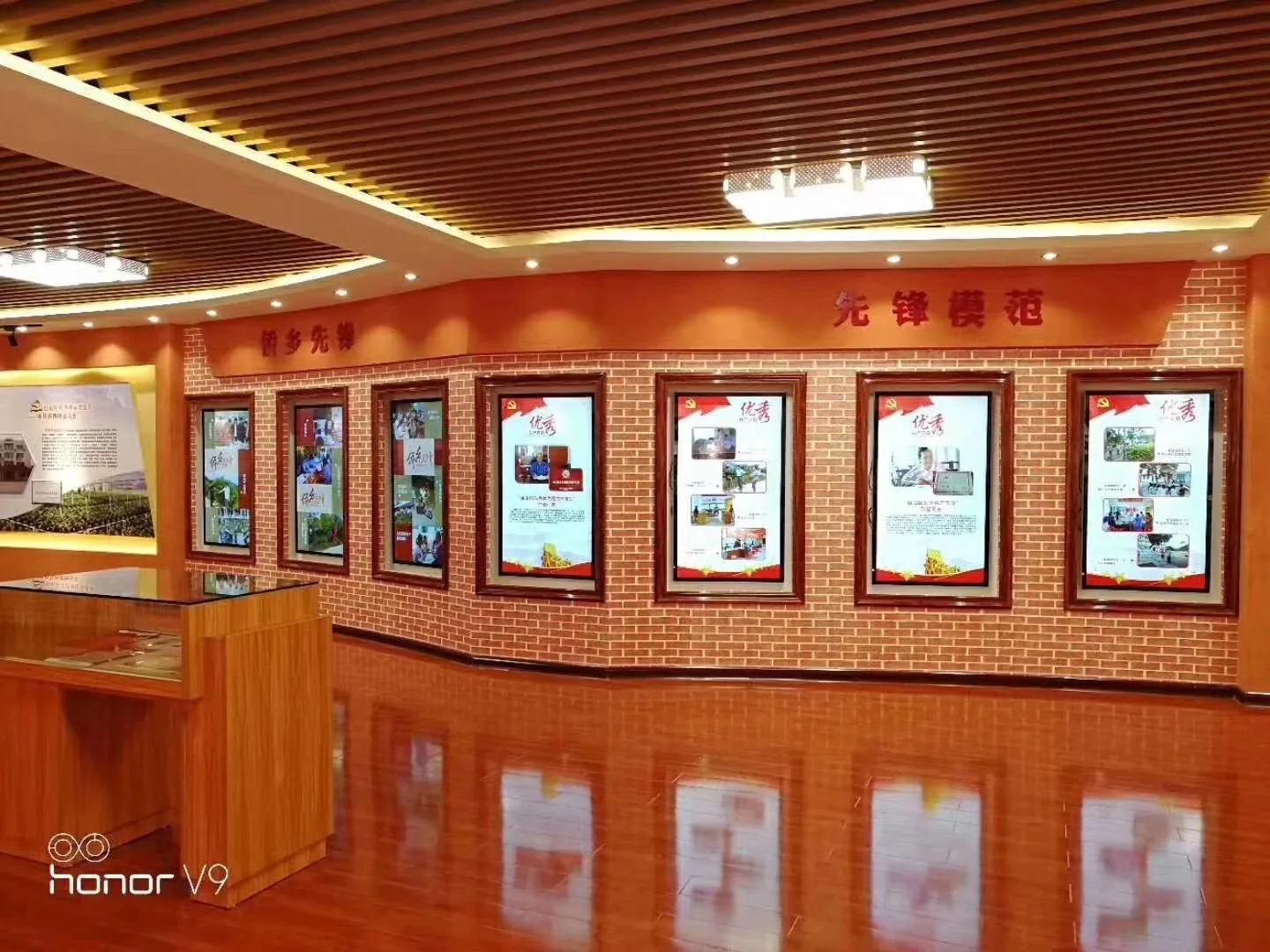

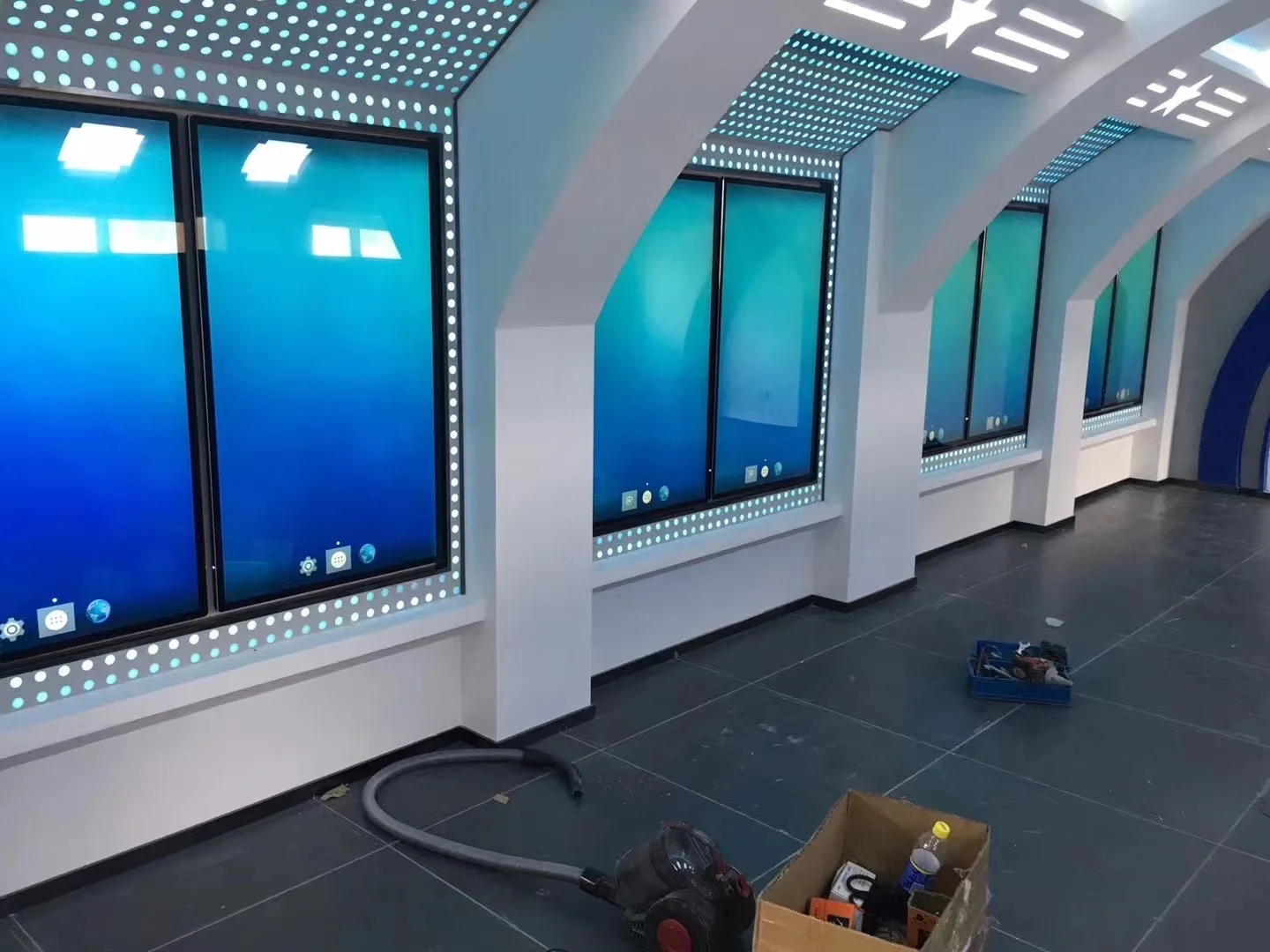

Case Study






Certifications






Packing & Delivery




Each screen are wrapped by soft foam and packed in carton box. Then the whole cartons will be packed by the wooden frame.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2016,sell to Mid East(30.00%),Domestic Market(30.00%),South Asia(20.00%),North America(10.00%),Western Europe(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
LCD Video Wall,Digital signage,Touch Screen Kiosk,SmartBoard,Android Media player Box

4. why should you buy from us not from other suppliers?
PVD's mission is to be your reliable digital signage solution partner,to take away the complexity and provide a variety of sizes and screen resolutions to satisfy a broad range of application needs.Our client includes:NEC,SF Cinema,Ukraine TV station,etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
