Мини корзины гранулятор
- Category: Granulators >>>
- Supplier: Changzhou Doing Machine Co. Ltd.
Share on (60600798707):
Product Overview
Description
Product Description
Main features
1. Press wet mass through perforated screen to get require-sized cylindrical extrudates
2. Wet granulation for food, chemical and pharmaceutical products
3. Capacity: 20-400 kg/h
4. GMP design
5. Different granule size can be achieved by changing perforated screen
Working principle

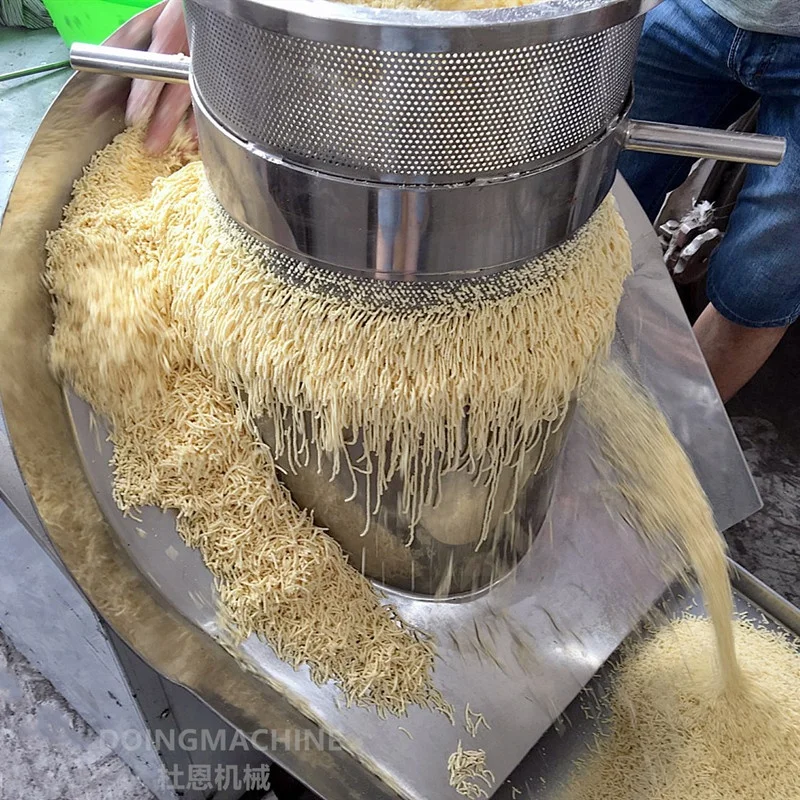

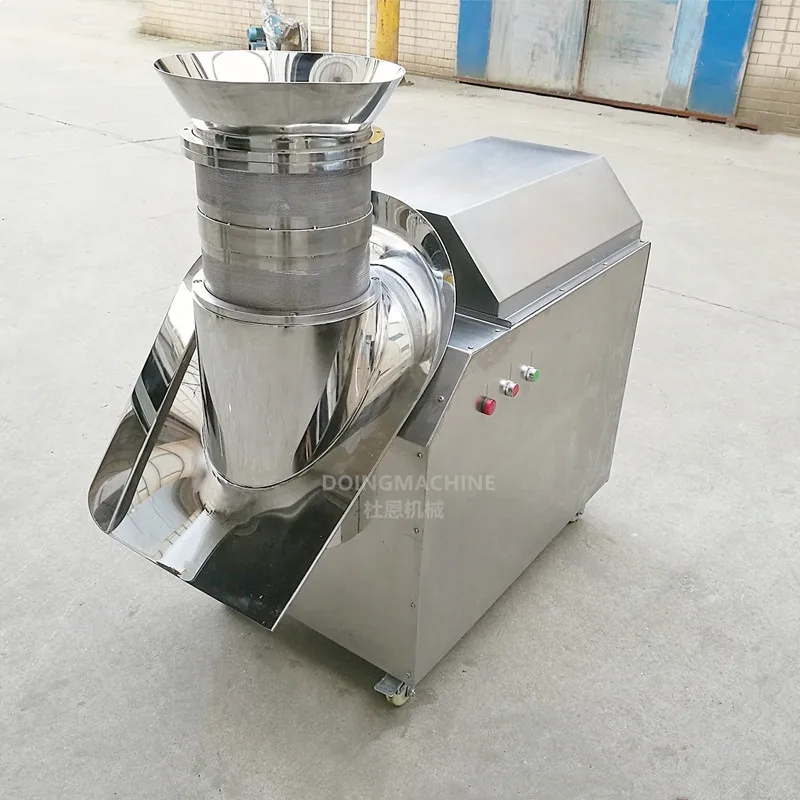

XZL series rotary basket extruding granulator is used for wet granulation, which mainly consists of drive motor, feeding hopper, extrusion blades, screen and discharging chute. Wet mass is gravity fed into the granulator and wiped through the perforated screen by extrusion blades to get require-sized cylindrical extrudates. Finished granules are discharged into the barrel via the chute. The gap between blade and screen is adjustable.
XZL series rotary basket extruding granulator is most often used in pharmaceutical, food and chemical industries for making granules with wet mass before spheronization.
Technical advantages
1. Robust,simple and compact design requires minimum maintenance;
2. Made by SUS304 or SUS316 and mirror polished to meet GMP pharmaceutic sanitary standards.
3. Uniform granules, higher output, less fines and low noise.
4. Special drive shaft sealing design can 100% make sure contamination free of product.
Main technical parameters
Model | XZL-250 | XZL-300 |
Granulation chamber diameter | 250mm | 300 |
Capacity | 100-200 kg/h | 200-400 kg/h |
Granule size | 0.8-3mm | 0.8-3 mm |
Drive motor | 5.5 kw | 7.5 kw |
Extrusion blade speed | 50 RPM (adjustable) | 36 RPM (adjustable) |
Dimension | 1400x650x1300 mm | 1500x700x1500 mm |
Gross weight | 350 kg | 400 kg |
Detailed Images

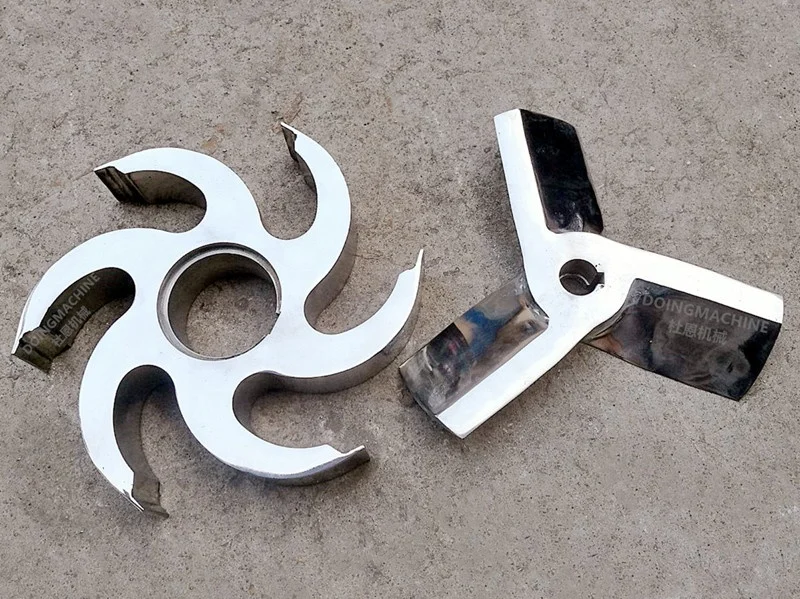

Extrusion blades
Linear cut and mirror polished to meet GMP standard

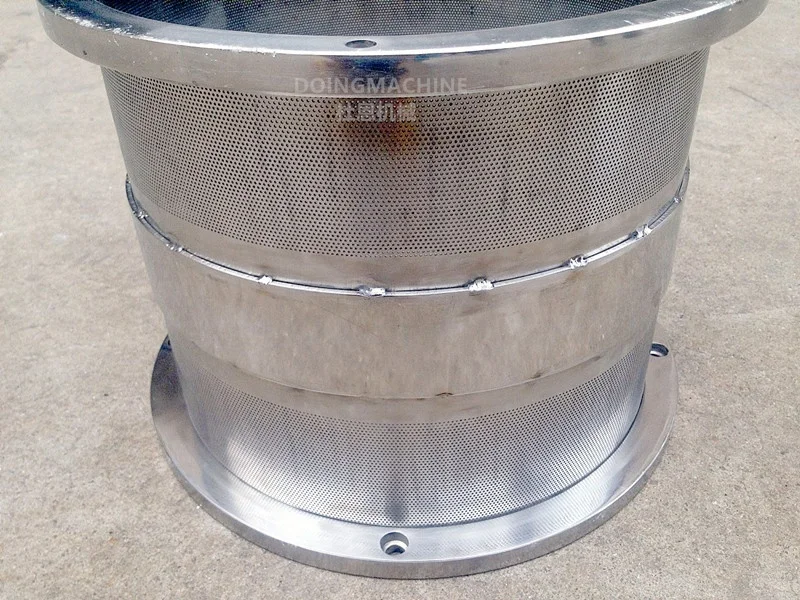

Perforated screen
Hole size: 0.8-3mm

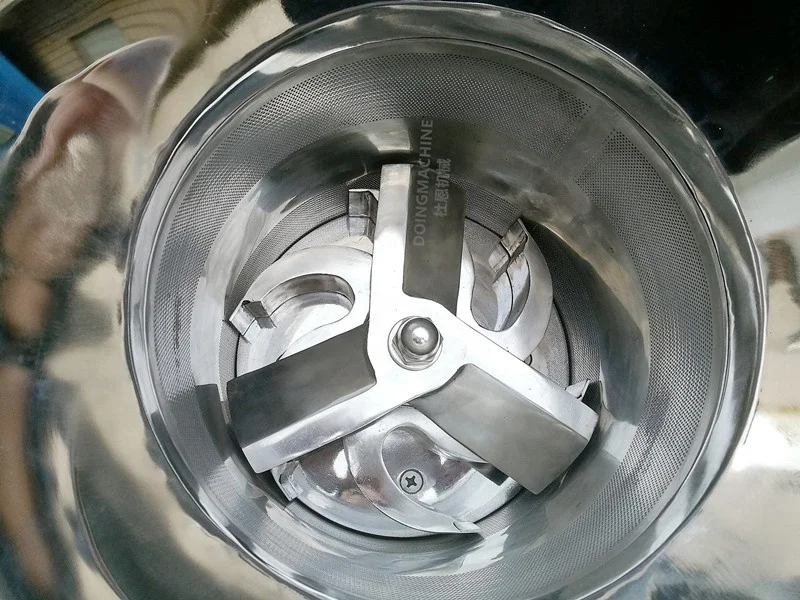

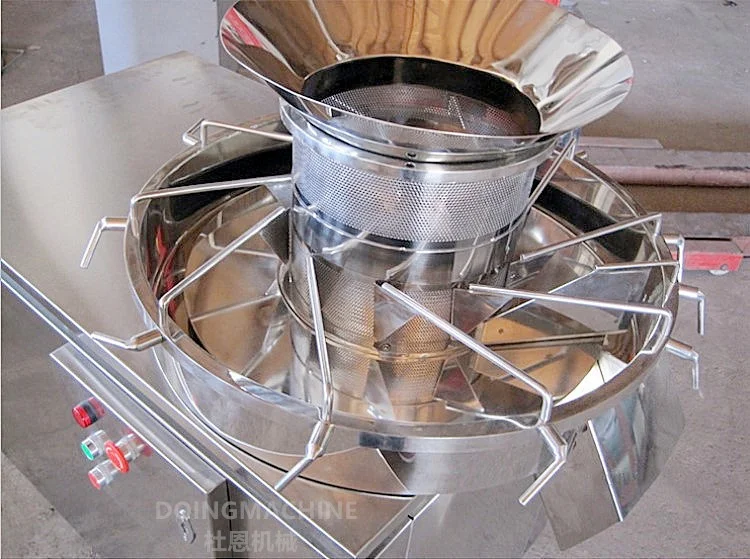

Granulating chamber
Scrapers can be equipped to cut extrudates
Typical Applications
WDG in agrochemical industry
Chicken essence in food industry
Instant herb tea in food industry
Packing & Delivery
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our granulator is customerized. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information about the product and main process you are going to make
2) Granule size
3) Granulating capacity in kg/h
4) Construction material:SUS304 or SUS316L
Q: How the machine will be delivered ?
A: The granulator is packed in plywood box for shipping
