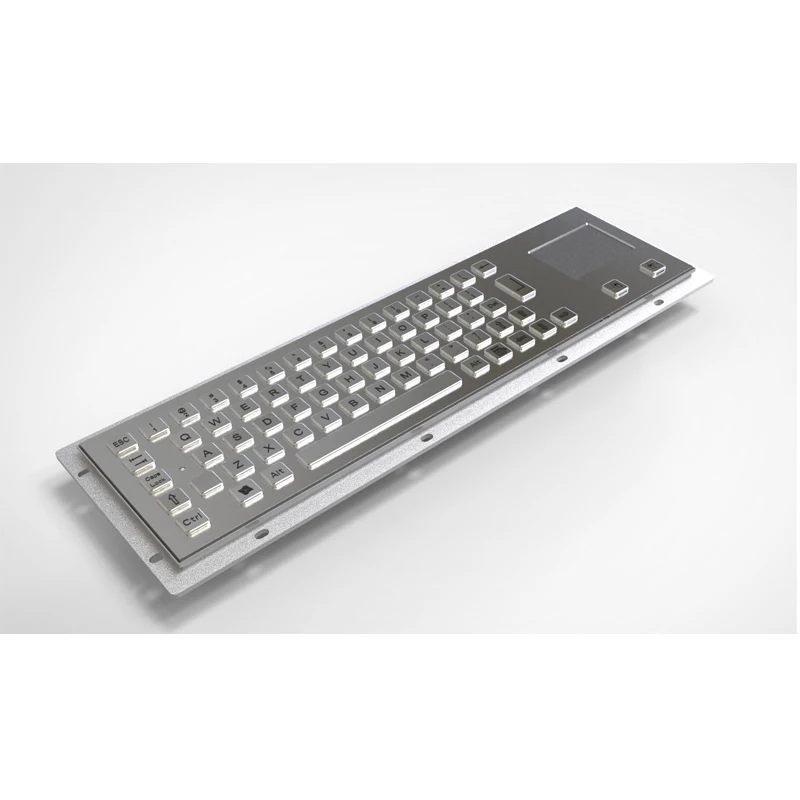

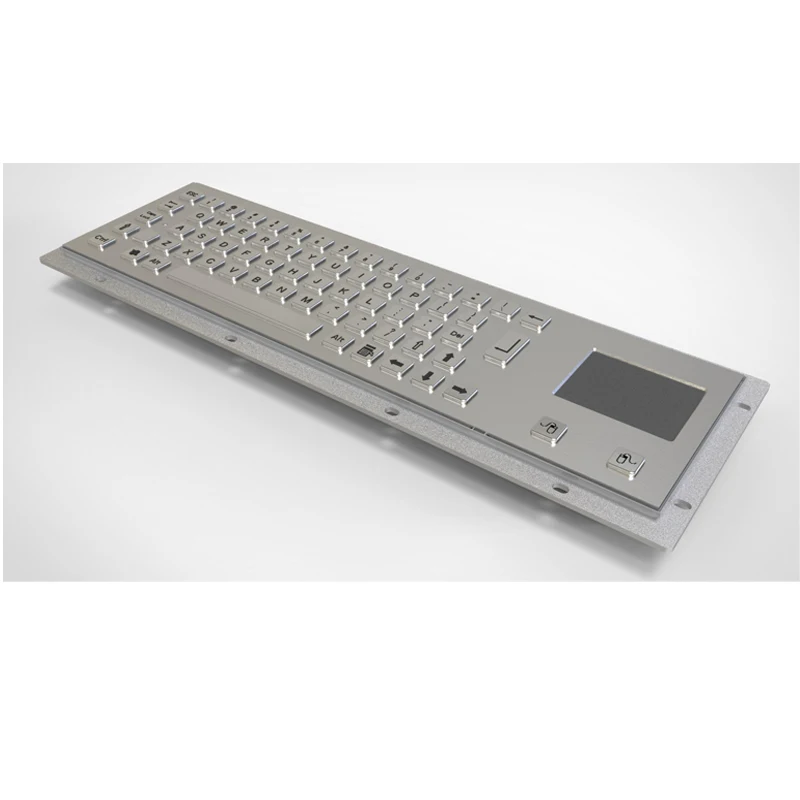

IP65 Panelmount Metal Stainless Steel Keyboard with Trackpad

Product Overview

Description

KINGLEADER's MKB-64A-TP,a 65-key panelmount keyboard is made of stainless steel and anodized aluminum,it is rugged,water-proof,vandal-proof,rust-proof,ideal for unattended self-service terminals(like kiosk) in public place or equipments in industrial environments(like factory workshop,underground mine,gas and water supply facility etc)



Technical Specification
Material
Front panel & Keys	Brushed stainless steel

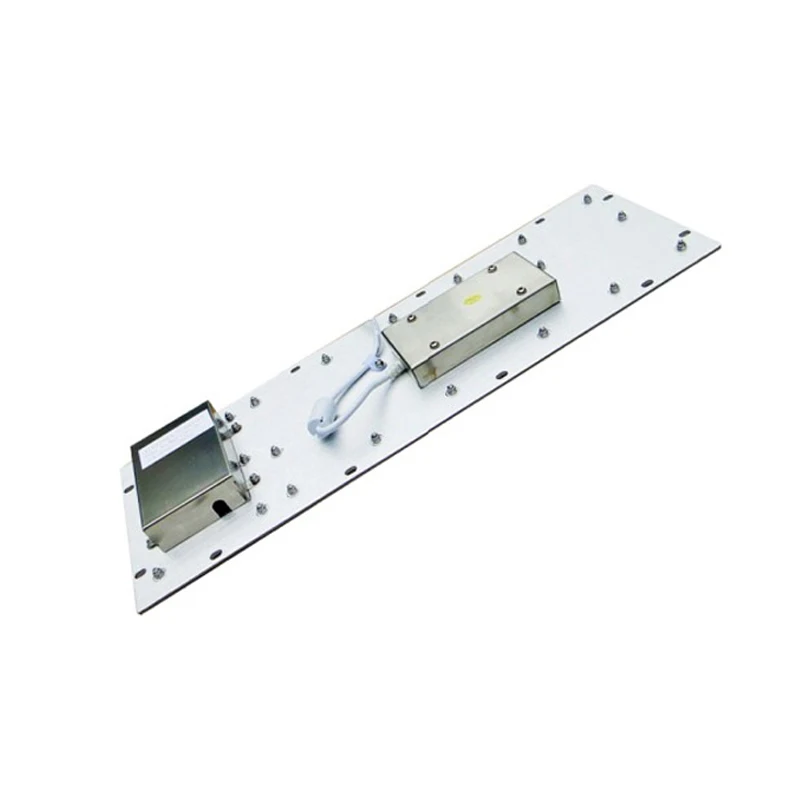

Back panel	Anodize aluminum alloy

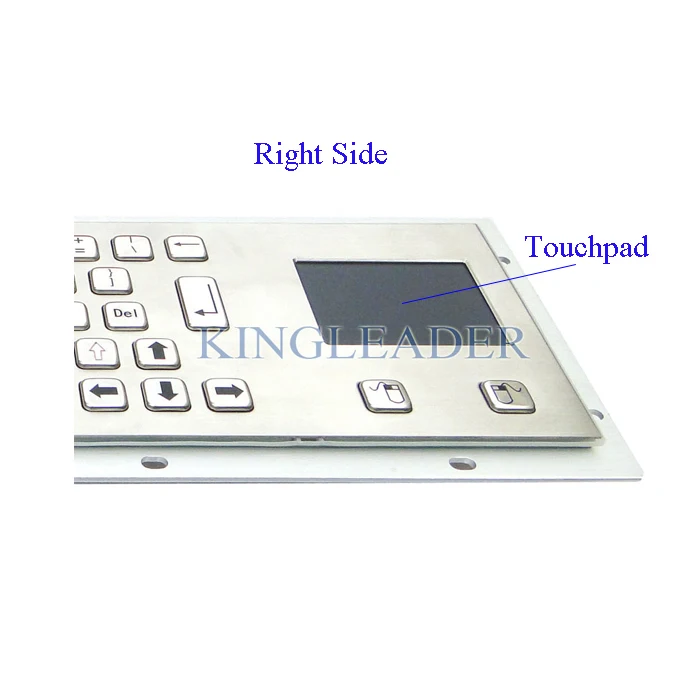

Mouse	Touchpad
Electrical Data
Power supply voltage	DC 5 V ± 5%
Current rating	20 mA
Interface	USB or PS2
EMC compliant	Emission: EN 50081-1 Immunity: EN 50082-1
FCC	Part 15, class B
Certification	CE,FCC,ROHS
Environmental Characteristics
Operating temperature	-20º C to + 60º C
Key travel	2.0mm
Lifetime (cycles)	Min 5, 000, 000 actuations
Sealing protection	IP65/NEMA4X from the front
Vibration resistance	5 Hz - 200 Hz, IEC 60512-4
Shock resistance	3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System
PS2	Win NT4, 98SE, 98ME, 2000, XP,Win7,Linux,Win8
USB	Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX, Win7,Linux,Win8/10
Weight and Dimension
Weight	1.80kg

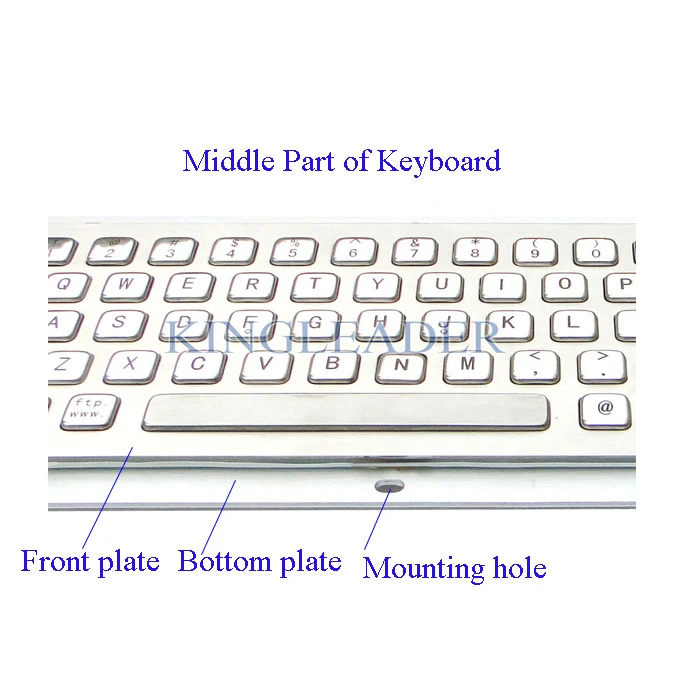

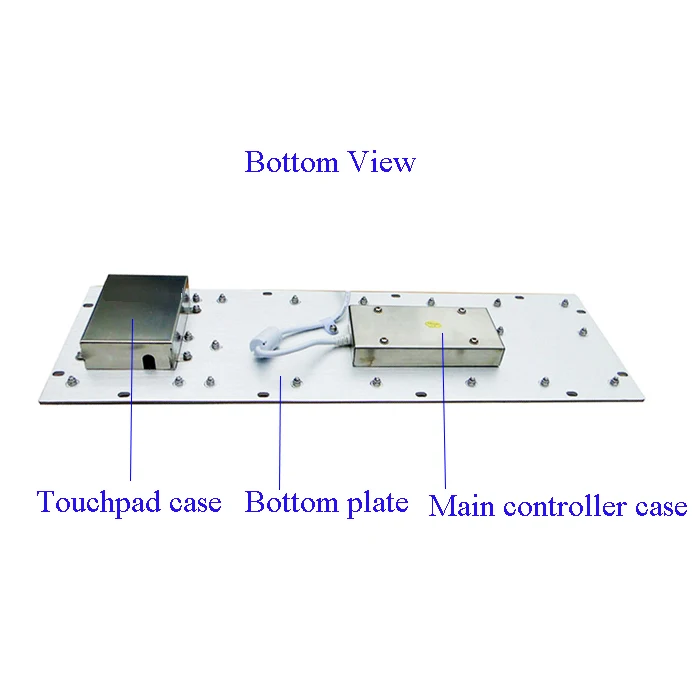

Dimension	Front panel: 392.00 x 110.00 mm Back panel: 416.00 x 134.00 mm

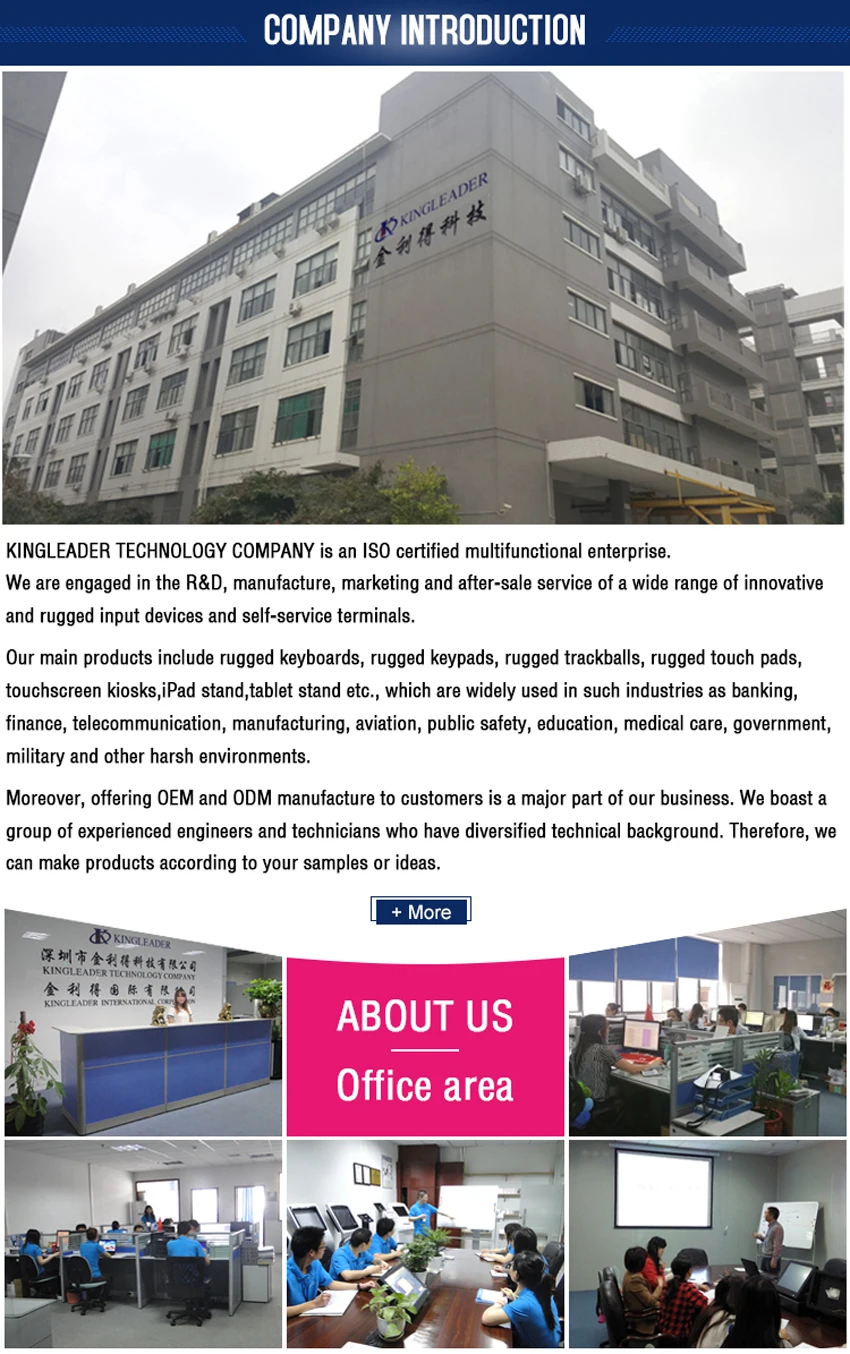

Company Information:



KINGLEADER is an ISO9001:2015 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.



Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.



Why us?



1,ISO9001:2015 certification



2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS



3,Reasonable price and fast response



4,Over 10 years of experience in rugged input device and touchscreen kiosk



5,OEM and ODM capability



6,Flexibility in customization and size of order



7,Trusted suppliers of many world-class famous brands in the industry
