Small Butter Chocolate honey jam Blister Packing Machine Pharmaceutical Capsule / Tablet Blister Packaging Machine MY-80
This machine is specially designed for laboratory, dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute. This machine is flat plate structure, positive pressure and convenient to operate. It is small and the stroke Length is adjustable. It is suitable for AL/PL package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk tablet, mini metal etc.
Main Technical Parameters
Cutting Frequency (Times/min) | 27 |
Capacity ( pcs/h) | 2600-4000 |
Stroke (mm) | 40-110 |
Max. Forming Area and Depth(mm) | 60×100×14 |
Air Compressor(m³/min) | ≥0.3 (provided by user) oilless air compressor better |
Air Pressure (Mpa) | 0.4 |
Standard Plate(mm) | 80×57 can be manufactured as user's requirements |
Total Power | 380V/220V 50Hz 2.8kw |
PVC Hard Pieces(mm) | 0.25-0.35×90 |
PTP Aluminum Foil(mm) | 0.02-0.035×90 |
Mould Cooling | tap water or recycling water |
Overall Dimensions(mm) | 1300×400×1070(L×W×H) |
Weight(kg) | 450 |

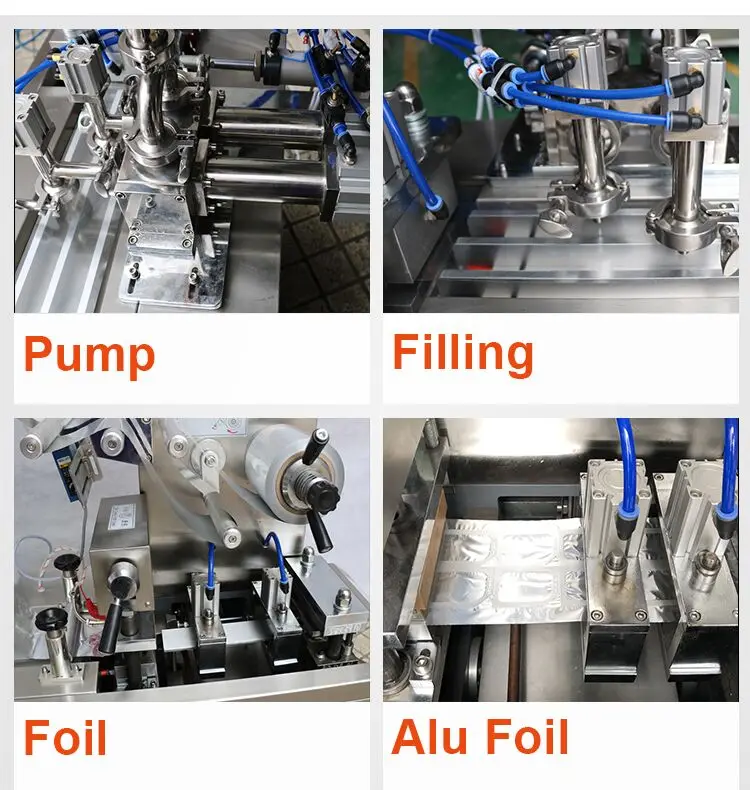

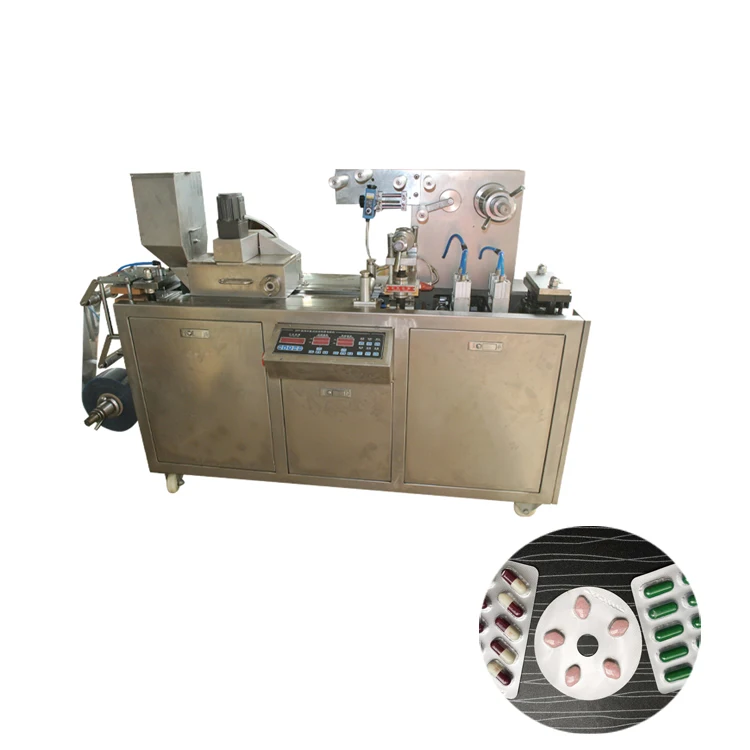

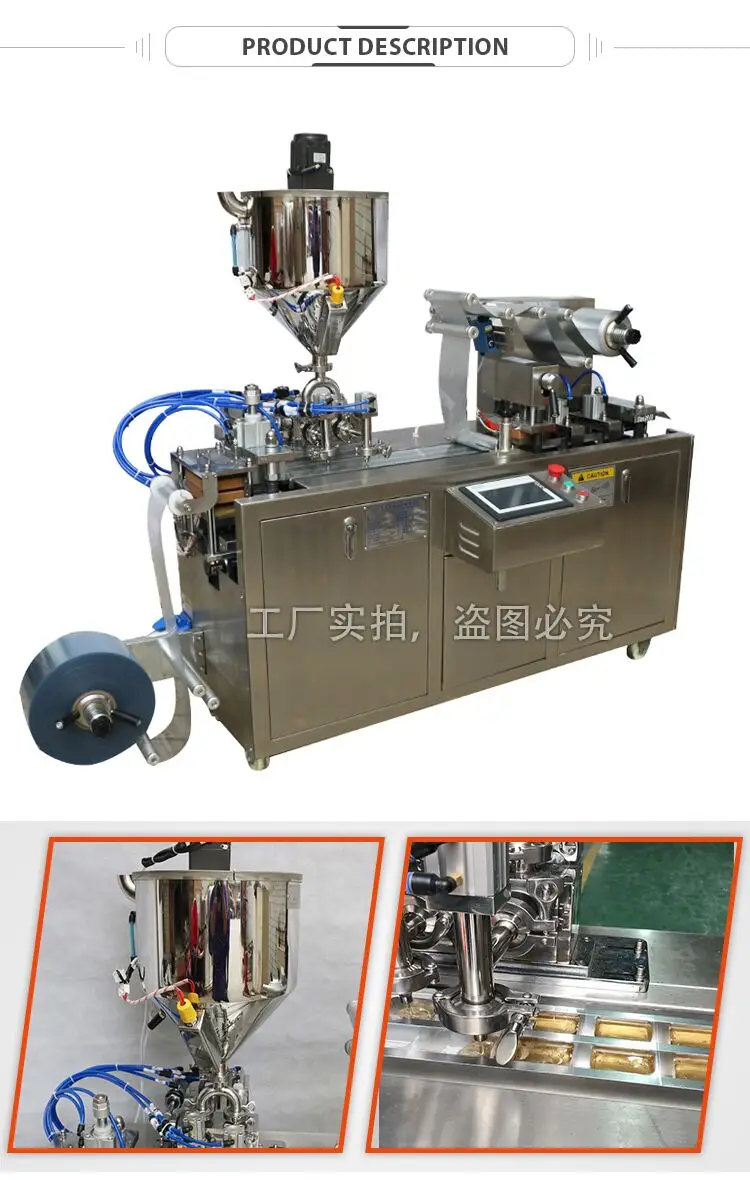

Machine Picture:

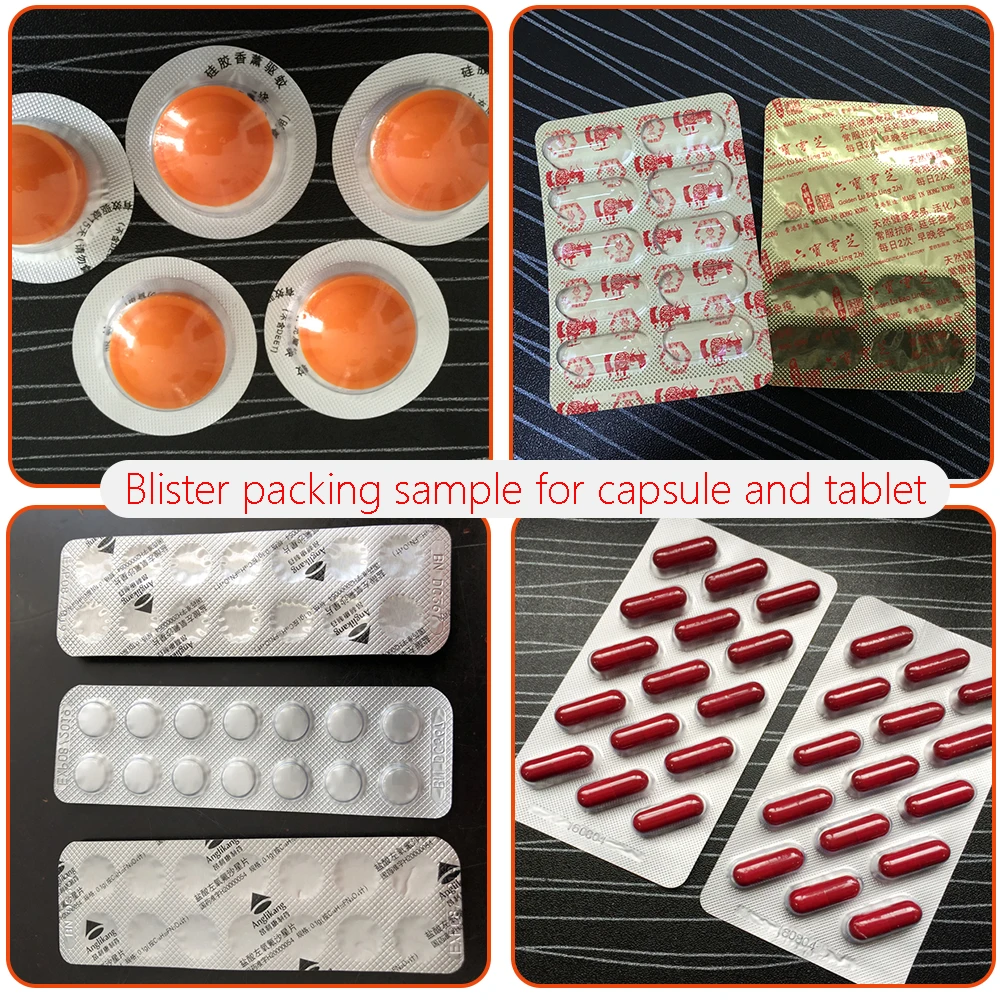

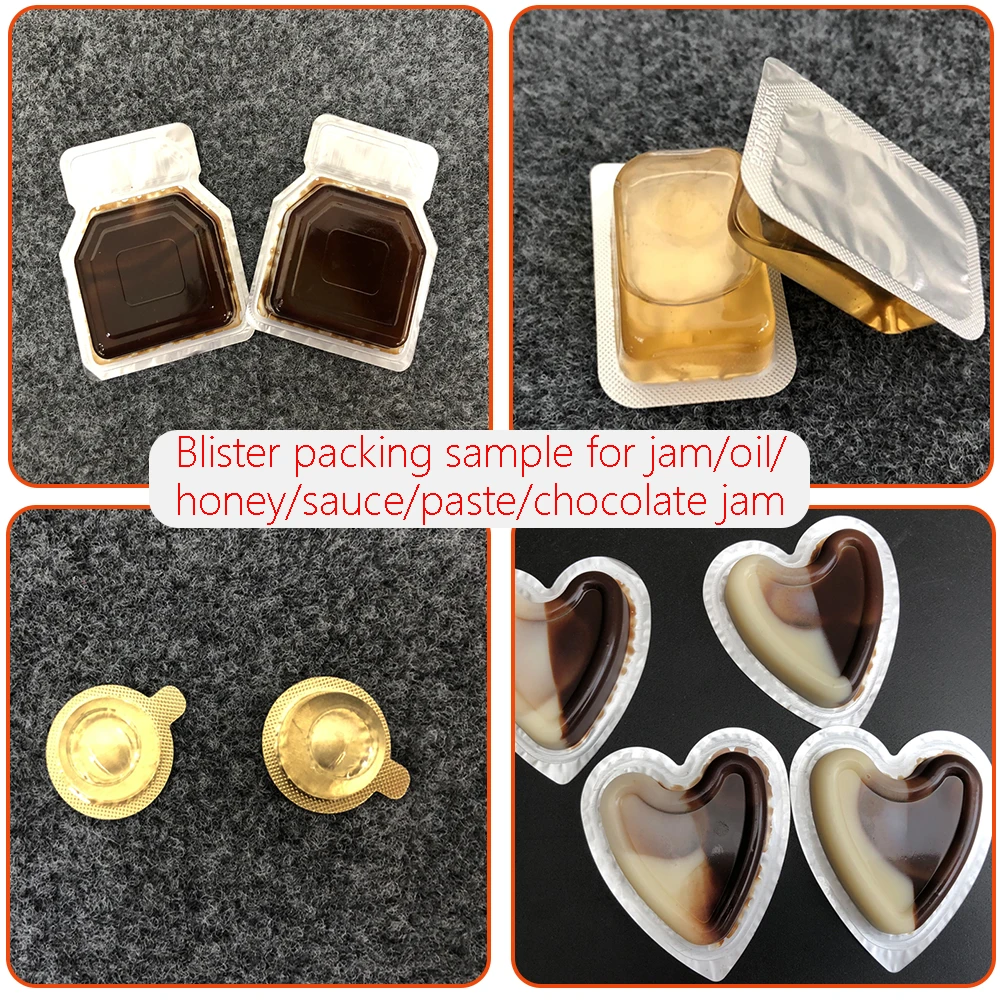

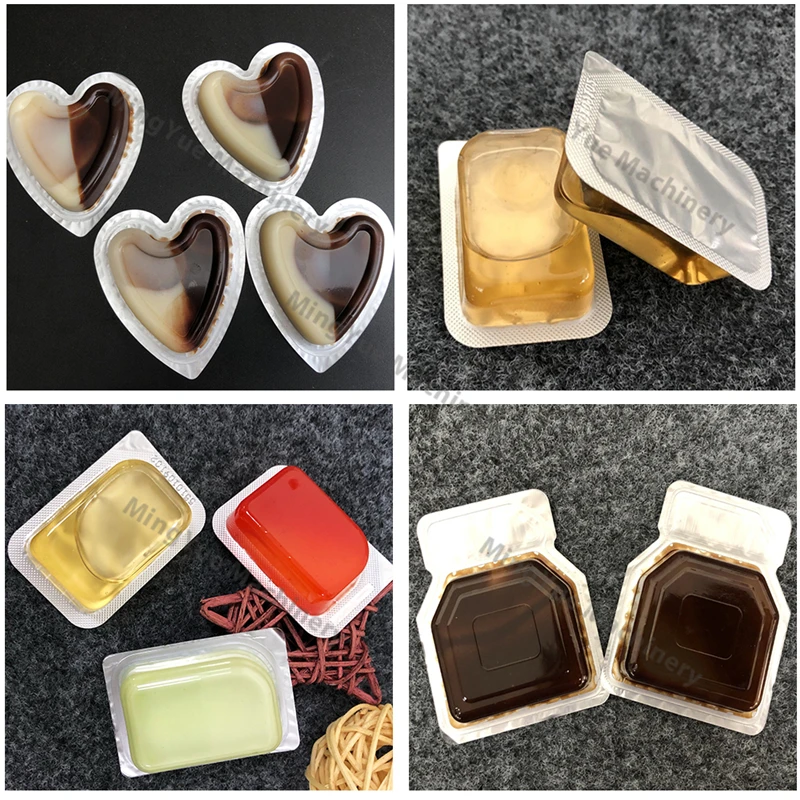

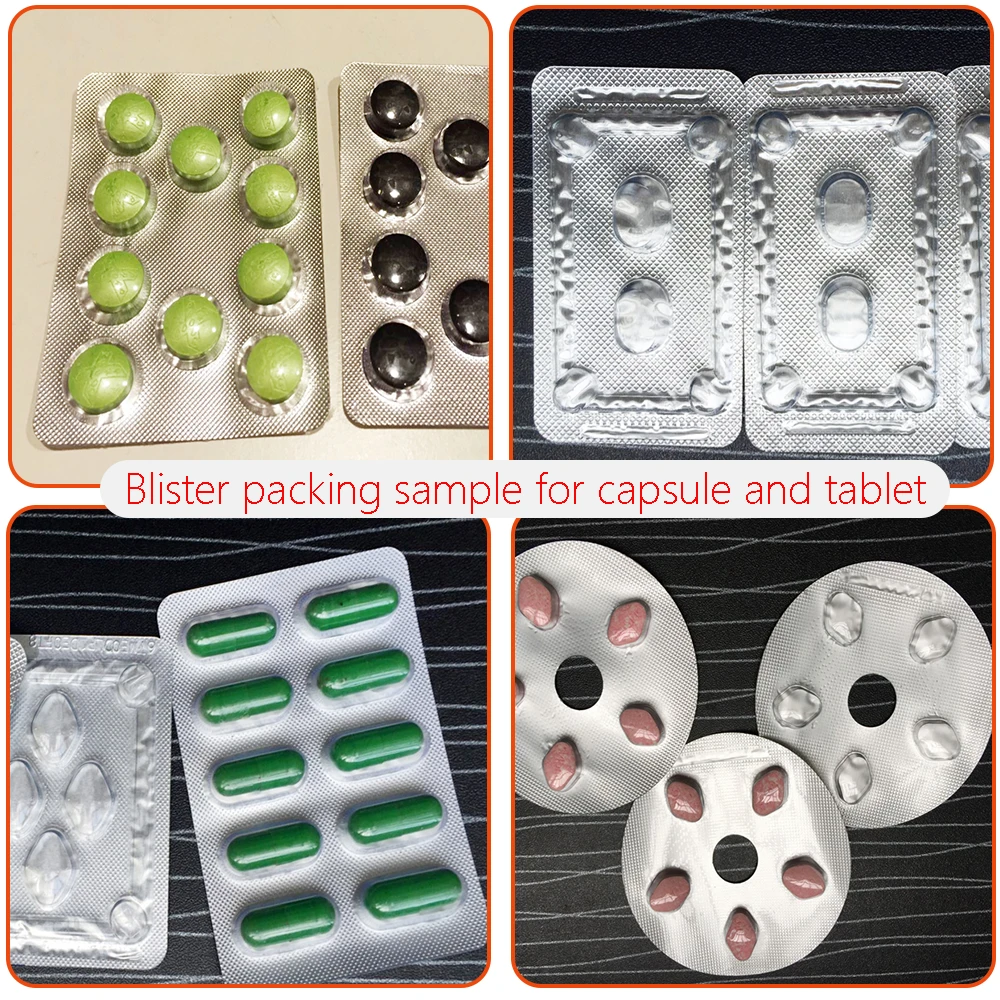

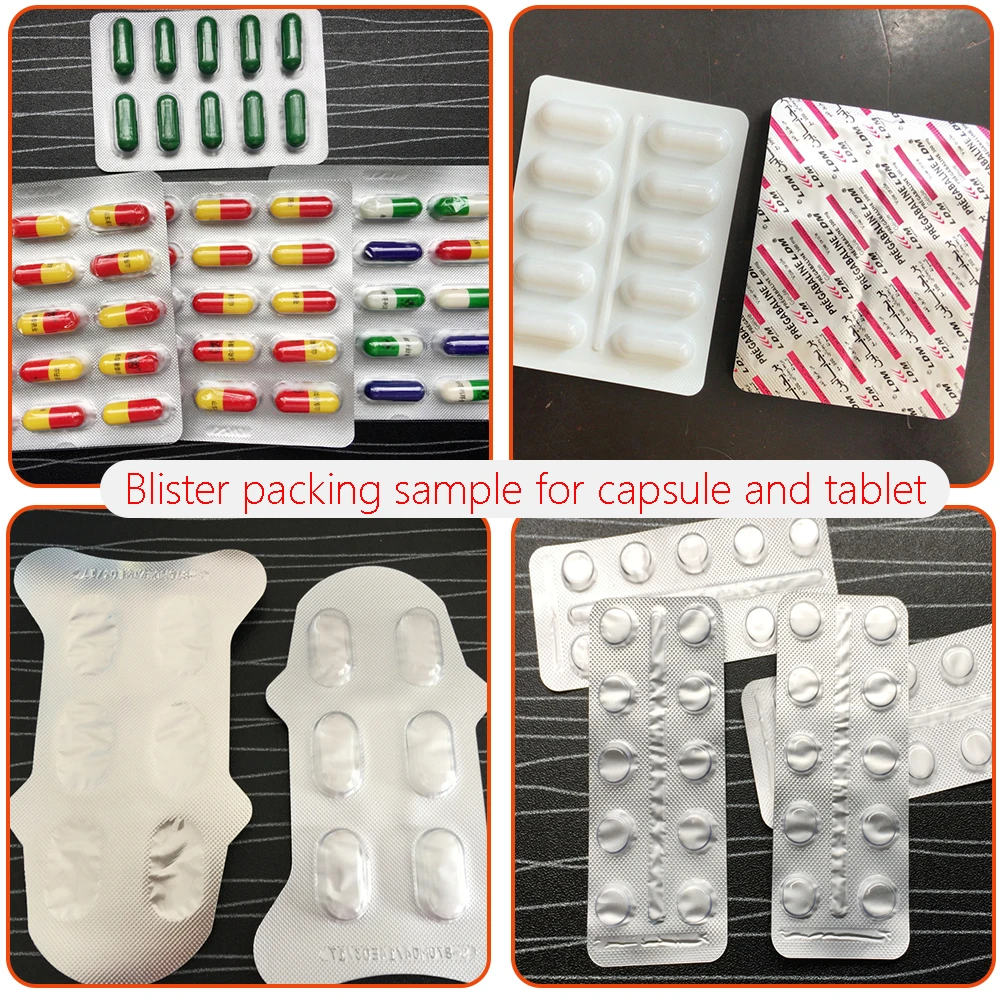

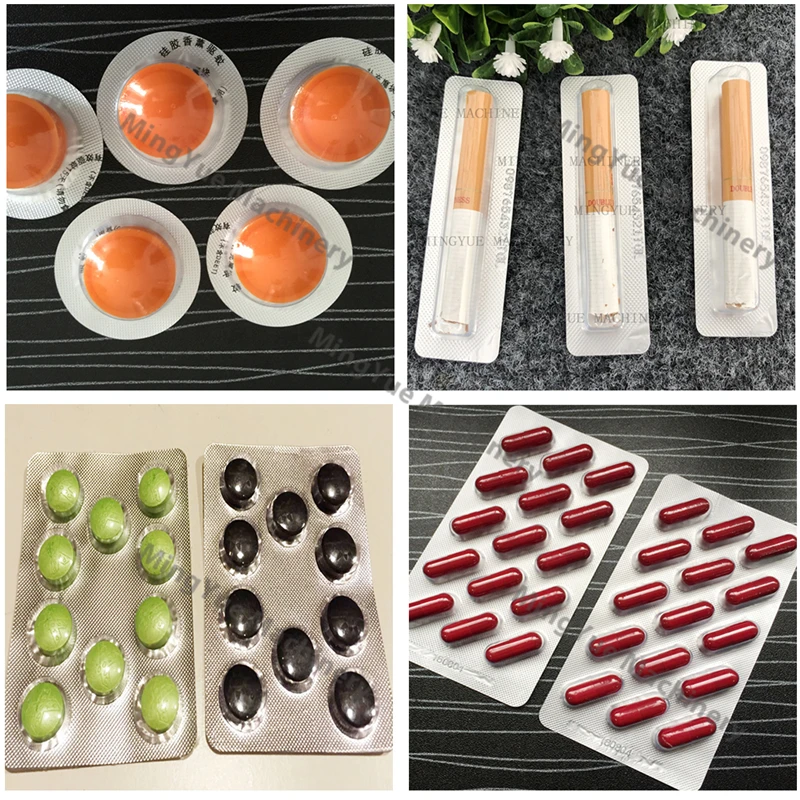

Capsule Sample Picture :





About The Shipping fee:The shipping cost on the website is not the actual price. Please negotiate with us about the shipping method and cost !











Hi, please send me your sample picture by mail or tell me what size capusle or tablet you want pack by mail , we will do our best for you !!!!!
