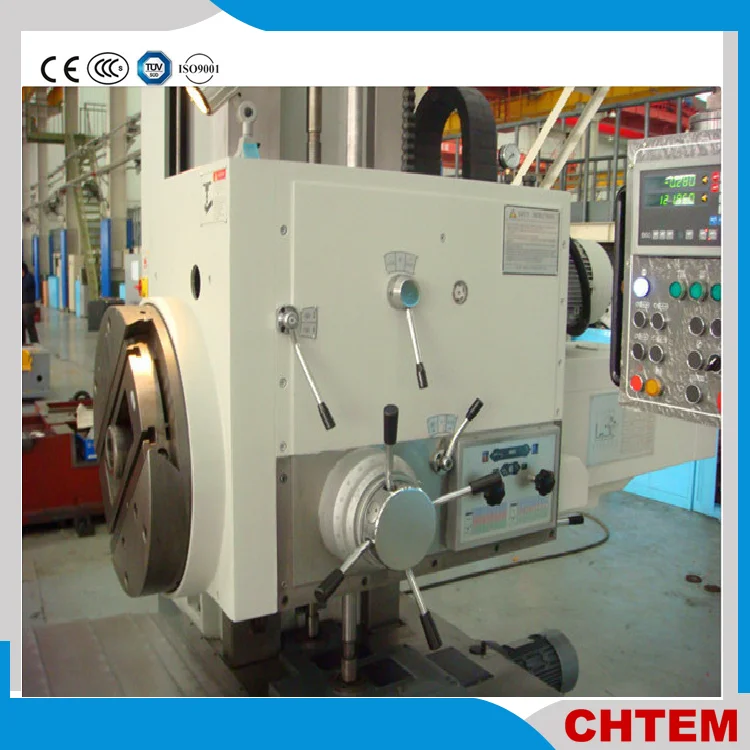

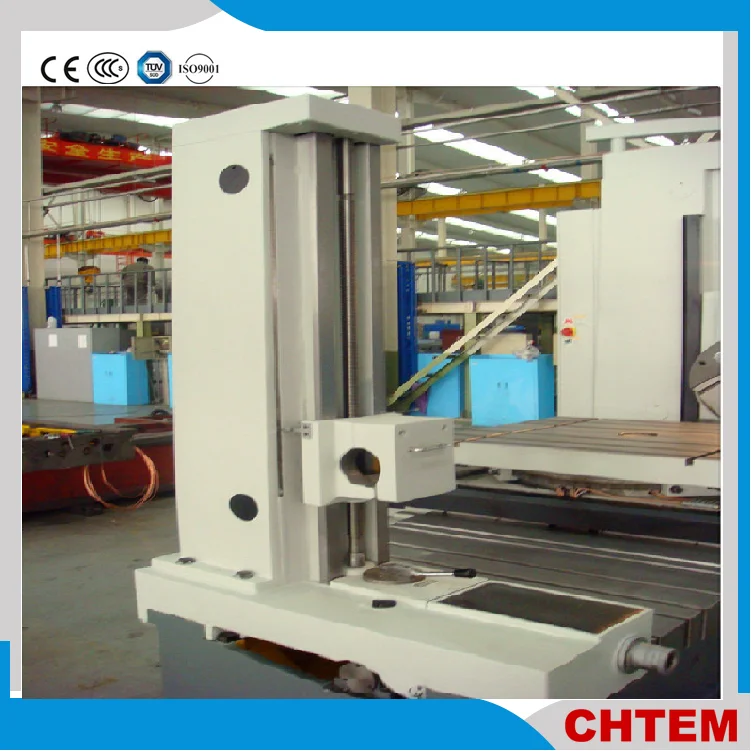

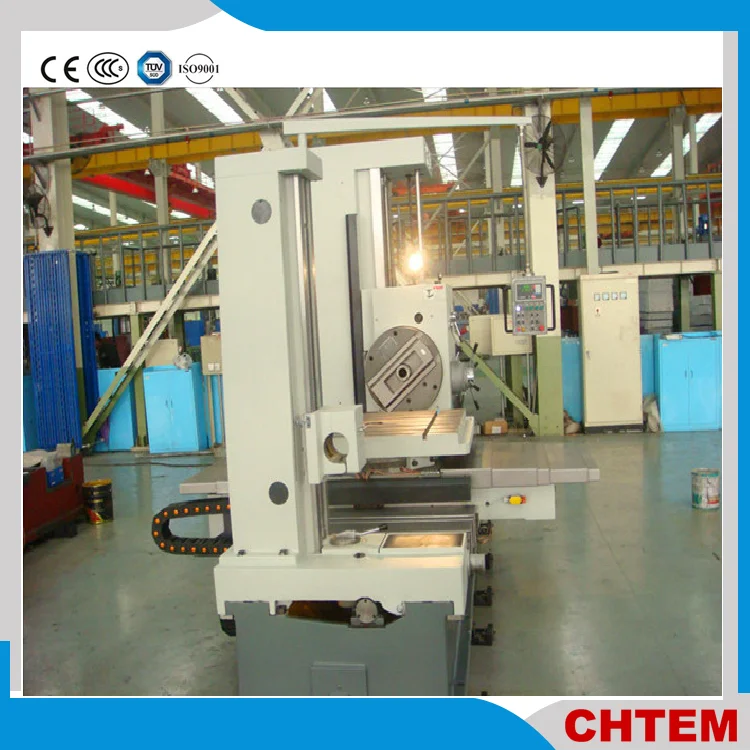

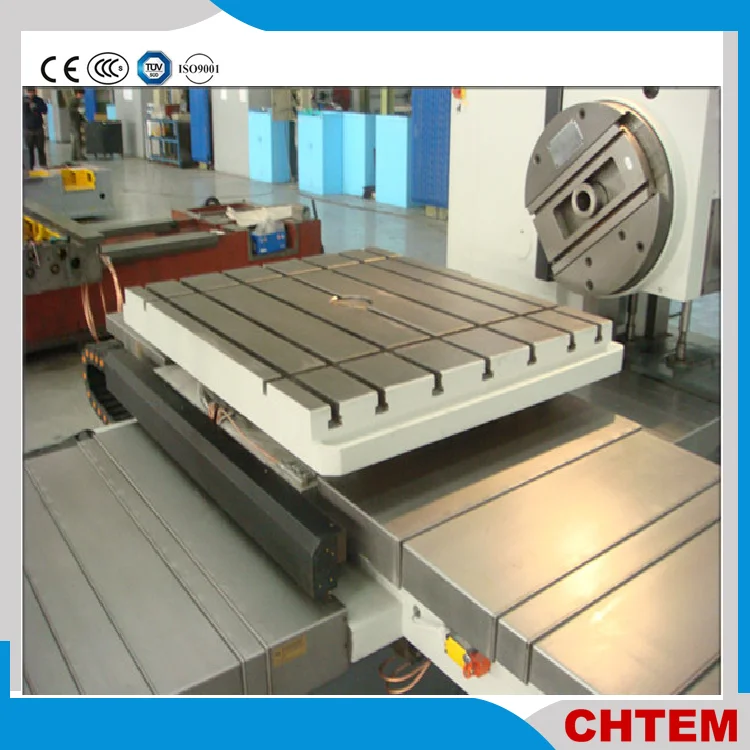

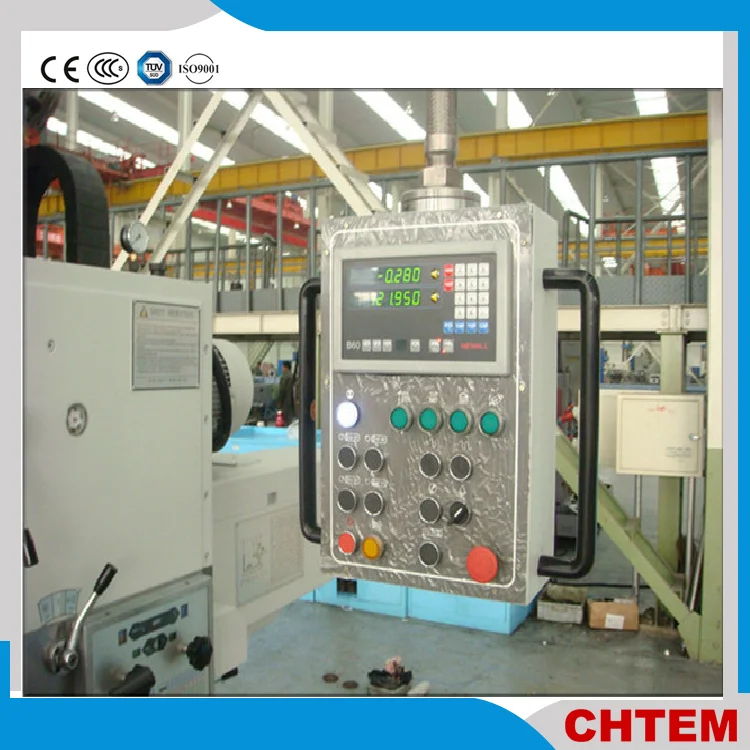

Horizontal Boring Machine TPX6113 Conventional Type
- Category: >>>
- Supplier: Qingdao Huiteng Machinery Equipment Co. Ltd.
Share on (60601065677):
Product Overview
Description
TK series -Floor type Planer type Table type, CNC and Manual DRO boring machine |
Min order: >=1 Sets |
Price: $150,000.00 |
Model Number: TPX6113A |
Warranty:1 Year for machinery warranty |
Customization:Customized logo (Min. Order: 1 set） |
Customized packaging (Min. Order: 1 Sets) |
Graphic customization (Min. Order: 1 Sets) |
Payment：L/C; T/T |
Product | Table type boring mills -Conventional type | TPX6113A | TPX6113B | TPX6113C |
Spindle diameter | mm | 130 | 130 | 130 |
Spindle taper | Metric 80 (7:24 No50) | Metric 80 (7:24 No50) | Metric 80 (7:24 No50) | |
Spindle range of spindle | r/min | 4-800 | 4-800 | 4-800 |
Facing head diameter | mm | 750 | 750 | 750 |
Motor power-Servo | KW | 15 | 15 | 15 |
Table loading capacity | Kg | 8000 | 8000 | 8000 |
Table size | mm | 1600*1400 | 1600*1400 | 1800*1600 |
Cross travel of table -X axis | mm | 1600 | 2000 | 2000 |
Vertical travel of spindle head-Y axis | mm | 1500 | 1800 | 2000 |
Longitude travel of cloumn-Z axis | mm | 1500 | 1500 | 1500 |
Axial travel of boring spindle-W axis | mm | 900 | 900 | 900 |
U-axis travel(slide of facing head travel) | mm | 250 | 250 | 250 |
Rapid travel(X/Y/Z) | mm/min | 2500 | 2500 | 2500 |
B-axis measurement system reading precision | degree | 0.001 | 0.001 | 0.001 |
Table rotary indexing-B axis | degree | 360 | 360 | 360 |
Application | the boring machine widely used for drilling, broaching, boring, groov cutting and plane milling. | the boring machine widely used for drilling, broaching, boring, groov cutting and plane milling. | the boring machine widely used for drilling, broaching, boring, groov cutting and plane milling. | |
engeering machinery, rolling-stock, mine facility, large motor, hydraulic, steam turbine, ship building, steel and military industries. | engeering machinery, rolling-stock, mine facility, large motor, hydraulic, steam turbine, ship building, steel and military industries. | engeering machinery, rolling-stock, mine facility, large motor, hydraulic, steam turbine, ship building, steel and military industries. |
Before shipment
1.Anti-rust and water-proof oil will be used.
2. Plastic cover will be used.
Export standard
3. Wooden cases to pack.
4. Steel wire will be used.
At seaport
5. Extra strengthen with wire ropes, bandages, wedges etc.
