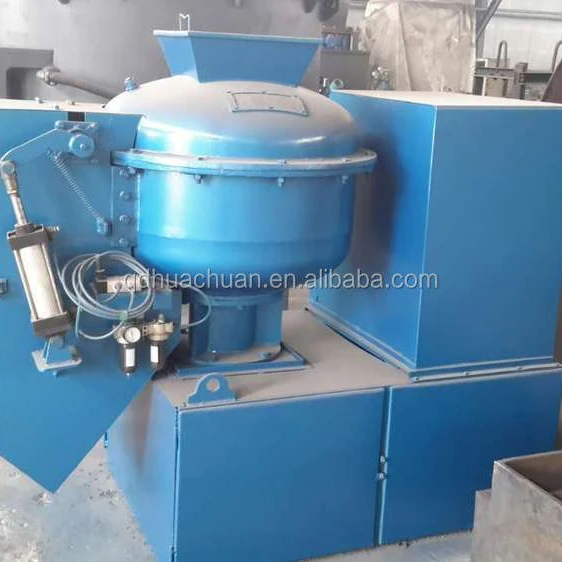

Машина для смешивания литейного песка в форме чаши, мешалка для песка из смолы
- Category: >>>
- Supplier: Qingdao Hua Chuan Machinery Co. Ltd.
Share on (60601168436):
Product Overview
Description
Product Description
Bowl Shape Foundry Sand Mixer Machine , Resin Sand Mixer

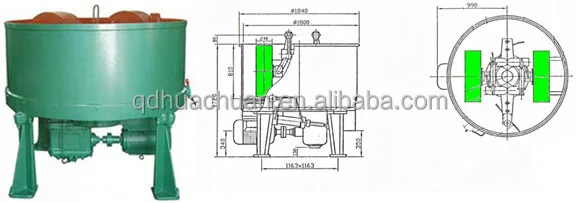

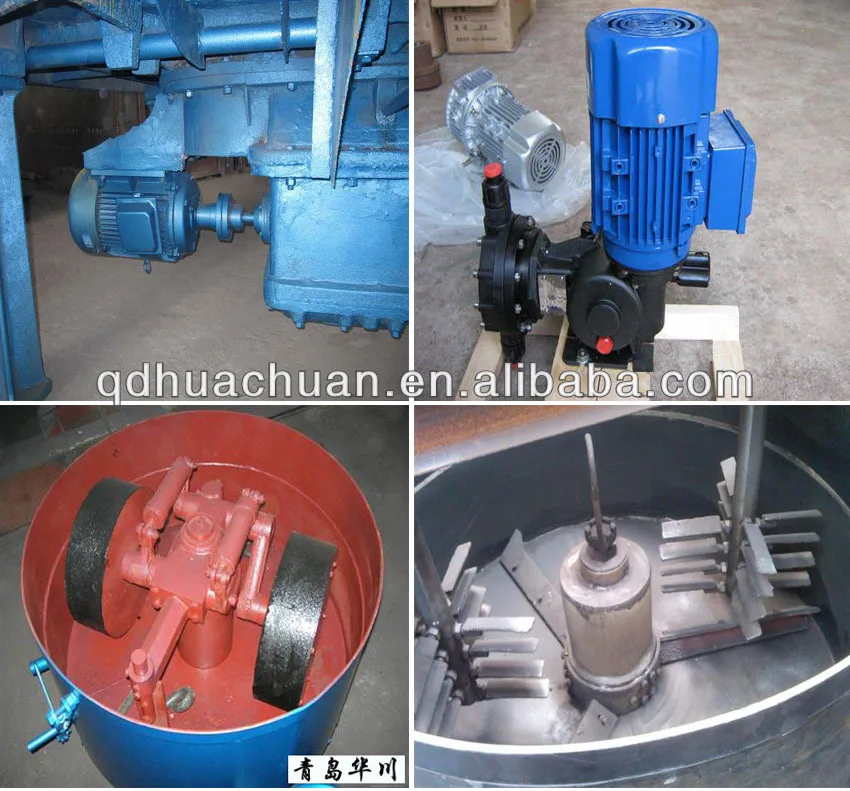

1.Two grinding wheels type
- The sand mixer equipped with two rolling wheels, two scraper.
- Rolling wheels have grinding and kneading action.
- It can make water, clay&other appendices evenly distribute in the sand surface.
- Scraper can make sand block loose, and blow no-blended sand to under the rolling wheels,then the Sand mixer continue to grind and knead the sand, until all the sand get uniformity.
Model | S1110 | S111A | S125B | S114C | S1118 | S1120D | S116C |
Dish diameter(mm) | Φ1000 | Φ1220 | Φ1450 | Φ1820 | Φ1800 | Φ2000 | Φ2400 |
A gal feed(kg) | 110 | 140 | 300-400 | 500 | 500-650 | 900 | 1000 |
Productivity(t/h) | 1.5-2.5 | 2.8-4 | 1-6 | 10-13 | 13-15 | 20 | 20 |
Spindle speed(r/min) | 44 | 34.7 | 32.5 | 34 | 36 | 34 | 23 |
Motor power(kw) | 4 | 5.5 | 7.5 | 15 | 22 | 37 | 22 |

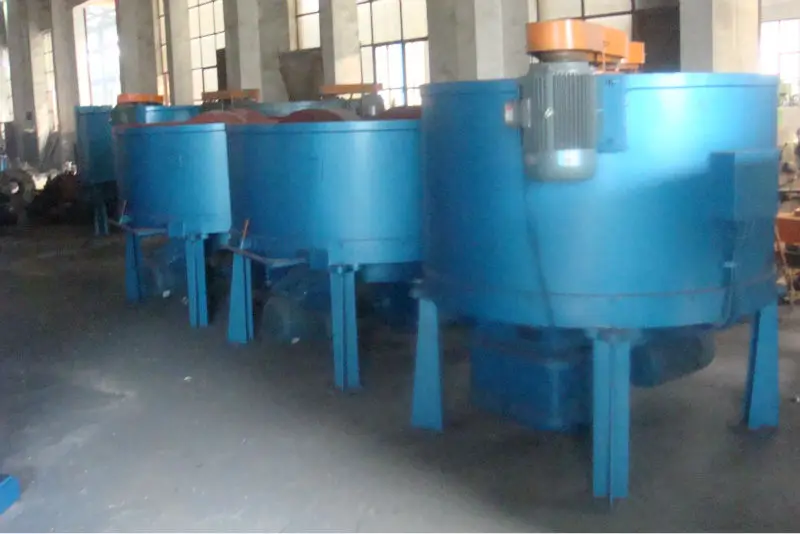

2.Two rotors type
- This mixer has two rotors, rotating by motor.
- This machine is batch type.
- The blades of rotor is alloy steel, wear-resisting well.
- At the bottom plate of mixer has three scraper blades.
It used in dustries such as, fire-proof, ceramics, glass and food.
| Name | SI620B | S1625A |
Dish diameter(mm) | Φ2000 | Φ2500 |
A gal feed(kg) | 1350 | 3000 |
Productivity(t/h) | 40 | 90 |
| Spindle speed(r/min) | 29 | 28 |
| Roting speed of rotor | 249 | 245 |
| Motor power(kw) | 75 | 155 |

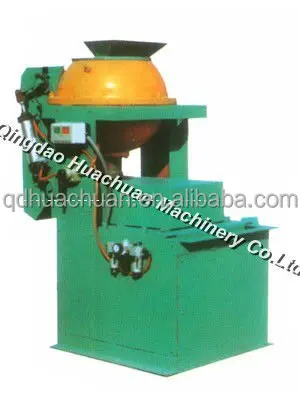

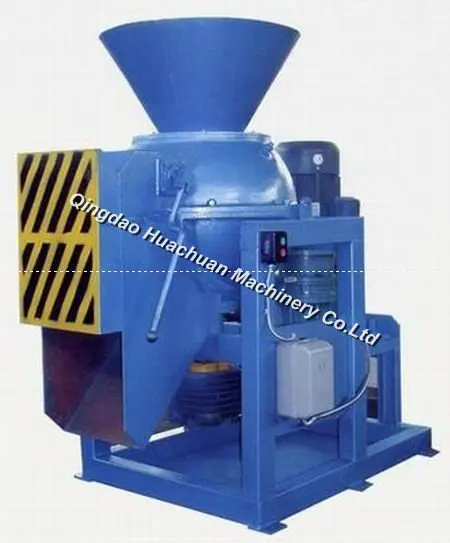

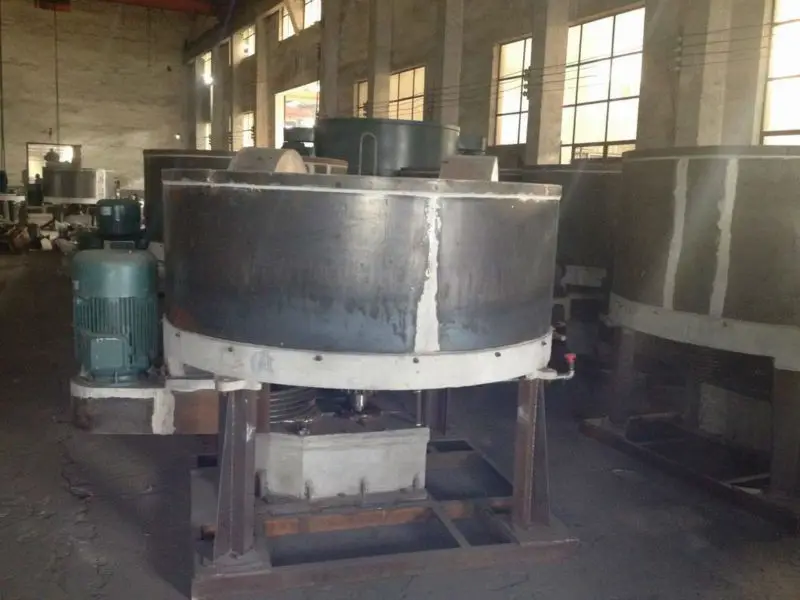

3.Bowl Type Sand Mixer

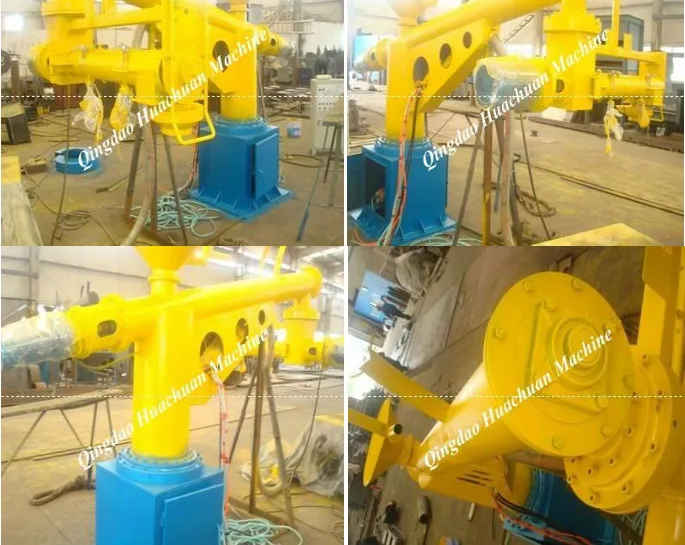

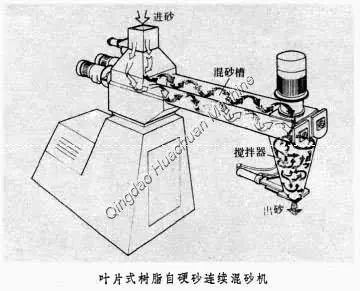

4.Mobile Type Mixer
- Light heavy
- Steady flow
- Mixing evenly and fully
- Easy operating and maintance
![WW`MB$8]{LN$D2{JLHBMZ4.jpg](http://sc01.alicdn.com/kf/HTB1uLgWGVXXXXbVXpXXq6xXFXXXE/200497141/HTB1uLgWGVXXXXbVXpXXq6xXFXXXE.jpg)
| Name | S243 | S248 |
| Production rate | 3t/h | 8t/h |
| Diameter | Φ175 | Φ200 |
| rotate speed | 960r/min | 960r/min |
| motor power | 3kw | 5.5kw |
| Turning radius | R1380MM | R2000MM |
| resin sand PUMP type | CB-B2.5 | CB-B6 |
| Agent pump type | Mb23 | Mb75 |

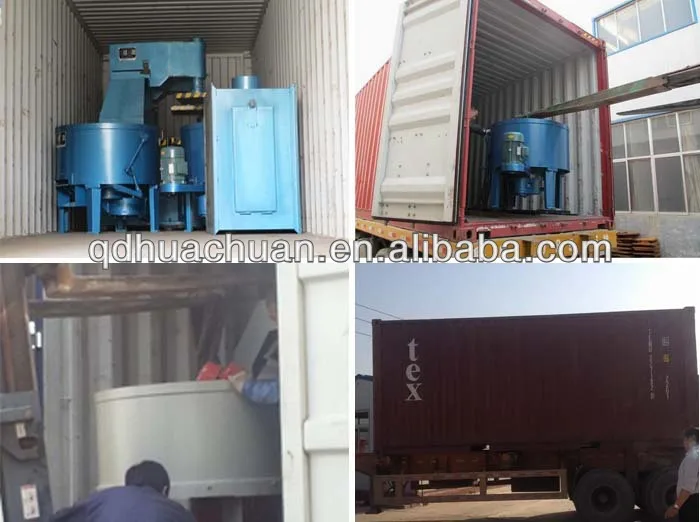

Packaging & Shipping

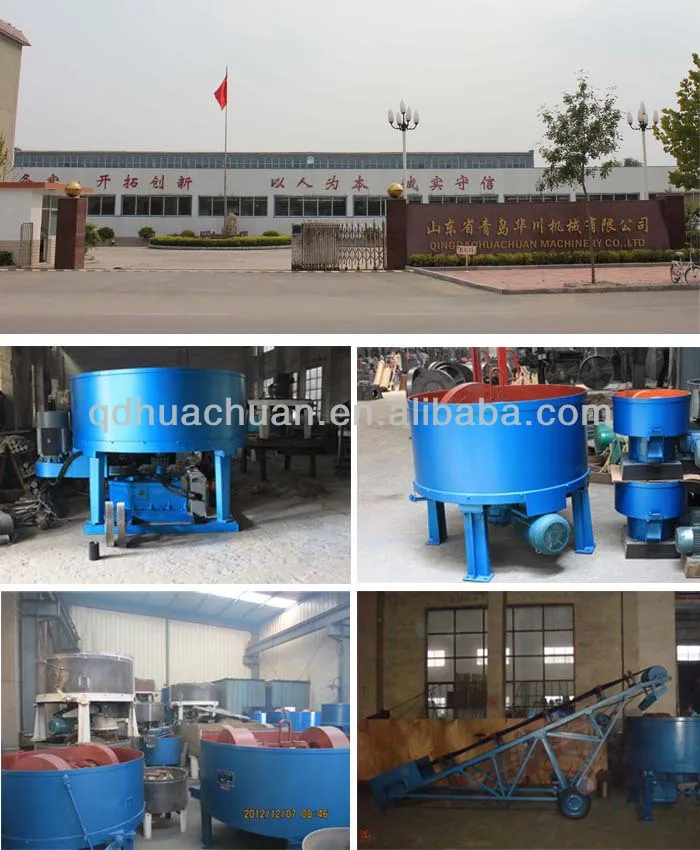

Company Information
