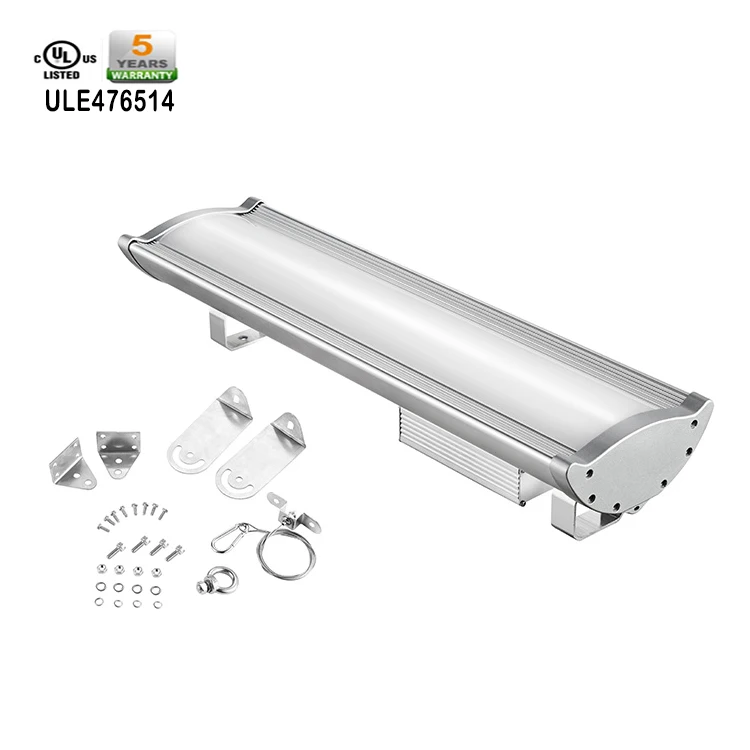

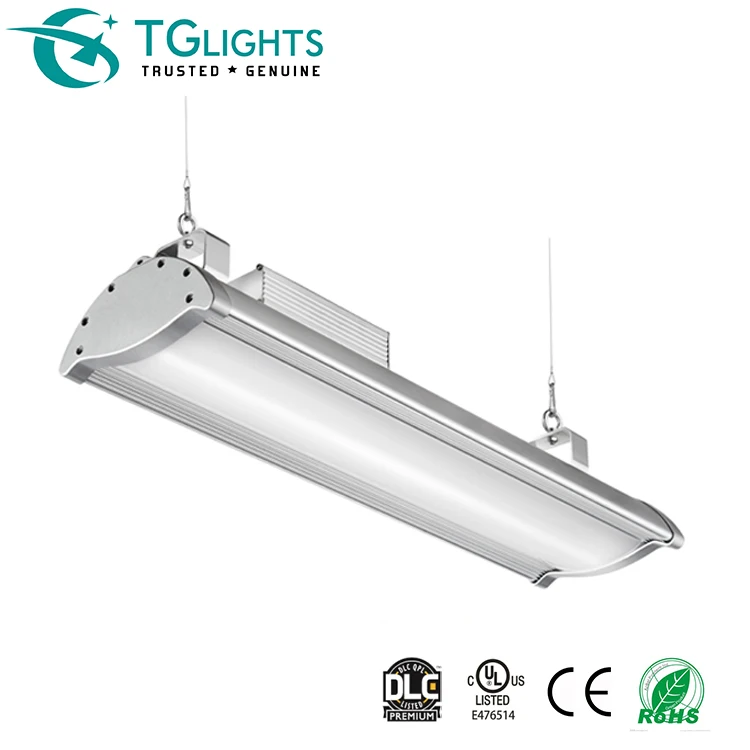

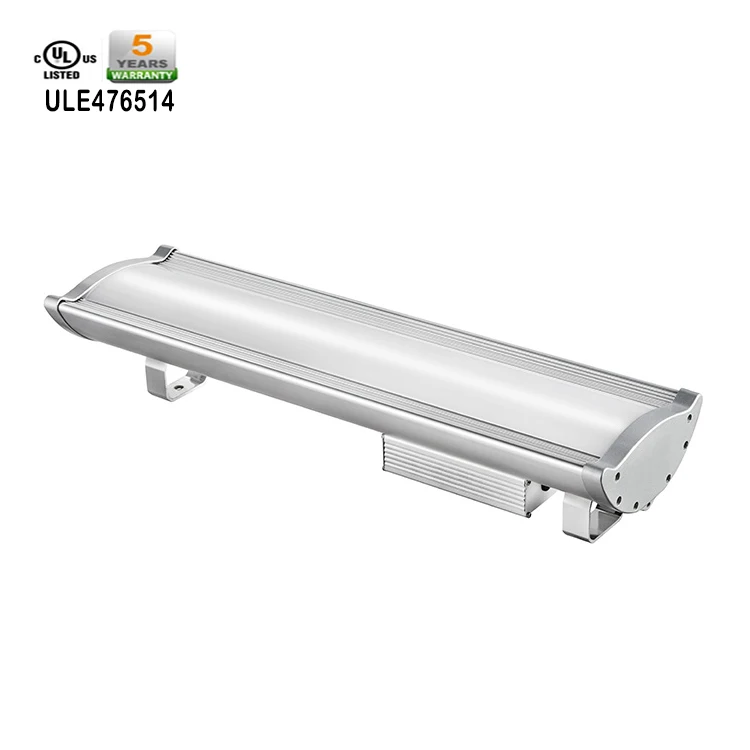

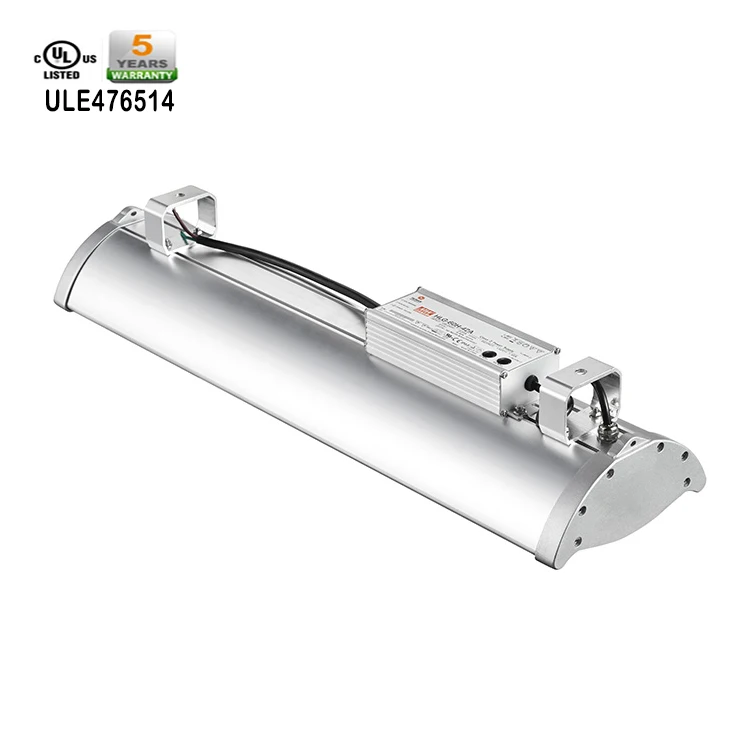

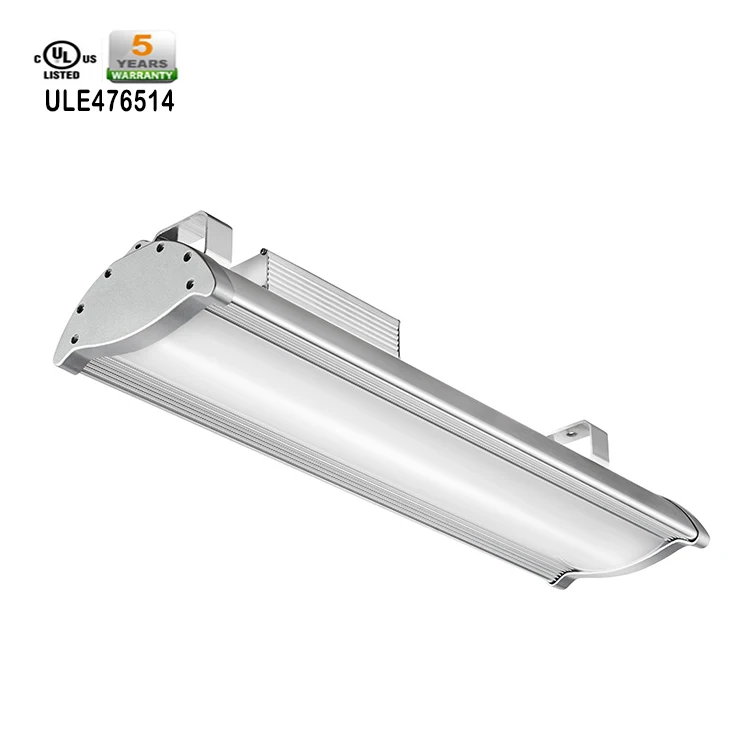

Long Life IP65 Narrow Beam Angel 50 or 80 Degree 80W LED Linear High Bay

Product Overview

Description

Long Life IP65 Narrow Beam Angel 50 or 80 Degree 80W LED Linear High Bay

Advantages

1.LG SMD5630, 120lm/w;

2.Beam Angle: 30D / 50D / 80D / 110D

3.For high lux request, 8-15m height applications

4.Dimming available: 1-10v, Microwave Motion Sensor, Daylight Sensor, DALI
5.Meanwell Brand driver, PF>0.96, THD<12, 50000 hours

6.IP65 waterproof, dust-proof and corrossion resistance

7.Gas-tight silicon rubber seal made for wet locations

8.Patent Design, smooth dust-free design
9.Aircraft-grade 6063 aluminum housing, quick heat sink and durable.
10.Excellent vibration & shock resistance

11.Mainy for high lux requirement and narrow beam angel with tempered frosted PC lens
12.Excelent color rendering,low dazzling and flicker free

13.Warranty: 5 Years

14.Follow CE ROHS standard

Technical Data



T600A Linear LED High Bay Data Sheet





Model No.	T600A0680W	T600A09120W	T600A12150W	T600A12180W
Power	80W	120W	150W	180W
Size (mm)	600x166x77	900x166x77	1200x166x77	1500x166x77
Input Volatge	AC90-305V,50/60Hz	AC90-305V,50/60Hz	AC90-305V,50/60Hz	AC90-305V,50/60Hz
CCT	4000K, 5000K, 5700K	4000K, 5000K, 5700K	4000K, 5000K, 5700K	4000K, 5000K, 5700K
CRI	Ra82-85	Ra82-85	Ra82-85	Ra82-85
Lumen	9450-10000LM	14000-15000LM	17000-18000LM	20000-21000LM
PF Value	>0.96	>0.96	>0.96	>0.96
Efficiency	120LM/W	120LM/W	120LM/W	120LM/W
Beam Angle	30D / 50D / 80D	30D / 50D / 80D	30D / 50D / 80D	30D / 50D / 80D
IP Rating	IP65	IP65	IP65	IP65
Driver	Meanwell	Meanwell	Meanwell	Meanwell
Net Weight	3.0kg	4.7kg	6.0kg	7.1kg
Life Span	50000hour	50000hours	50000hour	50000hour
Warranty	5 years	5 years	5 years	5 years
Dimming Option	1-10v,Motion sensor, DALI	1-10V,Motion sensor, DALI	1-10v,Motion sensor, DALI	1-10v,Motion sensor, DALI
Installations	Suspended,Mounted	Suspended,Mounted	Suspended,Mounted	Suspended,Mounted





Product Overviews







Application



T600A is for high lux requirement application. Suggested mounted height of 10m to 15m.

• Free workshop (freight house / warehouse)
• Sports center (gym / swimming pool / badminton court)
• Service area (supermarket / school / subway / buss station / airport)
• Manufacturing (plant / assembly area / production area)

UK Supermarket Warehouse with 150W 5000K 80Degree





Germany Beer Factory Warehouse with 120cm 150W 5000k





USA Large Warehouse with 160W LED High Bay





Laser curved Label:





Aging Test before delivery





Packaging & Shipping



660x220x215mm/2pcs, G.W.: 9.5KG
960x220x215mm/2pcs, G.W.: 13.5KG
1260x220x215mm/2pcs, G.W.: 15.5KG
1560x220x215mm/2pcs, G.W.: 18.5KG
