Popular Stainless Steel Horizontal Seam Welding Machine
- Category: Seam Welders >>>
- Supplier: Wuxi Volcano Welding & Cutting Equipment Co. Ltd.
Share on (60601228635):
Product Overview
Description
Product Description
Longitudinal Seam Welding Machine
Automatic Longitudinal Seam Welder series are mainly used for welding longitudinal seam of thin sheet.

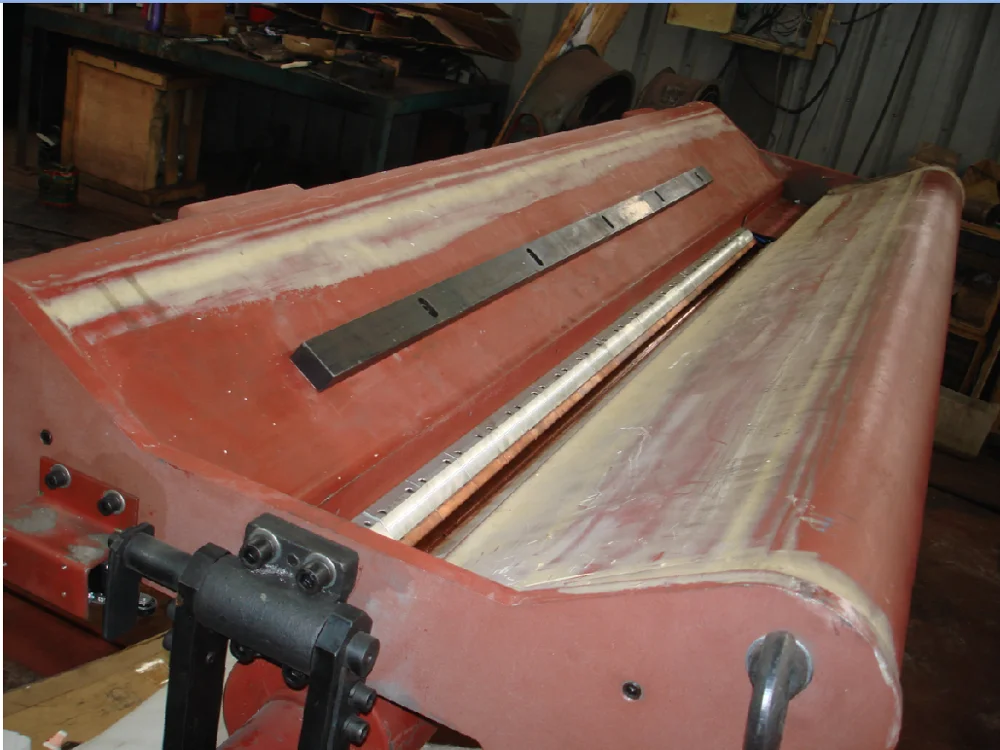

It adopts cantilever type, and it is mainly composed of frame, fingers-type clamping unit, water-cooling mandrel,
travelling carriage, crossing slider, wire feeder and torch holder. Fingers-type clamping unit owns special push
from air cell, pressure of air cell is adjusted between 0 to 7kg/cm2, and the distance of two banks of fingers
between 5 to 20mm to satisfy various welding seam width; Water-cooling mandrel is designed according the work

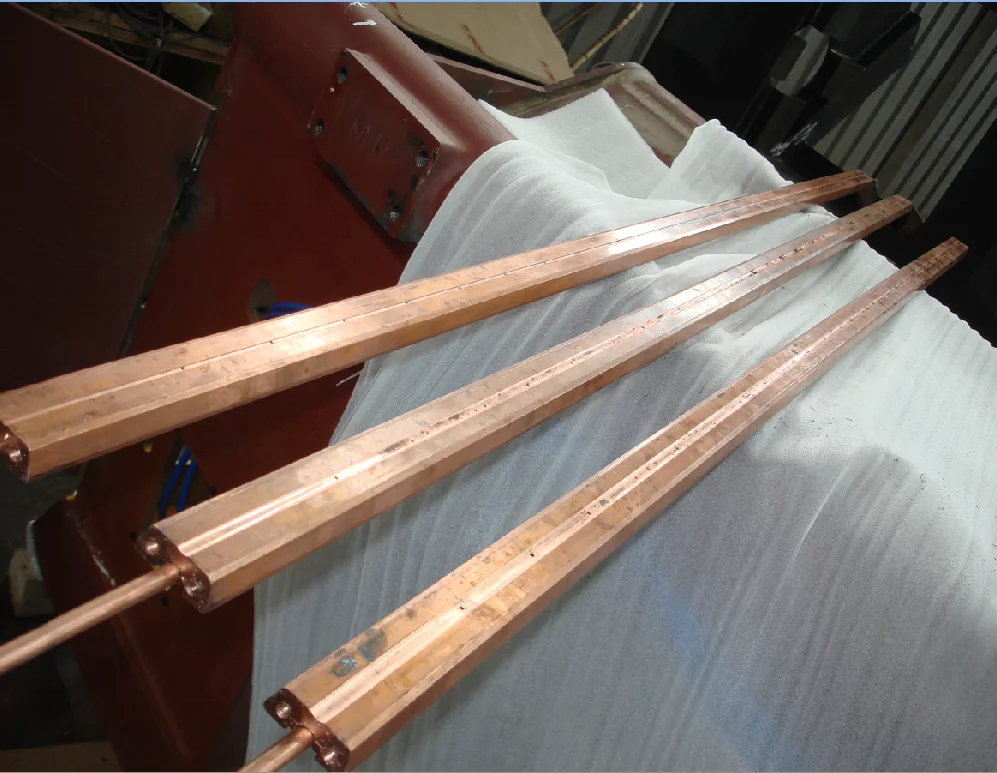

pieces' diameter and length to ensure the strength. The top of mandrel is inserted water-cooling insert with groove
for heat-sink cooling. It is adjustable in mandrel height to handle various material thicknesses. Beam is fitted with
travel carriage which is moved straightly by track and driving unit, variable speed.
Main Parameter
| Model | ZH-500 | ZH-1000 | ZH-1500 | ZH-2000 | ZH-2500 | ZH-3000 | ZH-3500 |
| Welding Length | <=500 | <=1000 | <=1500 | <=2000 | <=2500 | <=3000 | <=3500 |
| Min.Cyliner Diameter(mm) | >=110 | >=150 | >=180 | >=230 | >=280 | >=340 | >=400 |
| Welding Thickness(mm/min.) | 0.2-6 | 0.4-6 | 1-6 | ||||
| Welding Speed(mm) | 150-1500 | ||||||
| Speed Control | VFD | ||||||
| Workingpiece Fixing Method | Pneumatic | ||||||
| Stepped Precision(mm) | ±0.1 | ±0.15 | ±0.2 | ||||
Product Show
Longitudinal Seam Welding Machine
ZH2500 Special Longitudinal Seam Welding Machine
ZH-2000 Longitudinal Seam Welding Machine
Special longitudinal seam welding machine
PLASMA Longitudinal Seam Welding Machine
ZH2500 Longitudinal Seam Welding Machine
Product Details
You May Like
Certifications
Packaging
Factory View
Our Factory
Processing Equipment
Company Information
Our company has been established since 2004,and steady development by introduction and training of talents.
standardization of the management and construction of enterprise culture.Now our companypossesses the asset
of ten million more and covers anarea of 8,000 square meters.Our main products include Automatic Welding
Equipment,Surfacing Welding Equipment,CNC Cutting and Beveling Equipment,Arc welding Robots,Piet/Wind
Tower Product line and so on.
Why choose Volcano Brand welding equipment?
1. We are welding equipment MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
2. We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.
3. Our factory has been approved BUREAU VERITAS certificate.
4. Our main products (Includes Welding Manipulator, Welding Rotator, Welding Positioner, Longitudinal Seam Welding Machine) have been approved CE certificate.
5. We have successfully exported to Europe, USA, Middle East, Southeast Asia and so on foreign countries. We all get good feedback.
6. We provide a FREE ONE YEAR WARRANTY for all our items.
7. OEM brand.
